Toyota Camry (NAP)
2006-02 → 2011-09 · chassis ACV40,ASV40,GSV40 · catalogue 283480 · United States
Supported model
Data version 2011-10

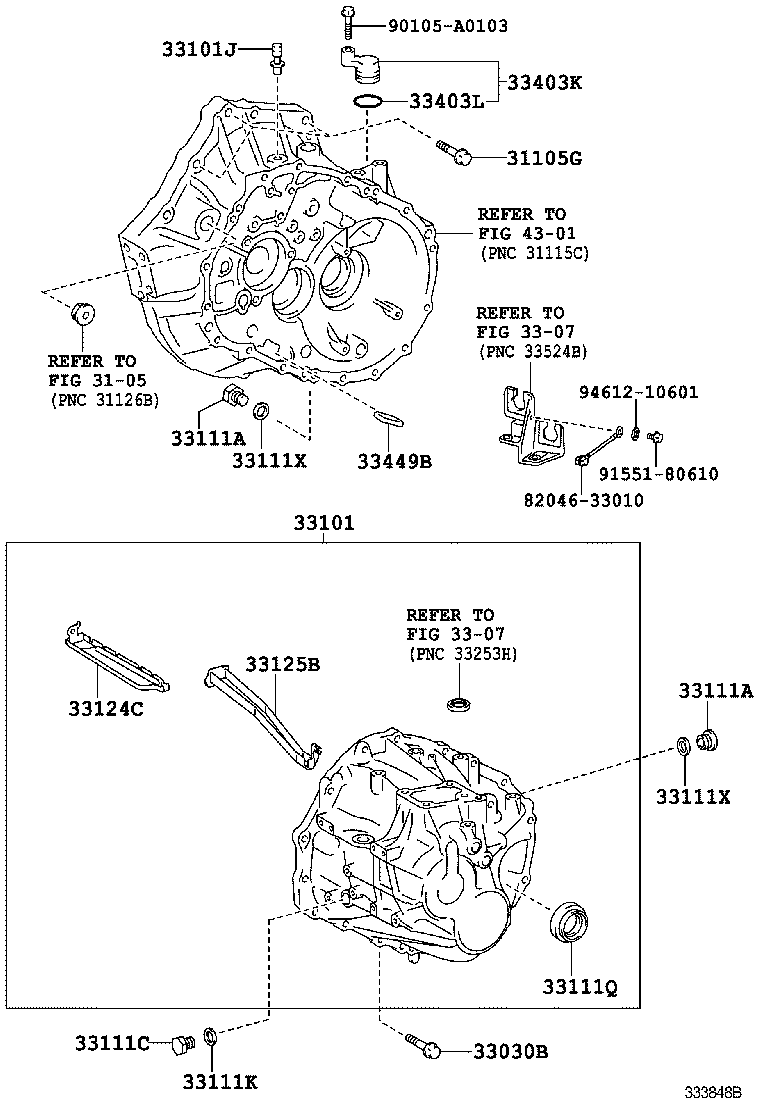

Clutch Housing & Transmission Case (MTM)
30 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 31105G | Bolt(FOR TRANSAXLE CASE & ENGINE SETTING) |
| 33030B | Bolt(FOR TRANSAXLE CASE & TRANSMISSION CASE SETTING) |
| 33101 | Case Sub-assy, Manual Transmission |
| 33101A | Plug(FOR MANUAL TRANSMISSION FILLER) |
| 33101C | Gasket(FOR MANUAL TRANSMISSION FILLER PLUG) |
| 33101J | Plug, Breather |
| 33101U | Plug, Breather(FOR MANUAL TRANSMISSION) |
| 33101V | Gasket(FOR MANUAL TRANSMISSION BREATHER PLUG) |
| 33102 | Cover Sub-assy, Manual Transmission Case |
| 33104 | Plug Sub-assy, Drain(MTM) |
| 33104A | Gasket, Drain Plug(MTM) |
| 33111 | Case, Manual Transmission |
| 33111A | Plug, Manual Transmission Case |
| 33111C | Plug(FOR TRANSMISSION CASE) |
| 33111J | Pin, Straight(FOR MANUAL TRANSMISSION CASE) |
| 33111K | Gasket(FOR TRANSMISSION CASE) |
| 33111Q | Seal, Oil(FOR TRANSMISSION CASE) |
| 33111X | Gasket, Transmission Case Plug |
| 33117 | Protector, Manual Transmission Case |
| 33117A | Bolt(FOR MANUAL TRANSMISSION CASE PROTECTOR) |
| 33121H | Bolt, W/Washer(FOR TRANSMISSION CASE COVER) |
| 33124C | Pipe, Oil Receiver, NO.1(MTM) |
| 33124D | Pipe, Oil Receiver, NO.2(MTM) |
| 33124H | Bolt(FOR OIL RECEIVER PIPE) |
| 33125B | Receiver, Manual Transmission Case |
| 33143G | Baffle, Transmission Oil |
| 33143H | Bolt(FOR TRANSMISSION OIL BAFFLE) |
| 33403K | Cover Sub-assy, Speedometer Driven Hole |
| 33403L | Ring, O |
| 33449B | Magnet, Transmission |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
