Toyota Camry (NAP)
2006-02 → 2011-09 · chassis ACV40,ASV40,GSV40 · catalogue 283480 · United States
Supported model
Data version 2011-10

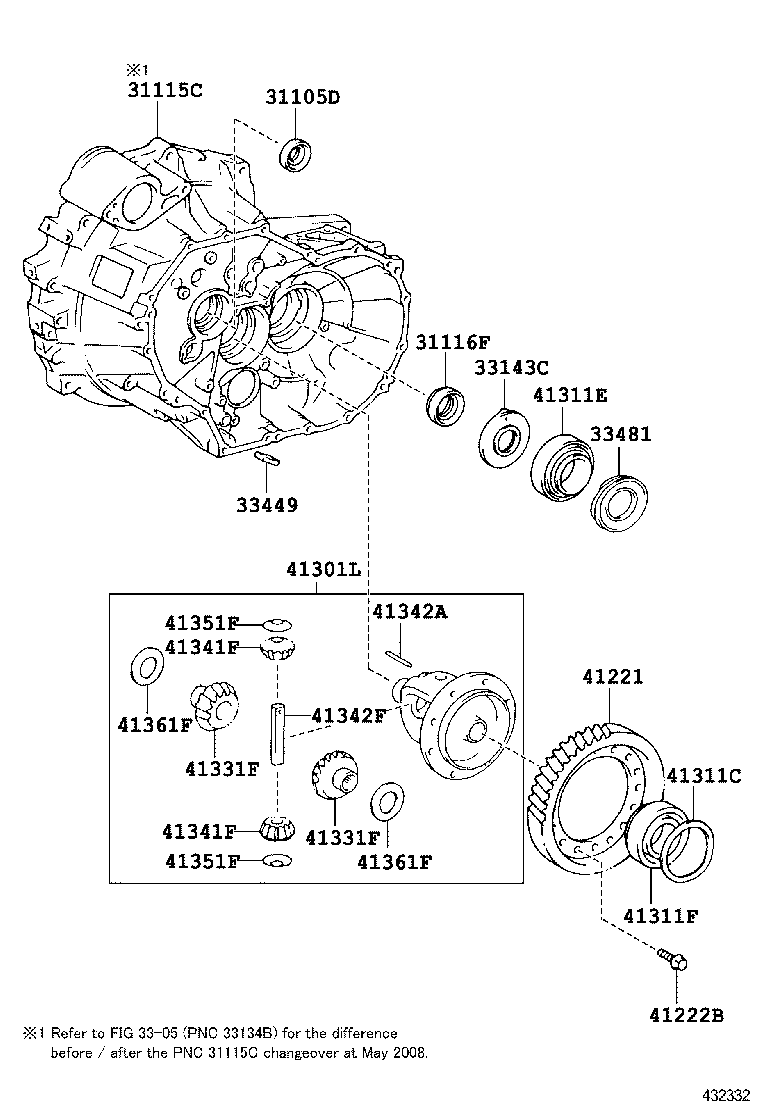

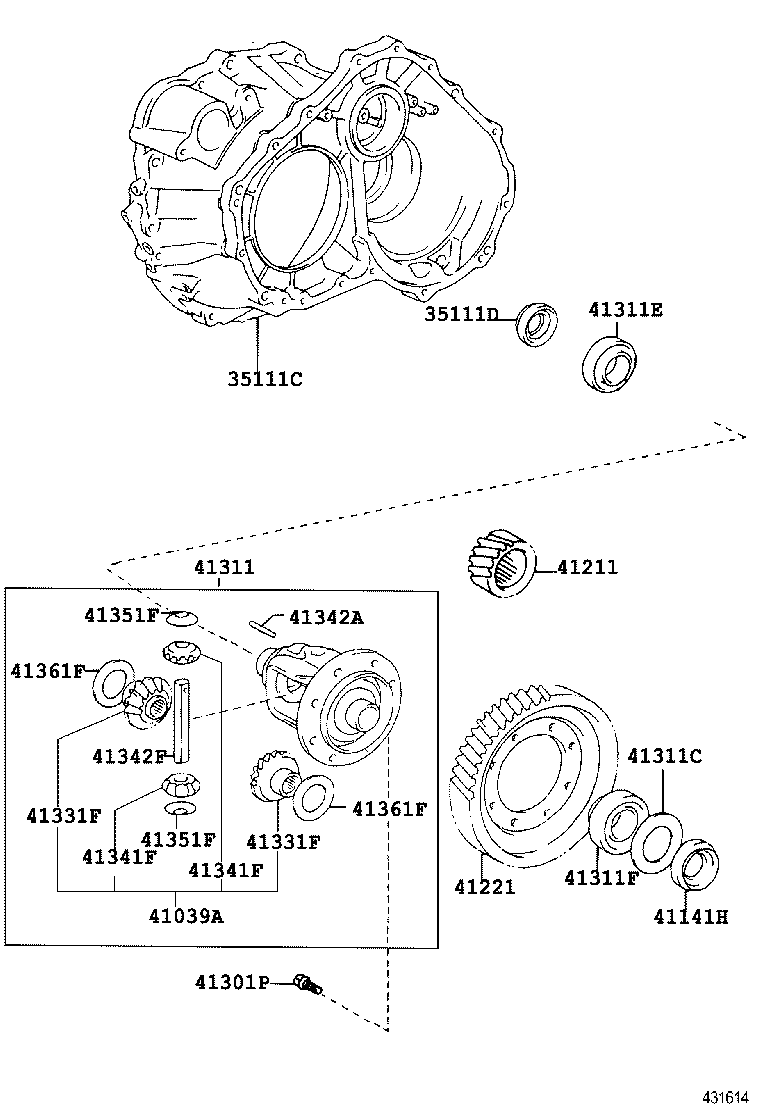

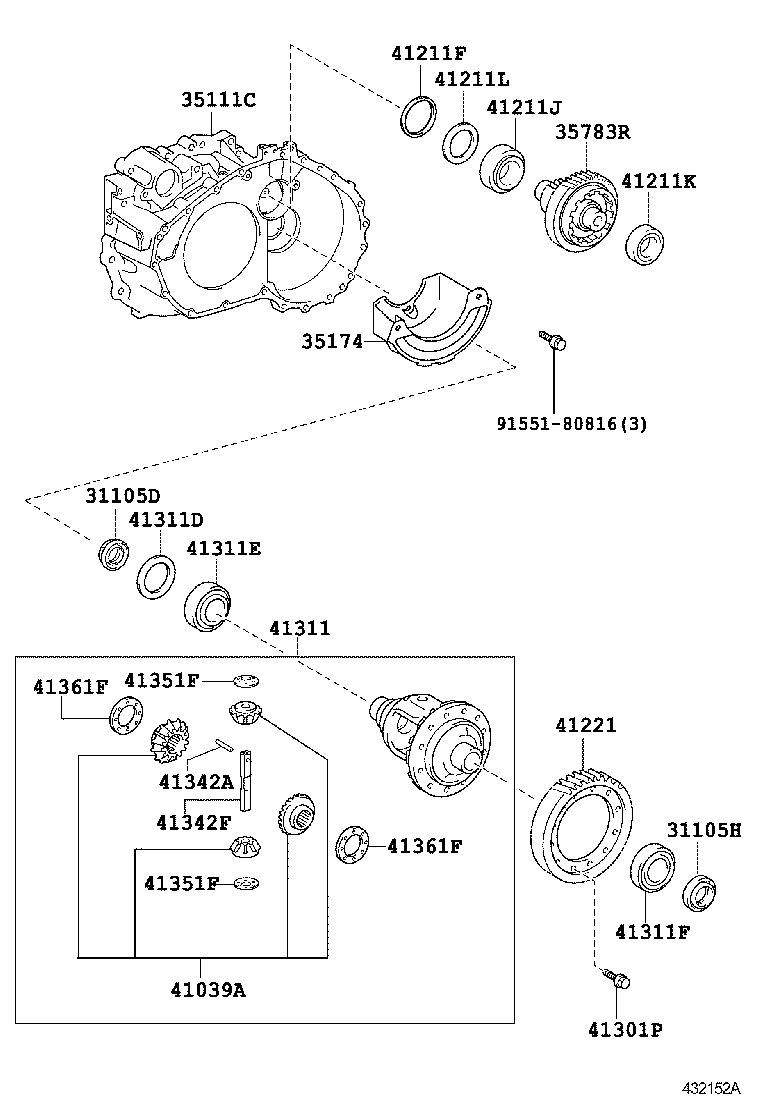

Front Axle Housing & Differential
36 part groups · 5 illustrations
Part groups
| PNC | Description |
|---|---|
| 31105C | Pin, Straight(FOR TRANSAXLE CASE) |
| 31105D | Seal, Oil, NO.1(FOR FRONT TRANSAXLE CASE) |
| 31105H | Seal, Oil, NO.2(FOR TRANSAXLE CASE) |
| 31115C | Case, Front Transaxle(MTM) |
| 31116F | Seal, Oil(FOR FRONT TRANSAXLE CASE COVER) |
| 33143C | Baffle, Front Differential Oil |
| 33449 | Magnet, Transmission |
| 33481 | Gear, Speedometer Drive (MTM) |
| 35111C | Housing, Transaxle |
| 35111D | Seal, Oil (FOR TRANSAXLE HOUSING) |
| 35174 | Separator, Transaxle Housing Oil |
| 35783R | Gear, Counter Driven |
| 41039A | Gear Kit, Differential |
| 41141H | Seal, Oil(FOR DIFFERENTIAL SIDE BEARING RETAINER) |
| 41211 | Pinion, Differential Drive |
| 41211F | Bearing, Thrust Needle Roller(FOR FRONT DRIVE PINION RH) |
| 41211J | Bearing, Tapered Roller (FOR DIFFERENTIAL DRIVE PINION RH) |
| 41211K | Bearing, Tapered Roller (FOR DIFFERENTIAL DRIVE PINION LH) |
| 41211L | Shim (FOR DIFFERENTIAL DRIVE PINION) |
| 41221 | Gear, Front Differential Ring |
| 41222B | Bolt (FOR FRONT DIFFERENTIAL RING GEAR SET) |
| 41301L | Case Sub-assy, Front Differential, NO.1 |
| 41301P | Screw(FOR FRONT DIFFERENTIAL CASE) |
| 41311 | Case, Front Differential |
| 41311C | Shim (FOR FRONT DIFFERENTIAL CASE REAR) |
| 41311D | Shim (FOR FRONT DIFFERENTIAL CASE FRONT) |
| 41311E | Bearing, Tapered Roller (FOR FRONT DIFFERENTIAL CASE FRONT) |
| 41311F | Bearing, Tapered Roller (FOR FRONT DIFFERENTIAL CASE REAR) |
| 41331F | Gear, Front Differential Side |
| 41331Q | Gear, Differential Side |
| 41341F | Pinion, Front Differential |
| 41341H | Pinion, Differential |
| 41342A | Pin, Straight (FOR FRONT DIFFERENTIAL PINION SHAFT) |
| 41342F | Shaft, Front Differential Pinion, NO.1 |
| 41351F | Washer, Front Differential Pinion Thrust |
| 41361F | Washer, Front Differential Side Gear Thrust, NO.1 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
