Toyota Camry (NAP)
2006-02 → 2011-09 · chassis ACV40,ASV40,GSV40 · catalogue 283480 · United States
Supported model
Data version 2011-10

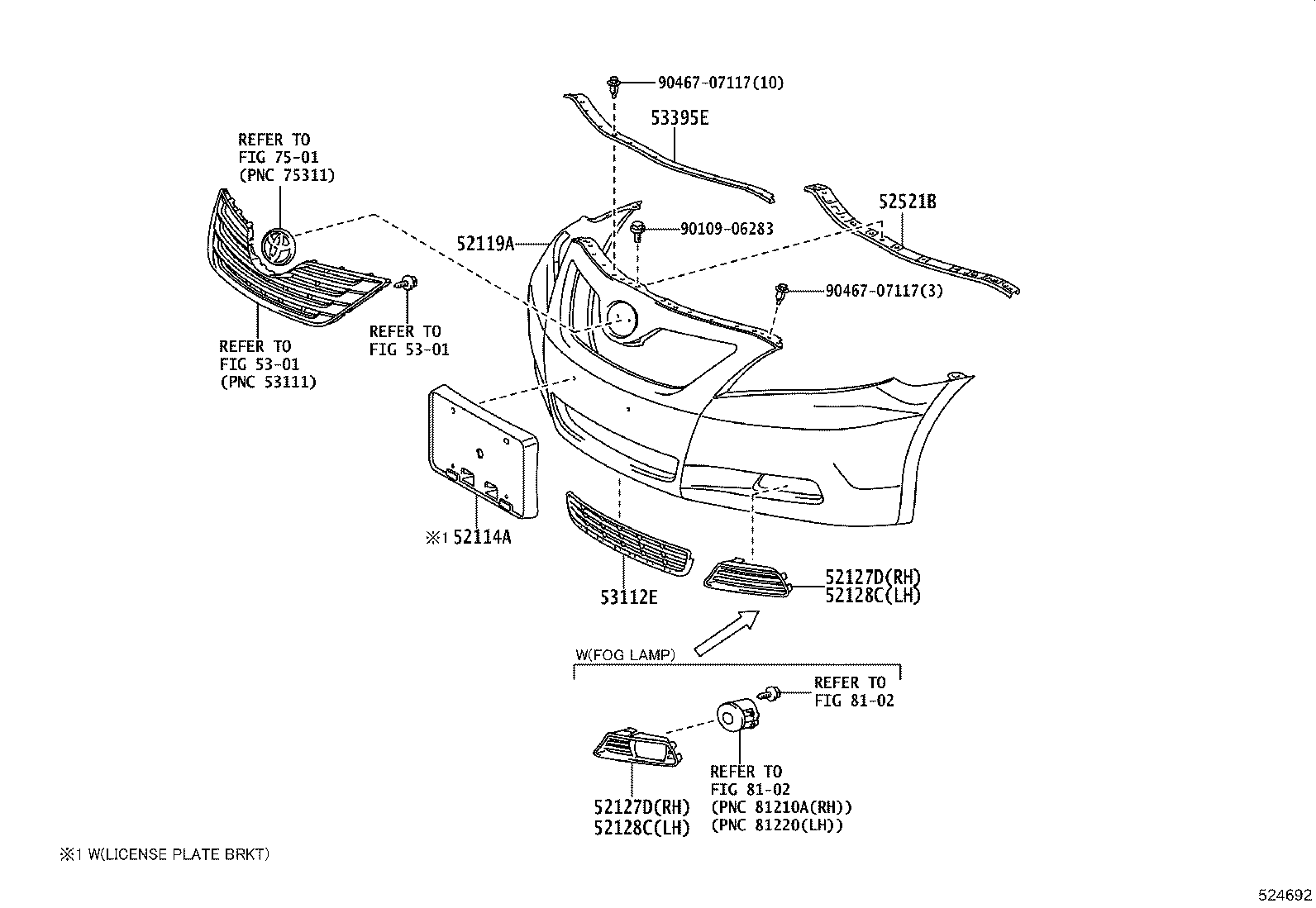

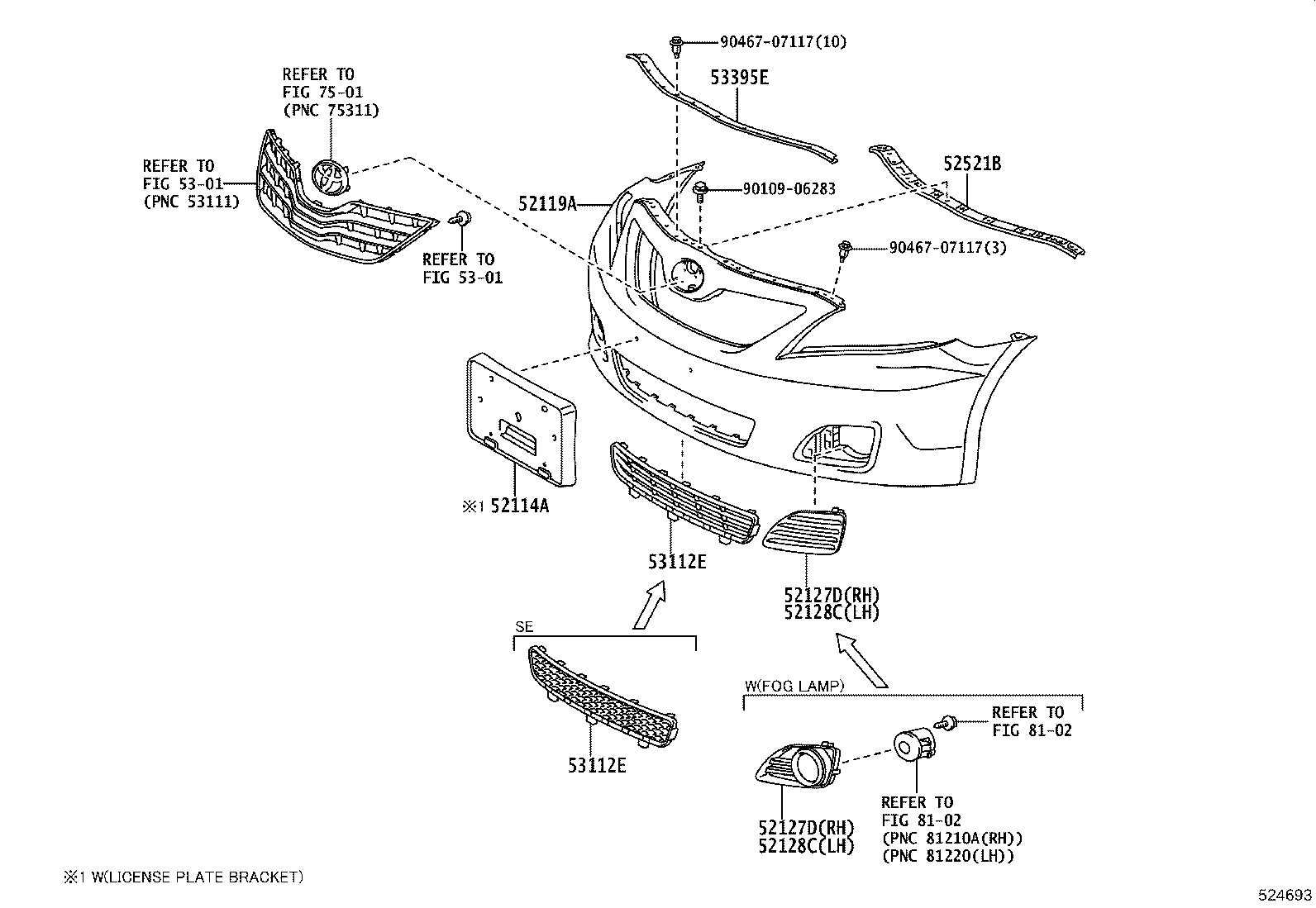

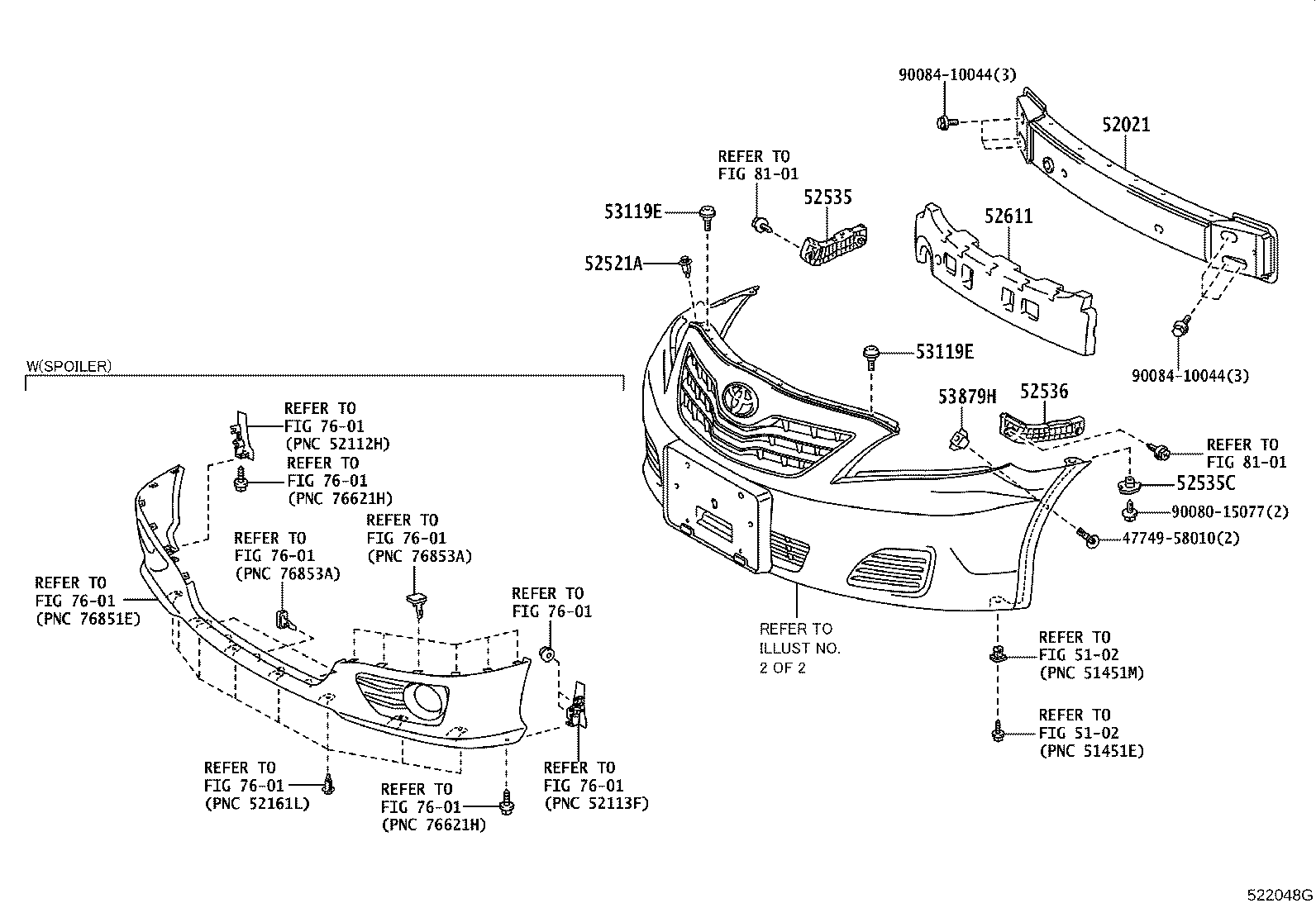

Front Bumper & Bumper Stay
15 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 52021 | Reinforcement Sub-assy, Front Bumper |
| 52114A | Bracket, Front Bumper Extension Mounting |
| 52119A | Cover, Front Bumper |
| 52127D | Cover, Front Bumper Hole, RH |
| 52128C | Cover, Front Bumper Hole, LH |
| 52521A | Clip(FOR FRONT BUMPER RETAINER) |
| 52521B | Retainer, Front Bumper, Upper |
| 52535 | Retainer, Front Bumper Side, RH |
| 52535C | Retainer, Front Bumper Side |
| 52536 | Retainer, Front Bumper Side, LH |
| 52611 | Absorber, Front Bumper Energy |
| 53112E | Grille, Radiator, Lower NO.1 |
| 53119E | Protector, Radiator Grille |
| 53395E | Seal, Hood TO Front End Panel |
| 53879H | Retainer, Front Fender Liner |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
