Toyota Camry (NAP)

2006-02 → 2011-09 · chassis ACV40,ASV40,GSV40 · catalogue 283480 · United States

Supported model Data version 2011-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Wiring & Clamp

66 part groups · 15 illustrations

Illustrations

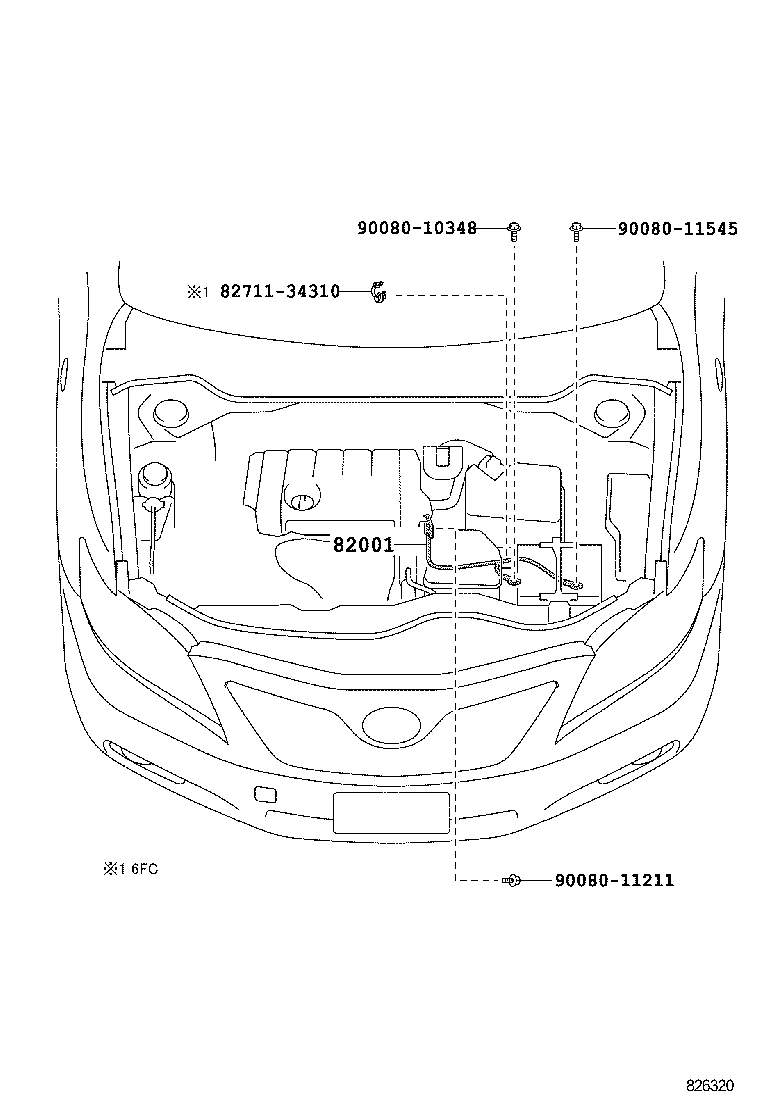

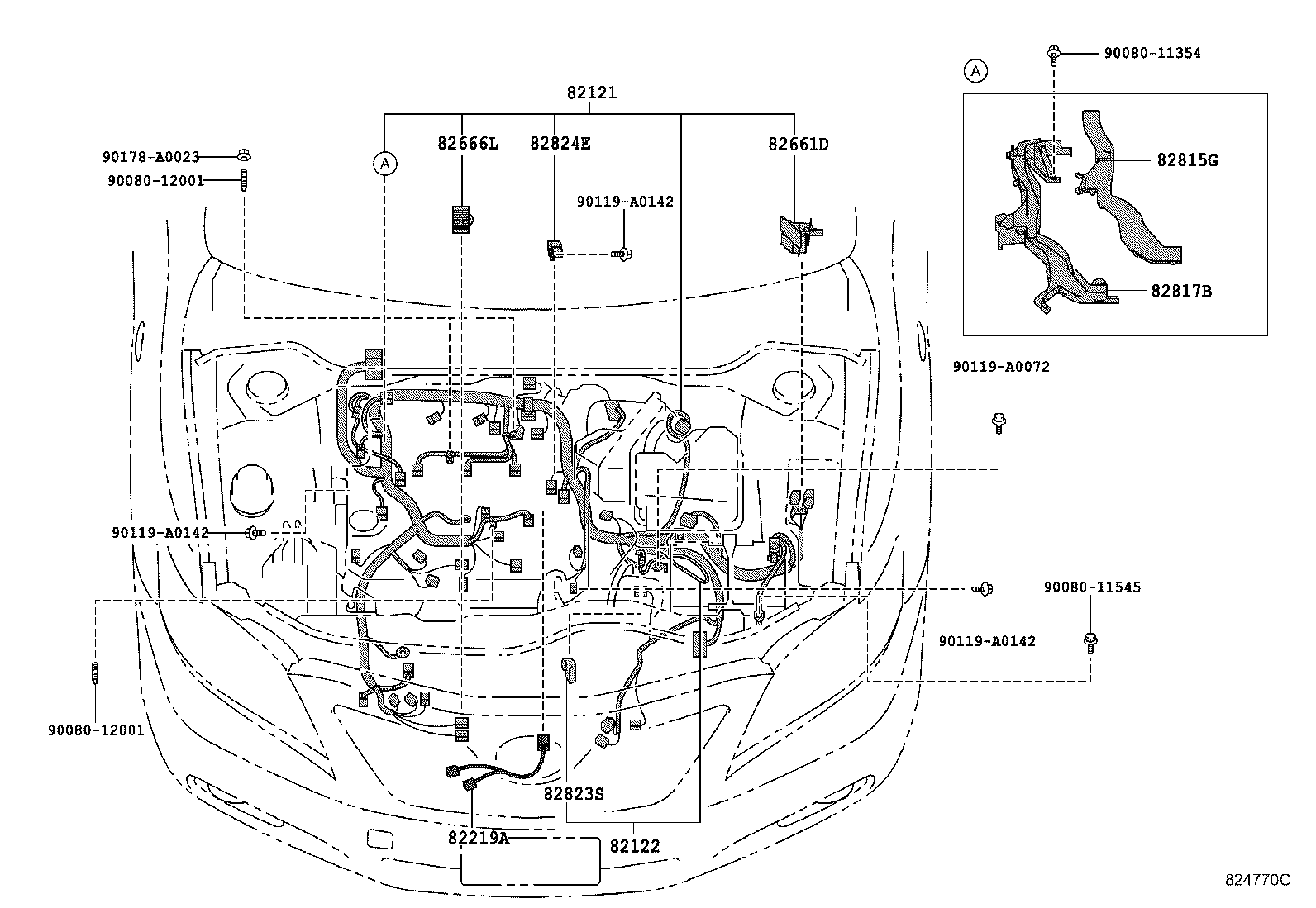

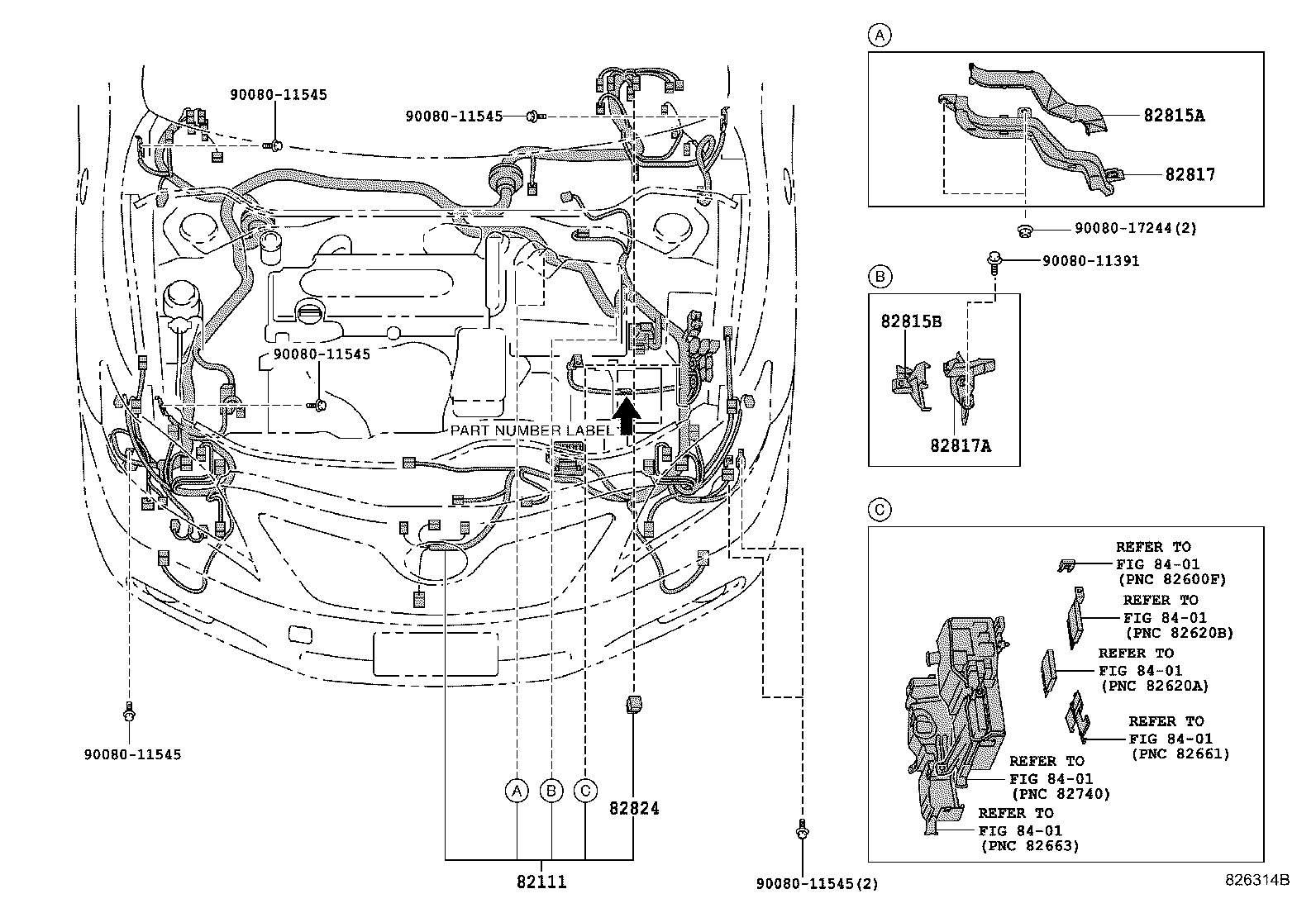

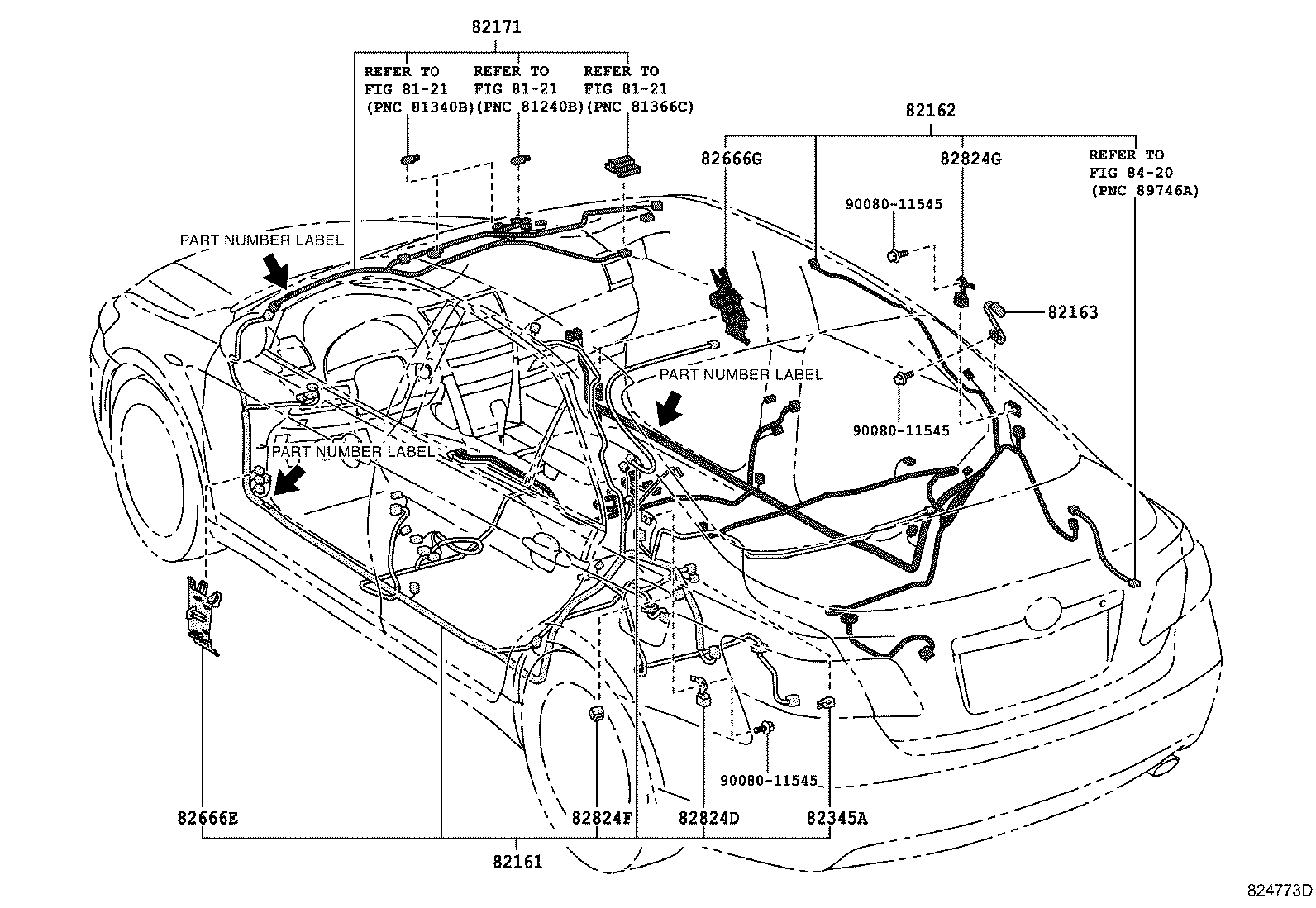

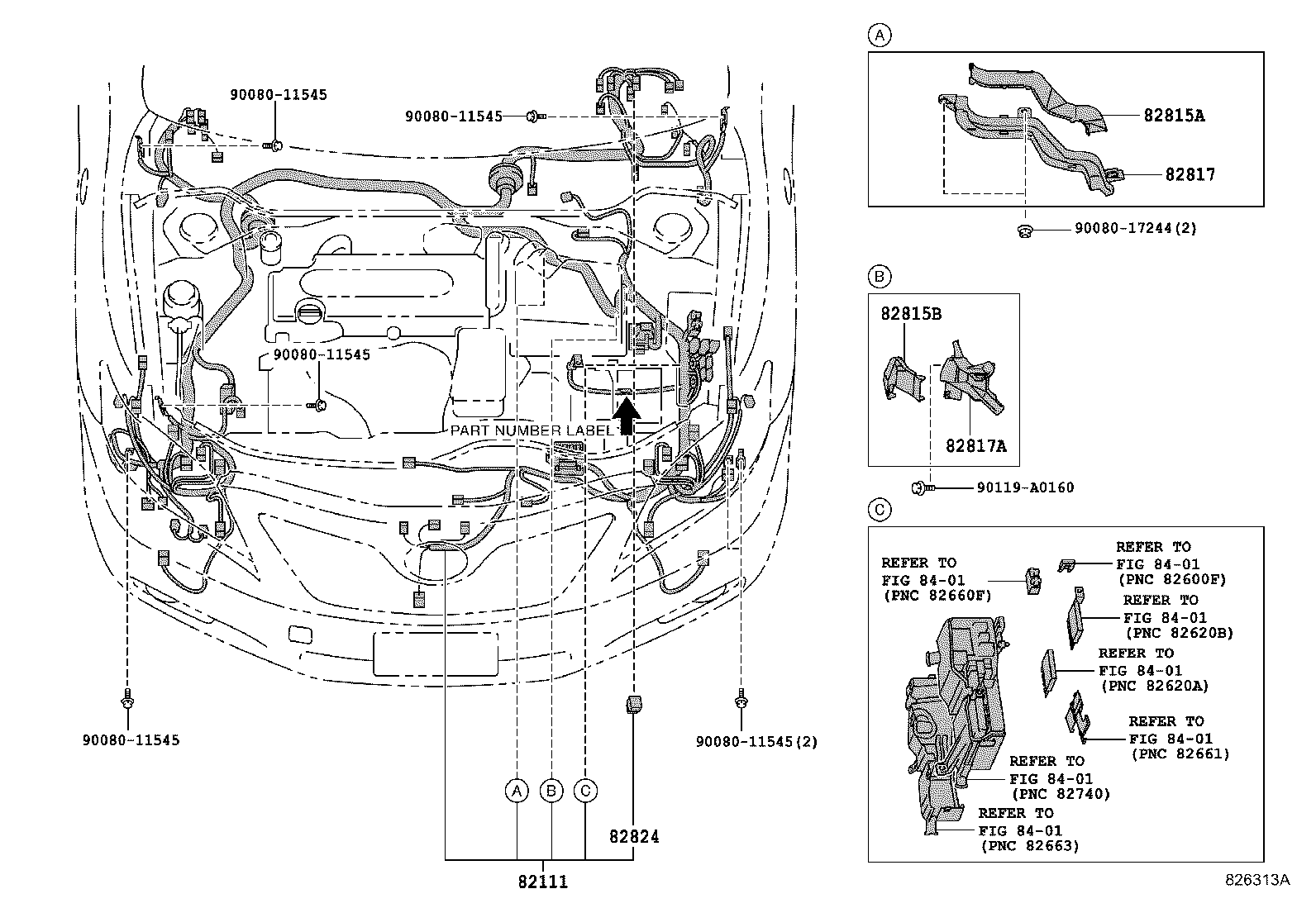

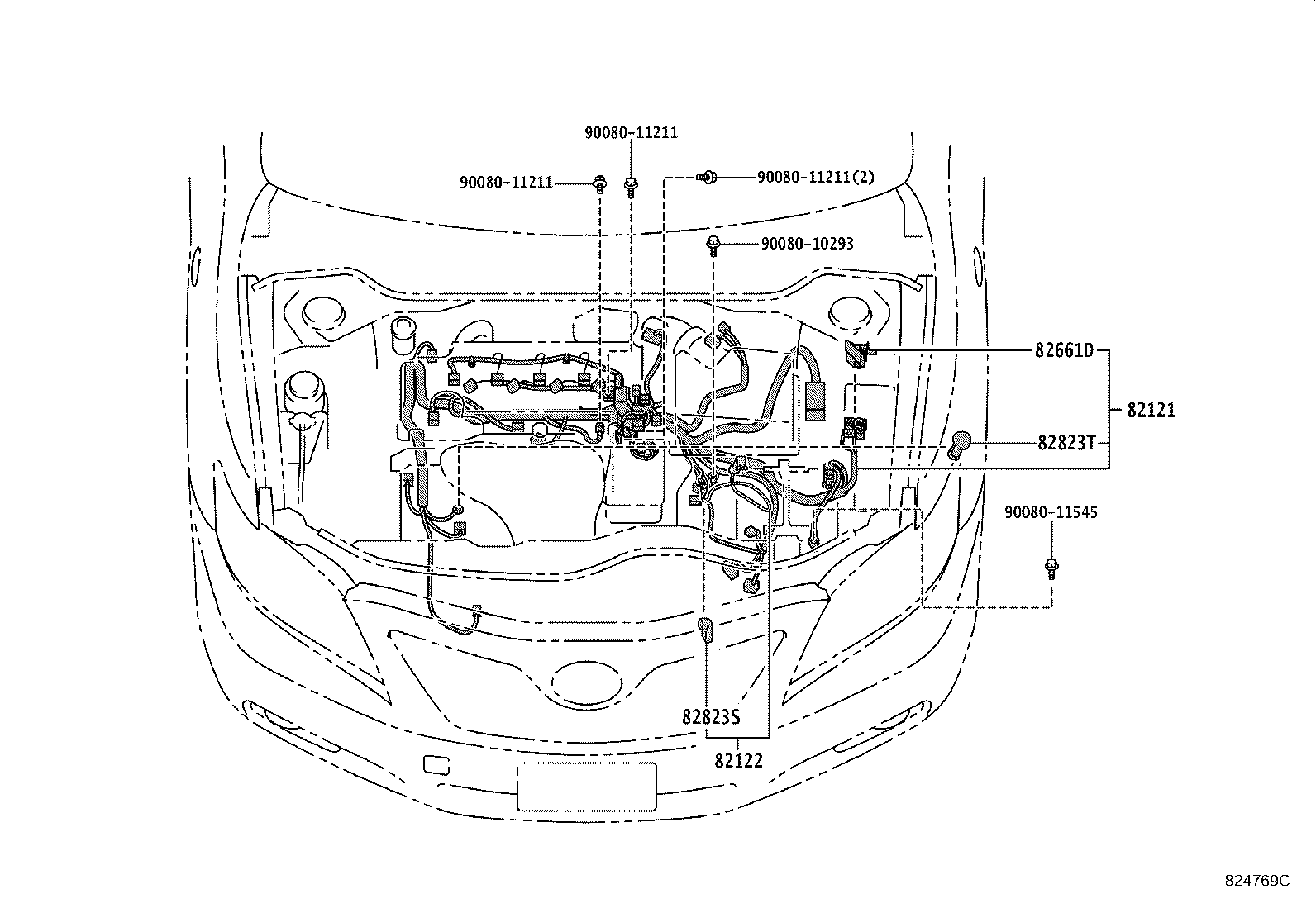

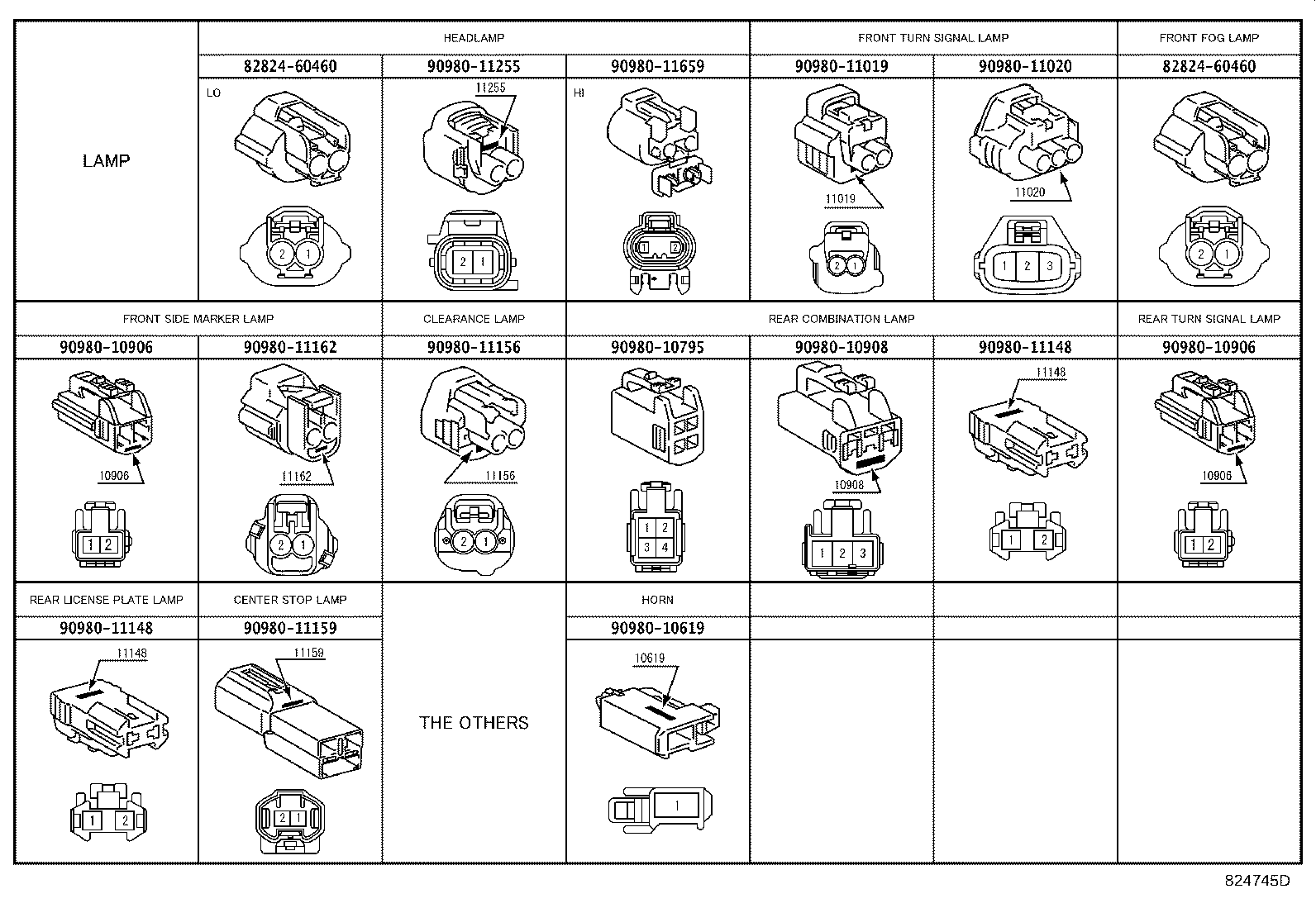

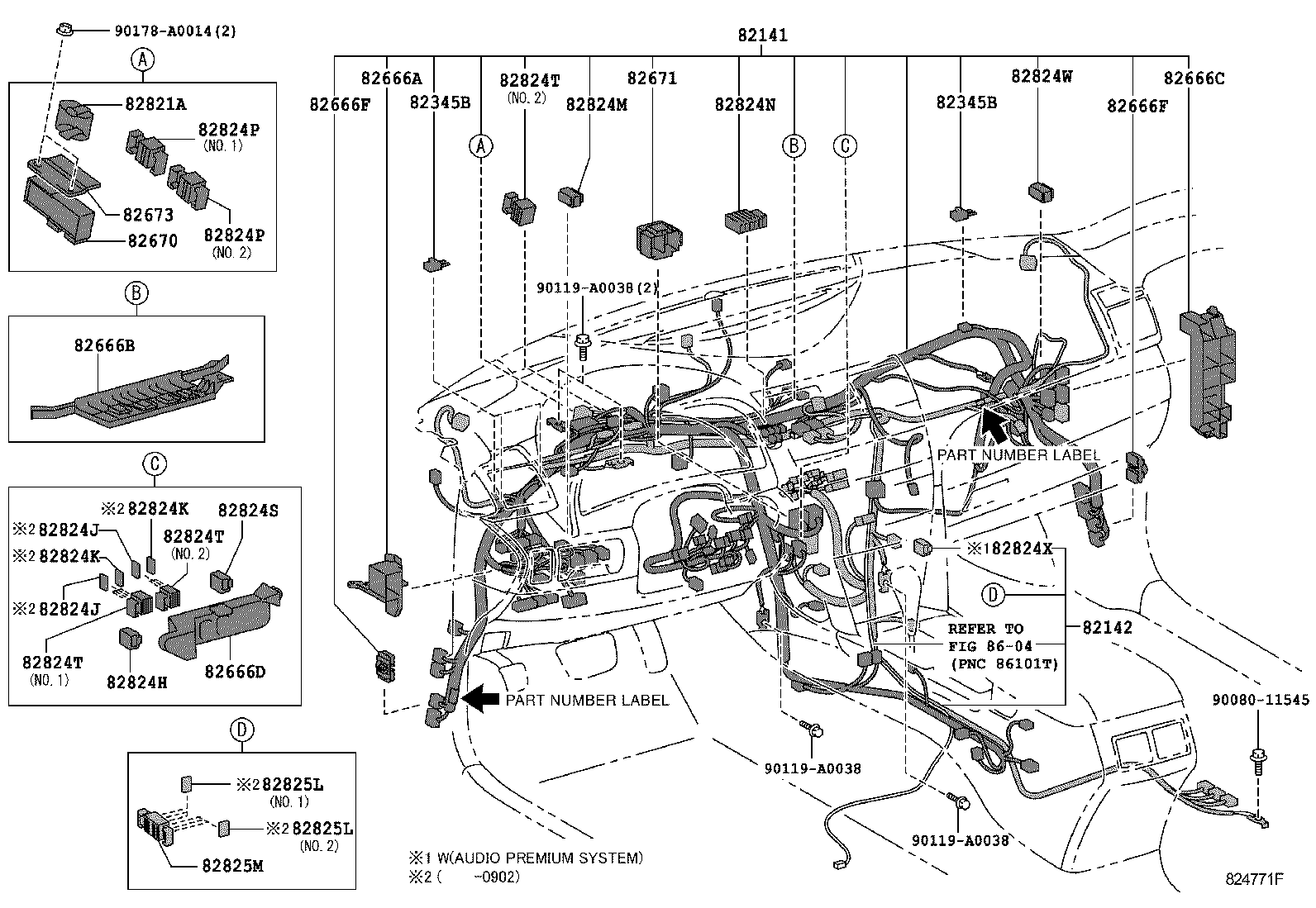

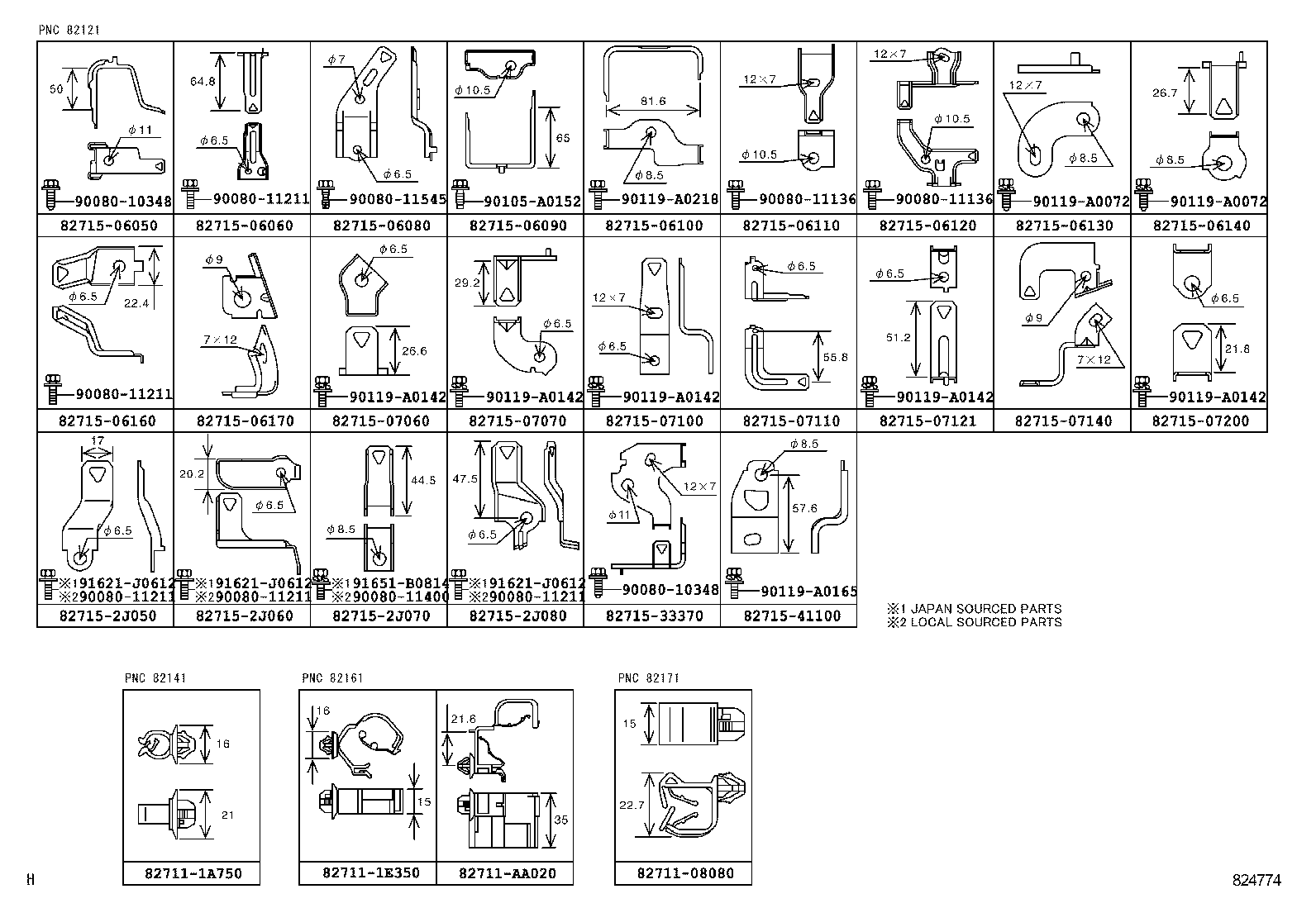

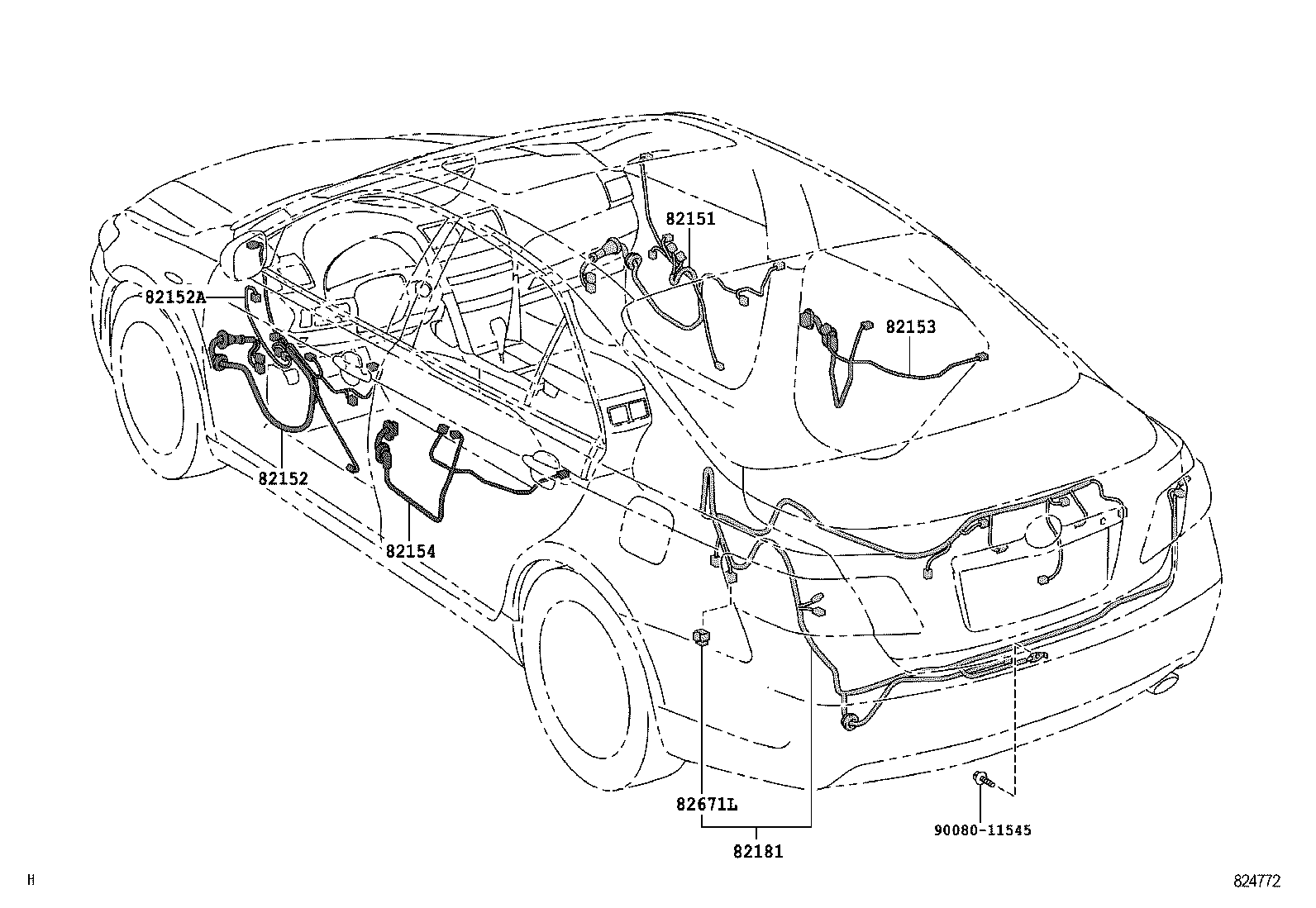

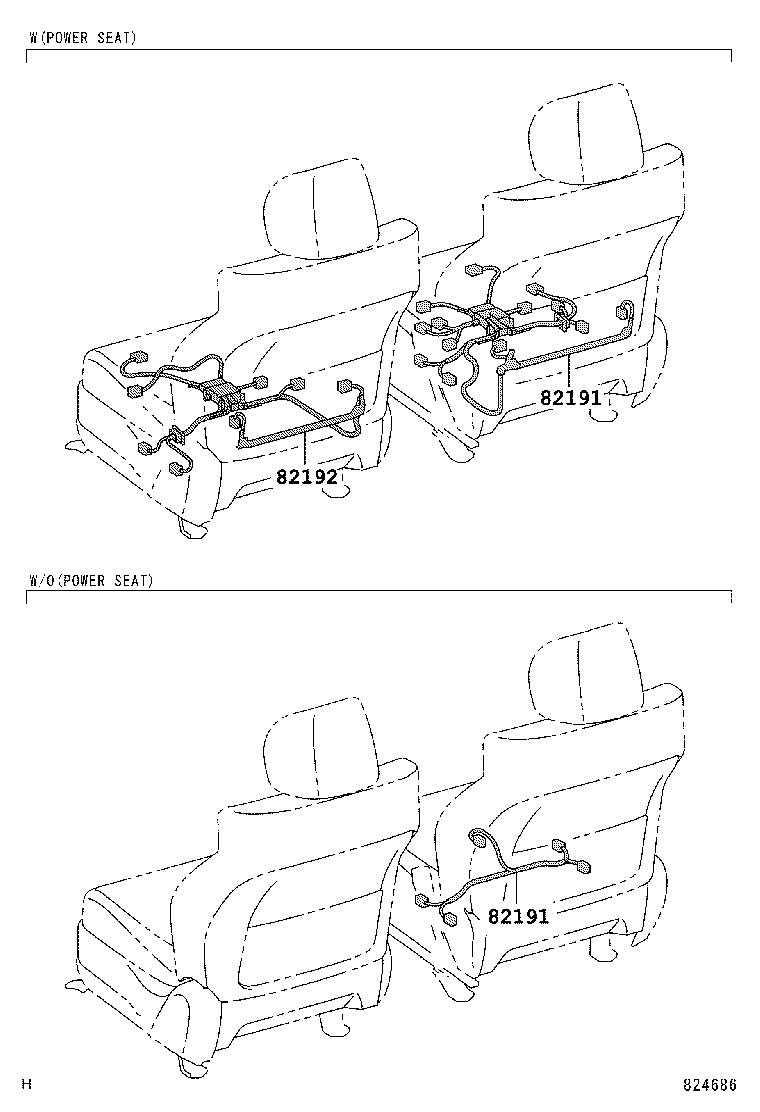

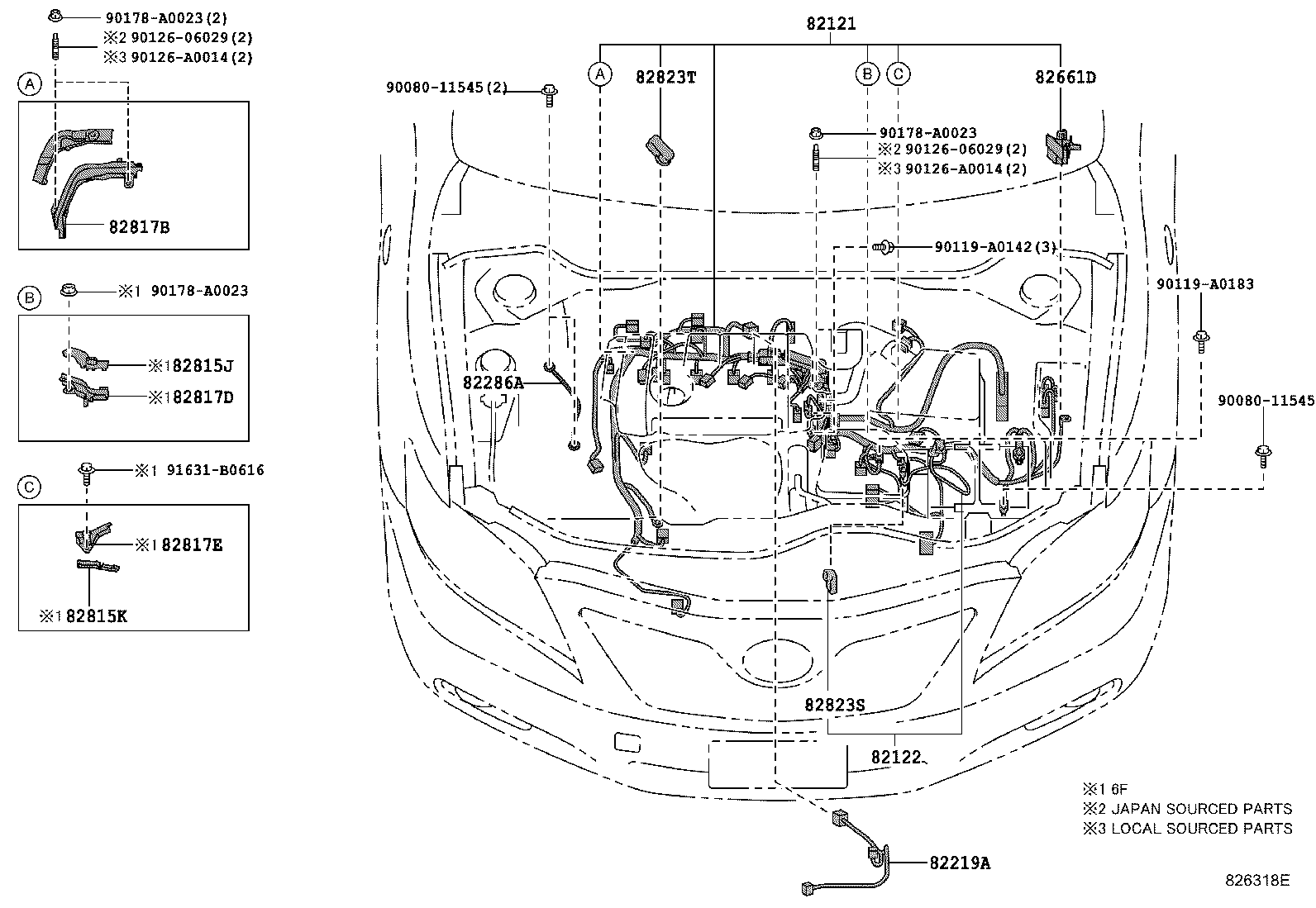

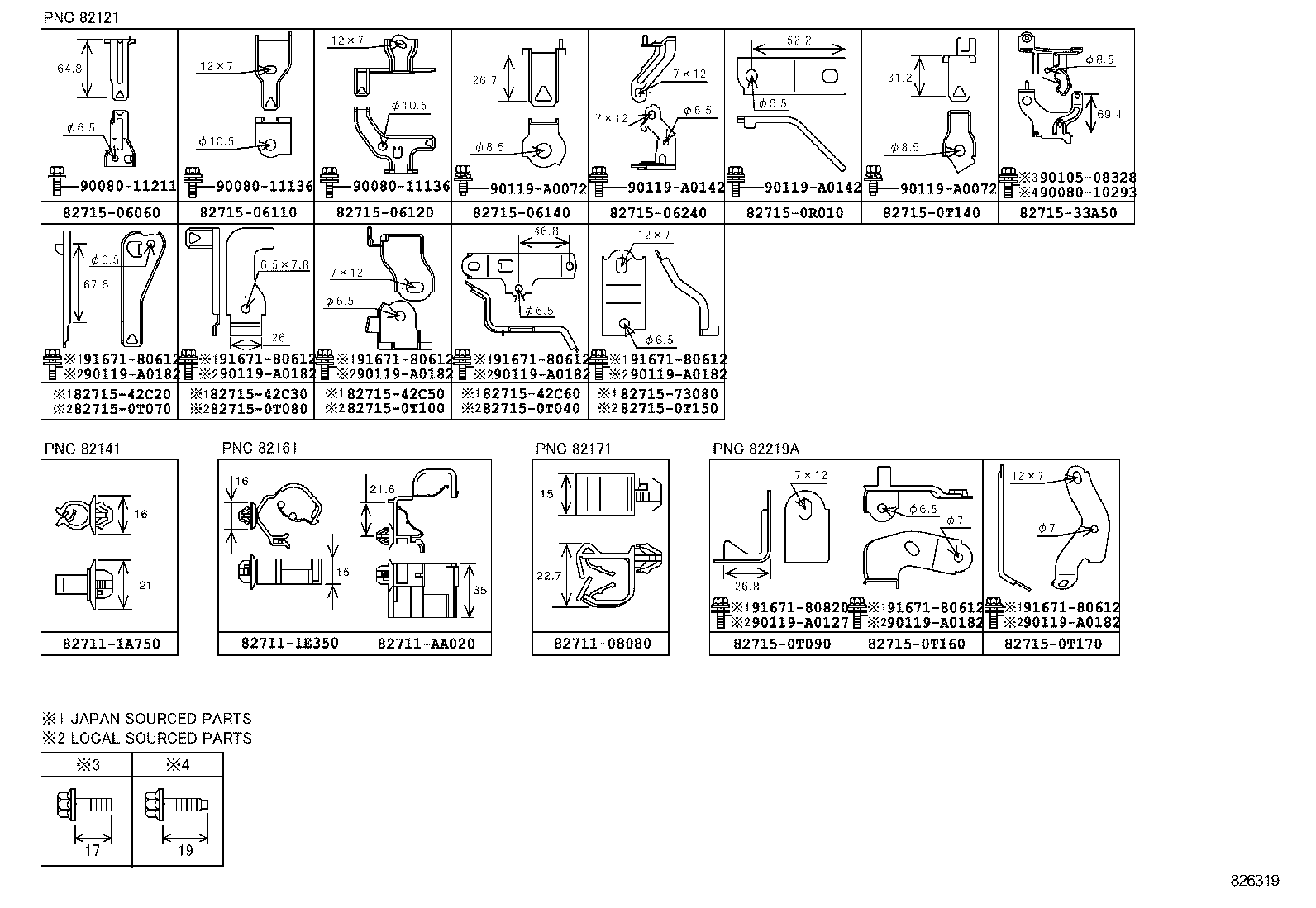

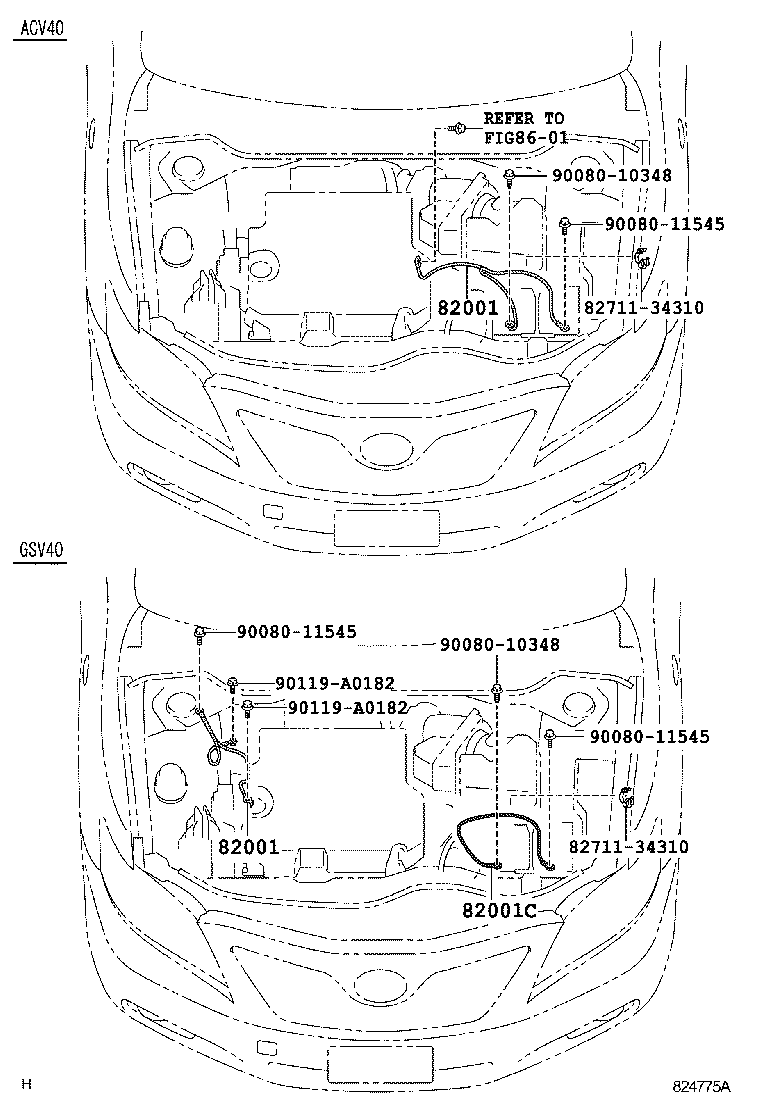

Figure 824768E 824768E 2006-02 → 2009-03 Figure 826313A 826313A 2009-03 → — Figure 826314B 826314B 2009-03 → — Figure 824769C 824769C 2006-02 → — Figure 824770C 824770C 2006-02 → — Figure 826318E 826318E 2009-03 → — Figure 824771F 824771F 2006-02 → — Figure 824772 824772 2006-02 → — Figure 824773D 824773D 2006-02 → — Figure 824686 824686 2006-02 → — Figure 824774A 824774A 2006-02 → — Figure 826319 826319 2009-03 → — Figure 824775A 824775A 2006-02 → — Figure 826320 826320 2009-03 → — Figure 824745D 824745D 2006-02 → —

Part groups

PNCDescription
82001 Cable, Bond, NO.1
82001C Cable, Bond, NO.2
82111 Wire, Engine Room Main
82121 Wire, Engine
82122 Wire, Engine, NO.2
82141 Wire, Instrument Panel
82142 Wire, Instrument Panel, NO.2
82151 Wire, Front Door, RH
82152 Wire, Front Door, LH
82152A Wire, Front Door, NO.2, LH
82153 Wire, Rear Door, NO.1
82154 Wire, Rear Door, NO.2
82161 Wire, Floor
82162 Wire, Floor, NO.2
82163 Wire, Floor, NO.3
82171 Wire, Roof, NO.1
82181 Wire, Luggage Room, NO.1
82191 Wire, Front Seat, RH
82192 Wire, Front Seat, LH
82219A Wire, Sensor
82286A Wire, Earth, NO.2
82345A Diode
82345B Diode
82661D Cover, Relay Block, Side NO.1
82666A Holder, Connector NO.2
82666B Holder, Connector NO.3
82666C Holder, Connector NO.4
82666D Holder, Connector NO.5
82666E Holder, Connector NO.6
82666F Holder, Connector NO.7
82666G Holder, Connector NO.8
82666L Holder, Connector NO.9
82670 Block Assy, Junction, NO.1
82671 Block, Junction
82671L Block, Junction, NO.4
82673 Bracket, Junction Block
82815A Cover, Wiring Harness Protector
82815B Cover, Wiring Harness Protector
82815G Cover, Wiring Harness Protector NO.5
82815J Cover, Wiring Harness Protector, NO.7
82815K Cover, Wiring Harness Protector, NO.8
82817 Protector, Wiring Harness, NO.1
82817A Protector, Wiring Harness, NO.2
82817B Protector, Wiring Harness, NO.3
82817D Protector, Wiring Harness, NO.5
82817E Protector, Wiring Harness, NO.6
82821A Cover, Connector
82823S Cap, Starter Terminal
82823T Cap, Alternator Terminal
82824 Connector, Wiring Harness
82824D Connector, Wiring Harness
82824E Connector, Wiring Harness
82824F Connector, Wiring Harness
82824G Connector, Wiring Harness
82824H Connector, Wiring Harness
82824J Connector, Wiring Harness
82824K Connector, Wiring Harness
82824M Connector, Wiring Harness
82824N Connector, Wiring Harness
82824P Connector, Wiring Harness
82824S Connector, Wiring Harness
82824T Connector, Wiring Harness
82824W Connector, Wiring Harness
82824X Connector, Wiring Harness
82825L Connector, Wiring Harness
82825M Connector, Wiring Harness
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
