Toyota Camry/Hybrid
2011-09 → 2017-06 · chassis ASV50L-C*****,AVV50,GSV50 · catalogue 283490 · United States
Supported model
Data version 2017-12

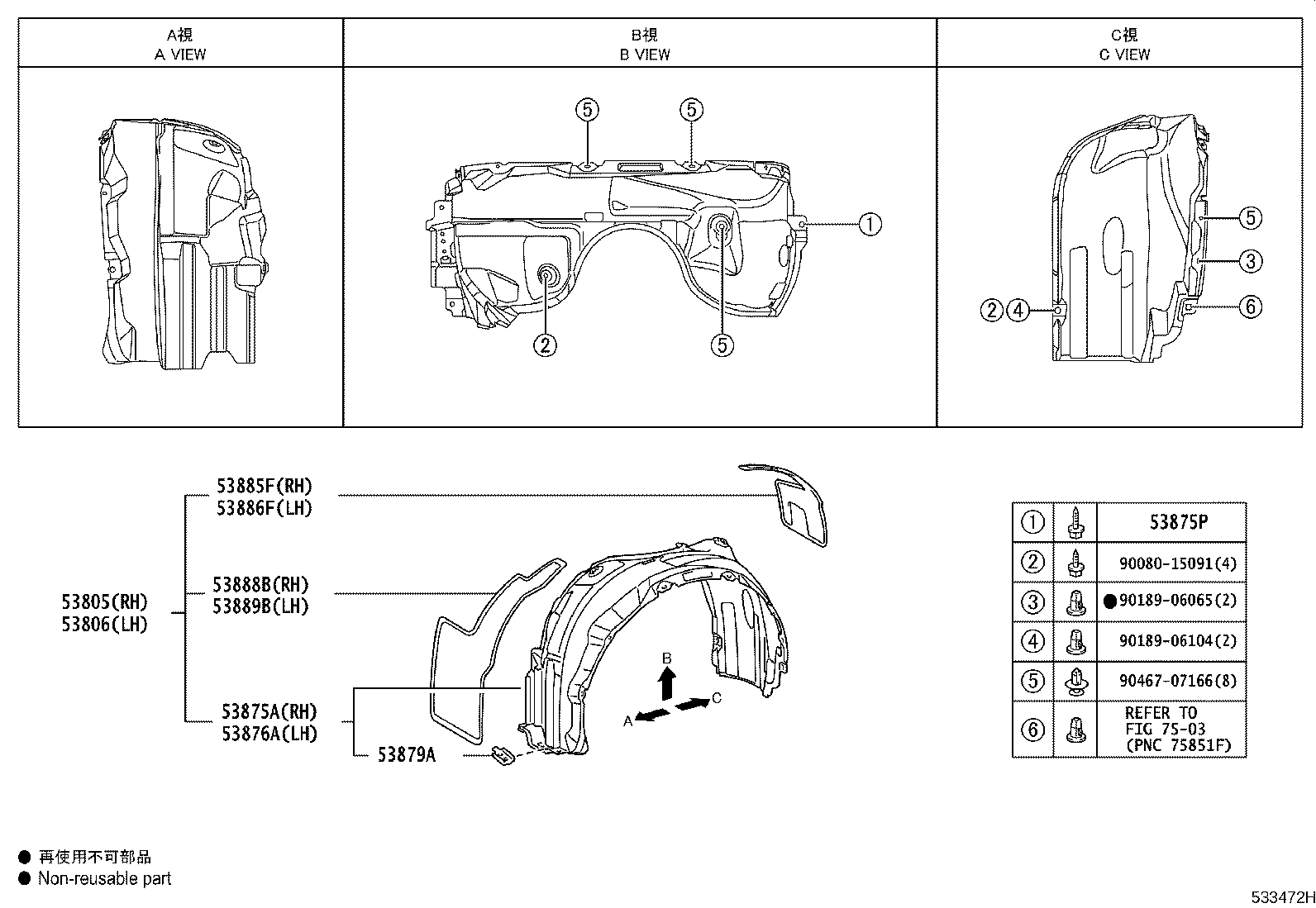

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 53805 — Shield Sub-assy, Front Fender Splash, RH | ||||
| 53805-06040 |
Shield Sub-assy, Front Fender Splash, RH
2011-10 → 2014-09
ended
|
AVV50 LE,XLE | — | |
| 53805-06110 |
Shield Sub-assy, Front Fender Splash, RH
2014-02 → 2014-09
ended
|
AVV50 SE | — | |
| 53805-06100 |
Shield Sub-assy, Front Fender Splash, RH
2014-09 → 2015-02
ended
|
AVV50 | — | |
| 53805-06101 |
Shield Sub-assy, Front Fender Splash, RH
2015-03 → —
|
AVV50 | — | |
| 53806 — Shield Sub-assy, Front Fender Splash, LH | ||||
| 53806-06050 |
Shield Sub-assy, Front Fender Splash, LH
2011-10 → 2013-12
ended
|
AVV50 | — | |
| 53806-06051 |
Shield Sub-assy, Front Fender Splash, LH
2013-12 → 2014-09
ended
|
AVV50 LE,XLE | — | |
| 53806-06121 |
Shield Sub-assy, Front Fender Splash, LH
2014-02 → 2014-09
ended
|
AVV50 SE | — | |
| 53806-06110 |
Shield Sub-assy, Front Fender Splash, LH
2014-09 → 2015-02
ended
|
AVV50 | — | |
| 53806-06111 |
Shield Sub-assy, Front Fender Splash, LH
2015-03 → —
|
AVV50 | — | |
| 53875A — Liner, Front Fender, RH | ||||
| 53875-06120 |
Liner, Front Fender, RH
2011-09 → 2014-09
ended
|
ASV50,AVV50,GSV50 LE,N,XLE | — | |
| 53875-06170 |
Liner, Front Fender, RH
2011-09 → 2014-09
ended
|
ASV50,GSV50 SE | — | |
| 53875-06210 |
Liner, Front Fender, RH
2014-09 → —
|
ASV50,AVV50,GSV50 | — | |
| 53875P — Screw, NO.1 | ||||
| 90159-60488 |
Screw, NO.1
2011-09 → 2014-09
ended
|
ASV50,AVV50,GSV50 | — | |
| 90159-60488 |
Screw, NO.1
2014-09 → 2017-06
ended
|
ASV50,AVV50,GSV50 | — | |
| 53876A — Liner, Front Fender, LH | ||||
| 53876-06120 |
Liner, Front Fender, LH
2011-09 → 2013-12
ended
|
ASV50,AVV50,GSV50 LE,N,XLE | — | |
| 53876-06121 |
Liner, Front Fender, LH
2013-12 → 2014-09
ended
|
ASV50,AVV50,GSV50 LE,N,XLE | — | |
| 53876-06170 |
Liner, Front Fender, LH
2011-09 → 2013-12
ended
|
ASV50,GSV50 SE | — | |
| 53876-06171 |
Liner, Front Fender, LH
2013-12 → 2014-09
ended
|
ASV50,GSV50 SE | — | |
| 53876-06200 |
Liner, Front Fender, LH
2014-09 → —
|
ASV50,AVV50,GSV50 | — | |
| 53879A — Retainer, Front Fender Liner | ||||
| 53879-06030 |
Retainer, Front Fender Liner
2011-09 → 2014-09
ended
|
ASV50,AVV50,GSV50 | — | |
| 53879-06030 |
Retainer, Front Fender Liner
2014-09 → —
|
ASV50,AVV50,GSV50 | — | |
| 53885F — Shield, Front Fender Splash, Rear RH | ||||
| 53885-06030 |
Shield, Front Fender Splash, Rear RH
2011-10 → 2014-09
ended
|
AVV50 LE,XLE | — | |
| 53885-06030 |
Shield, Front Fender Splash, Rear RH
2014-09 → 2015-03
ended
|
AVV50 | — | |
| 53885-06110 |
Shield, Front Fender Splash, Rear RH
2015-03 → —
|
AVV50 | — | |
| 53886F — Shield, Front Fender Splash, Rear LH | ||||
| 53886-06030 |
Shield, Front Fender Splash, Rear LH
2011-10 → 2014-09
ended
|
AVV50 LE,XLE | — | |
| 53885-06110 |
Shield, Front Fender Splash, Rear LH
2015-03 → —
|
AVV50 | — | |
| 53886-06030 |
Shield, Front Fender Splash, Rear LH
2014-09 → 2015-03
ended
|
AVV50 | — | |
| 53888B — Seal, Front Fender Splash Shield, RH NO.2 | ||||
| 53888-06030 |
Seal, Front Fender Splash Shield, RH NO.2
2011-10 → 2014-09
ended
|
AVV50 LE,XLE | — | |
| 53888-06030 |
Seal, Front Fender Splash Shield, RH NO.2
2014-09 → 2015-03
ended
|
AVV50 | — | |
| 53888-06110 |
Seal, Front Fender Splash Shield, RH NO.2
2015-03 → —
|
AVV50 | — | |
| 53889B — Seal, Front Fender Splash Shield, LH NO.2 | ||||
| 53889-06030 |
Seal, Front Fender Splash Shield, LH NO.2
2011-10 → 2014-09
ended
|
AVV50 LE,XLE | — | |
| 53888-06110 |
Seal, Front Fender Splash Shield, LH NO.2
2015-03 → —
|
AVV50 | — | |
| 53889-06030 |
Seal, Front Fender Splash Shield, LH NO.2
2014-09 → 2015-03
ended
|
AVV50 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
