Toyota Camry/Hybrid
2011-09 → 2017-06 · chassis ASV50L-C*****,AVV50,GSV50 · catalogue 283490 · United States
Supported model
Data version 2017-12

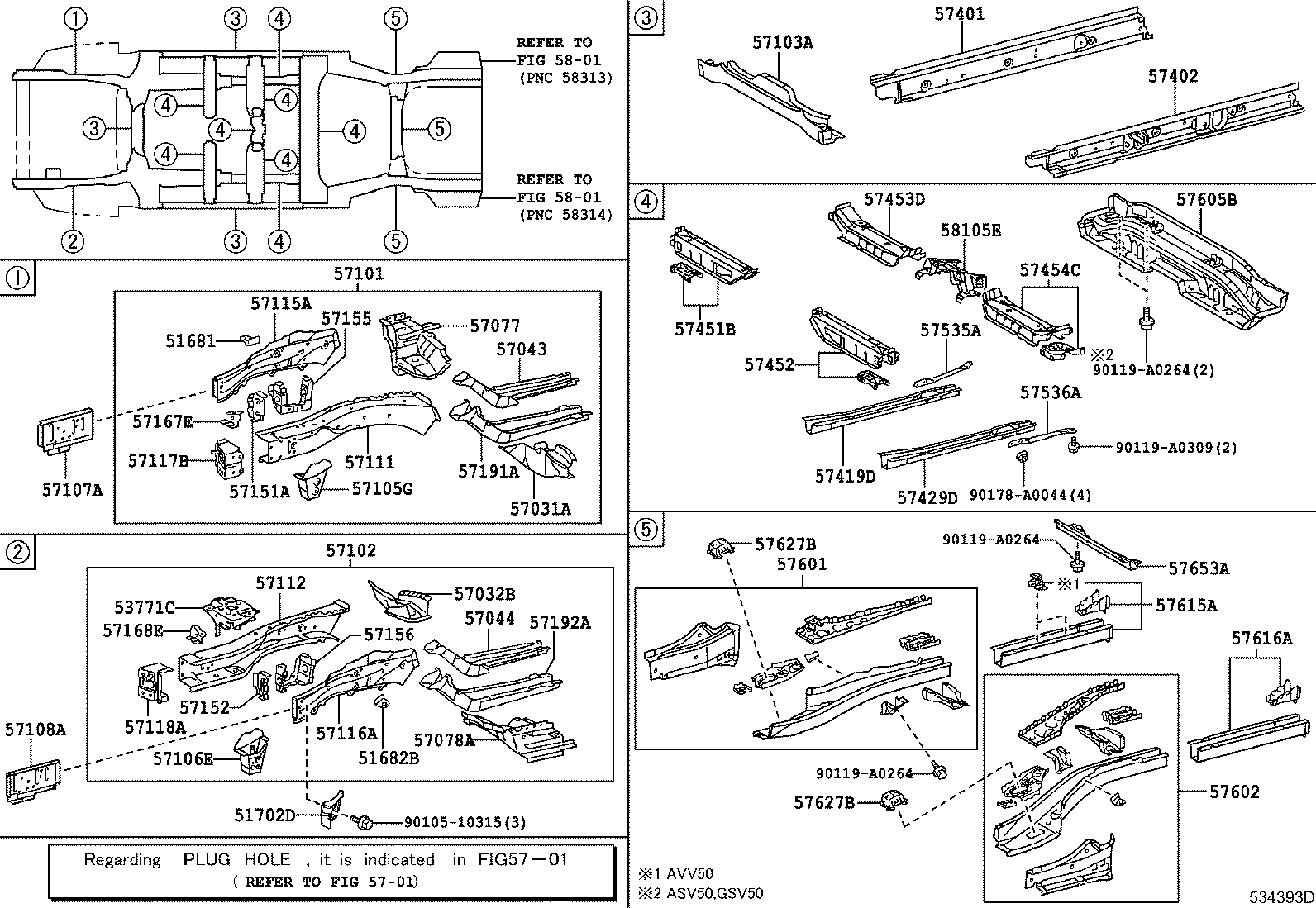

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 51681 — Bracket, Flexible Hose | ||||
| 51681-06020 |
Bracket, Flexible Hose
2011-09 → 2014-09
ended
|
ASV50,AVV50,GSV50 | — | |
| 51681-06020 |
Bracket, Flexible Hose
2014-09 → —
|
ASV50,AVV50,GSV50 | — | |
| 51682B — Bracket, Flexible Hose, LH | ||||
| 51682-06020 |
Bracket, Flexible Hose, LH
2011-09 → 2014-09
ended
|
ASV50,AVV50,GSV50 | — | |
| 51682-06020 |
Bracket, Flexible Hose, LH
2014-09 → —
|
ASV50,AVV50,GSV50 | — | |
| 51702D — Bracket Sub-assy, Body Support, LH | ||||
| 51702-06010 |
Bracket Sub-assy, Body Support, LH
2013-12 → 2014-09
ended
|
ASV50,AVV50,GSV50 | — | |
| 51702-06010 |
Bracket Sub-assy, Body Support, LH
2014-09 → —
|
ASV50,AVV50,GSV50 | — | |
| 53771C — Support, Battery Carrier | ||||
| 53771-06090 |
Support, Battery Carrier
2011-09 → 2014-09
ended
|
ASV50,AVV50,GSV50 | — | |
| 53771-06090 |
Support, Battery Carrier
2014-09 → —
|
ASV50,AVV50,GSV50 | — | |
| 57031A — Reinforce Sub-assy, Front Side Member, NO.2 RH | ||||
| 57031-06010 |
Reinforce Sub-assy, Front Side Member, NO.2 RH
2011-09 → 2014-09
ended
|
ASV50,AVV50,GSV50 | — | |
| 57031-06010 |
Reinforce Sub-assy, Front Side Member, NO.2 RH
2014-09 → —
|
ASV50,AVV50,GSV50 | — | |
| 57032B — Reinforcement Sub-assy, Front Side Member, NO.2 LH | ||||
| 57032-06010 |
Reinforcement Sub-assy, Front Side Member, NO.2 LH
2011-09 → 2014-09
ended
|
ASV50,AVV50,GSV50 | — | |
| 57032-06010 |
Reinforcement Sub-assy, Front Side Member, NO.2 LH
2014-09 → —
|
ASV50,AVV50,GSV50 | — | |
| 57043 — Reinforcement Sub-assy, Front Side Member, Rear RH | ||||
| 57043-06010 |
Reinforcement Sub-assy, Front Side Member, Rear RH
2011-09 → 2014-09
ended
|
ASV50,AVV50,GSV50 | — | |
| 57043-06010 |
Reinforcement Sub-assy, Front Side Member, Rear RH
2014-09 → —
|
ASV50,AVV50,GSV50 | — | |
| 57044 — Reinforcement Sub-assy, Front Side Member, Rear LH | ||||
| 57044-06010 |
Reinforcement Sub-assy, Front Side Member, Rear LH
2011-09 → 2014-09
ended
|
ASV50,AVV50,GSV50 | — | |
| 57044-06010 |
Reinforcement Sub-assy, Front Side Member, Rear LH
2014-09 → —
|
ASV50,AVV50,GSV50 | — | |
| 57077 — Box Sub-assy, Torque, Front RH | ||||
| 57077-06040 |
Box Sub-assy, Torque, Front RH
2011-09 → 2014-09
ended
|
ASV50,AVV50,GSV50 | — | |
| 57077-06040 |
Box Sub-assy, Torque, Front RH
2014-09 → —
|
ASV50,AVV50,GSV50 | — | |
| 57078A — Box Sub-assy, Torque, Front LH | ||||
| 57078-06040 |
Box Sub-assy, Torque, Front LH
2011-09 → 2013-12
ended
|
ASV50,AVV50,GSV50 | — | |
| 57078-06110 |
Box Sub-assy, Torque, Front LH
2013-12 → 2014-09
ended
|
ASV50,AVV50,GSV50 | — | |
| 57078-06110 |
Box Sub-assy, Torque, Front LH
2014-09 → —
|
ASV50,AVV50,GSV50 | — | |
| 57101 — Member Sub-assy, Front Side, RH | ||||
| 57101-06171 |
Member Sub-assy, Front Side, RH
2011-09 → 2014-09
ended
|
ASV50,AVV50,GSV50 | — | |
| 57101-06171 |
Member Sub-assy, Front Side, RH
2014-09 → 2017-06
ended
|
ASV50,AVV50,GSV50 | — | |
| 57102 — Member Sub-assy, Front Side, LH | ||||
| 57102-06212 |
Member Sub-assy, Front Side, LH
2011-09 → 2013-12
ended
|
ASV50,AVV50,GSV50 | — | |
| 57102-06280 |
Member Sub-assy, Front Side, LH
2013-12 → 2014-09
ended
|
ASV50,AVV50,GSV50 | — | |
| 57102-06280 |
Member Sub-assy, Front Side, LH
2014-09 → 2017-06
ended
|
ASV50,AVV50,GSV50 | — | |
| 57103A — Crossmenber Sub-assy, Floor, NO.3 | ||||
| 57103-07011 |
Crossmenber Sub-assy, Floor, NO.3
2011-09 → 2014-09
ended
|
ASV50,AVV50,GSV50 | — | |
| 57103-06150 |
Crossmenber Sub-assy, Floor, NO.3
2014-09 → 2017-06
ended
|
ASV50,AVV50,GSV50 | — | |
| 57105G — Spacer Sub-assy, Suspension Member, Front RH | ||||
| 57105-06010 |
Spacer Sub-assy, Suspension Member, Front RH
2011-09 → 2014-09
ended
|
ASV50,AVV50,GSV50 | — | |
| 57105-06010 |
Spacer Sub-assy, Suspension Member, Front RH
2014-09 → —
|
ASV50,AVV50,GSV50 | — | |
| 57106E — Bracket Sub-assy, Front Suspension Member Mounting, Front LH | ||||
| 57106-06010 |
Bracket Sub-assy, Front Suspension Member Mounting, Front LH
2011-09 → 2014-09
ended
|
ASV50,AVV50,GSV50 | — | |
| 57106-06010 |
Bracket Sub-assy, Front Suspension Member Mounting, Front LH
2014-09 → —
|
ASV50,AVV50,GSV50 | — | |
| 57107A — Plate Sub-assy, Front Side Member, NO.2 RH | ||||
| 57107-06011 |
Plate Sub-assy, Front Side Member, NO.2 RH
2011-09 → 2014-09
ended
|
ASV50,AVV50,GSV50 | — | |
| 57107-06011 |
Plate Sub-assy, Front Side Member, NO.2 RH
2014-09 → 2017-06
ended
|
ASV50,AVV50,GSV50 | — | |
| 57108A — Plate Sub-assy, Front Side Member, NO.2 LH | ||||
| 57108-06011 |
Plate Sub-assy, Front Side Member, NO.2 LH
2011-09 → 2014-09
ended
|
ASV50,AVV50,GSV50 | — | |
| 57108-06011 |
Plate Sub-assy, Front Side Member, NO.2 LH
2014-09 → 2017-06
ended
|
ASV50,AVV50,GSV50 | — | |
| 57111 — Member, Front Side, RH | ||||
| 57111-06021 |
Member, Front Side, RH
2011-09 → 2014-09
ended
|
ASV50,AVV50,GSV50 | — | |
| 57111-06021 |
Member, Front Side, RH
2014-09 → —
|
ASV50,AVV50,GSV50 | — | |
| 57112 — Member, Front Side, LH | ||||
| 57112-06031 |
Member, Front Side, LH
2011-09 → 2014-09
ended
|
ASV50,AVV50,GSV50 | — | |
| 57112-06031 |
Member, Front Side, LH
2014-09 → —
|
ASV50,AVV50,GSV50 | — | |
| 57115A — Plate, Front Side Member, Outer RH | ||||
| 57115-06030 |
Plate, Front Side Member, Outer RH
2011-09 → 2014-09
ended
|
ASV50,AVV50,GSV50 | — | |
| 57115-06030 |
Plate, Front Side Member, Outer RH
2014-09 → —
|
ASV50,AVV50,GSV50 | — | |
| 57116A — Plate, Front Side Member, Outer LH | ||||
| 57116-06020 |
Plate, Front Side Member, Outer LH
2011-09 → 2013-12
ended
|
ASV50,AVV50,GSV50 | — | |
| 57116-06071 |
Plate, Front Side Member, Outer LH
2013-12 → 2014-09
ended
|
ASV50,AVV50,GSV50 | — | |
| 57116-06071 |
Plate, Front Side Member, Outer LH
2014-09 → —
|
ASV50,AVV50,GSV50 | — | |
| 57117B — Reinforcement, Front Bumper Mounting, RH | ||||
| 57117-06030 |
Reinforcement, Front Bumper Mounting, RH
2011-09 → 2014-09
ended
|
ASV50,AVV50,GSV50 | — | |
| 57117-06030 |
Reinforcement, Front Bumper Mounting, RH
2014-09 → —
|
ASV50,AVV50,GSV50 | — | |
| 57118A — Reinforcement, Front Bumper Mounting, LH | ||||
| 57118-06030 |
Reinforcement, Front Bumper Mounting, LH
2011-09 → 2014-09
ended
|
ASV50,AVV50,GSV50 | — | |
| 57118-06030 |
Reinforcement, Front Bumper Mounting, LH
2014-09 → —
|
ASV50,AVV50,GSV50 | — | |
| 57151A — Reinforcement, Front Side Member, NO.1 RH | ||||
| 57151-06010 |
Reinforcement, Front Side Member, NO.1 RH
2011-09 → 2014-09
ended
|
ASV50,AVV50,GSV50 | — | |
| 57151-06010 |
Reinforcement, Front Side Member, NO.1 RH
2014-09 → —
|
ASV50,AVV50,GSV50 | — | |
| 57152 — Reinforcement, Front Side Member, NO.1 LH | ||||
| 57152-06010 |
Reinforcement, Front Side Member, NO.1 LH
2011-09 → 2014-09
ended
|
ASV50,AVV50,GSV50 | — | |
| 57152-06010 |
Reinforcement, Front Side Member, NO.1 LH
2014-09 → —
|
ASV50,AVV50,GSV50 | — | |
| 57155 — Reinforcement, Front Side Member, NO.3, RH | ||||
| 57155-06010 |
Reinforcement, Front Side Member, NO.3, RH
2011-09 → 2014-09
ended
|
ASV50,AVV50,GSV50 | — | |
| 57155-06010 |
Reinforcement, Front Side Member, NO.3, RH
2014-09 → —
|
ASV50,AVV50,GSV50 | — | |
| 57156 — Reinforcement, Front Side Member, NO.3, LH | ||||
| 57156-06011 |
Reinforcement, Front Side Member, NO.3, LH
2011-09 → 2014-09
ended
|
ASV50,AVV50,GSV50 | — | |
| 57156-06011 |
Reinforcement, Front Side Member, NO.3, LH
2014-09 → —
|
ASV50,AVV50,GSV50 | — | |
| 57167E — Gusset, Front Crossmember Side, RH | ||||
| 57167-06010 |
Gusset, Front Crossmember Side, RH
2011-09 → 2014-09
ended
|
ASV50,AVV50,GSV50 | — | |
| 57167-06010 |
Gusset, Front Crossmember Side, RH
2014-09 → —
|
ASV50,AVV50,GSV50 | — | |
| 57168E — Gusset, Front Crossmember Side, LH | ||||
| 57168-06010 |
Gusset, Front Crossmember Side, LH
2011-09 → 2014-09
ended
|
ASV50,AVV50,GSV50 | — | |
| 57168-06010 |
Gusset, Front Crossmember Side, LH
2014-09 → —
|
ASV50,AVV50,GSV50 | — | |
| 57191A — Member, Front Side, Inner Rear RH | ||||
| 57191-06010 |
Member, Front Side, Inner Rear RH
2011-09 → 2014-09
ended
|
ASV50,AVV50,GSV50 | — | |
| 57191-06010 |
Member, Front Side, Inner Rear RH
2014-09 → —
|
ASV50,AVV50,GSV50 | — | |
| 57192A — Member, Front Side, Inner Rear LH | ||||
| 57192-06010 |
Member, Front Side, Inner Rear LH
2011-09 → 2014-09
ended
|
ASV50,AVV50,GSV50 | — | |
| 57192-06010 |
Member, Front Side, Inner Rear LH
2014-09 → —
|
ASV50,AVV50,GSV50 | — | |
| 57401 — Member Sub-assy, Main Floor Side, RH | ||||
| 57401-06211 |
Member Sub-assy, Main Floor Side, RH
2011-09 → 2014-09
ended
|
ASV50,AVV50,GSV50 | — | |
| 57401-06211 |
Member Sub-assy, Main Floor Side, RH
2014-09 → 2017-06
ended
|
ASV50,AVV50,GSV50 | — | |
| 57402 — Member Sub-assy, Main Floor Side, LH | ||||
| 57402-06201 |
Member Sub-assy, Main Floor Side, LH
2011-09 → 2013-12
ended
|
ASV50,AVV50,GSV50 | — | |
| 57402-06260 |
Member Sub-assy, Main Floor Side, LH
2013-12 → 2014-09
ended
|
ASV50,AVV50,GSV50 | — | |
| 57402-06260 |
Member Sub-assy, Main Floor Side, LH
2014-09 → 2017-06
ended
|
ASV50,AVV50,GSV50 | — | |
| 57419D — Reinforcement, Front Floor Under, Rear RH | ||||
| 57419-06040 |
Reinforcement, Front Floor Under, Rear RH
2011-09 → 2014-09
ended
|
ASV50,AVV50,GSV50 | — | |
| 57419-06040 |
Reinforcement, Front Floor Under, Rear RH
2014-09 → —
|
ASV50,AVV50,GSV50 | — | |
| 57429D — Reinforcement, Front Floor Under, Rear LH | ||||
| 57429-06020 |
Reinforcement, Front Floor Under, Rear LH
2011-09 → 2014-09
ended
|
ASV50,AVV50,GSV50 | — | |
| 57429-06020 |
Reinforcement, Front Floor Under, Rear LH
2014-09 → —
|
ASV50,AVV50,GSV50 | — | |
| 57451B — Member, Front Floor Cross, RH | ||||
| 57451-07901 |
Member, Front Floor Cross, RH
2011-09 → 2014-09
ended
|
ASV50,AVV50,GSV50 | — | |
| 57451-07901 |
Member, Front Floor Cross, RH
2014-09 → —
|
ASV50,AVV50,GSV50 | — | |
| 57452 — Member, Front Floor Cross, LH | ||||
| 57452-07902 |
Member, Front Floor Cross, LH
2011-09 → 2014-09
ended
|
ASV50,AVV50,GSV50 | — | |
| 57452-07902 |
Member, Front Floor Cross, LH
2014-09 → —
|
ASV50,AVV50,GSV50 | — | |
| 57453D — Member, Front Floor Cross Side, RH | ||||
| 57453-06060 |
Member, Front Floor Cross Side, RH
2011-09 → 2014-09
ended
|
ASV50,AVV50,GSV50 | — | |
| 57453-06060 |
Member, Front Floor Cross Side, RH
2014-09 → —
|
ASV50,AVV50,GSV50 | — | |
| 57454C — Member, Front Floor Cross Side, LH | ||||
| 57454-06060 |
Member, Front Floor Cross Side, LH
2011-09 → 2014-09
ended
|
ASV50,AVV50,GSV50 | — | |
| 57454-06060 |
Member, Front Floor Cross Side, LH
2014-09 → —
|
ASV50,AVV50,GSV50 | — | |
| 57535A — Brace, Front Floor, RH | ||||
| 57535-06030 |
Brace, Front Floor, RH
2011-09 → 2013-12
ended
|
ASV50,AVV50,GSV50 | — | |
| 65031-07010 |
Brace, Front Floor, RH
2013-12 → 2014-09
ended
|
ASV50,AVV50,GSV50 | — | |
| 65031-07010 |
Brace, Front Floor, RH
2014-09 → —
|
ASV50,AVV50,GSV50 | — | |
| 57536A — Brace, Front Floor, LH | ||||
| 57536-06030 |
Brace, Front Floor, LH
2011-09 → 2013-12
ended
|
ASV50,AVV50,GSV50 | — | |
| 65032-07010 |
Brace, Front Floor, LH
2013-12 → 2014-09
ended
|
ASV50,AVV50,GSV50 | — | |
| 65032-07010 |
Brace, Front Floor, LH
2014-09 → —
|
ASV50,AVV50,GSV50 | — | |
| 57601 — Member Sub-assy, Rear Floor Side, RH | ||||
| 57611-06915 |
Member Sub-assy, Rear Floor Side, RH
2011-09 → 2014-09
ended
|
ASV50,AVV50,GSV50 | — | |
| 57611-06915 |
Member Sub-assy, Rear Floor Side, RH
2014-09 → —
|
ASV50,AVV50,GSV50 | — | |
| 57602 — Member Sub-assy, Rear Floor Side, LH | ||||
| 57612-06913 |
Member Sub-assy, Rear Floor Side, LH
2011-09 → 2014-09
ended
|
ASV50,AVV50,GSV50 | — | |
| 57612-06913 |
Member Sub-assy, Rear Floor Side, LH
2014-09 → —
|
ASV50,AVV50,GSV50 | — | |
| 57605B — Member Sub-assy, Rear Floor Cross, NO.1 | ||||
| 57605-06160 |
Member Sub-assy, Rear Floor Cross, NO.1
2011-09 → 2012-05
ended
|
ASV50,AVV50,GSV50 | — | |
| 57605-06161 |
Member Sub-assy, Rear Floor Cross, NO.1
2012-06 → 2012-08
ended
|
ASV50,AVV50,GSV50 | — | |
| 57605-07031 |
Member Sub-assy, Rear Floor Cross, NO.1
2012-09 → 2014-09
ended
|
ASV50,AVV50,GSV50 | — | |
| 57605-07031 |
Member Sub-assy, Rear Floor Cross, NO.1
2014-09 → —
|
ASV50,AVV50,GSV50 | — | |
| 57615A — Member, Rear Floor Side, Rear RH | ||||
| 57615-06919 |
Member, Rear Floor Side, Rear RH
2011-09 → 2014-09
ended
|
ASV50,GSV50 | — | |
| 57615-06920 |
Member, Rear Floor Side, Rear RH
2011-10 → 2014-09
ended
|
AVV50 | — | |
| 57615-06919 |
Member, Rear Floor Side, Rear RH
2014-09 → —
|
ASV50,GSV50 | — | |
| 57615-06920 |
Member, Rear Floor Side, Rear RH
2014-09 → —
|
AVV50 | — | |
| 57616A — Member, Rear Floor Side, Rear LH | ||||
| 57616-06924 |
Member, Rear Floor Side, Rear LH
2011-09 → 2014-09
ended
|
ASV50,AVV50,GSV50 | — | |
| 57616-06925 note |
Member, Rear Floor Side, Rear LH
2011-09 → 2012-12
ended
|
ASV50,AVV50 XLE | — | |
| 57616-06924 |
Member, Rear Floor Side, Rear LH
2014-09 → —
|
ASV50,AVV50,GSV50 | — | |
| 57627B — Cover, Rear Floor Side Member | ||||
| 57627-06010 |
Cover, Rear Floor Side Member
2011-09 → 2014-09
ended
|
ASV50,AVV50,GSV50 | — | |
| 57627-06010 |
Cover, Rear Floor Side Member
2014-09 → —
|
ASV50,AVV50,GSV50 | — | |
| 57653A — Member, Rear Floor Cross, NO.2 | ||||
| 57653-06080 |
Member, Rear Floor Cross, NO.2
2011-09 → 2014-09
ended
|
ASV50,AVV50,GSV50 | — | |
| 57653-06080 |
Member, Rear Floor Cross, NO.2
2014-09 → —
|
ASV50,AVV50,GSV50 | — | |
| 58105E — Panel Sub-assy, Front Floor Rear Upper Sub | ||||
| 58105-06010 |
Panel Sub-assy, Front Floor Rear Upper Sub
2011-09 → 2014-09
ended
|
ASV50,AVV50,GSV50 | — | |
| 58105-06010 |
Panel Sub-assy, Front Floor Rear Upper Sub
2014-09 → —
|
ASV50,AVV50,GSV50 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
