Toyota Camry/Hybrid
2011-09 → 2017-06 · chassis ASV50L-C*****,AVV50,GSV50 · catalogue 283490 · United States
Supported model
Data version 2017-12

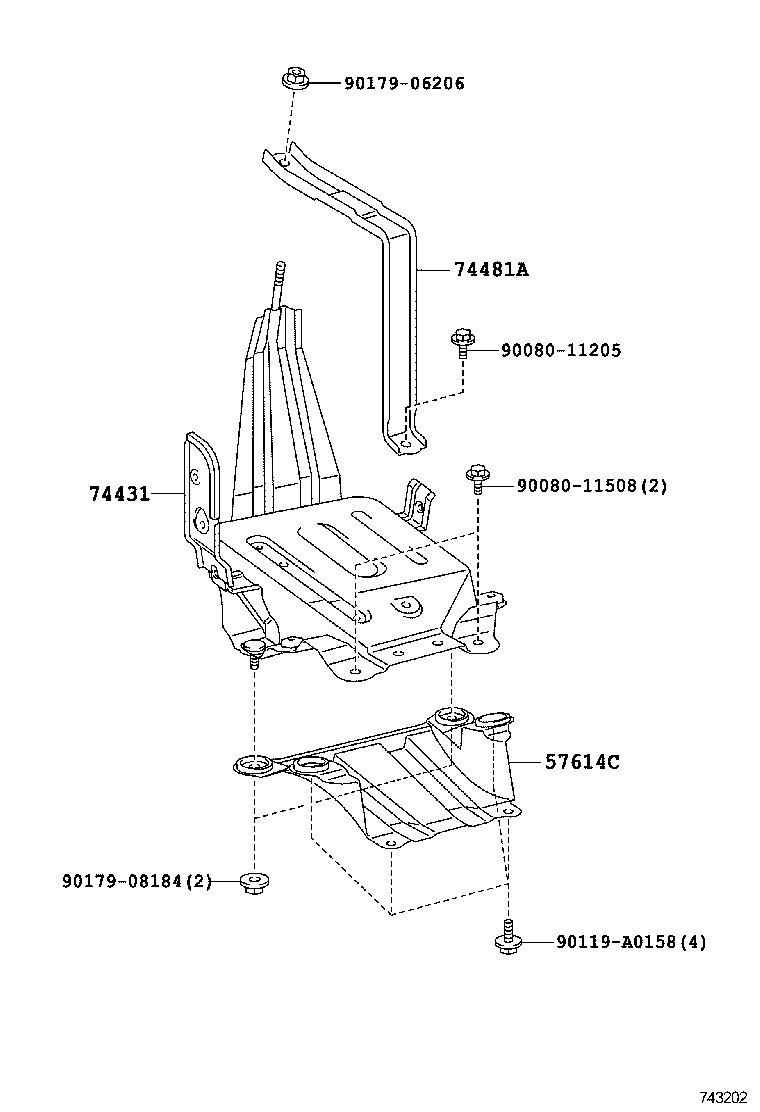

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 57614C — Member, Rear Floor Side, Center Rear | ||||
| 57614-06010 |
Member, Rear Floor Side, Center Rear
2011-10 → 2014-09
ended
|
AVV50 | — | |
| 57614-06010 |
Member, Rear Floor Side, Center Rear
2014-09 → —
|
AVV50 | — | |
| 74431 — Tray, Battery | ||||
| 74431-08011 |
Tray, Battery
2011-09 → 2014-09
ended
|
ASV50,GSV50 | — | |
| 74440-06011 |
Tray, Battery
2011-10 → 2014-09
ended
|
AVV50 | — | |
| 74431-08011 |
Tray, Battery
2014-09 → —
|
ASV50,GSV50 | — | |
| 74440-06011 |
Tray, Battery
2014-09 → —
|
AVV50 | — | |
| 74481A — Clamp, Battery | ||||
| 74481-06110 |
Clamp, Battery
2011-10 → 2014-09
ended
|
AVV50 | — | |
| 74481-06110 |
Clamp, Battery
2014-09 → —
|
AVV50 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
