Toyota Camry/Hybrid
2011-09 → 2017-06 · chassis ASV50L-C*****,AVV50,GSV50 · catalogue 283490 · United States
Supported model
Data version 2017-12

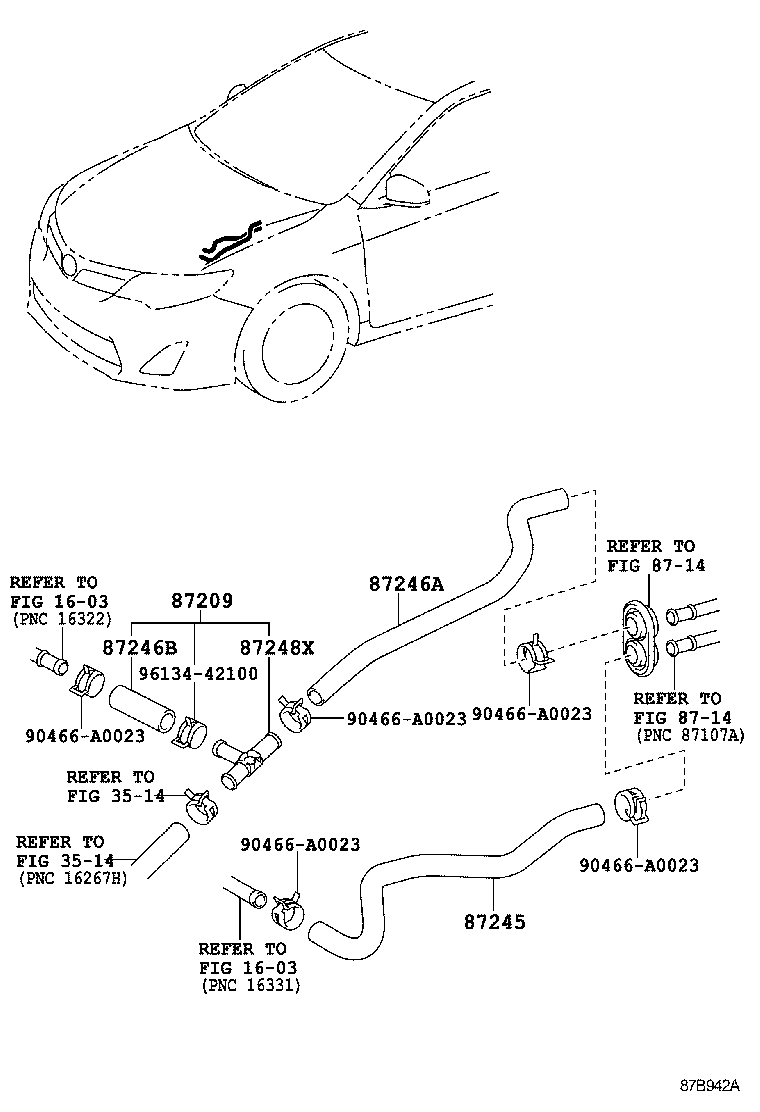

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 87209 — Hose Sub-assy, Water | ||||
| 87209-06020 |
Hose Sub-assy, Water
2011-09 → 2014-09
ended
|
ASV50 | — | |
| 87209-06030 |
Hose Sub-assy, Water
2011-09 → 2014-09
ended
|
GSV50 | — | |
| 87209-06020 |
Hose Sub-assy, Water
2014-09 → 2017-06
ended
|
ASV50 | — | |
| 87209-06030 |
Hose Sub-assy, Water
2014-09 → 2017-06
ended
|
GSV50 | — | |
| 87245 — Hose, Heater Water, Inlet | ||||
| 87245-06800 |
Hose, Heater Water, Inlet
2011-09 → 2014-09
ended
|
GSV50 | — | |
| 87245-06830 |
Hose, Heater Water, Inlet
2011-09 → 2014-09
ended
|
ASV50 | — | |
| 87245-06850 |
Hose, Heater Water, Inlet
2011-10 → 2014-09
ended
|
AVV50 | — | |
| 87245-06800 |
Hose, Heater Water, Inlet
2014-09 → —
|
GSV50 | — | |
| 87245-06830 |
Hose, Heater Water, Inlet
2014-09 → —
|
ASV50 | — | |
| 87245-06850 |
Hose, Heater Water, Inlet
2014-09 → —
|
AVV50 | — | |
| 87246A — Hose, Heater Water, Outlet A | ||||
| 87245-06810 |
Hose, Heater Water, Outlet A
2011-09 → 2014-09
ended
|
GSV50 | — | |
| 87245-06840 |
Hose, Heater Water, Outlet A
2011-09 → 2014-09
ended
|
ASV50 | — | |
| 87245-06810 |
Hose, Heater Water, Outlet A
2014-09 → —
|
GSV50 | — | |
| 87245-06840 |
Hose, Heater Water, Outlet A
2014-09 → —
|
ASV50 | — | |
| 87246B — Hose, Heater Water, Outlet B | ||||
| 87245-06790 |
Hose, Heater Water, Outlet B
2011-09 → 2014-09
ended
|
GSV50 | — | |
| 87245-06820 |
Hose, Heater Water, Outlet B
2011-09 → 2014-09
ended
|
ASV50 | — | |
| 87245-06790 |
Hose, Heater Water, Outlet B
2014-09 → —
|
GSV50 | — | |
| 87245-06820 |
Hose, Heater Water, Outlet B
2014-09 → —
|
ASV50 | — | |
| 87248X — Pipe, Heater Water | ||||
| 87248-06020 |
Pipe, Heater Water
2011-09 → 2014-09
ended
|
ASV50 | — | |
| 87248-06040 |
Pipe, Heater Water
2011-09 → 2014-09
ended
|
GSV50 | — | |
| 87248-06020 |
Pipe, Heater Water
2014-09 → —
|
ASV50 | — | |
| 87248-06040 |
Pipe, Heater Water
2014-09 → —
|
GSV50 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
