Toyota Camry/Hybrid

2011-09 → 2017-06 · chassis ASV50L-C*****,AVV50,GSV50 · catalogue 283490 · United States

Supported model Data version 2017-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Vacuum Piping

17 part groups · 3 illustrations

Illustrations

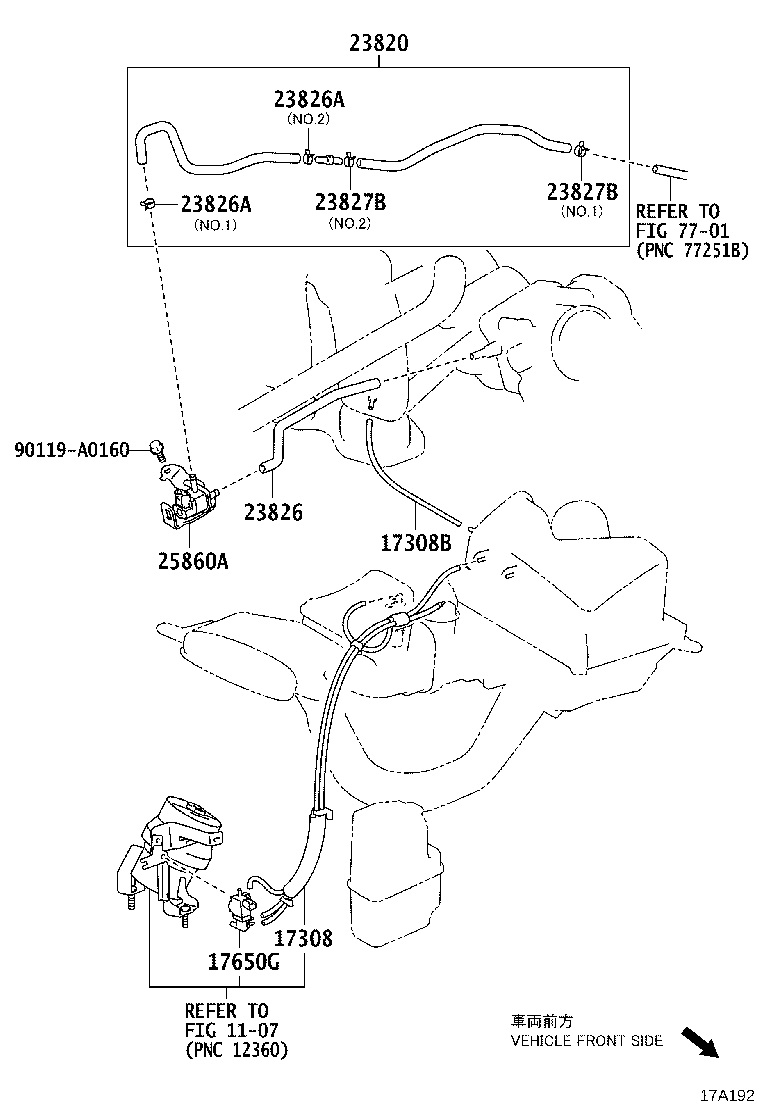

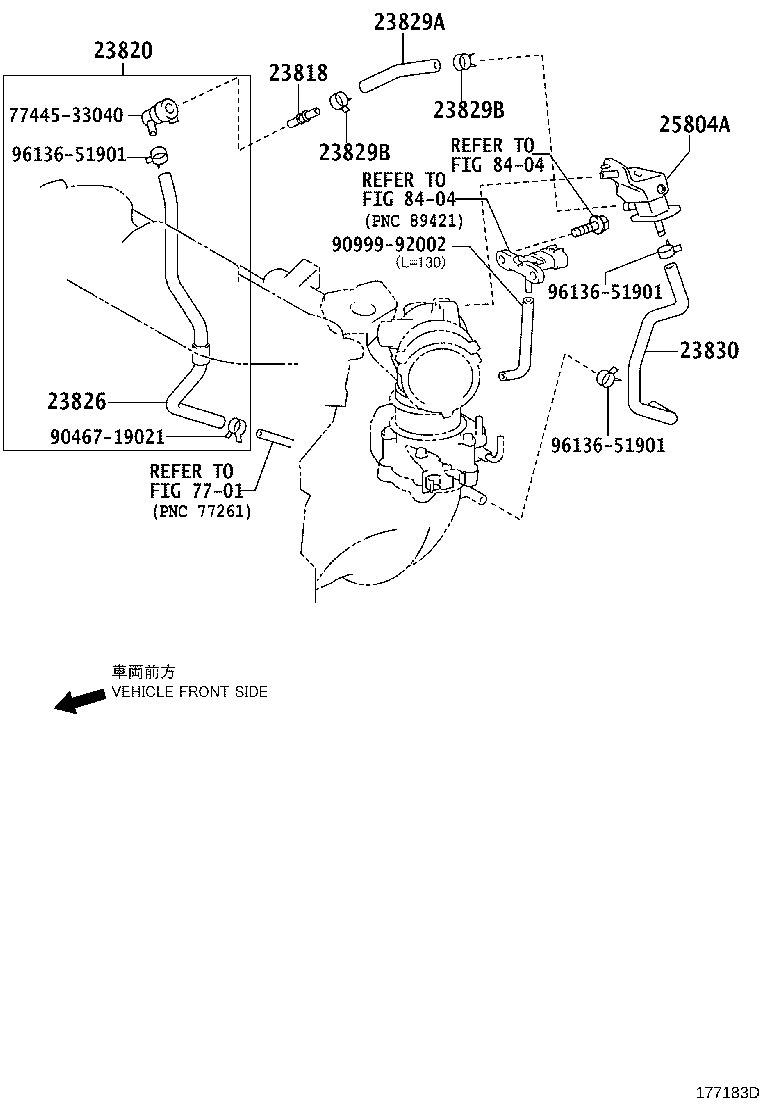

Figure 177182A 177182A 2011-09 → — Figure 177183D 177183D 2011-10 → — Figure 17A192 17A192 2011-09 → —

Part groups

PNCDescription
17308 Hose Sub-assy, Vacuum(FOR IDLE-UP)
17308B Hose Sub-assy, Vacuum
17650 Valve Assy, Vacuum Switching
17650G Valve, Duty Vacuum Switching
23285A Valve, Check, NO.1
23818 Pipe, Fuel Vapor Feed
23820 Hose Assy, Fuel Vapor Feed
23826 Hose, Fuel Vapor Feed, NO.1
23826A Clip(FOR FUEL VAPOR FEED HOSE, NO.1)
23827A Hose, Fuel Vapor Feed, NO.2
23827B Clip(FOR FUEL VAPOR FEED HOSE, NO.2)
23829A Hose, Fuel Vapor Feed
23829B Clip(FOR FUEL VAPOR FEED HOSE)
23830 Hose Assy, Fuel Vapor Feed, NO.2
25804A Valve Sub-assy, Vacuum Switching
25860 Valve Assy, Vacuum Switching, NO.1
25860A Valve, Vacuum Switching, NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
