Toyota Camry/Hybrid

2011-09 → 2017-06 · chassis ASV50L-C*****,AVV50,GSV50 · catalogue 283490 · United States

Supported model Data version 2017-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Shift Lever & Retainer

18 part groups · 4 illustrations

Illustrations

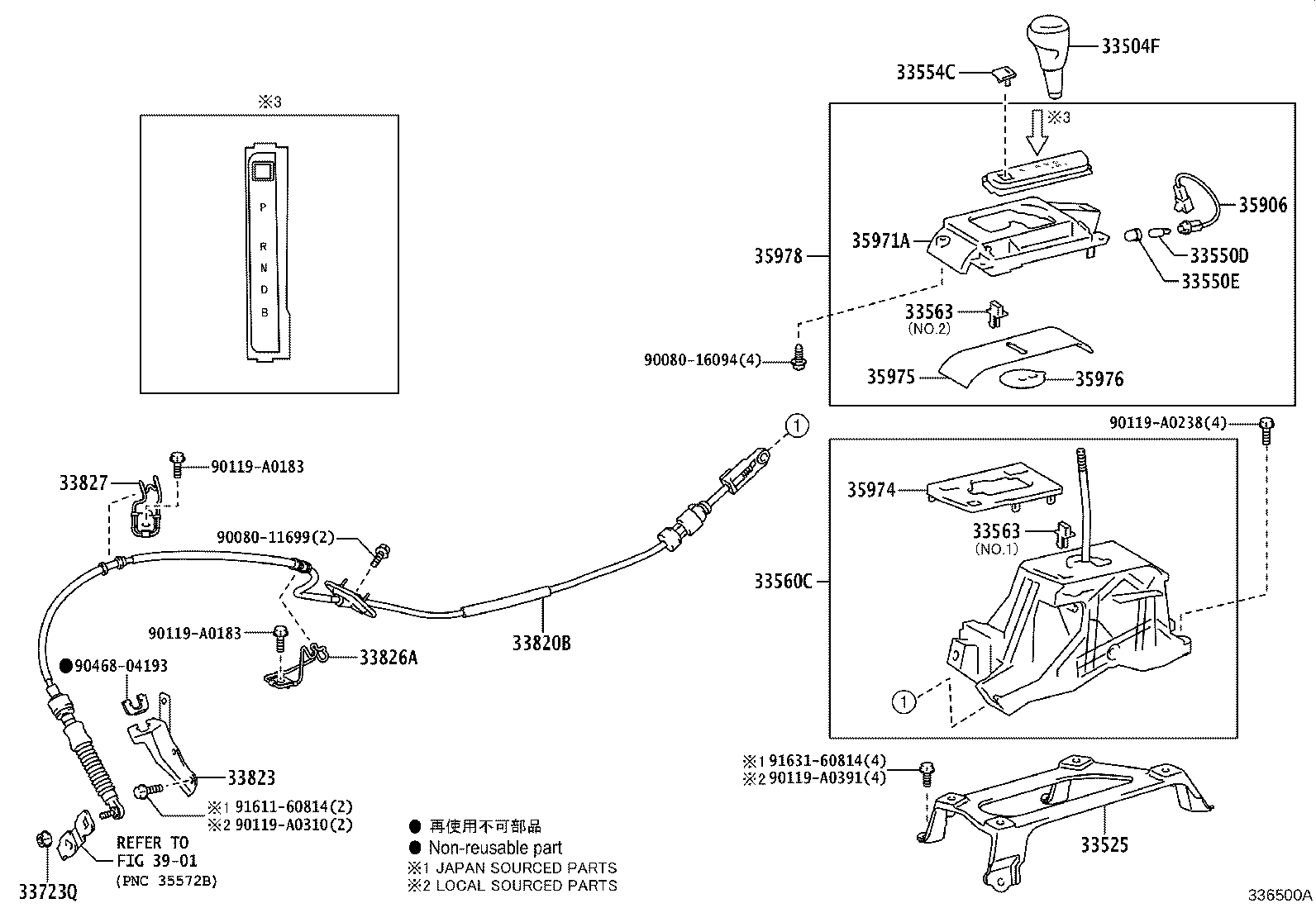

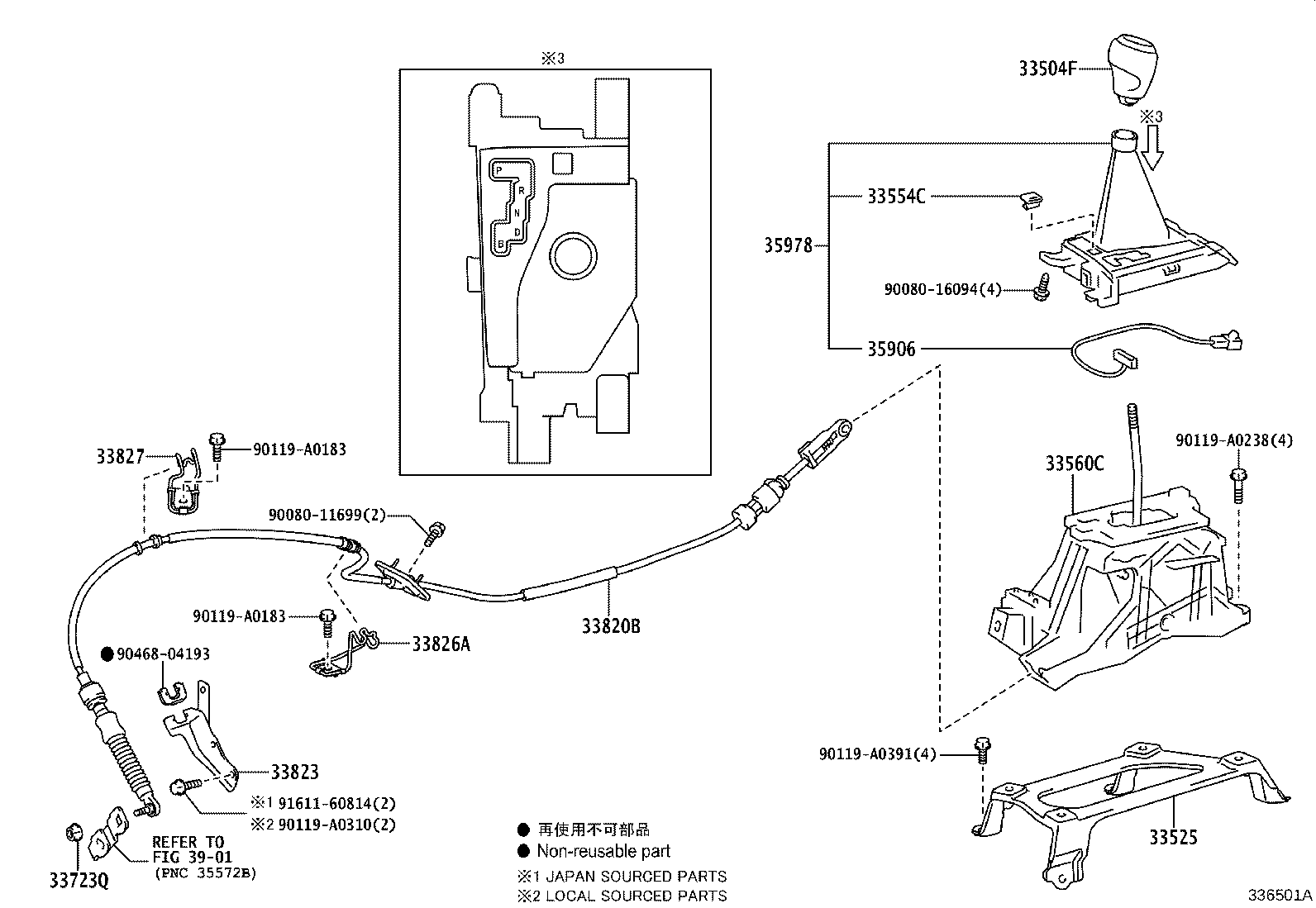

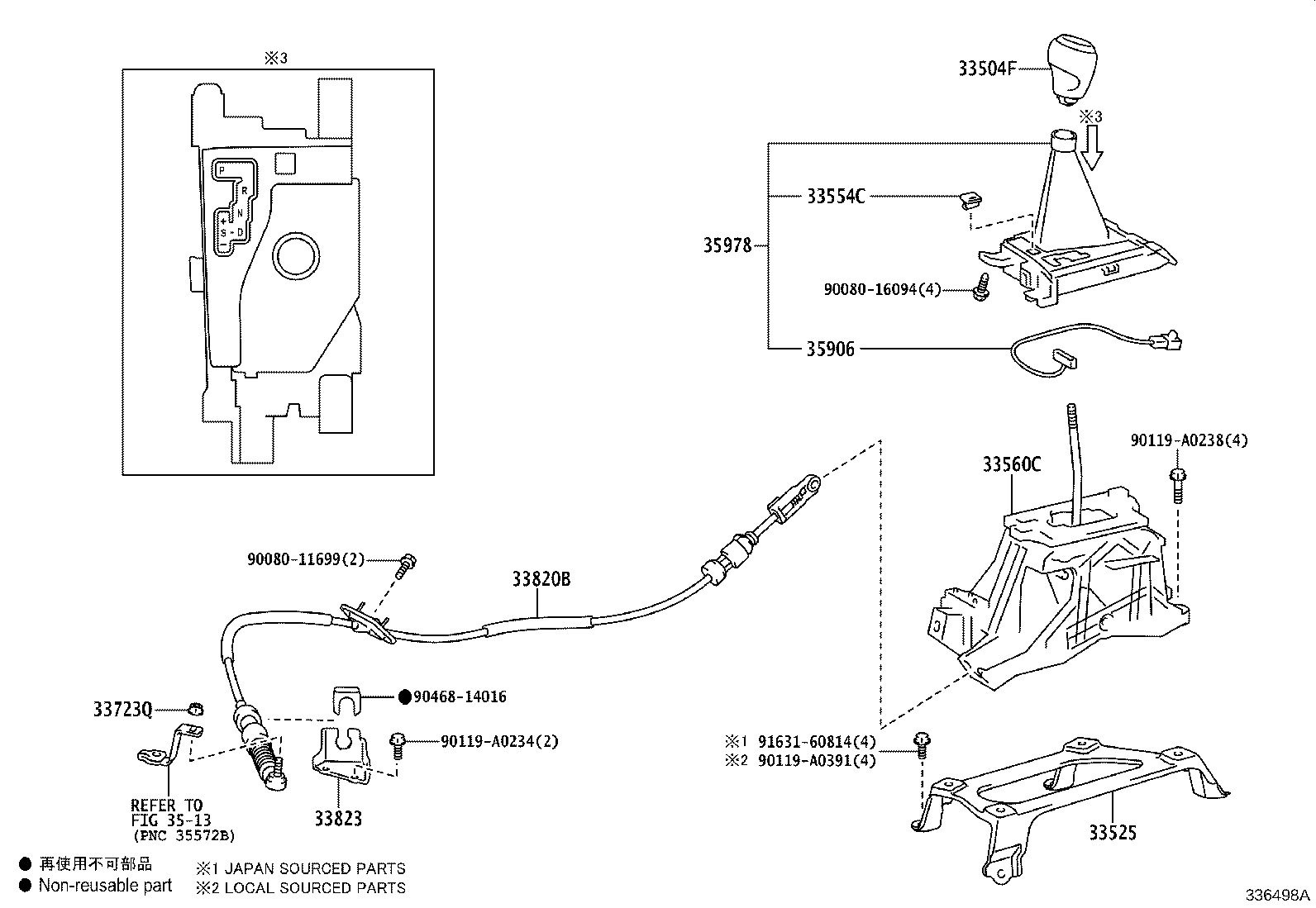

Figure 336499A 336499A 2011-09 → 2014-09 Figure 336500A 336500A 2011-10 → 2014-09 Figure 336498A 336498A 2014-09 → — Figure 336501A 336501A 2014-09 → —

Part groups

PNCDescription
33504F Knob Sub-assy, Shift Lever
33525 Support, Shift Lever
33550D Bulb, Position Indicator Lamp
33550E Cap, Position Indicator Lamp
33554C Cover, Shift Lock Release Button
33560C Lever Assy, Shift, Lower
33563 Button, Shift Lock Release
33723Q Nut (FOR CONNECTING ROD SWIVEL)
33820B Cable Assy, Transmission Control
33823 Bracket, Transmission Control Cable, NO.1
33826A Bracket, Transmission Control Cable, NO.2
33827 Bracket, Transmission Control Cable, NO.3
35906 Wire Sub-assy, Indicator Lamp
35971A Housing, Position Indicator, Upper
35974 Housing, Position Indicator, Lower
35975 Cover, Slide (FOR POSITION INDICATOR)
35976 Cover, Slide, NO.2 (FOR POSITION INDICATOR)
35978 Indicator, Shift Position
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
