Toyota Camry/Hybrid

2011-09 → 2017-06 · chassis ASV50L-C*****,AVV50,GSV50 · catalogue 283490 · United States

Supported model Data version 2017-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Steering Column & Shaft

13 part groups · 3 illustrations

Illustrations

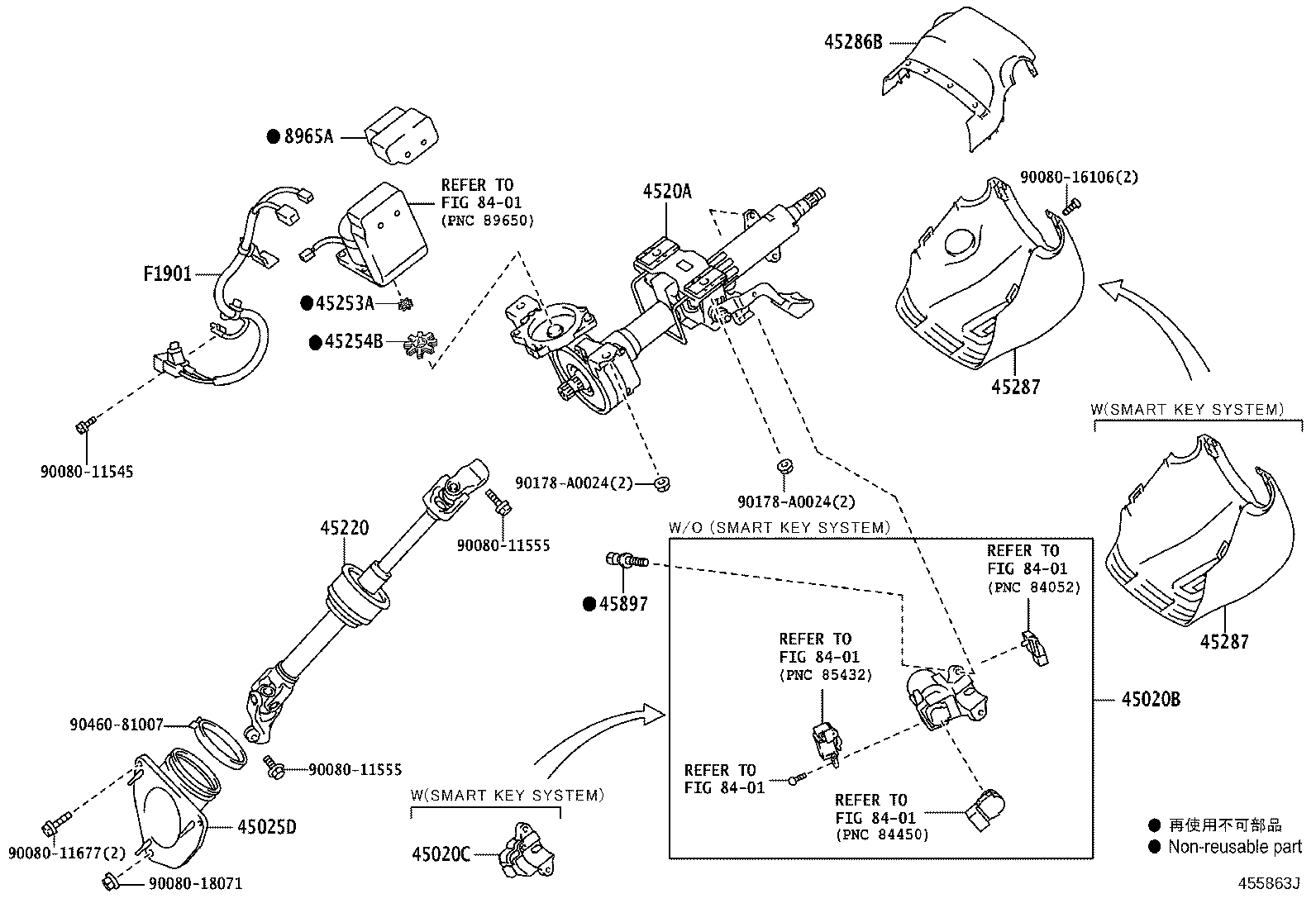

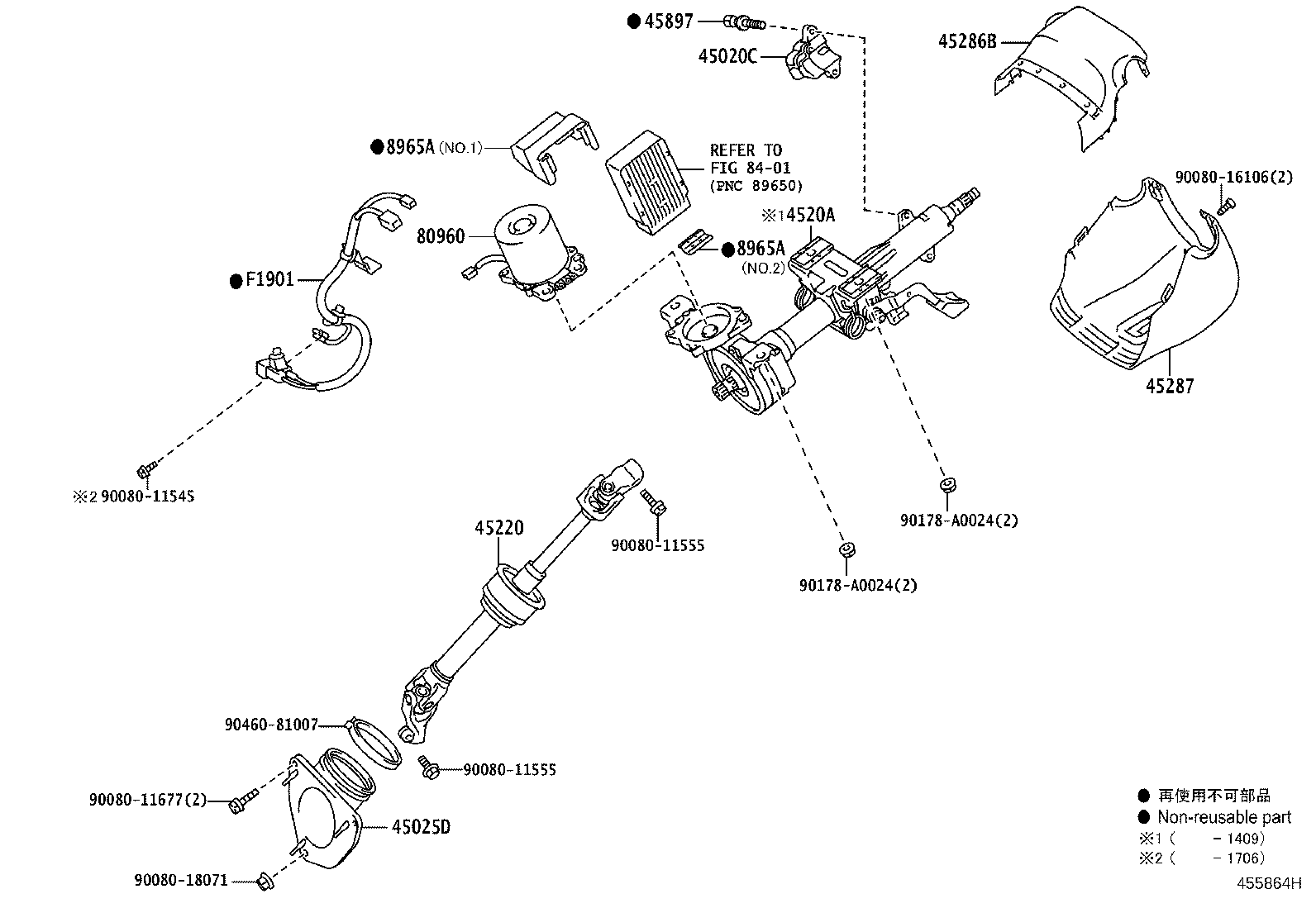

Figure 455851D 455851D 2011-09 → 2014-09 Figure 455863J 455863J 2011-09 → — Figure 455864H 455864H 2011-09 → —

Part groups

PNCDescription
45020B Actuator OR Upper Bracket Assy, Steering Lock
45020C Actuator Assy, Steering Lock(W/ECU)
45025D Cover Sub-assy, Steering Column Hole, NO.1
4520A Column Sub-assy, Electric Power Steering
45220 Shaft Assy, Steering Intermediate
45253A Spacer, Electric Power Steering Motor Shaft
45254B Damper, Electric Power Steering Motor Shaft
45286B Cover, Steering Column, Upr
45287 Cover, Steering Column, Lwr
45897 Bolt, Steering Lock Set
80960 Motor Assy, Power Steering
8965A Protector, Power Steering Computer
F1901 Wire Sub-assy, Computer
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
