Toyota Camry/Hybrid

2011-09 → 2017-06 · chassis ASV50L-C*****,AVV50,GSV50 · catalogue 283490 · United States

Supported model Data version 2017-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Steering Wheel

8 part groups · 3 illustrations

Illustrations

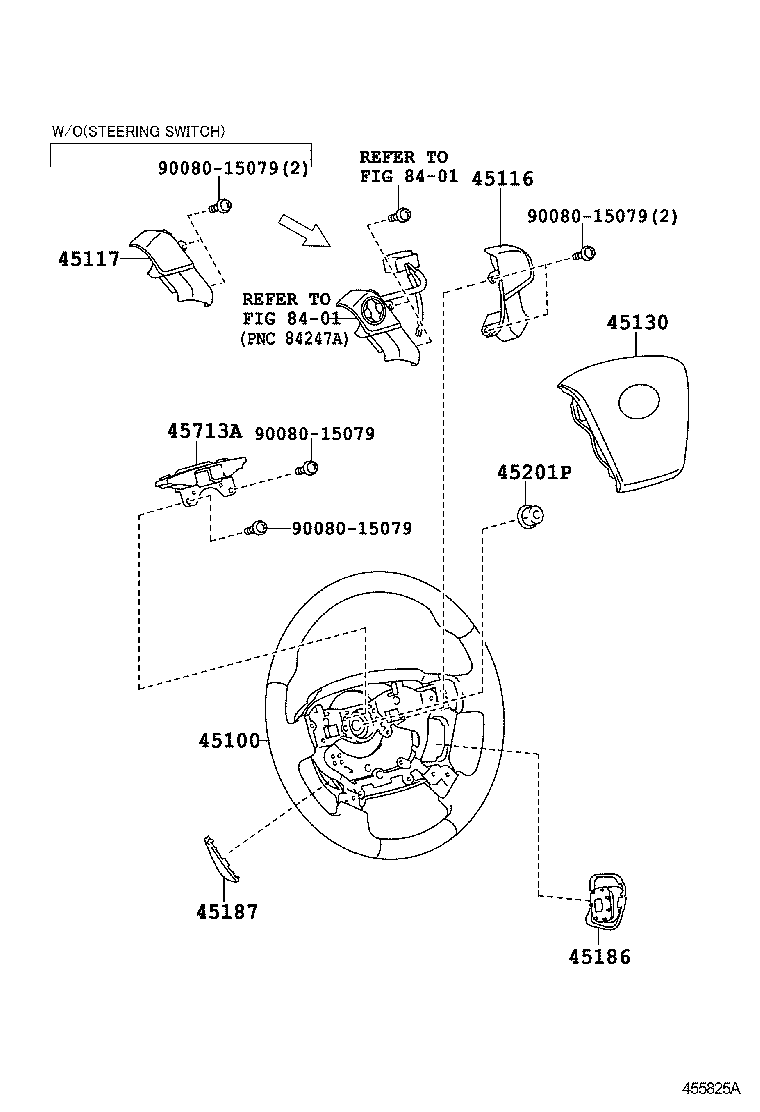

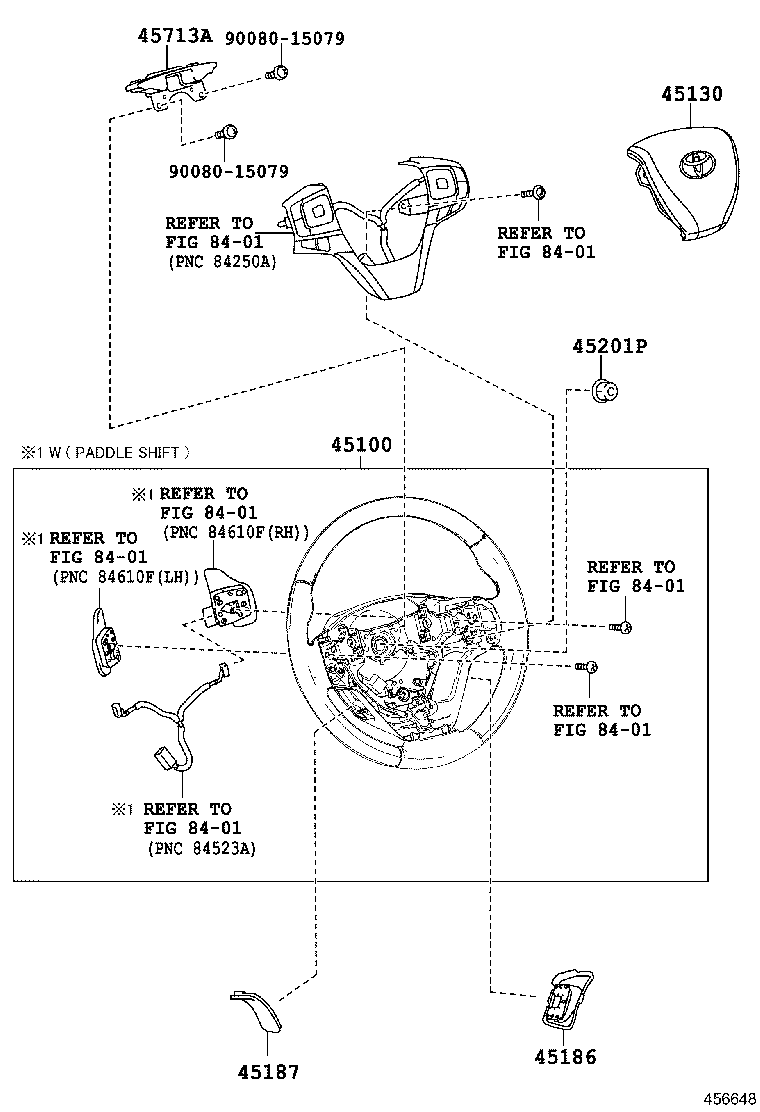

Figure 455826 455826 2011-09 → 2014-09 Figure 455825A 455825A 2011-09 → 2014-09 Figure 456648 456648 2014-09 → —

Part groups

PNCDescription
45100 Wheel Assy, Steering
45116 Ornament, Steering Wheel, NO.1
45117 Ornament, Steering Wheel, NO.2
45130 Button Assy, Horn
45186 Cover, Steering Wheel, Lower NO.2
45187 Cover, Steering Wheel, Lower NO.3
45201P Nut, Steering Wheel Set
45713A Damper, Steering Shake
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
