Toyota Camry/Hybrid

2011-09 → 2017-06 · chassis ASV50L-C*****,AVV50,GSV50 · catalogue 283490 · United States

Supported model Data version 2017-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Hood Lock & Hinge

15 part groups · 2 illustrations

Illustrations

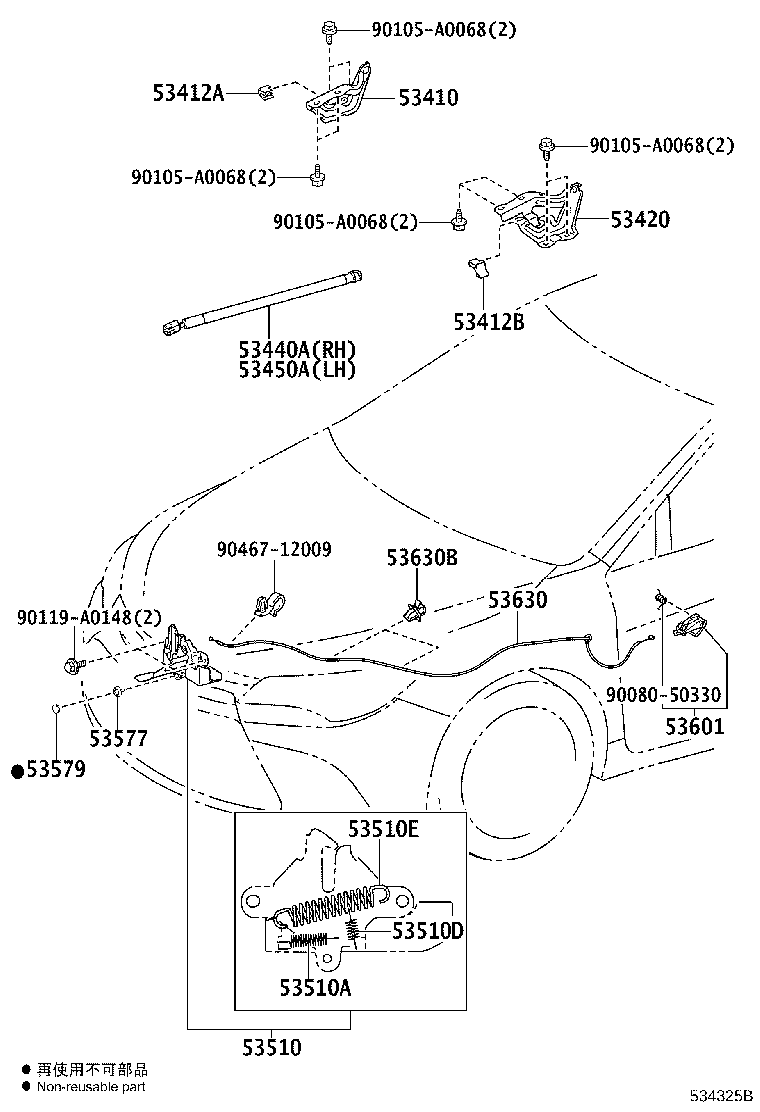

Figure 533483B 533483B 2011-09 → 2014-09 Figure 534325B 534325B 2014-09 → —

Part groups

PNCDescription
53410 Hinge Assy, Hood, RH
53412A Cushion, Hood Hinge Seat RH
53412B Cushion, Hood Hinge Seat LH
53420 Hinge Assy, Hood, LH
53440A Support Assy, Hood, RH
53450A Support Assy, Hood, LH
53510 Lock Assy, Hood
53510A Spring, Tension(FOR HOOD LOCK)
53510D Spring, Tension(FOR HOOD LOCK)
53510E Spring, Tension(FOR HOOD LOCK)
53577 Bolt, Hood Lock
53579 Cap, Hood Lock Nut
53601 Lever Sub-assy, Hood Lock Control
53630 Cable Assy, Hood Lock Control
53630B Clamp(FOR HOOD LOCK CONTROL CABLE)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
