Toyota Camry/Hybrid
2011-09 → 2017-06 · chassis ASV50L-C*****,AVV50,GSV50 · catalogue 283490 · United States
Supported model
Data version 2017-12

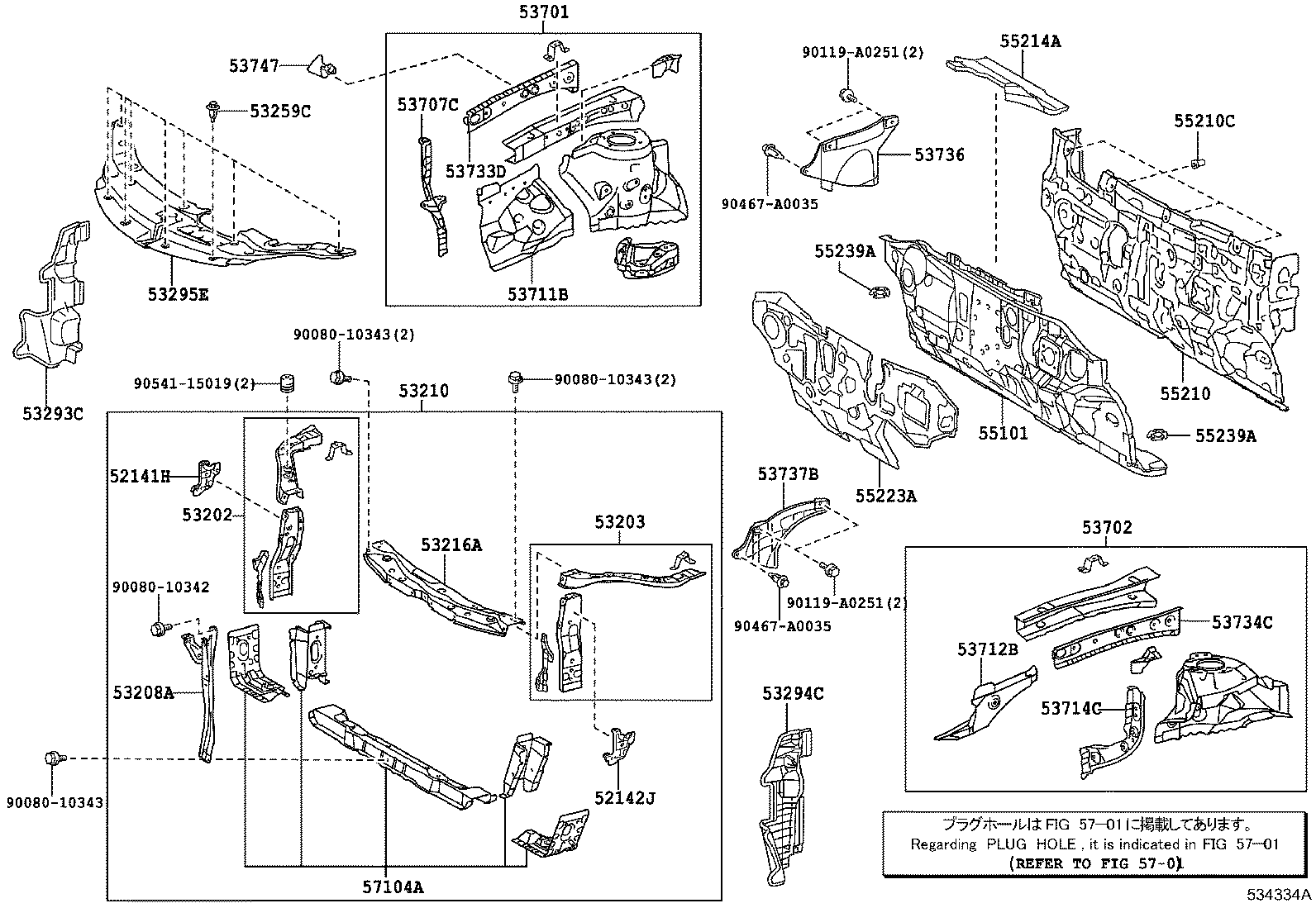

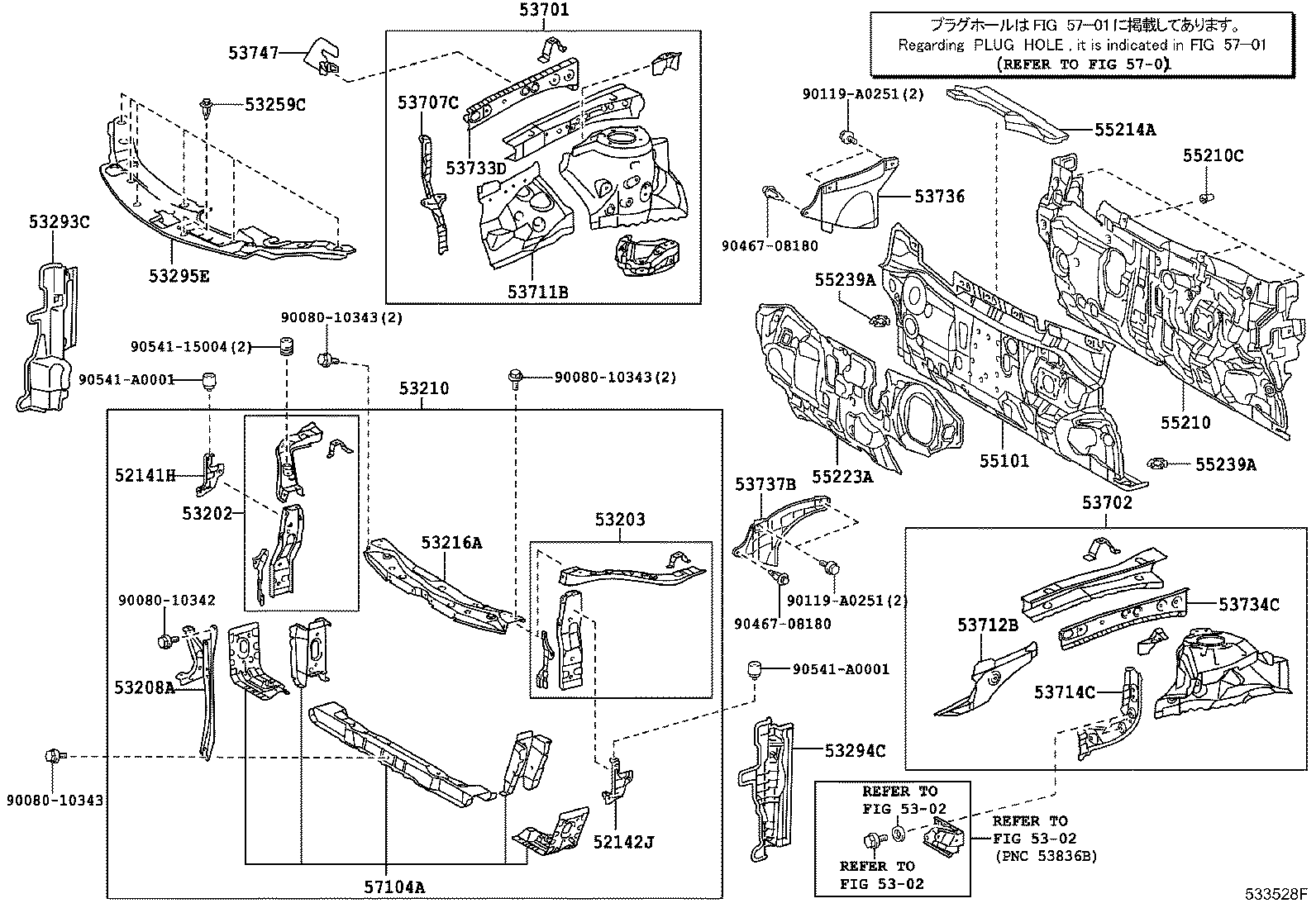

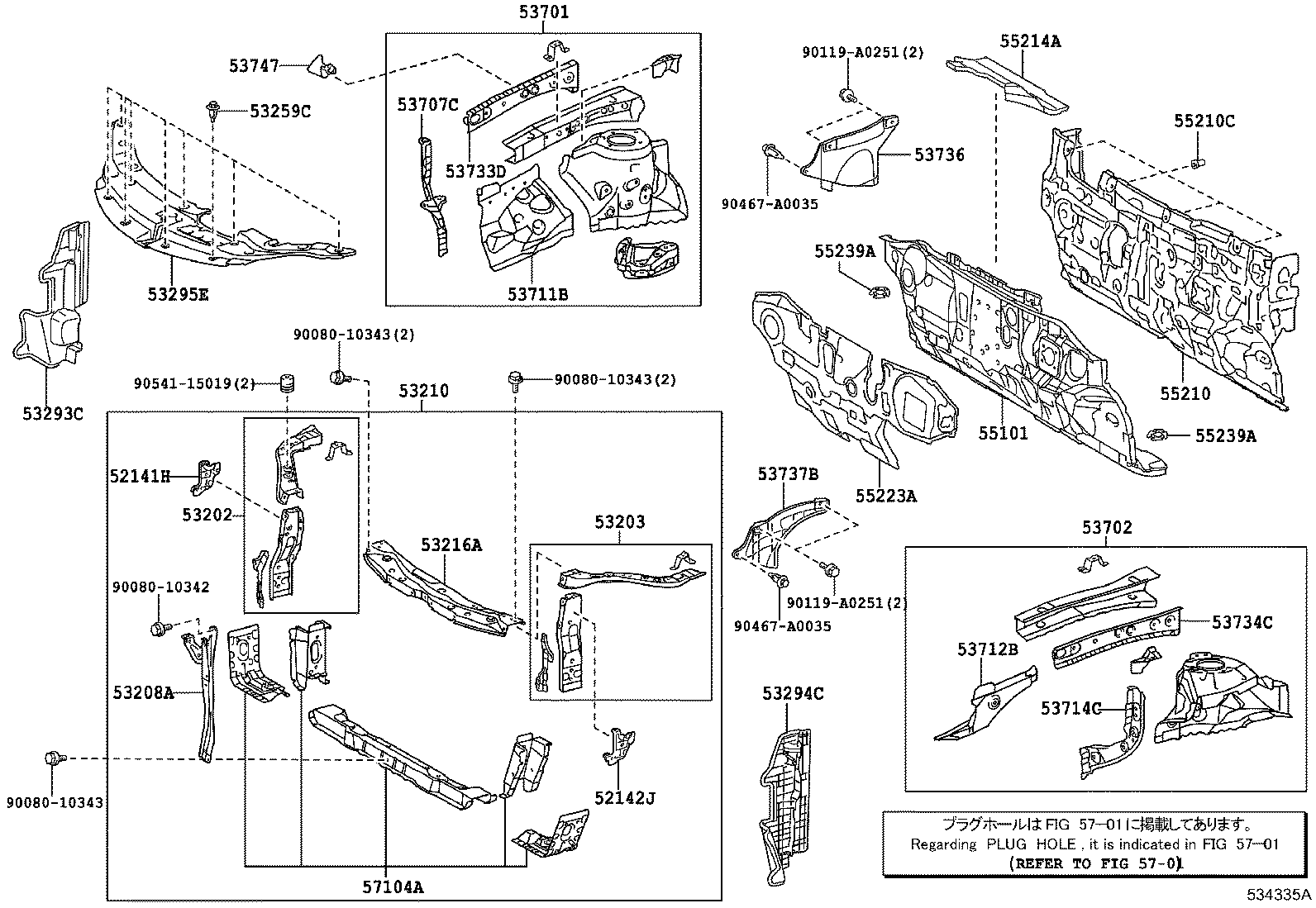

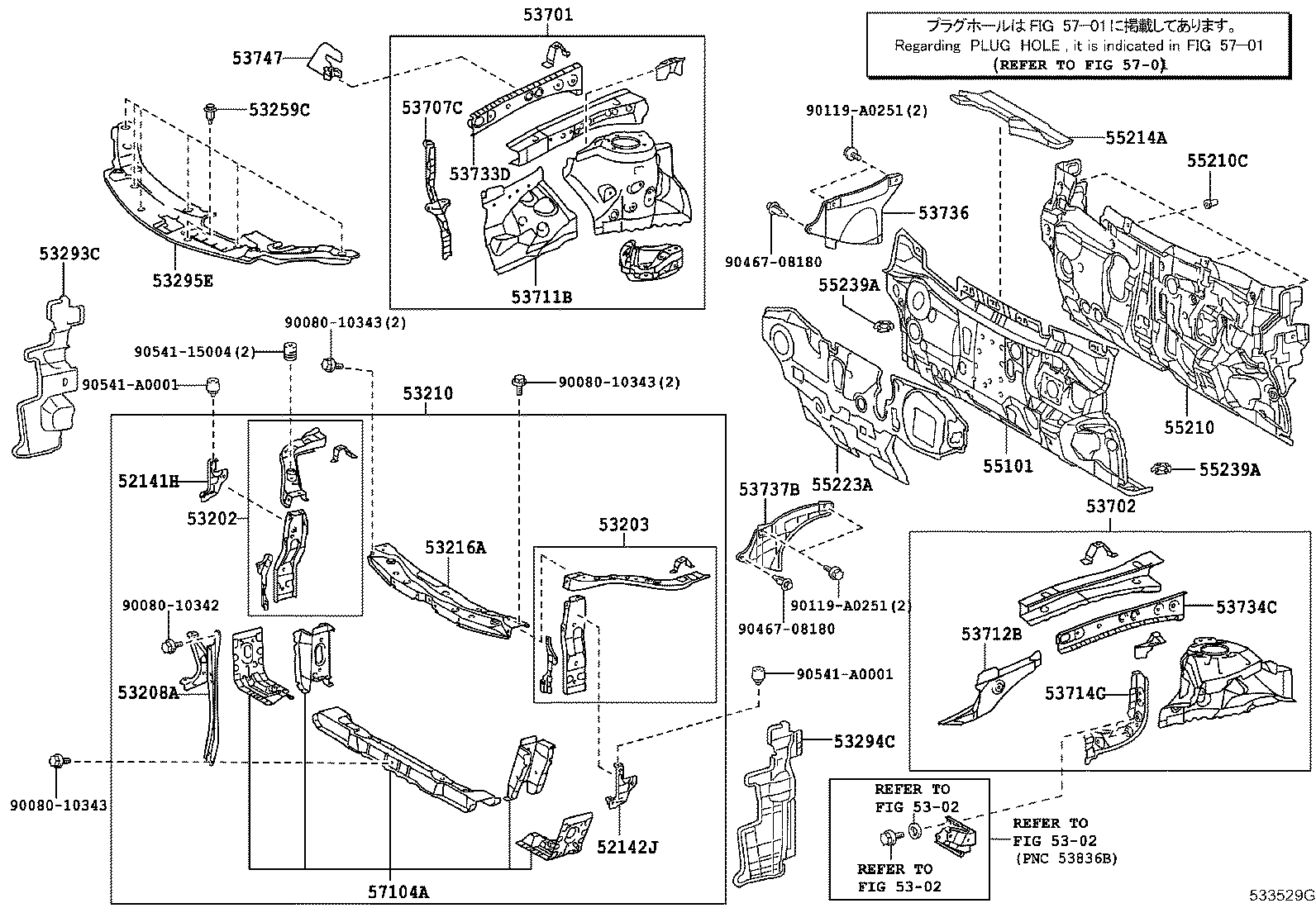

Front Fender Apron & Dash Panel
29 part groups · 5 illustrations
Part groups
| PNC | Description |
|---|---|
| 52141H | Arm, Front Bumper, Upper RH |
| 52142J | Arm, Front Bumper, Upper LH |
| 53202 | Support Sub-assy, Radiator, RH |
| 53203 | Support Sub-assy, Radiator, LH |
| 53208A | Support Sub-assy, Hood Lock |
| 53210 | Support Assy, Radiator |
| 53216A | Support, Radiator, Upper |
| 53259C | Clip, Radiator Support TO Frame Seal |
| 53293C | Deflector, Radiator Side, RH |
| 53294C | Deflector, Radiator Side, LH |
| 53295E | Seal, Cool Air Intake Duct |
| 53701 | Apron Sub-assy, Front Fender, RH |
| 53702 | Apron Sub-assy, Front Fender, LH |
| 53707C | Extension Sub-assy, Front Fender Apron, Front RH |
| 53711B | Apron, Front Fender, Front RH |
| 53712B | Apron, Front Fender, Front LH |
| 53714C | Extension, Front Fender Apron, Front LH |
| 53733D | Member, Front Apron TO Cowl Side, Lower Front RH |
| 53734C | Member, Front Apron TO Cowl Side, Lower Front LH |
| 53736 | Seal, Front Fender Apron, RH |
| 53737B | Seal, Front Fender Apron, LH |
| 53747 | Plate, Air Sealed, RH |
| 55101 | Panel Sub-assy, Dash |
| 55210 | Insulator Assy, Dash Panel |
| 55210C | Clip |
| 55214A | Pad, Dash Panel Insulator, NO.2 |
| 55223A | Insulator, Dash Panel, Outer |
| 55239A | Plate, Dash Panel Insulator, NO.3 |
| 57104A | Member Sub-assy, Front Cross |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
