Toyota Camry/Hybrid

2011-09 → 2017-06 · chassis ASV50L-C*****,AVV50,GSV50 · catalogue 283490 · United States

Supported model Data version 2017-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Floor Pan & Lower Back Panel

43 part groups · 10 illustrations

Illustrations

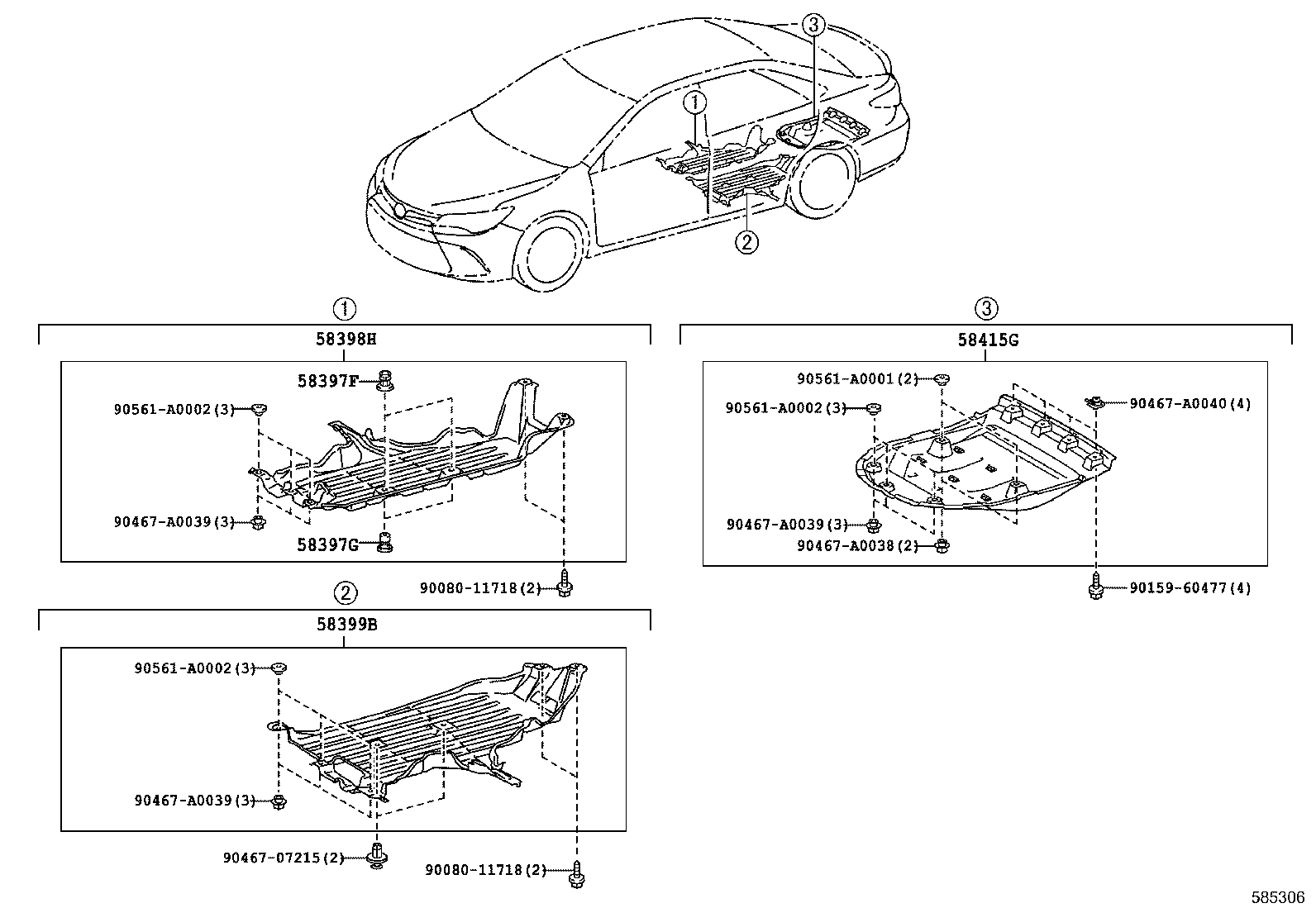

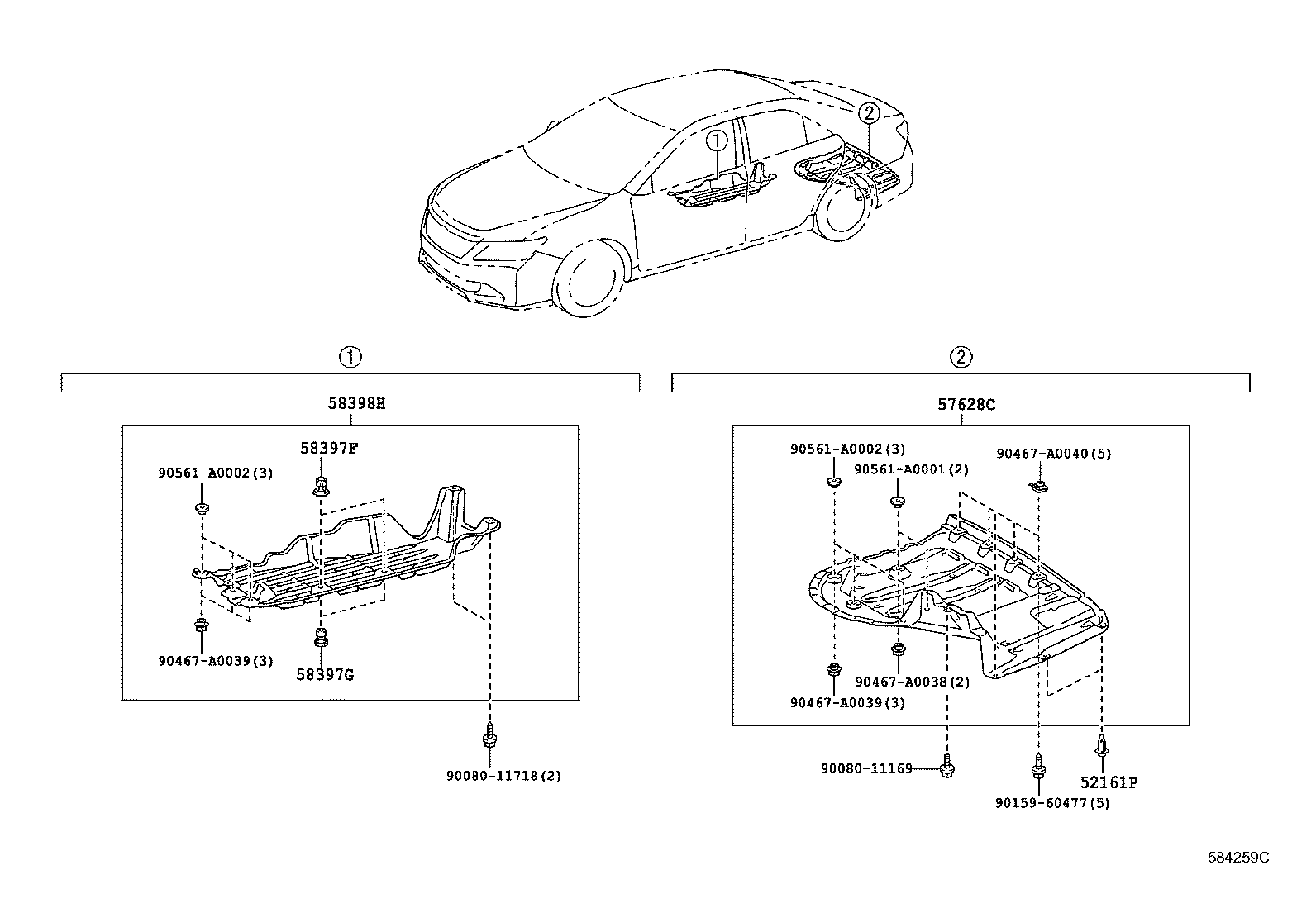

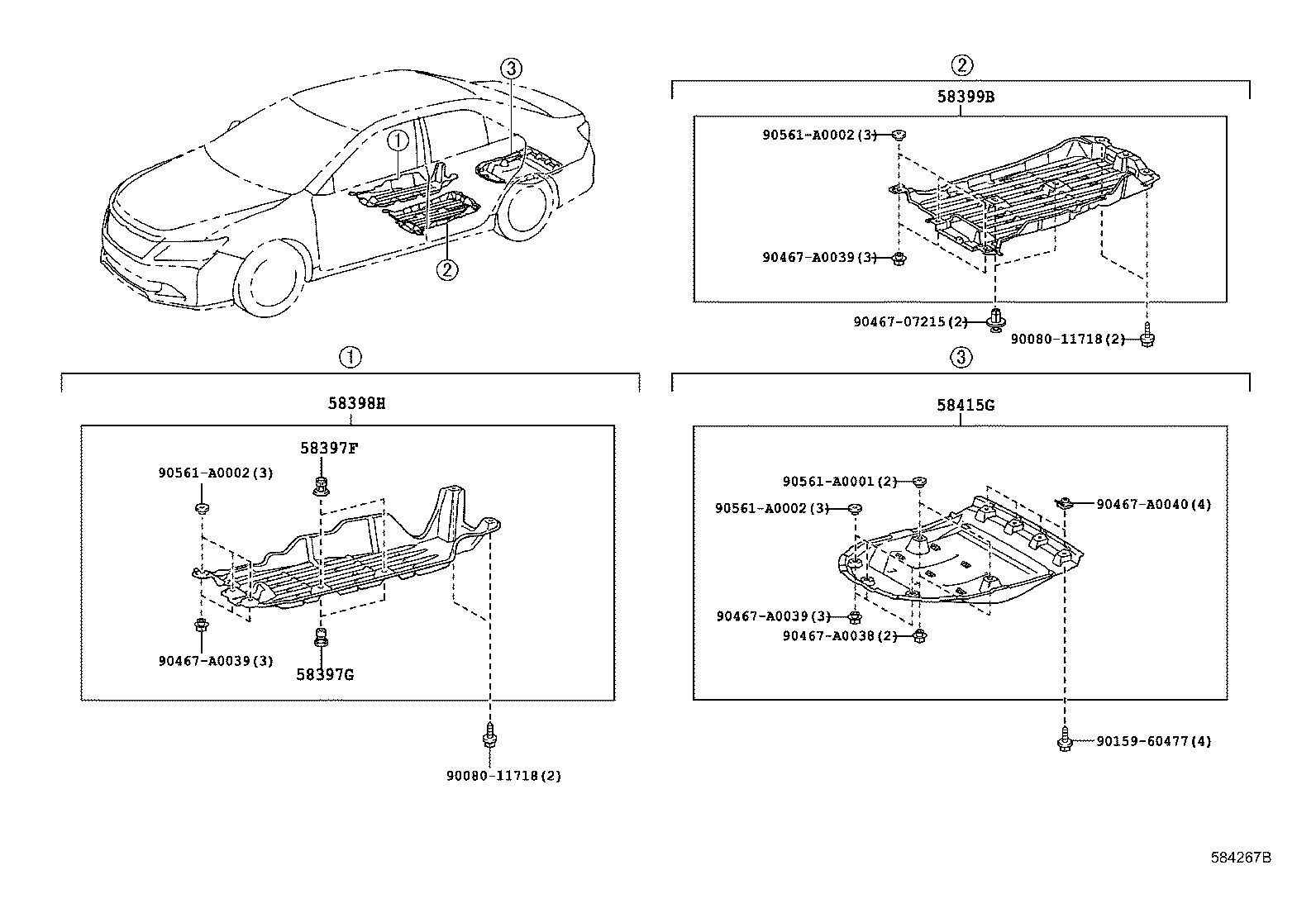

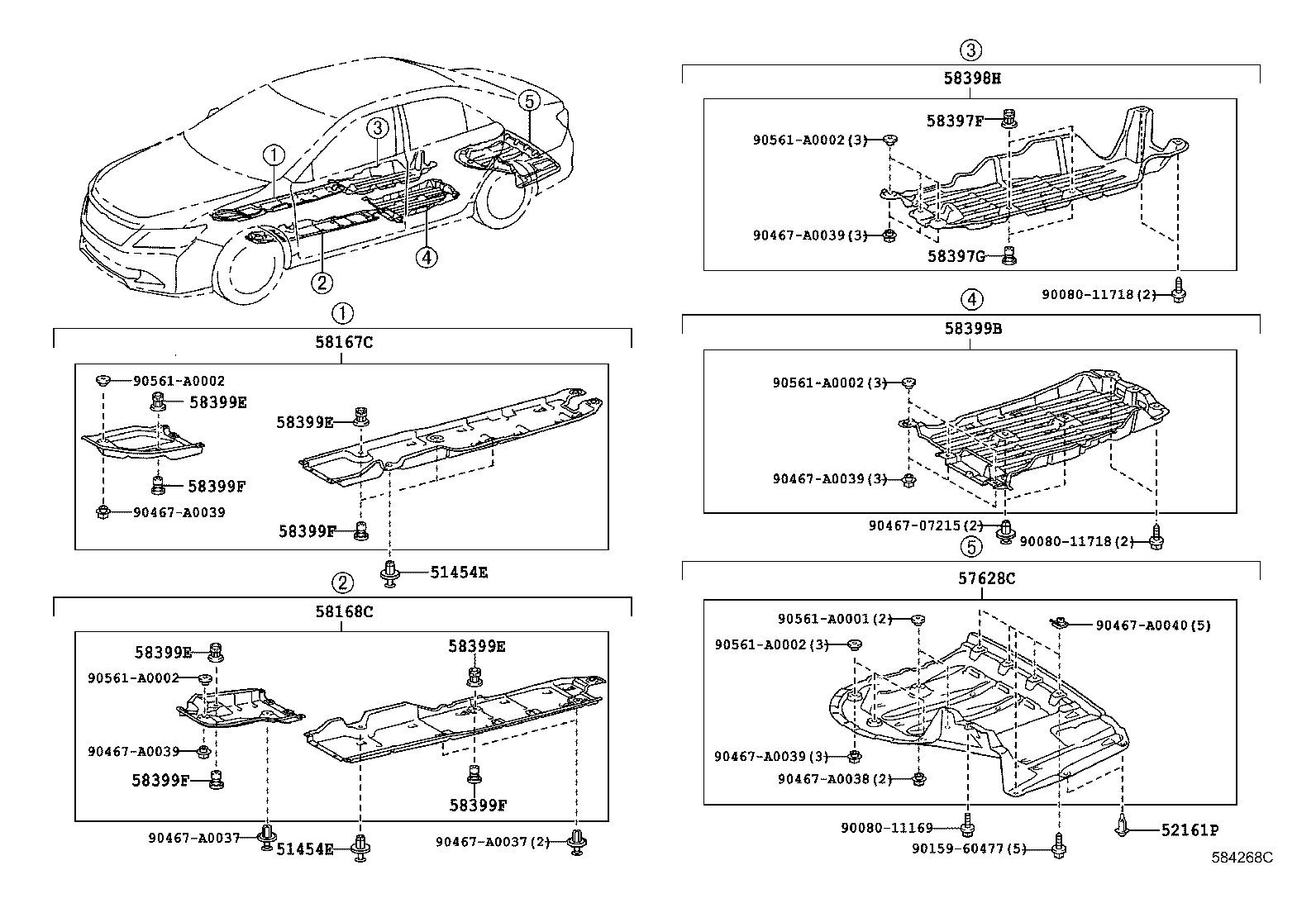

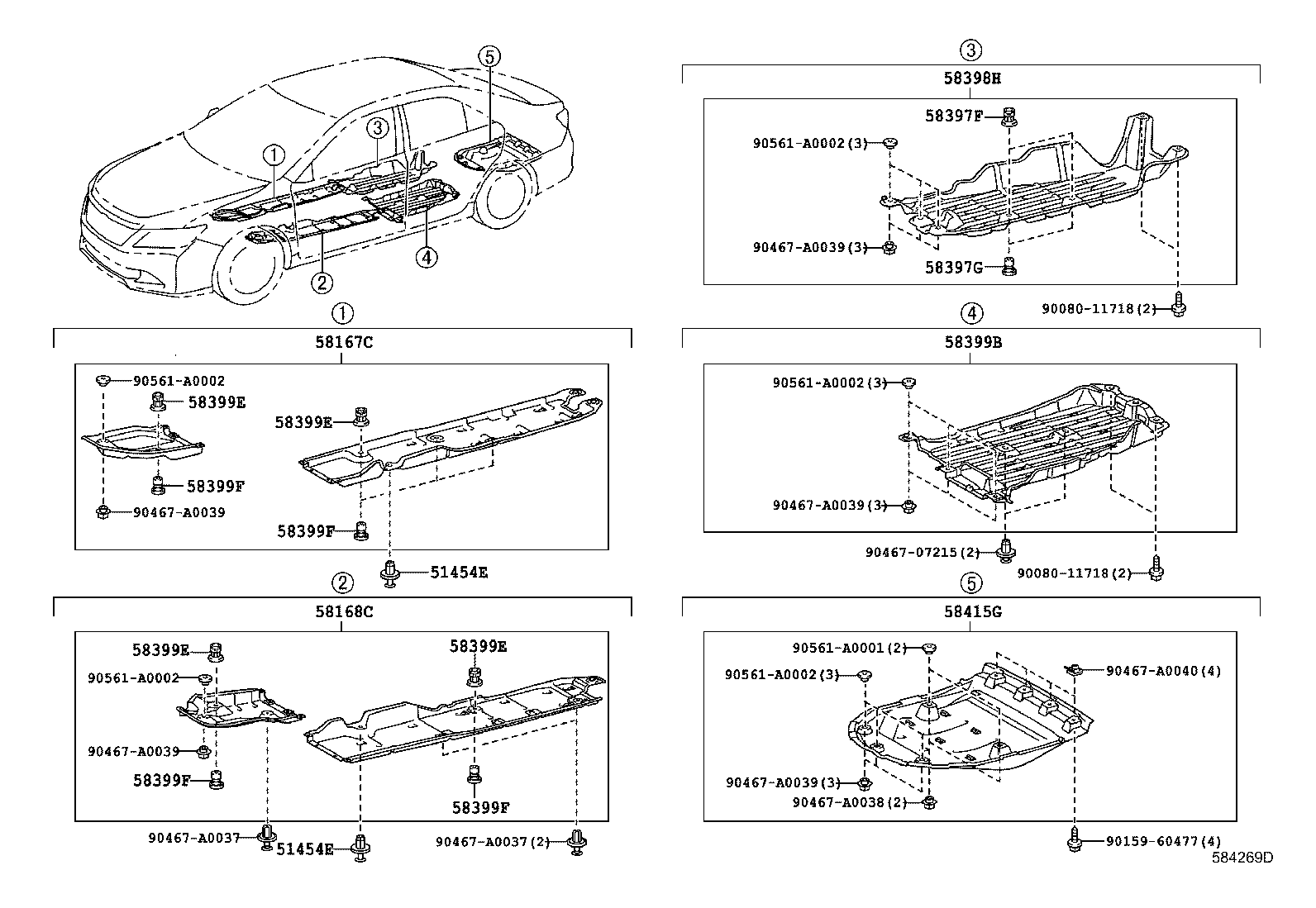

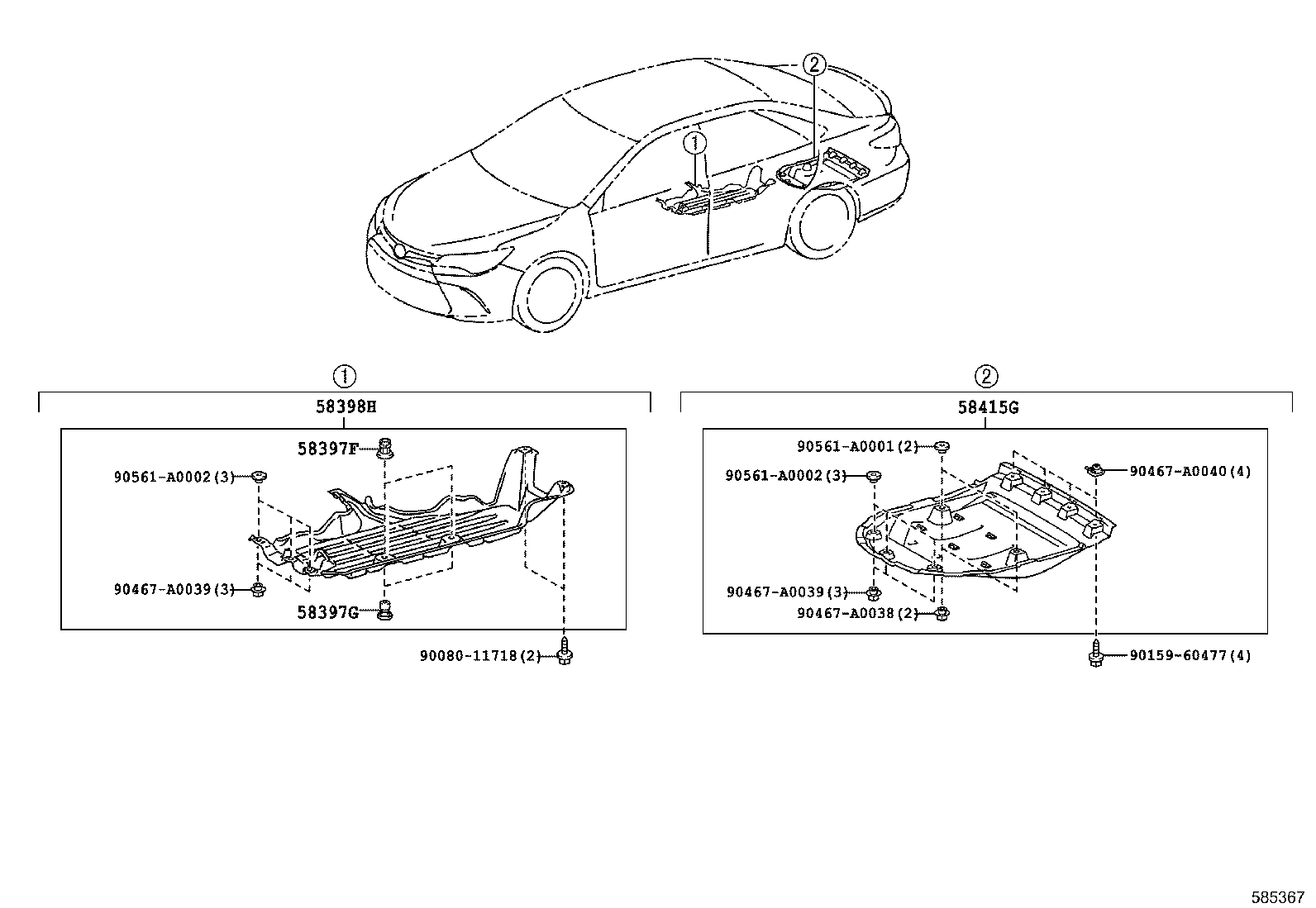

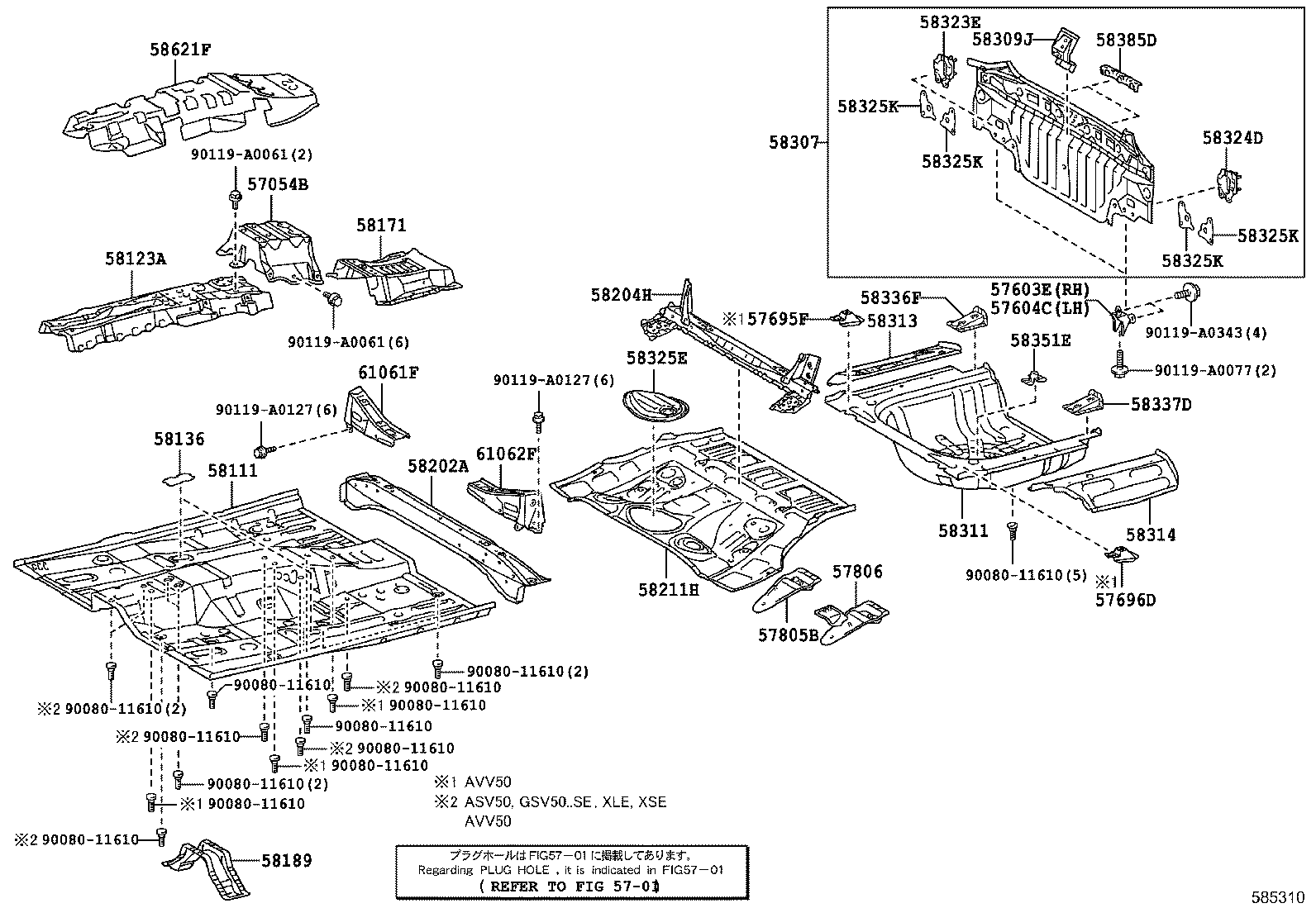

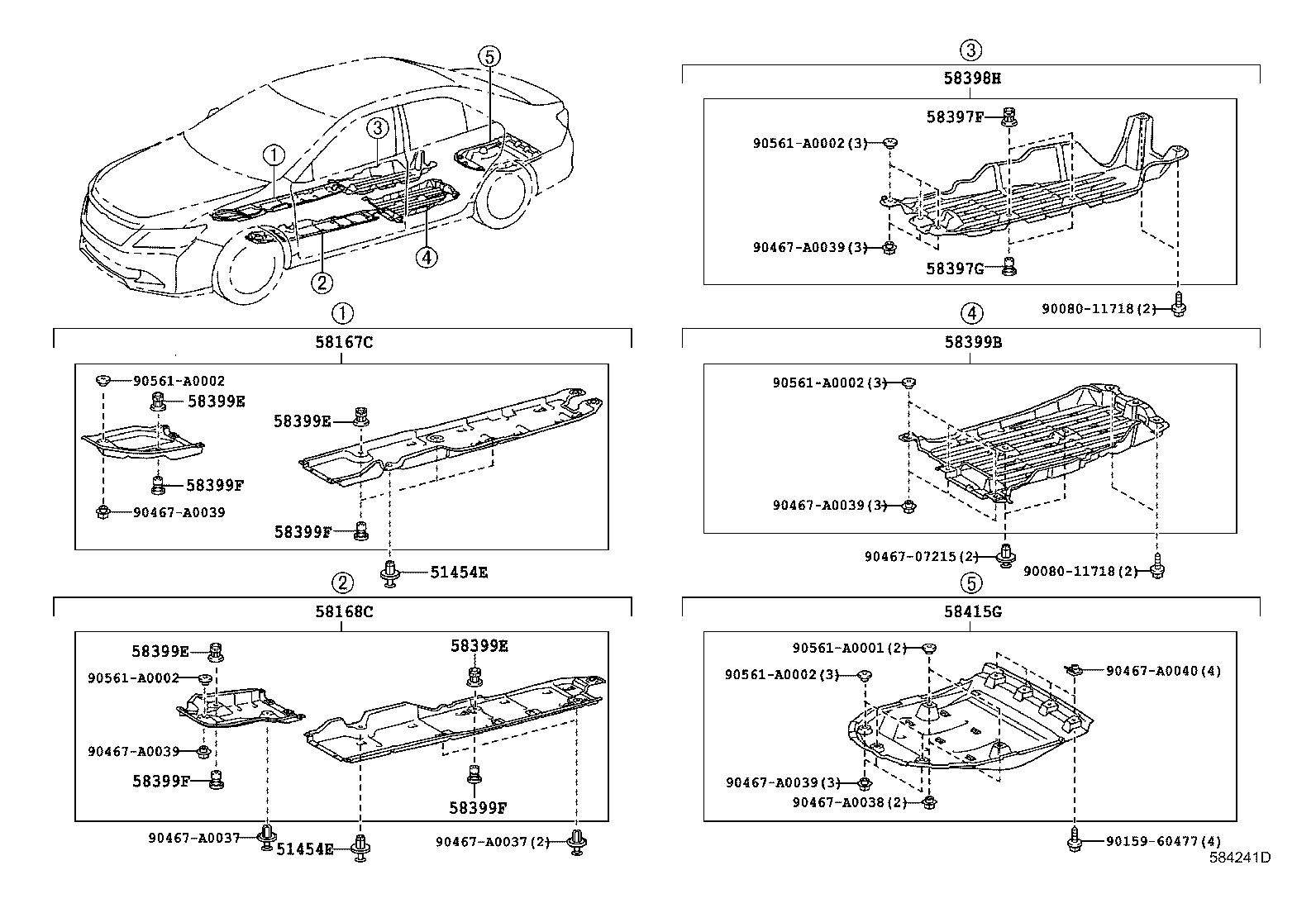

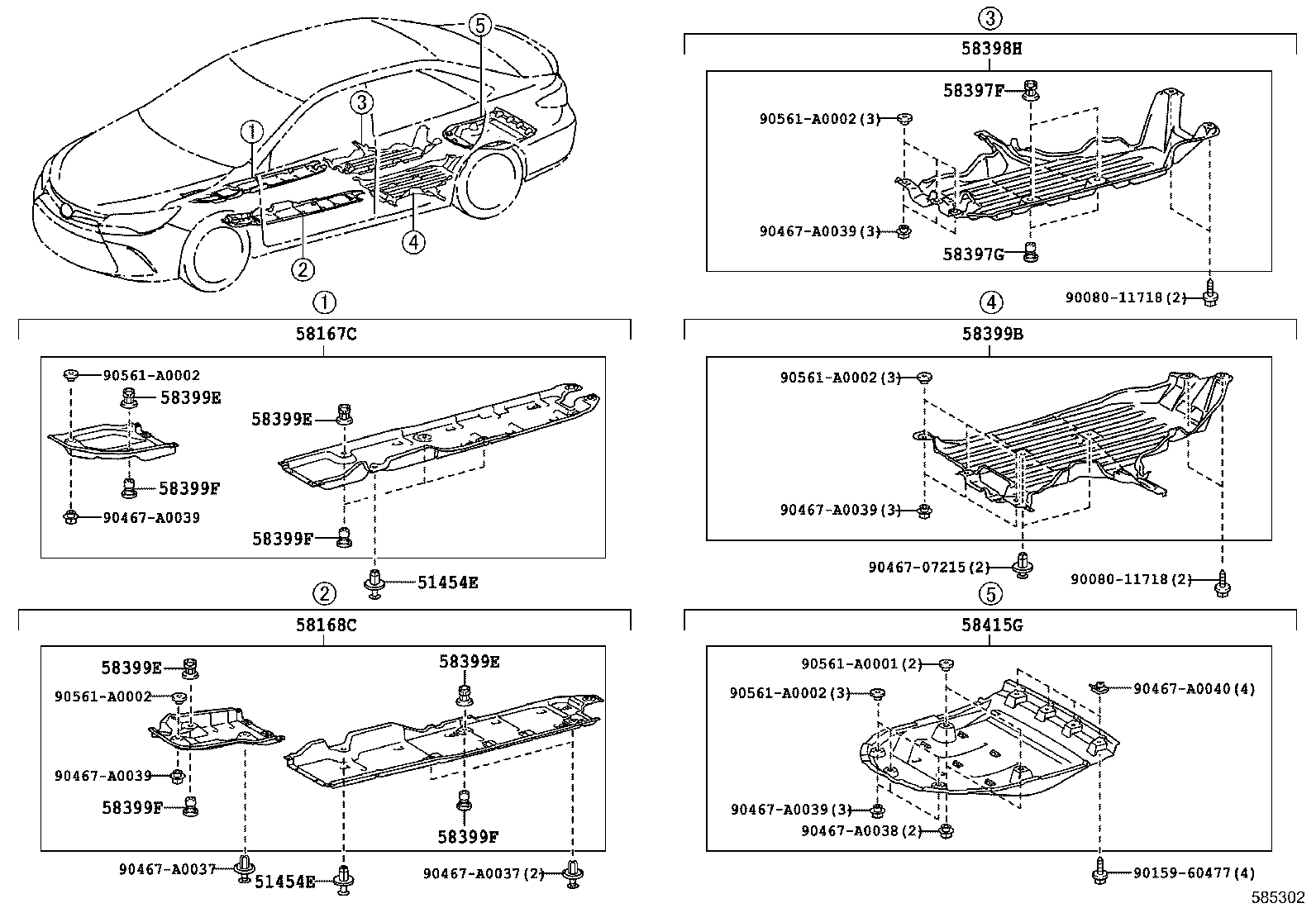

Figure 584240B 584240B 2011-09 → 2014-09 Figure 585310 585310 2014-09 → — Figure 584259C 584259C 2011-09 → 2014-09 Figure 584267B 584267B 2011-09 → 2014-09 Figure 584241D 584241D 2011-09 → 2014-09 Figure 584269D 584269D 2011-09 → 2014-09 Figure 584268C 584268C 2011-10 → 2014-09 Figure 585367 585367 2014-09 → — Figure 585306 585306 2014-09 → — Figure 585302 585302 2014-09 → —

Part groups

PNCDescription
51454E Silencer, Front Floor Cover
52161P Piece, Rear Bumper
57054B Reinforcet Sub-assy, Crossmember Floor, NO.4
57603E Extension Sub-assy, Rear Side Member, RH
57604C Extension Sub-assy, Rear Side Member, LH
57628C Cover, Rear Floor Side Member, LH
57695F Extension, Rear Floor Crossmember Rear Side, RH
57696D Extension, Rear Floor Crossmember Rear Side, LH
57805B Reinforcement Sub-assy, Belt Anchor, RH
57806 Reinforcement Sub-assy, Belt Anchor, LH
58111 Pan, Front Floor
58123A Support, Shift & Select Lever
58136 Cover, Front Floor Hole
58167C Cover, Front Floor, Center RH
58168C Cover, Front Floor, Center LH
58171 Reinforcement, Parking Brake Base
58189 Reinforcement, Exhaust Pipe Clamp Bracket
58202A Pan Sub-assy, Center Floor, Front
58204H Pan Sub-assy, Center Floor, Rear
58211H Pan, Center Floor
58307 Panel Sub-assy, Body Lower Back
58309J Retainer Sub-assy, Luggage Door Lock Striker
58311 Pan, Rear Floor
58313 Panel, Rear Floor Side, RH
58314 Panel, Rear Floor Side, LH
58323E Reinforcement, Rear Bumper Arm Support, RH
58324D Reinforcement, Rear Bumper Arm Support, LH
58325E Cover, Rear Floor Service Hole
58325K Brace, Rear Floor Panel
58336F Reinforcement, Rear Floor Pan, RH
58337D Reinforcement, Rear Floor Pan, LH
58351E Bracket, Spare Wheel Clamp
58385D Bracket, Rear Bumper Cover
58397F Clip, NO.1(FOR REAR UNDER COVER)
58397G Clip, NO.2(FOR REAR UNDER COVER)
58398H Cover, Floor Under, NO.1
58399B Cover, Floor Under, NO.2
58399E Clip, NO.1(FOR FLOOR UNDER COVER)
58399F Clip, NO.2(FOR FLOOR UNDER COVER)
58415G Board, Rear Floor, NO.1
58621F Silencer, Center Console, NO.1
61061F Gusset Sub-assy, Quarter Wheel House, NO.1
61062F Gusset Sub-assy, Quarter Wheel House, NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
