Toyota Camry/Hybrid

2011-09 → 2017-06 · chassis ASV50L-C*****,AVV50,GSV50 · catalogue 283490 · United States

Supported model Data version 2017-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Luggage Compartment Door & Lock

19 part groups · 5 illustrations

Illustrations

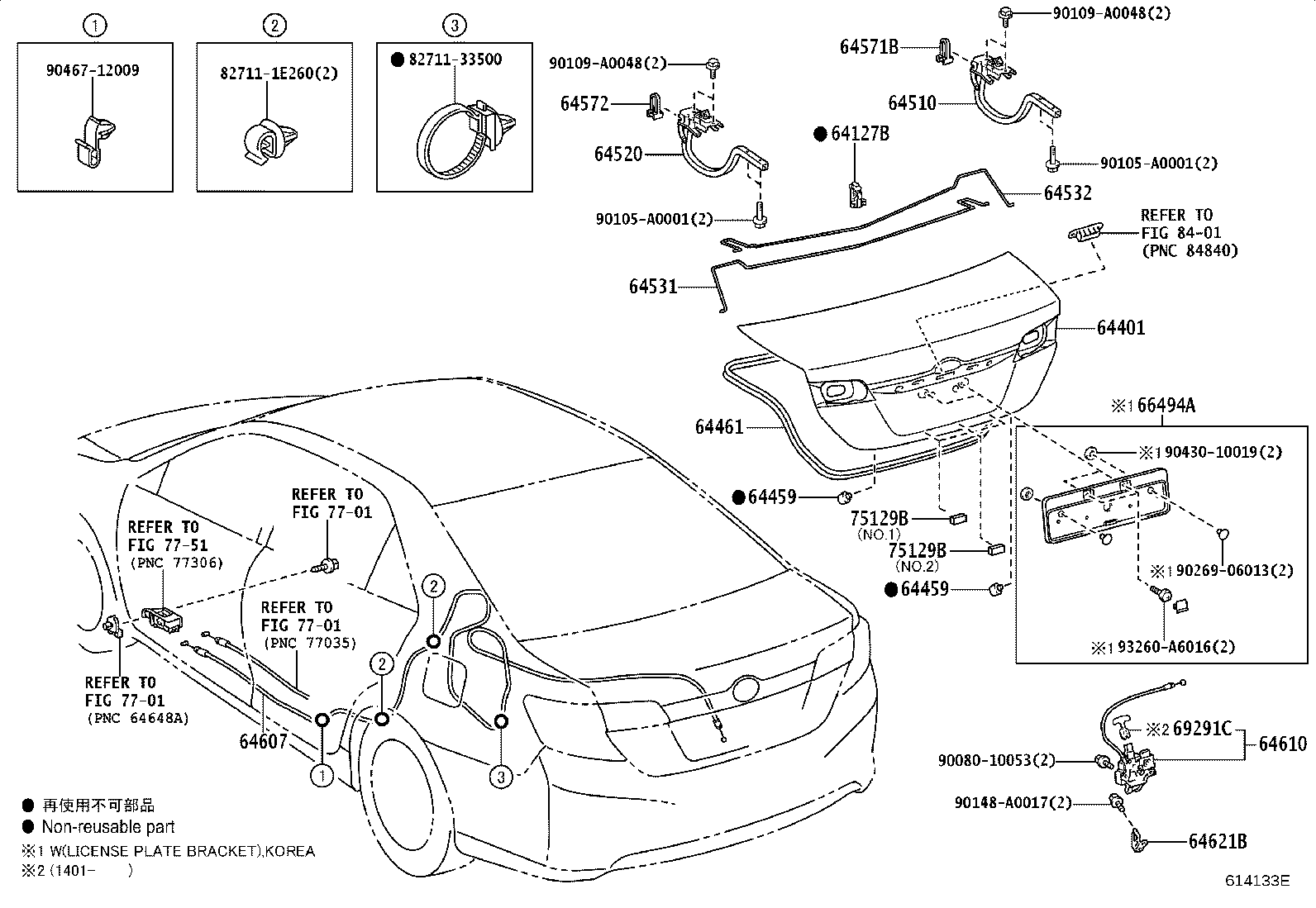

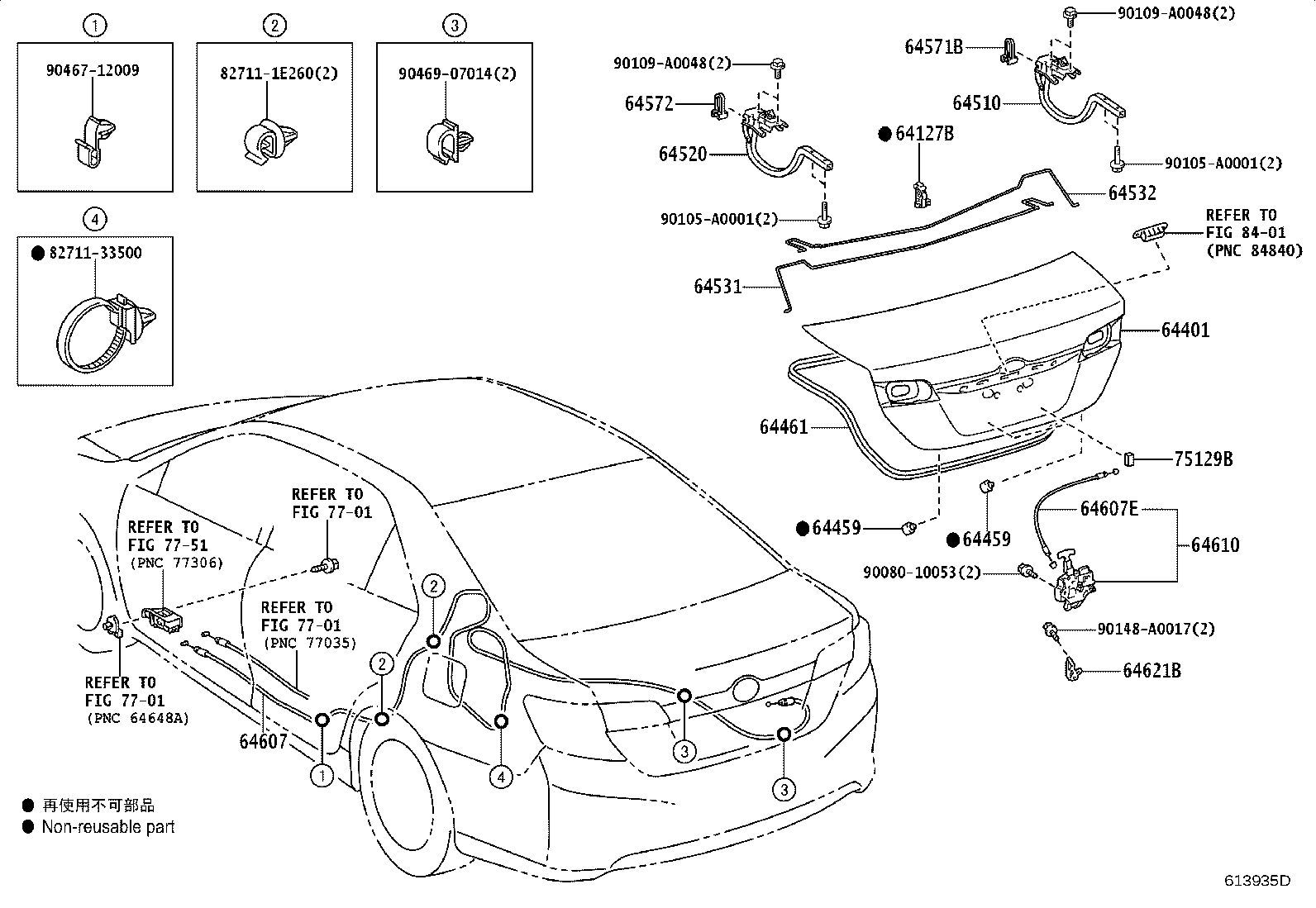

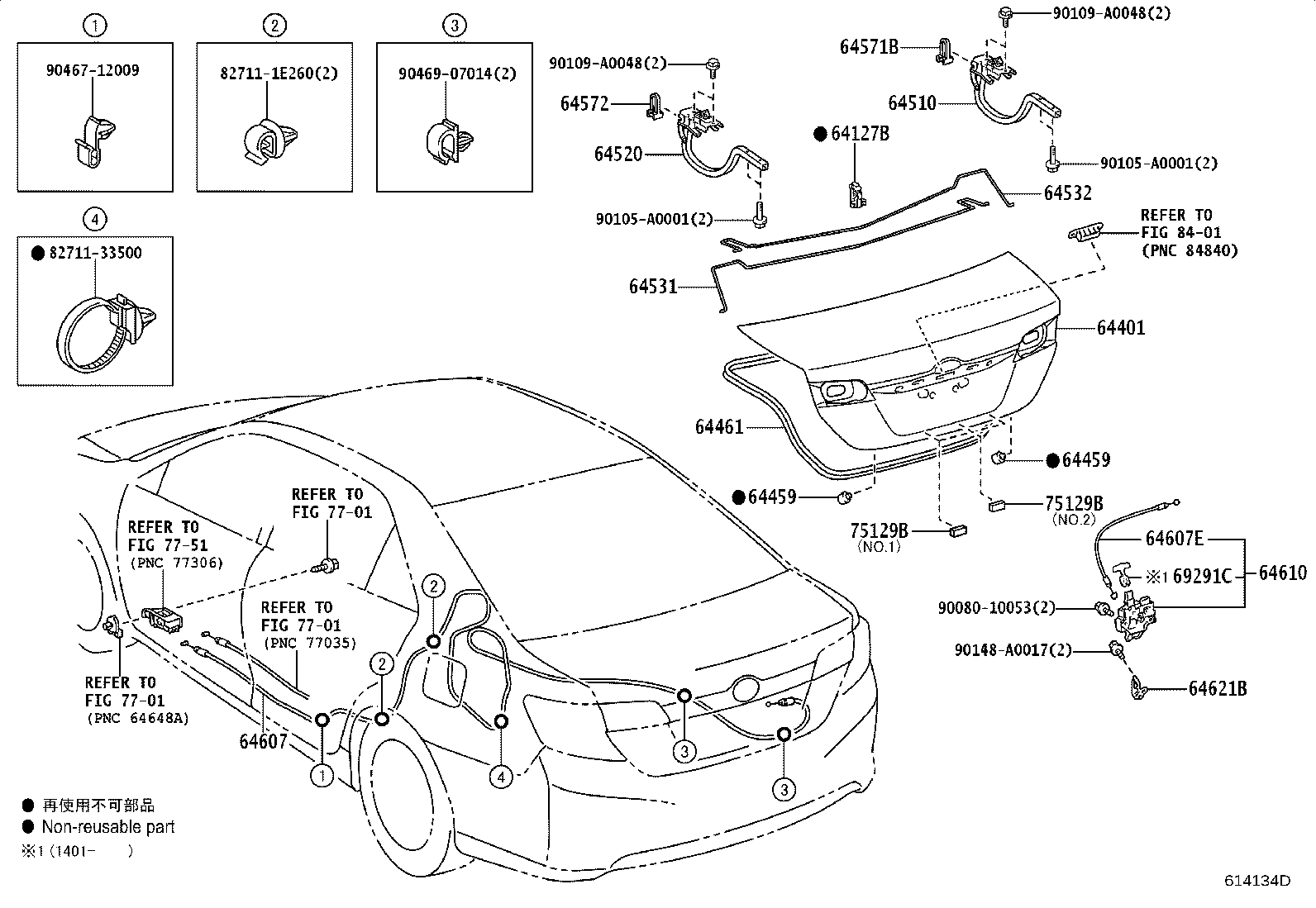

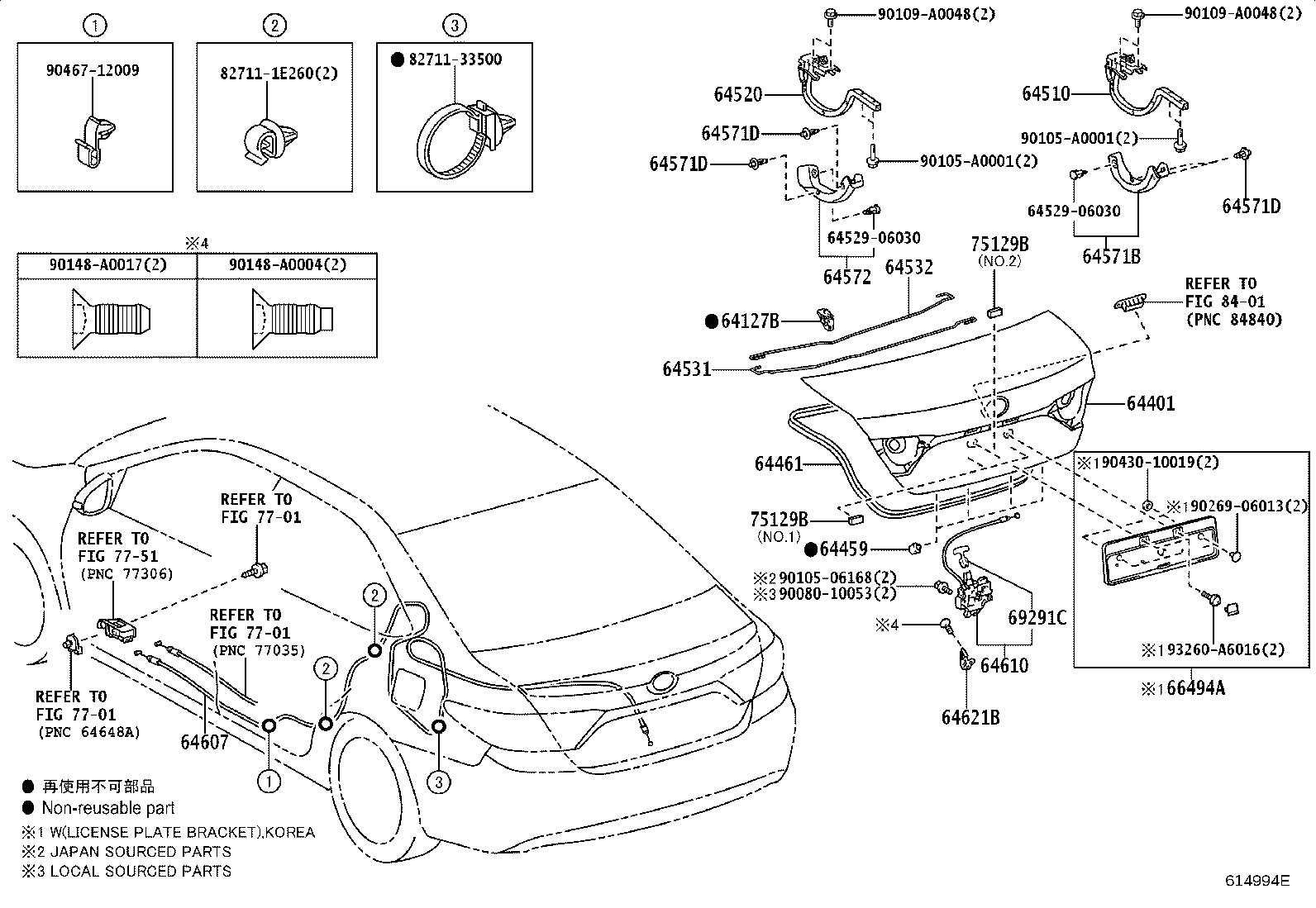

Figure 613934E 613934E 2011-09 → 2011-12 Figure 614133E 614133E 2011-12 → 2014-09 Figure 613935D 613935D 2011-09 → 2011-12 Figure 614134D 614134D 2011-12 → 2014-09 Figure 614994E 614994E 2014-09 → —

Part groups

PNCDescription
64127B Support, Luggage Compartment Door Torsion Bar
64401 Panel Sub-assy, Luggage Compartment Door
64459 Cushion, Luggage Compartment Door
64461 Weatherstrip, Luggage Compartment Door
64510 Hinge Assy, Luggage Compartment Door, RH
64520 Hinge Assy, Luggage Compartment Door, LH
64531 Bar, Luggage Door Hinge Torsion, RH
64532 Bar, Luggage Door Hinge Torsion, LH
64571B Cover, Luggage Compartment Door Hinge, RH
64571D Clip(FOR LUGGAGE COMPARTMENT DOOR HINGE COVER)
64572 Cover, Luggage Compartment Door Hinge, LH
64607 Cable Sub-assy, Luggage Door Lock Control
64607E Cable Sub-assy, Luggage Door Lock Control
64610 Lock Assy, Luggage Compartment Door
64621B Striker, Luggage Compartment Door Lock
66494A Plate, License Bracket
69291C Handle, Luggage Compartment Door, Inside
75129B Cushion, Rear Licence Plate
84944 Cover, Luggage Electrical Key Switch
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
