Toyota Camry/Hybrid

2011-09 → 2017-06 · chassis ASV50L-C*****,AVV50,GSV50 · catalogue 283490 · United States

Supported model Data version 2017-12

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Door Panel & Glass

56 part groups · 6 illustrations

Illustrations

676868D 2011-09 → 2014-09

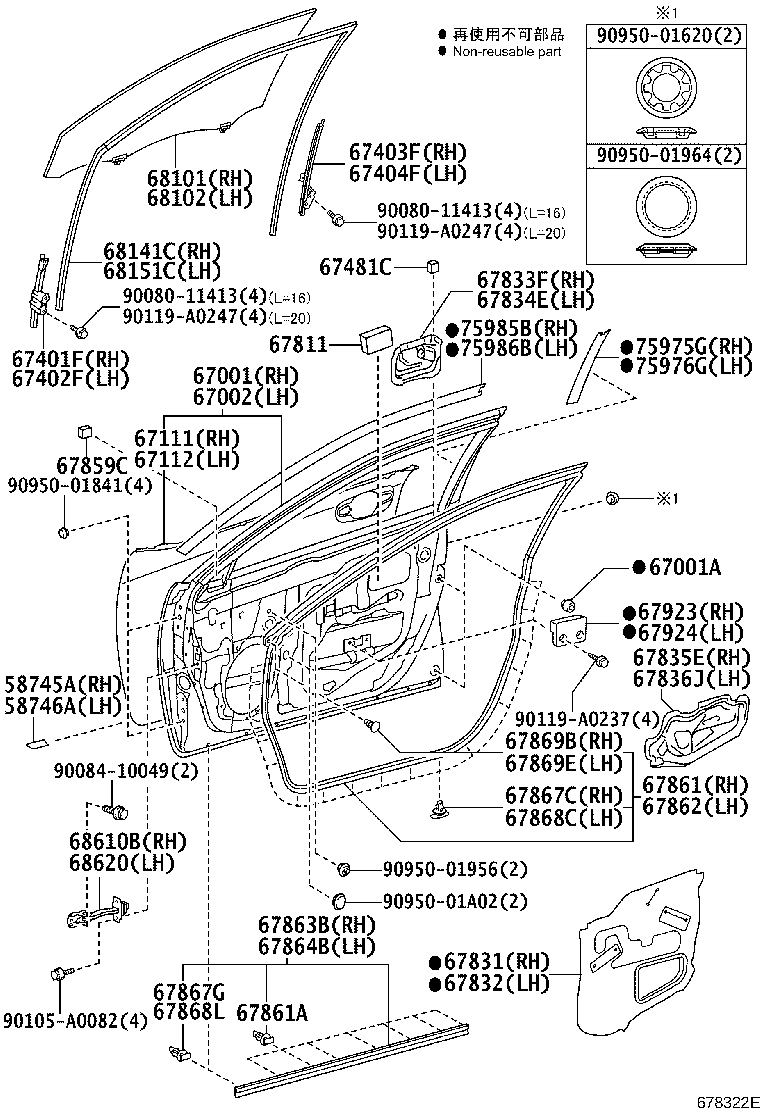

678322E 2014-09 → 2015-09

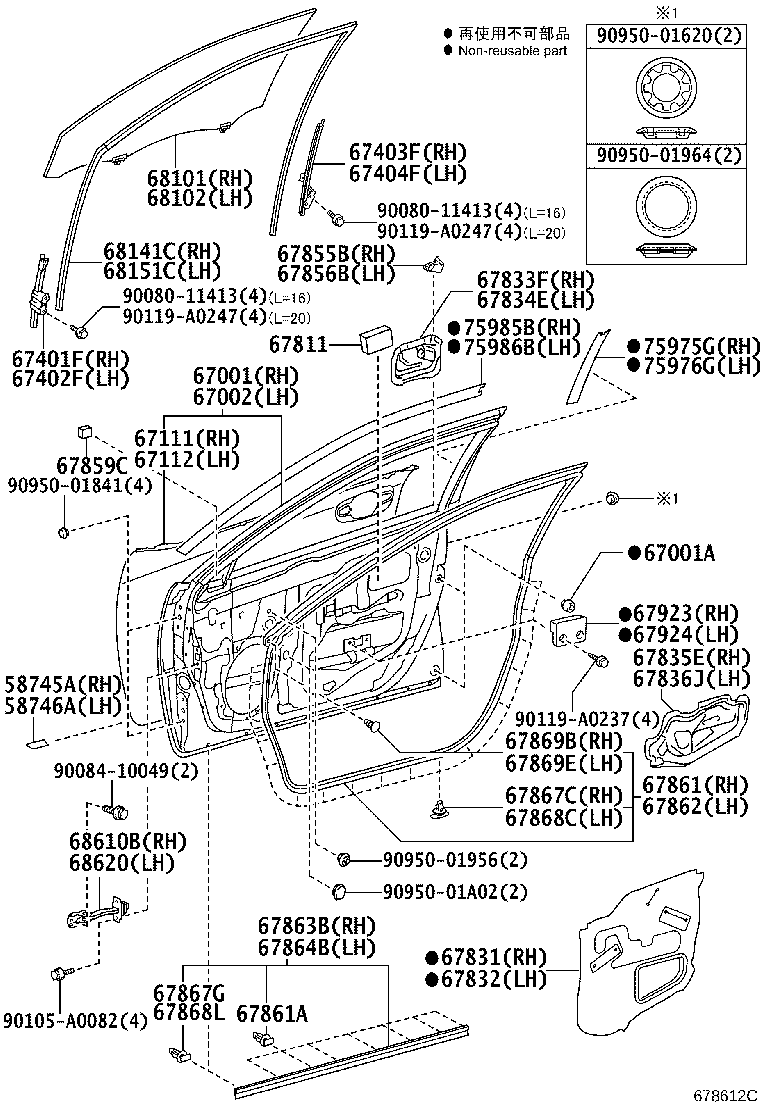

678612C 2015-09 → 2016-01

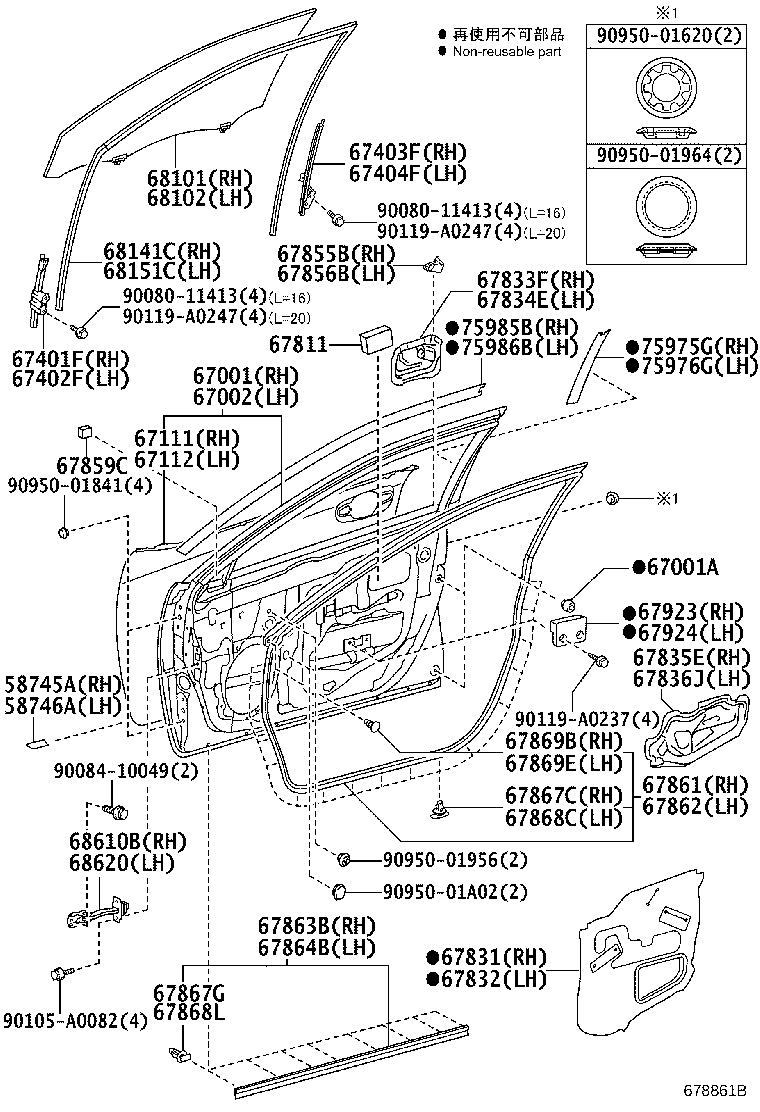

678861B 2016-01 → —

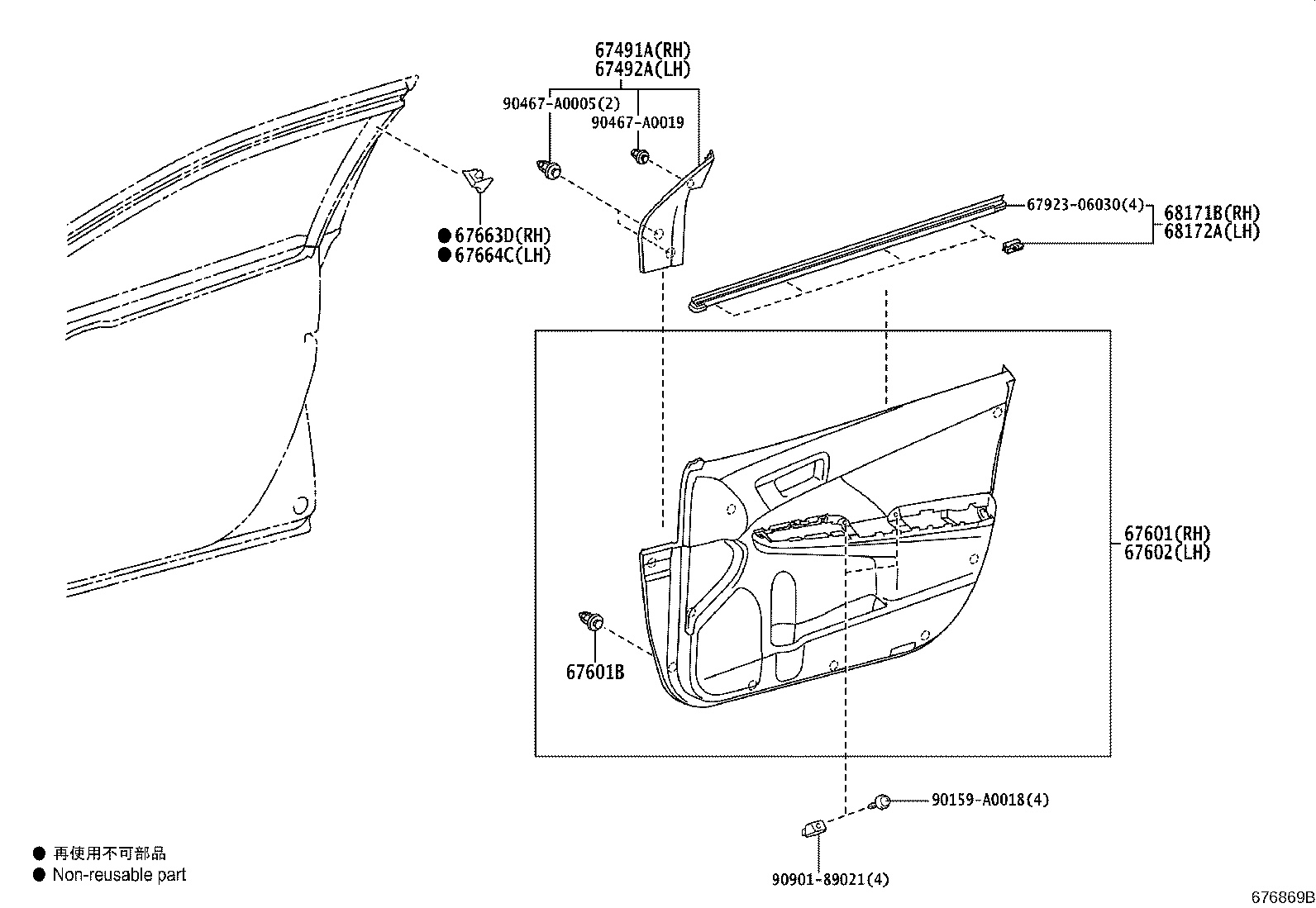

676869B 2011-09 → 2014-09

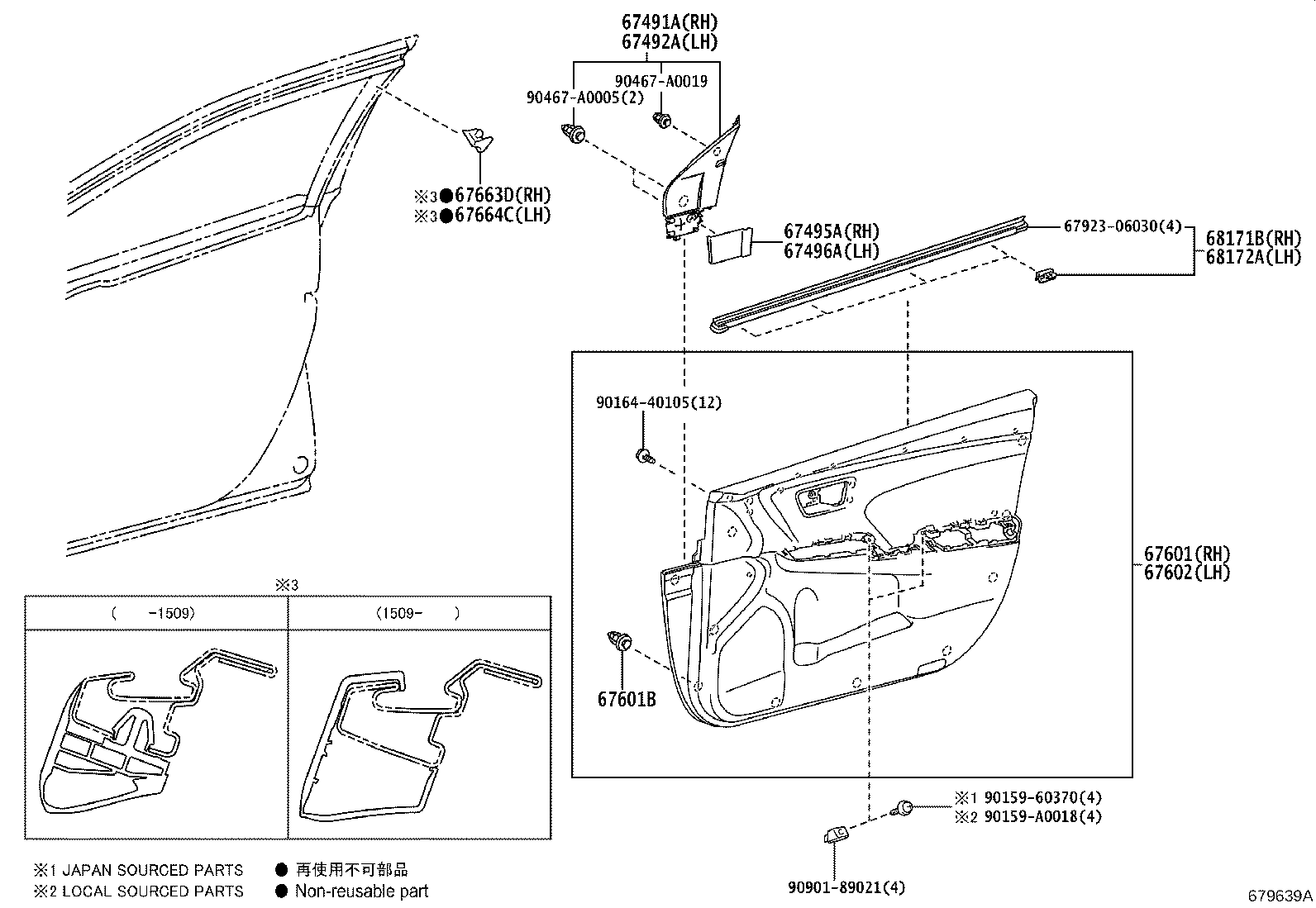

679639A 2014-09 → —

Part groups

PNC	Description
58745A	Protector, Quarter Panel, Front RH
58746A	Protector, Quarter Panel, Front LH
67001	Panel Sub-assy, Front Door, RH
67001A	Cushion, Front Door Panel
67002	Panel Sub-assy, Front Door, LH
67111	Panel, Front Door, Outer RH
67112	Panel, Front Door, Outer LH
67401F	Frame Sub-assy, Front Door, Front Lower RH
67402F	Frame Sub-assy, Front Door, Front Lower LH
67403F	Frame Sub-assy, Front Door, Rear Lower RH
67404F	Frame Sub-assy, Front Door, Rear Lower LH
67481C	Seal, Front Door Front Lower Frame
67491A	Garnish, Front Door Lower Frame Bracket, RH
67492A	Garnish, Front Door Lower Frame Bracket, LH
67495A	Cover, Front Door Front Lower Frame, Upper RH
67496A	Cover, Front Door Front Lower Frame, Upper LH
67601	Board Sub-assy, Front Door Trim, RH
67601B	Clip(FOR FRONT DOOR TRIM BOARD)
67602	Board Sub-assy, Front Door Trim, LH
67663D	Garnish, Door Frame, RH
67664C	Garnish, Door Frame, LH
67811	Pad, Front Door Silencer
67831	Cover, Front Door Service Hole, RH
67832	Cover, Front Door Service Hole, LH
67833F	Seal, Front Door Service Hole, NO.1 RH
67834E	Seal, Front Door Service Hole, NO.1 LH
67835E	Seal, Front Door Service Hole, NO.2 RH
67836J	Seal, Front Door Service Hole, NO.2 LH
67855B	Protector, Front Door Panel, RH
67856B	Protector, Front Door Panel, LH
67859C	Protector, Front Door Panel, Lower NO.1
67861	Weatherstrip, Front Door, RH
67861A	Retainer(FOR FRONT DOOR WEATHERSTRIP)
67862	Weatherstrip, Front Door, LH
67863B	Weatherstrip, Front Door, NO.2 RH
67864B	Weatherstrip, Front Door, NO.2 LH
67867C	Retainer, Front Door Weatherstrip, RH
67867G	Retainer, Door Weatherstrip, RH
67868C	Retainer, Front Door Weatherstrip, LH
67868L	Retainer, Door Weatherstrip, LH
67869B	Clip, Front Door Weatherstrip
67869E	Clip, Front Door Weatherstrip
67923	Cushion, Front Door Stiffener, NO.1
67924	Cushion, Front Door Stiffener, NO.2
68101	Glass Sub-assy, Front Door, RH
68102	Glass Sub-assy, Front Door, LH
68141C	Run, Front Door Glass, RH
68151C	Run, Front Door Glass, LH
68171B	Weatherstrip, Front Door Glass, Inner RH
68172A	Weatherstrip, Front Door Glass, Inner LH
68610B	Check Assy, Front Door, RH
68620	Check Assy, Front Door, LH
75975G	Stripe, Front Door, NO.2 RH
75976G	Stripe, Front Door, NO.2 LH
75985B	Stripe, Front Door, NO.3 RH
75986B	Stripe, Front Door, NO.3 LH

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
