Toyota Camry/Hybrid

2011-09 → 2017-06 · chassis ASV50L-C*****,AVV50,GSV50 · catalogue 283490 · United States

Supported model Data version 2017-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Lock Cylinder Set

19 part groups · 4 illustrations

Illustrations

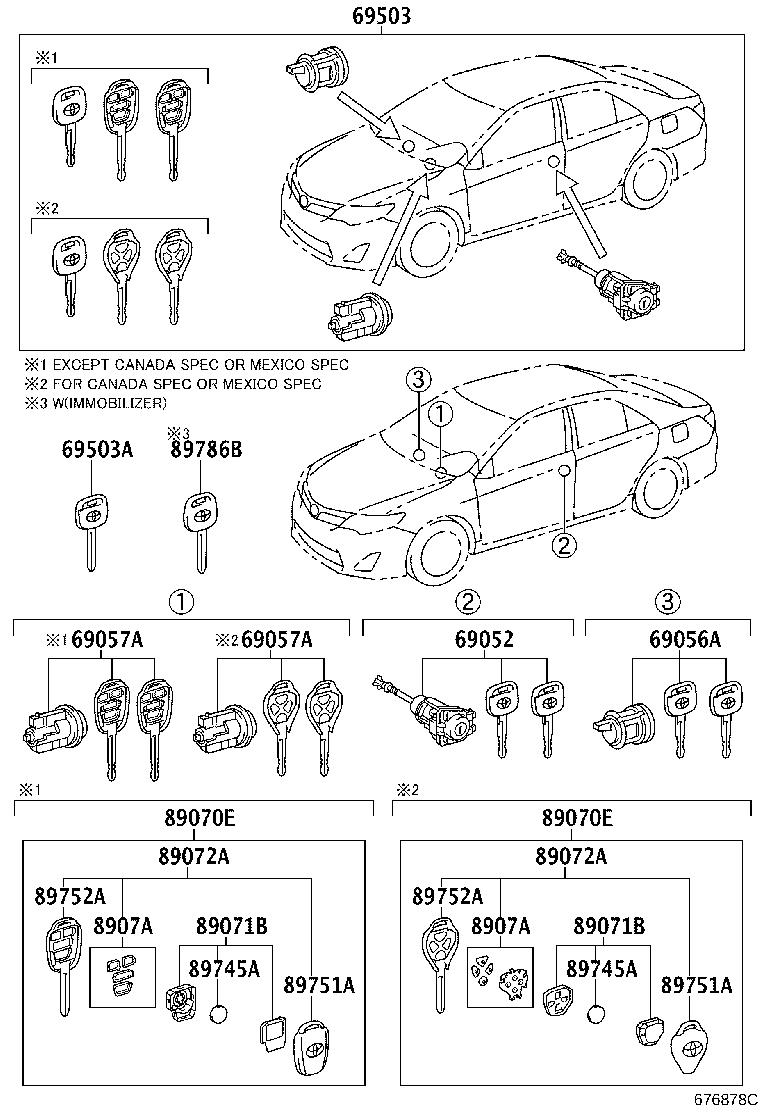

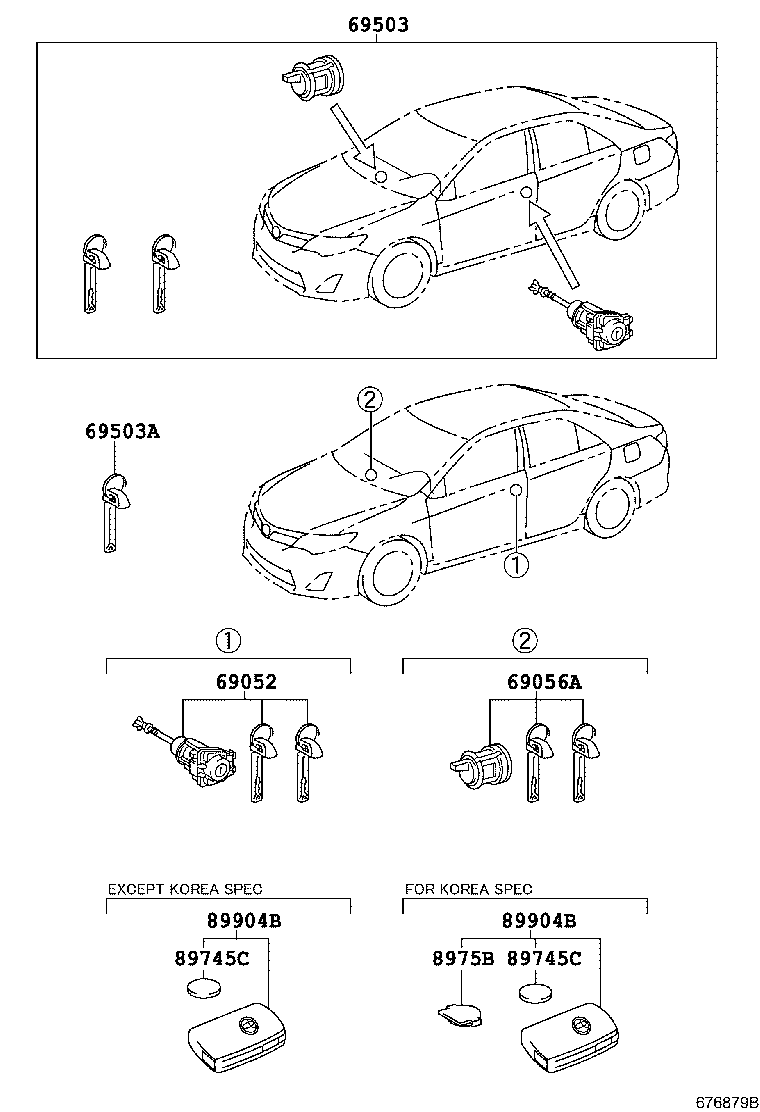

Figure 676877C 676877C 2011-09 → 2014-09 Figure 676878C 676878C 2011-09 → — Figure 676879B 676879B 2011-09 → — Figure 676879B 676879B 2011-10 → —

Part groups

PNCDescription
69051 Cylinder & Key Set, Door Lock, RH
69052 Cylinder & Key Set, Door Lock, LH
69055A Cylinder & Key Set, Luggage Compartment Lock
69056A Cylinder & Key Set, Glove Compartment Lock
69057A Cylinder & Key Set, Ignition Switch Lock
69503 Cylinder Set, Lock
69503A Key, Blank
89070E Transmitter Assy, Door Control
89071B Module Set, Transmitter Sub-assy, Door Control
89072A Housing Set, Door Control Transmitter
8907A Switch Set, Transmitter
89745A Battery, Transmitter
89745C Battery, Transmitter
89751A Cover, Transmitter Housing
89752A Case, Transmitter Housing
8975B Cover, Transmitter Battery Housing
89785B Transmitter, Transponder Key Master
89786B Transmitter, Transponder Key Sub
89904B Transmitter Sub-assy, Electrical Key
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
