Toyota Camry/Hybrid

2011-09 → 2017-06 · chassis ASV50L-C*****,AVV50,GSV50 · catalogue 283490 · United States

Supported model Data version 2017-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Emblem & Name Plate (EXTERIOR & INTERIOR)

6 part groups · 2 illustrations

Illustrations

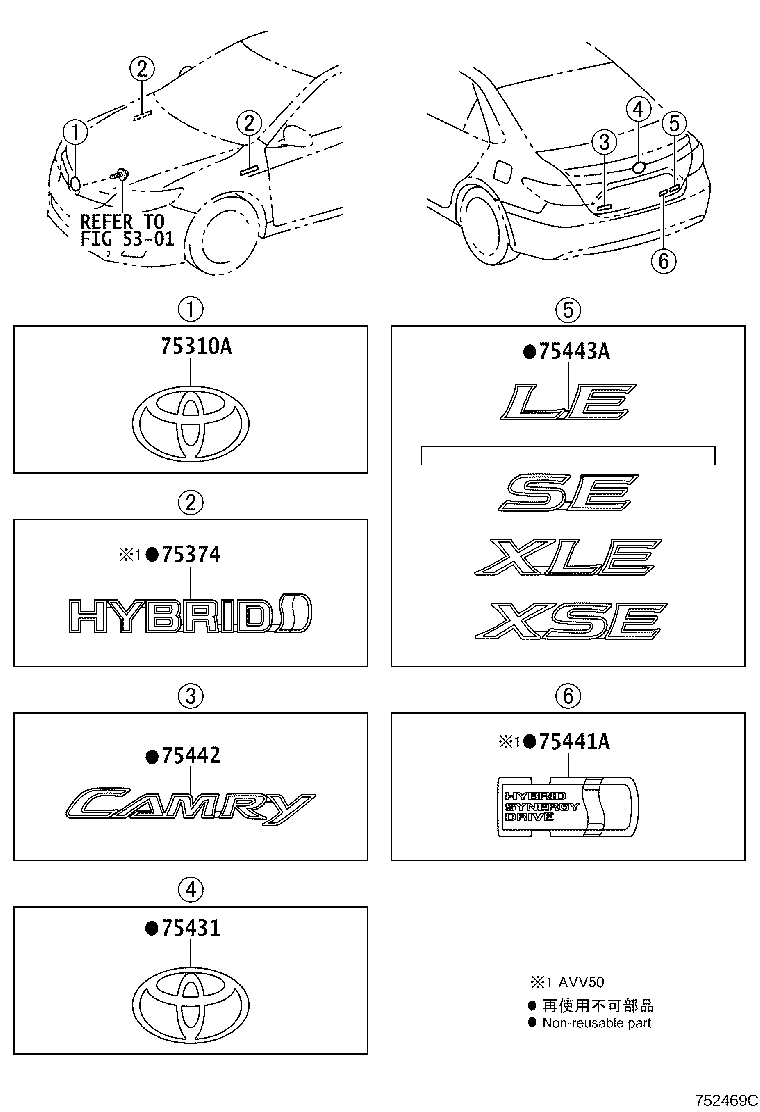

Figure 753035A 753035A 2011-09 → 2014-09 Figure 752469C 752469C 2014-09 → —

Part groups

PNCDescription
75310A Emblem Assy, Radiator Grille
75374 Emblem, Side Panel
75431 Emblem, Luggage Compartment Door
75441A Plate, Luggage Compartment Door Name, NO.1
75442 Plate, Luggage Compartment Door Name, NO.2
75443A Plate, Luggage Compartment Door, NO.3
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
