Toyota Camry/Hybrid
2011-09 → 2017-06 · chassis ASV50L-C*****,AVV50,GSV50 · catalogue 283490 · United States
Supported model
Data version 2017-12
Side Moulding

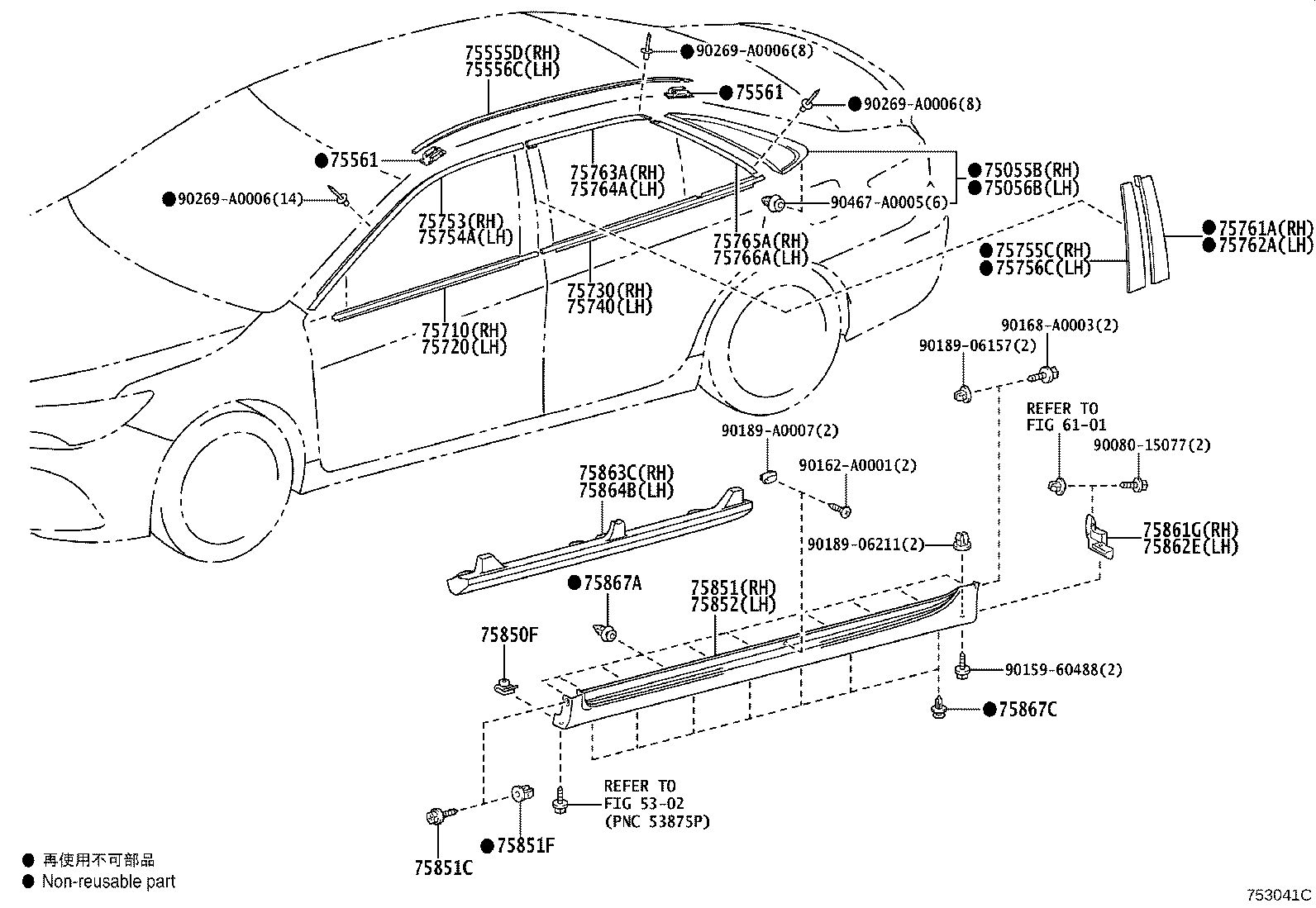

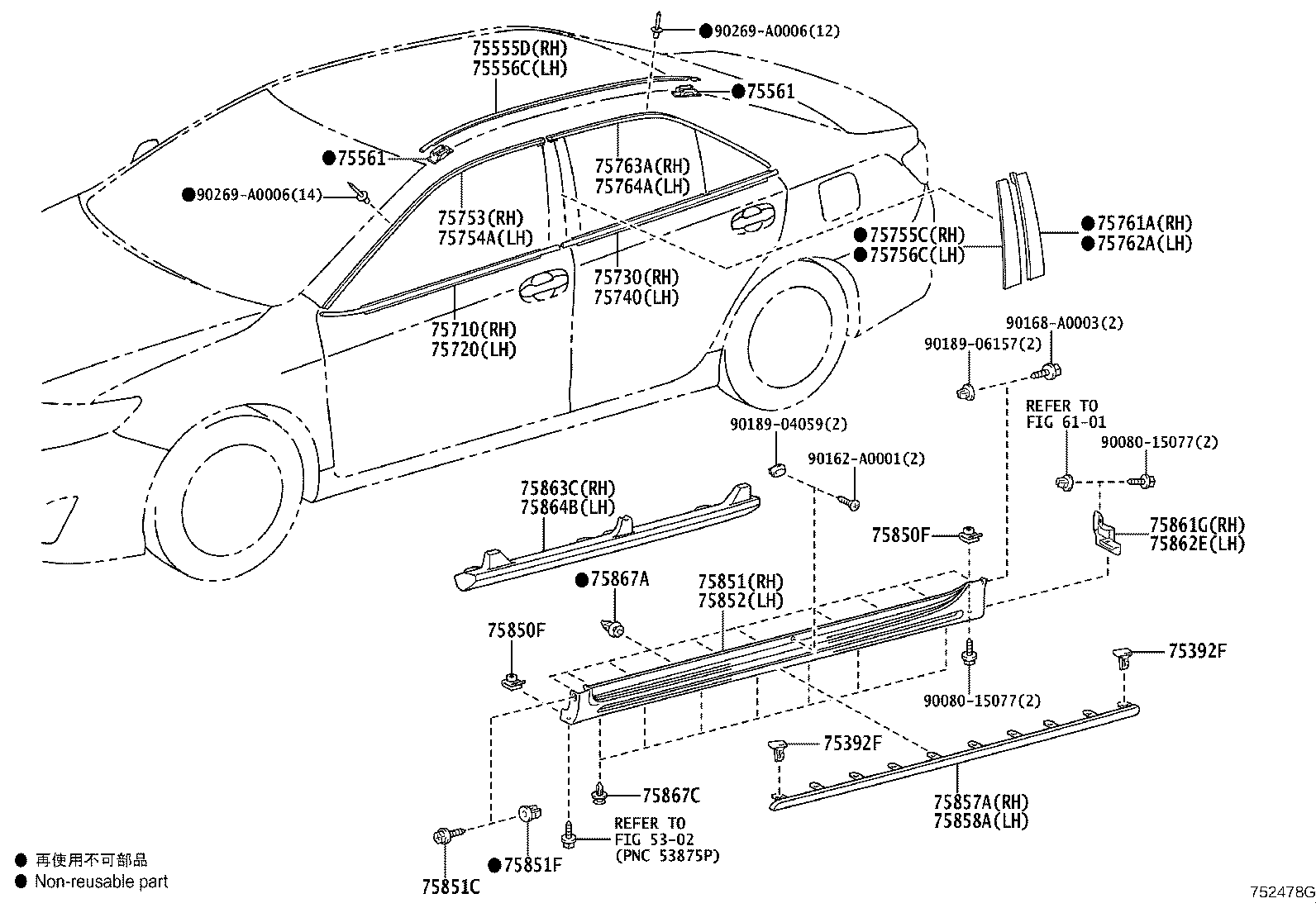

33 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 75055B | Garnish Sub-assy, Rear Pillar, Outer RH |
| 75056B | Garnish Sub-assy, Rear Pillar, Outer LH |
| 75392F | Retainer, Outside Moulding |
| 75555D | Moulding, Roof Drip Side Finish, Center RH |
| 75556C | Moulding, Roof Drip Side Finish, Center LH |
| 75561 | Clip, Roof Drip Side Finish Moulding, NO.1 |
| 75710 | Moulding Assy, Front Door Belt, RH |
| 75720 | Moulding Assy, Front Door Belt, LH |
| 75730 | Moulding Assy, Rear Door Belt, RH |
| 75740 | Moulding Assy, Rear Door Belt, LH |
| 75753 | Moulding, Front Door Window Frame, Upper RH |
| 75754A | Moulding, Front Door Window Frame, Upper LH |
| 75755C | Moulding, Front Door Window Frame, Rear RH |
| 75756C | Moulding, Front Door Window Frame, Rear LH |
| 75761A | Moulding, Rear Door Window Frame, Front RH |
| 75762A | Moulding, Rear Door Window Frame, Front LH |
| 75763A | Moulding, Rear Door Window Frame, Upper RH |
| 75764A | Moulding, Rear Door Window Frame, Upper LH |
| 75765A | Moulding, Rear Door Window Frame, Rear RH |
| 75766A | Moulding, Rear Door Window Frame, Rear LH |
| 75850F | Nut, NO.1 |
| 75851 | Moulding, Rocker Panel, RH |
| 75851C | Screw(FOR BODY ROCKER PANEL MOULDING) |
| 75851F | Grommet(FOR BODY ROCKER PANEL MOULDING) |
| 75852 | Moulding, Rocker Panel, LH |
| 75857A | Cover, Rocker Panel Moulding, RH |
| 75858A | Cover, Rocker Panel Moulding, LH |
| 75861G | Cover, Rocker Panel Moulding End, Front RH |
| 75862E | Cover, Rocker Panel Moulding End, Front LH |
| 75863C | Protector, Rocker Panel Moulding, NO.3 |
| 75864B | Protector, Rocker Panel Moulding, NO.4 |
| 75867A | Clip, Rocker Panel Moulding |
| 75867C | Clip, Rocker Panel Moulding |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
