Toyota Camry/Hybrid

2011-09 → 2017-06 · chassis ASV50L-C*****,AVV50,GSV50 · catalogue 283490 · United States

Supported model Data version 2017-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Moulding

8 part groups · 3 illustrations

Illustrations

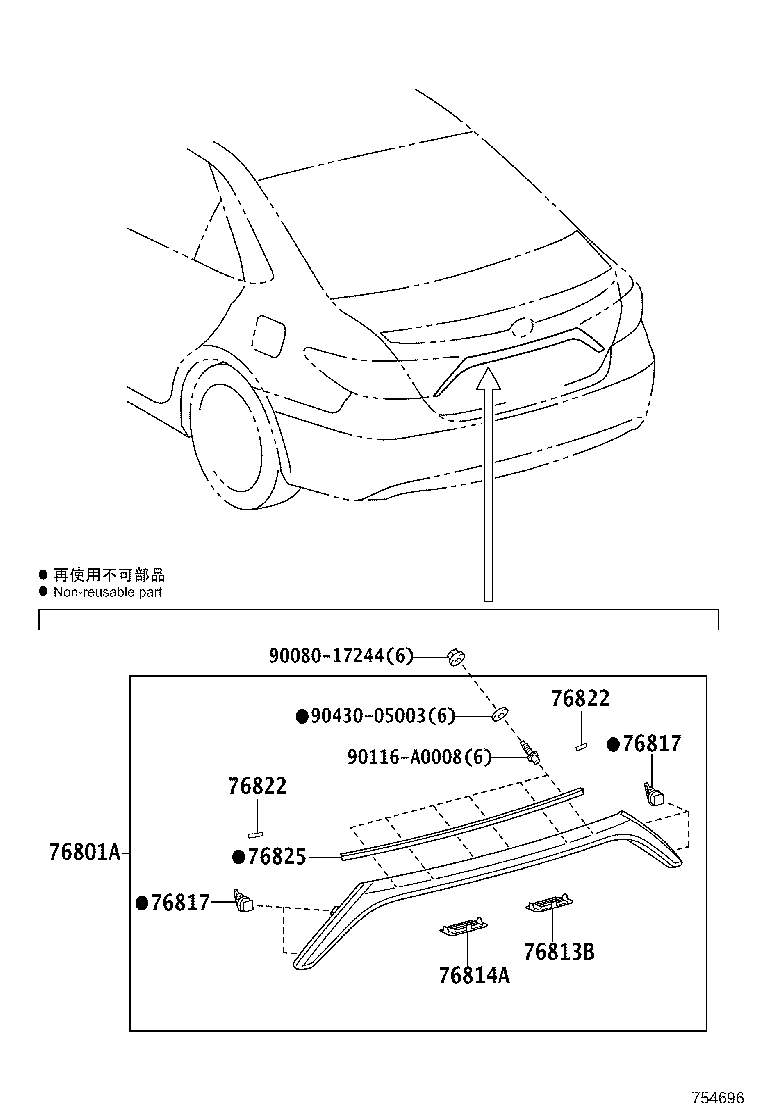

Figure 752473C 752473C 2011-09 → 2014-09 Figure 754696 754696 2014-09 → 2016-12 Figure 753355A 753355A 2016-12 → —

Part groups

PNCDescription
76801A Garnish Sub-assy, Luggage Compartment Door, Outside
76811B Garnish, Luggage Compartment Door, Outside
76813B Garnish, Luggage Compartment Door Outside, Upper RH
76814A Garnish, Luggage Compartment Door Outside, Upper LH
76817 Clip, Back Door Outside Garnish
76822 Protector, Back Door Garnish Moulding, Lower
76825 Protector, Back Door Outside Garnish
84944B Cover, Luggage Electrical Key Switch
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
