Toyota Camry/Hybrid

2011-09 → 2017-06 · chassis ASV50L-C*****,AVV50,GSV50 · catalogue 283490 · United States

Supported model Data version 2017-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Headlamp

15 part groups · 4 illustrations

Illustrations

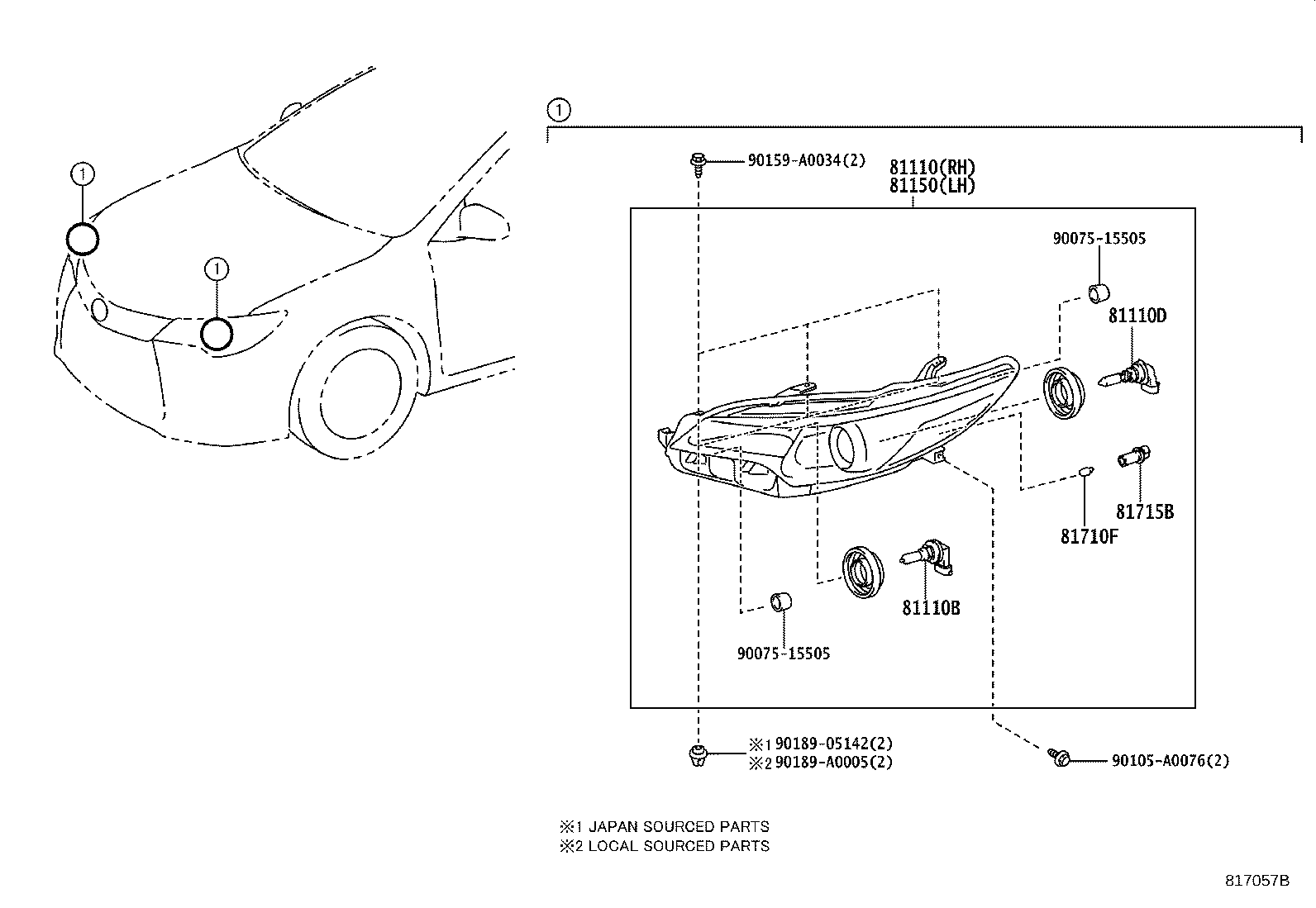

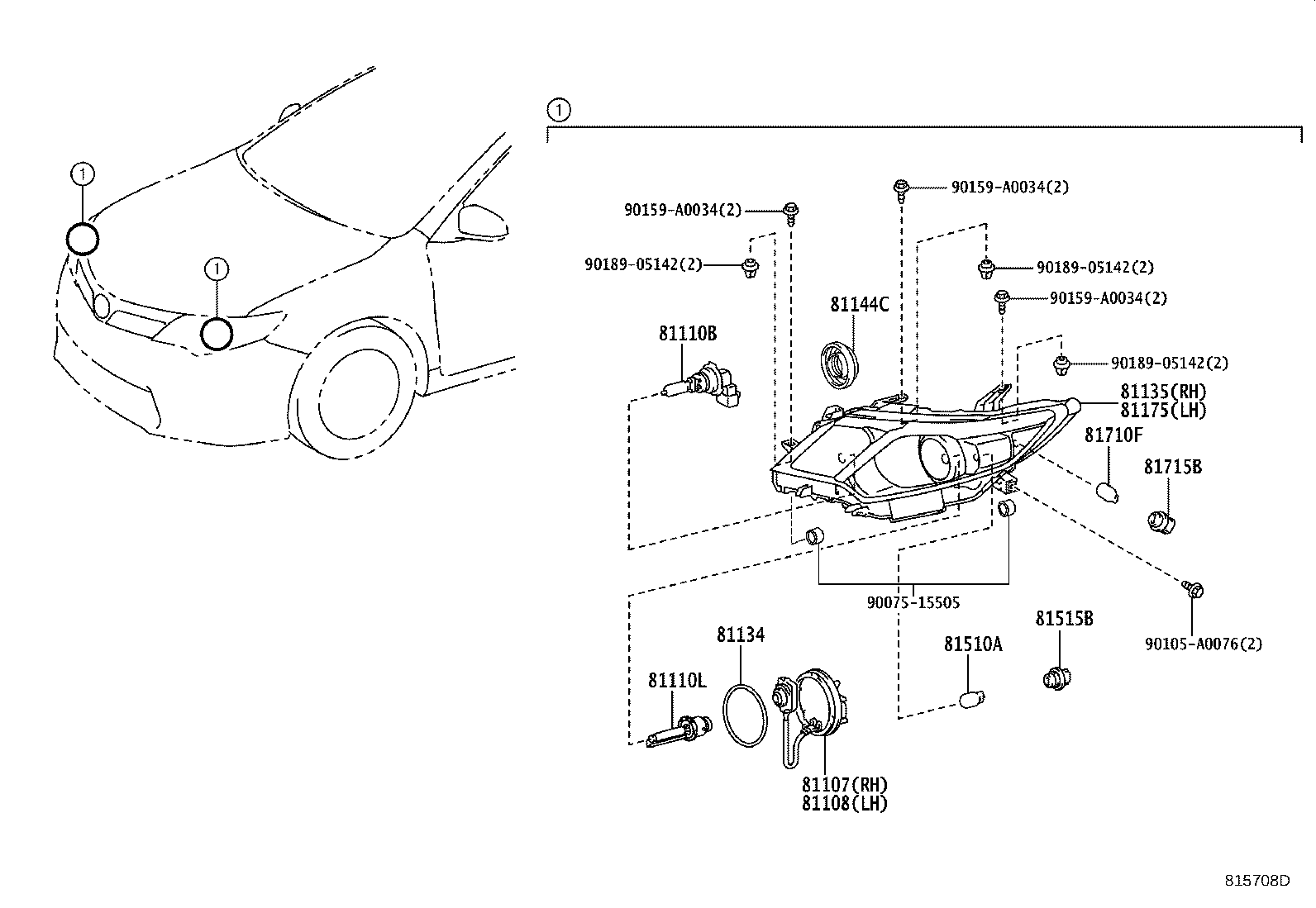

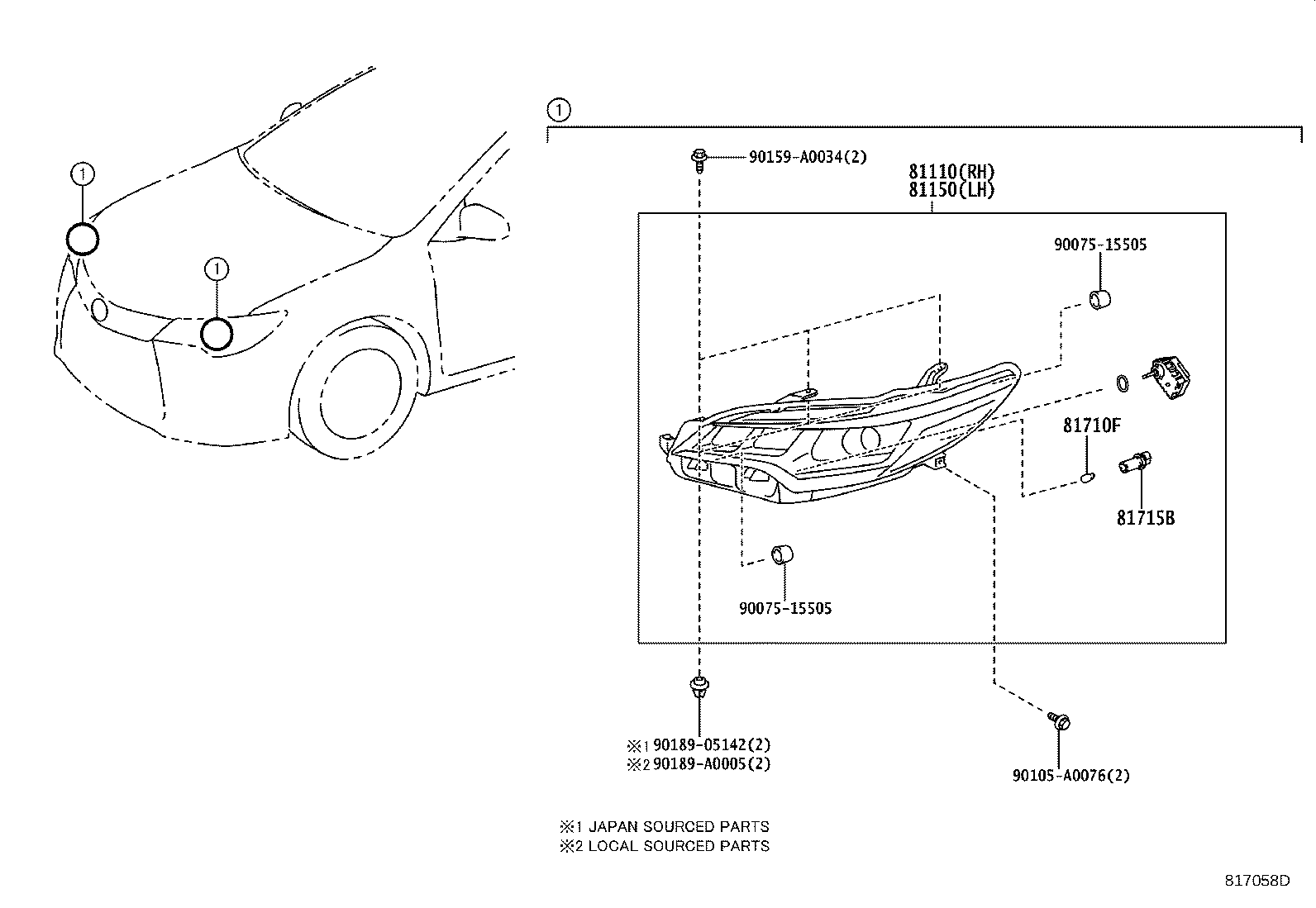

Figure 815707D 815707D 2011-09 → 2014-09 Figure 815708D 815708D 2011-09 → 2014-09 Figure 817057B 817057B 2014-09 → — Figure 817058D 817058D 2014-09 → —

Part groups

PNCDescription
81107 Computer Sub-assy, Headlamp Light Control, RH
81108 Computer Sub-assy, Headlamp Light Control, LH
81110 Headlamp Assy, RH
81110B Bulb(FOR HEADLAMP, NO.1)
81110D Bulb(FOR HEADLAMP, NO.2)
81110L Bulb, Discharge Headlamp
81134 Gasket, Headlamp
81135 Unit Assy, Headlamp, RH
81144C Cover, Headlamp Socket
81150 Headlamp Assy, LH
81175 Unit Assy, Headlamp, LH
81510A Bulb, Front Turn Signal & Parking Lamp
81515B Socket, Front Turn Signal Lamp
81710F Bulb, Front Side Maker Lamp
81715B Socket & Wire, Front Side Marker Lamp
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
