Toyota Camry/Hybrid
2011-09 → 2017-06 · chassis ASV50L-C*****,AVV50,GSV50 · catalogue 283490 · United States
Supported model
Data version 2017-12
Interior Lamp

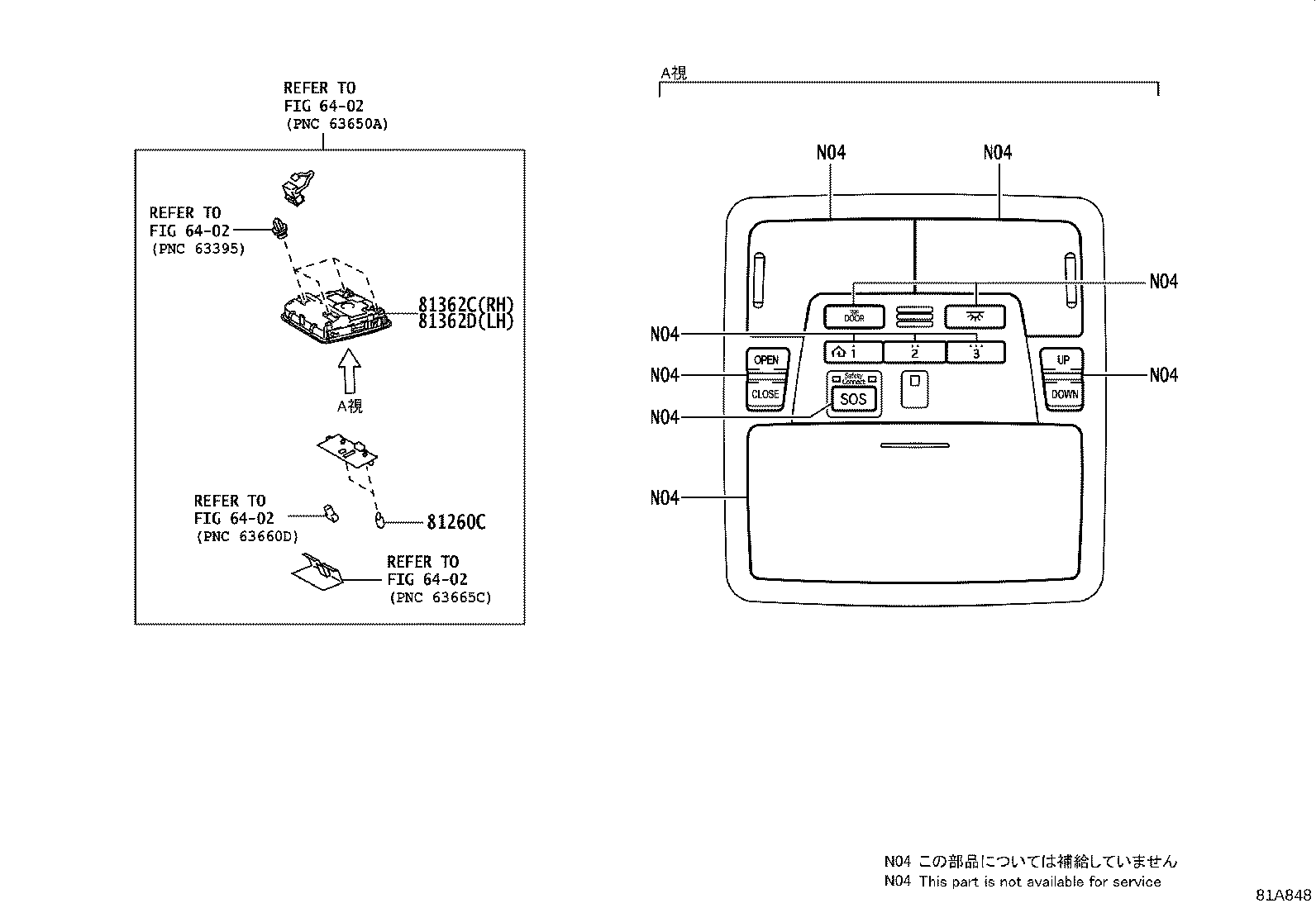

14 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 81230B | Bulb(FOR COURTESY LAMP) |
| 81230M | Lamp Assy, Courtesy, RH |
| 81230N | Lamp Assy, Courtesy, LH |
| 81240 | Lamp Assy, Room, NO.1 |
| 81240B | Bulb, Room Lamp, NO.1 |
| 81260C | Bulb(FOR MAP LAMP) |
| 81330 | Lamp Assy, Luggage Compartment, NO.1 |
| 81330B | Bulb, Luggage Compartment Lamp |
| 81340 | Lamp Assy, Vanity |
| 81340B | Bulb (FOR VANITY LAMP) |
| 81360T | Lamp Assy, Spot |
| 81360U | Bulb, Spot Lamp |
| 81362C | Lens, Interior Illumination Lamp, RH |
| 81362D | Lens, Interior Illumination Lamp, LH |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
