Toyota Camry/Hybrid

2011-09 → 2017-06 · chassis ASV50L-C*****,AVV50,GSV50 · catalogue 283490 · United States

Supported model Data version 2017-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Wiring & Clamp

50 part groups · 17 illustrations

Illustrations

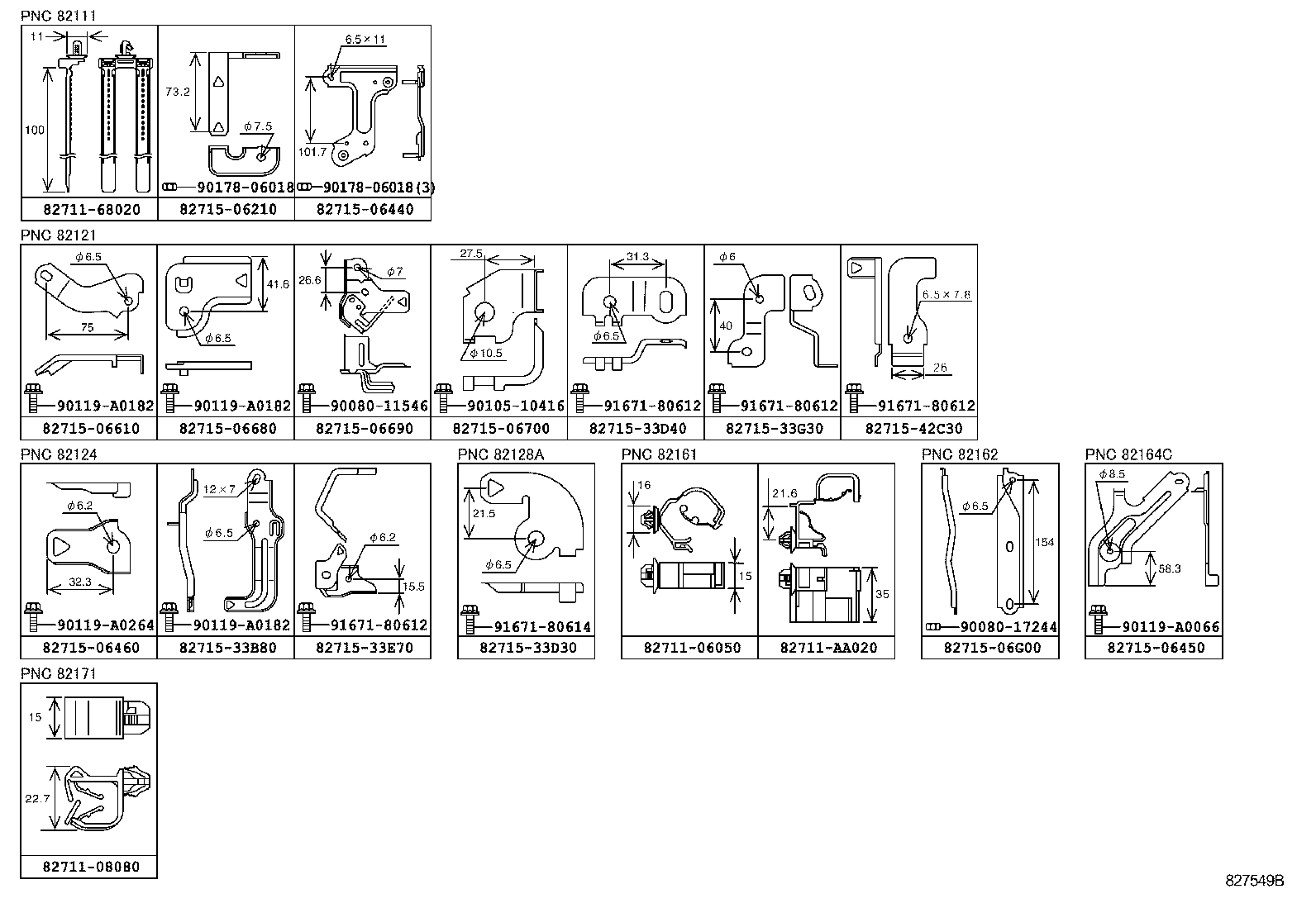

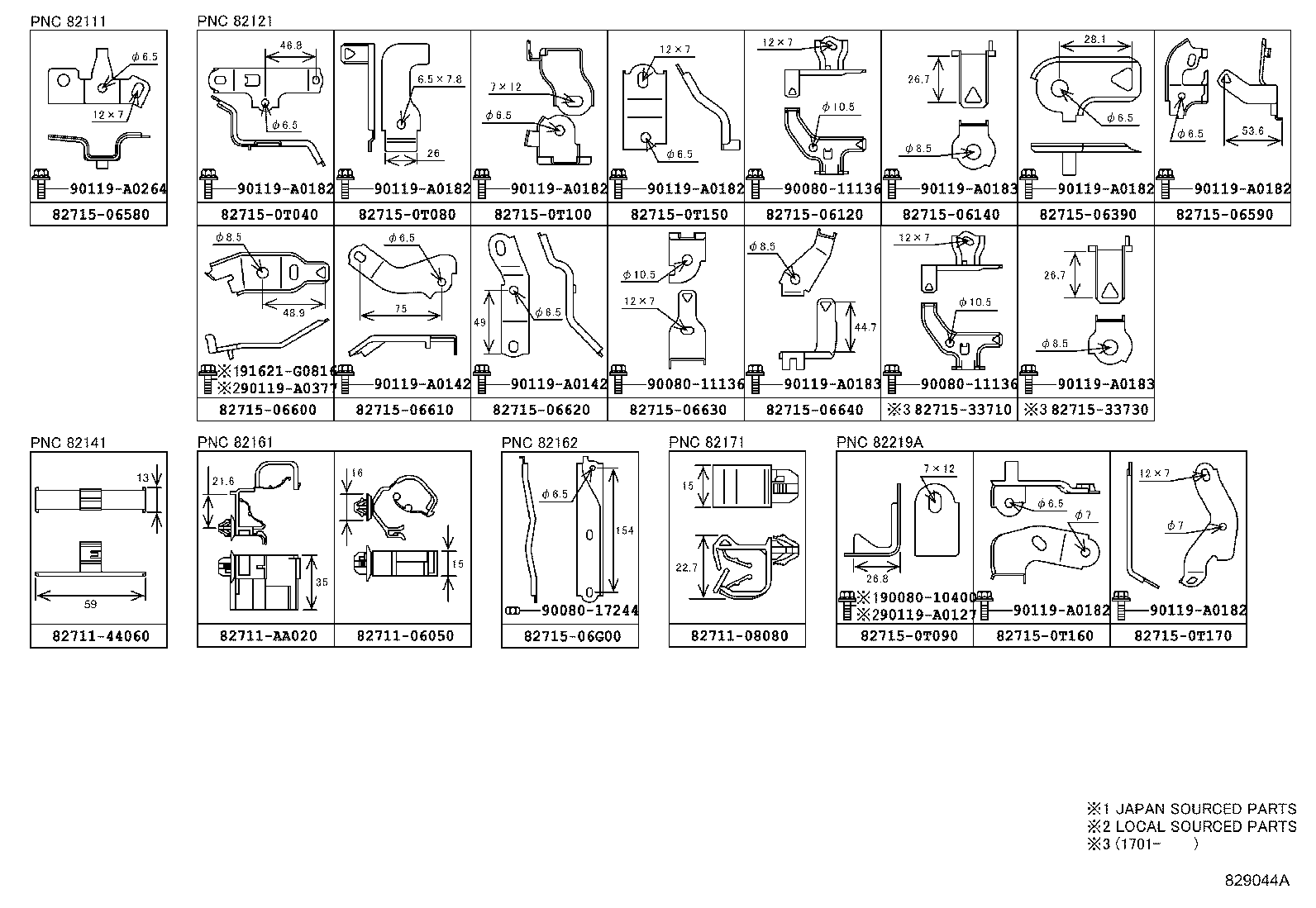

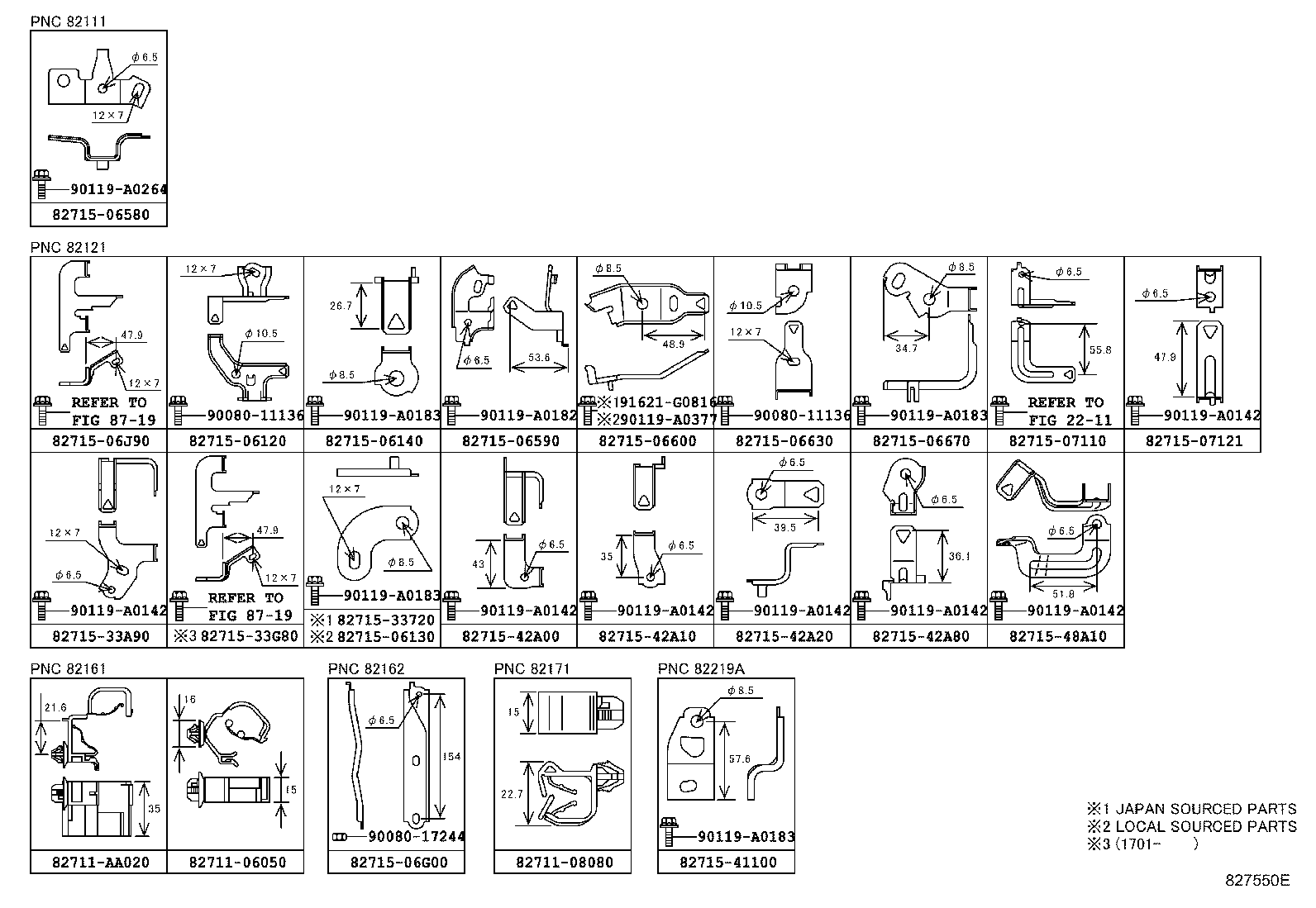

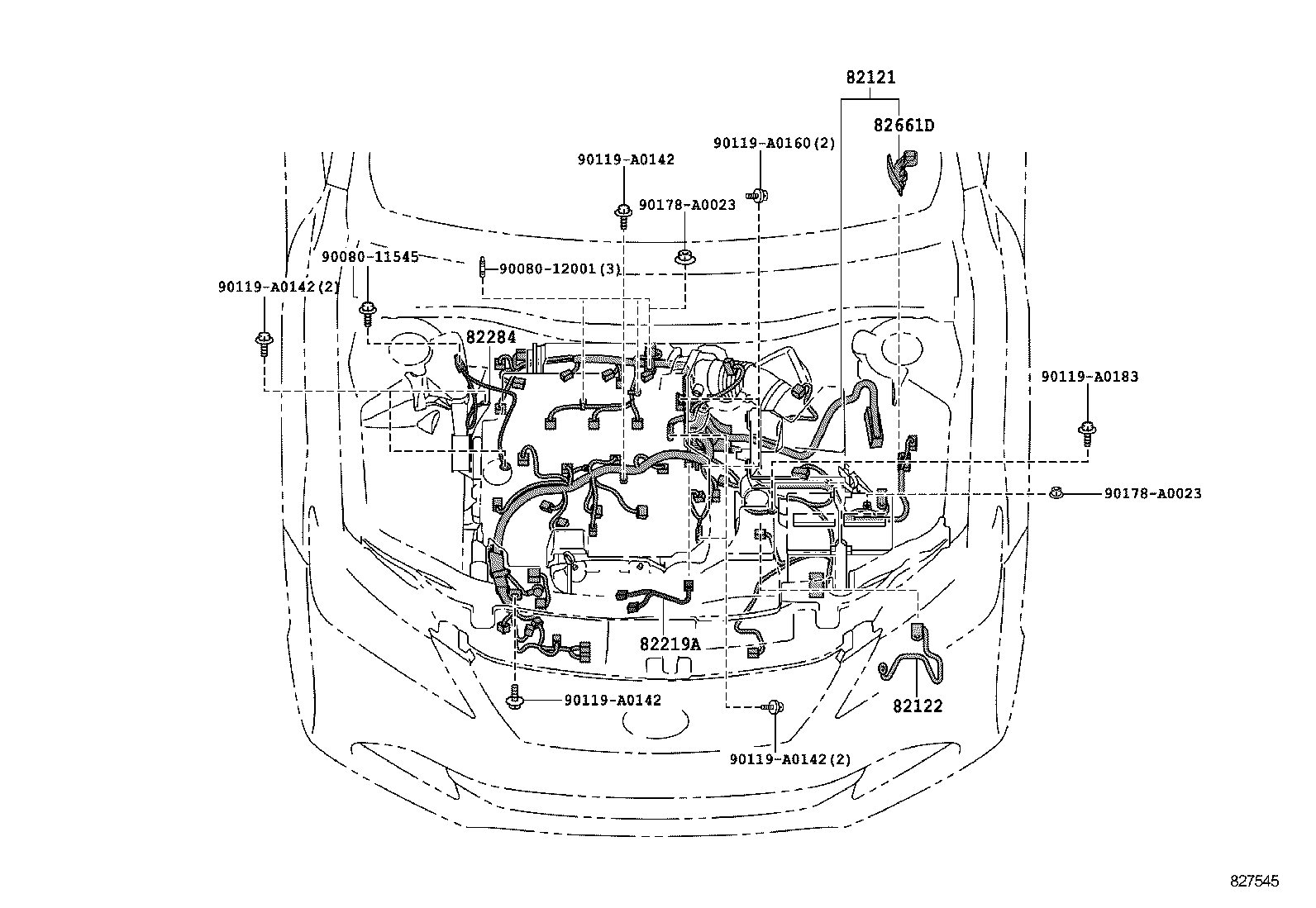

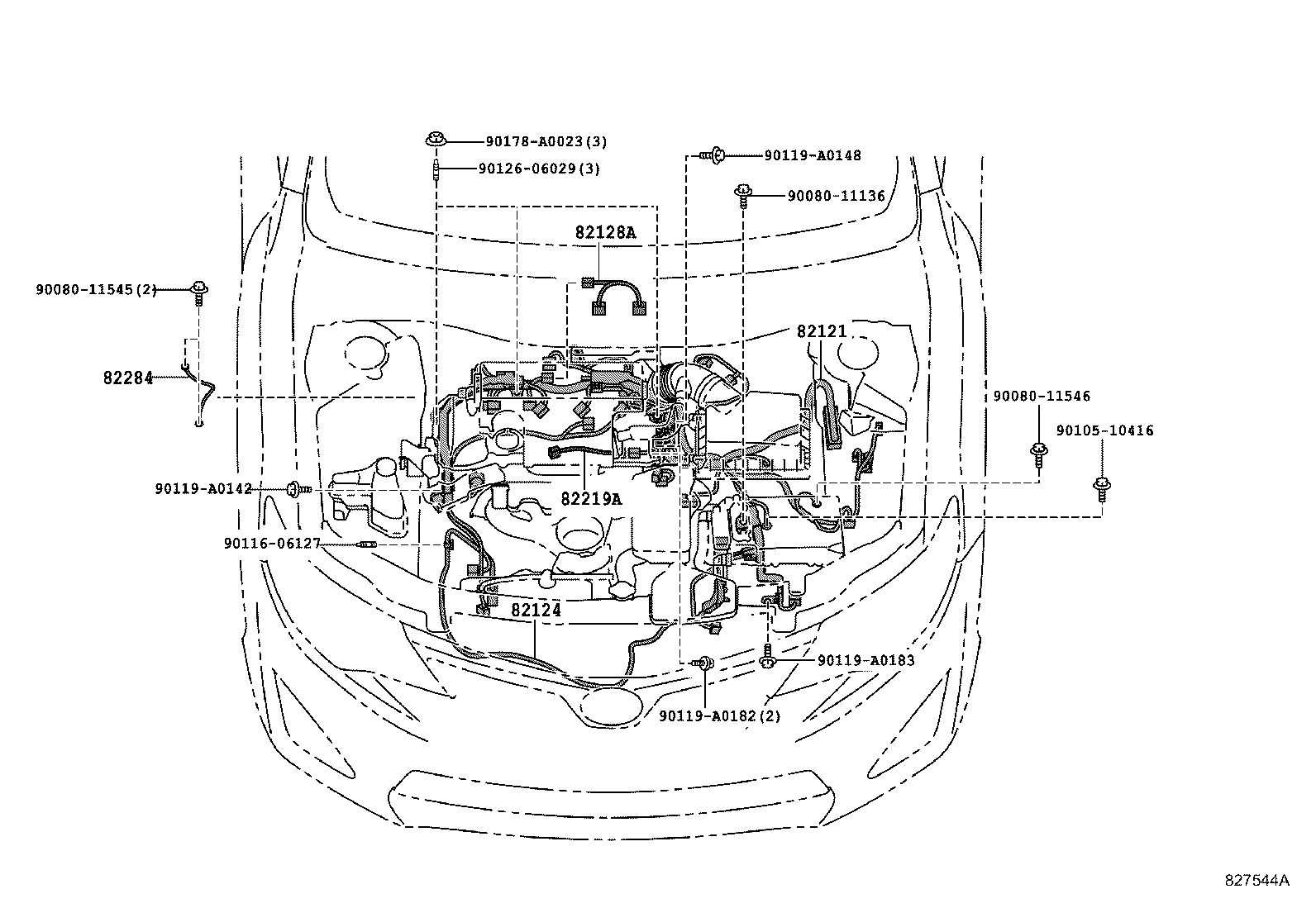

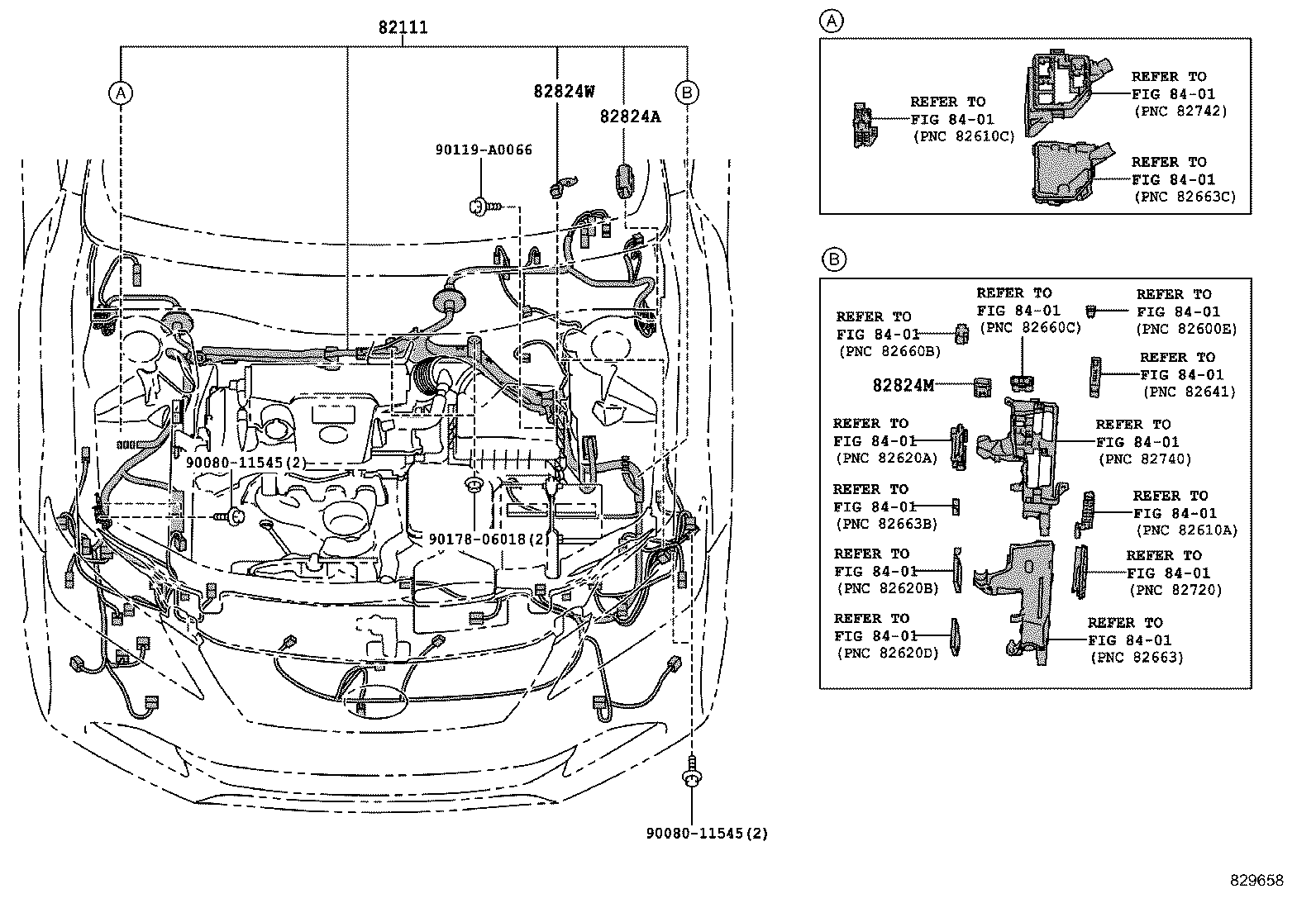

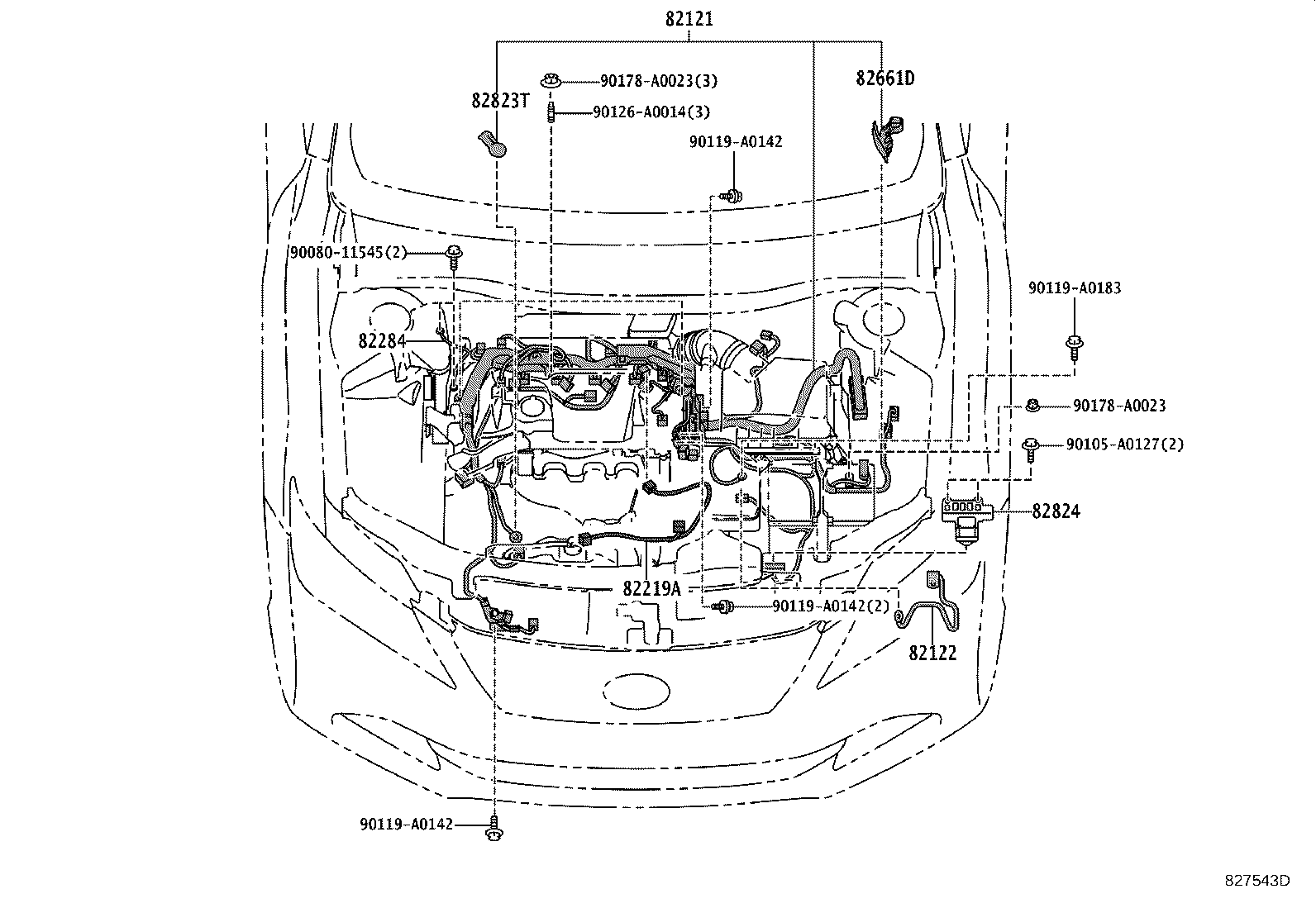

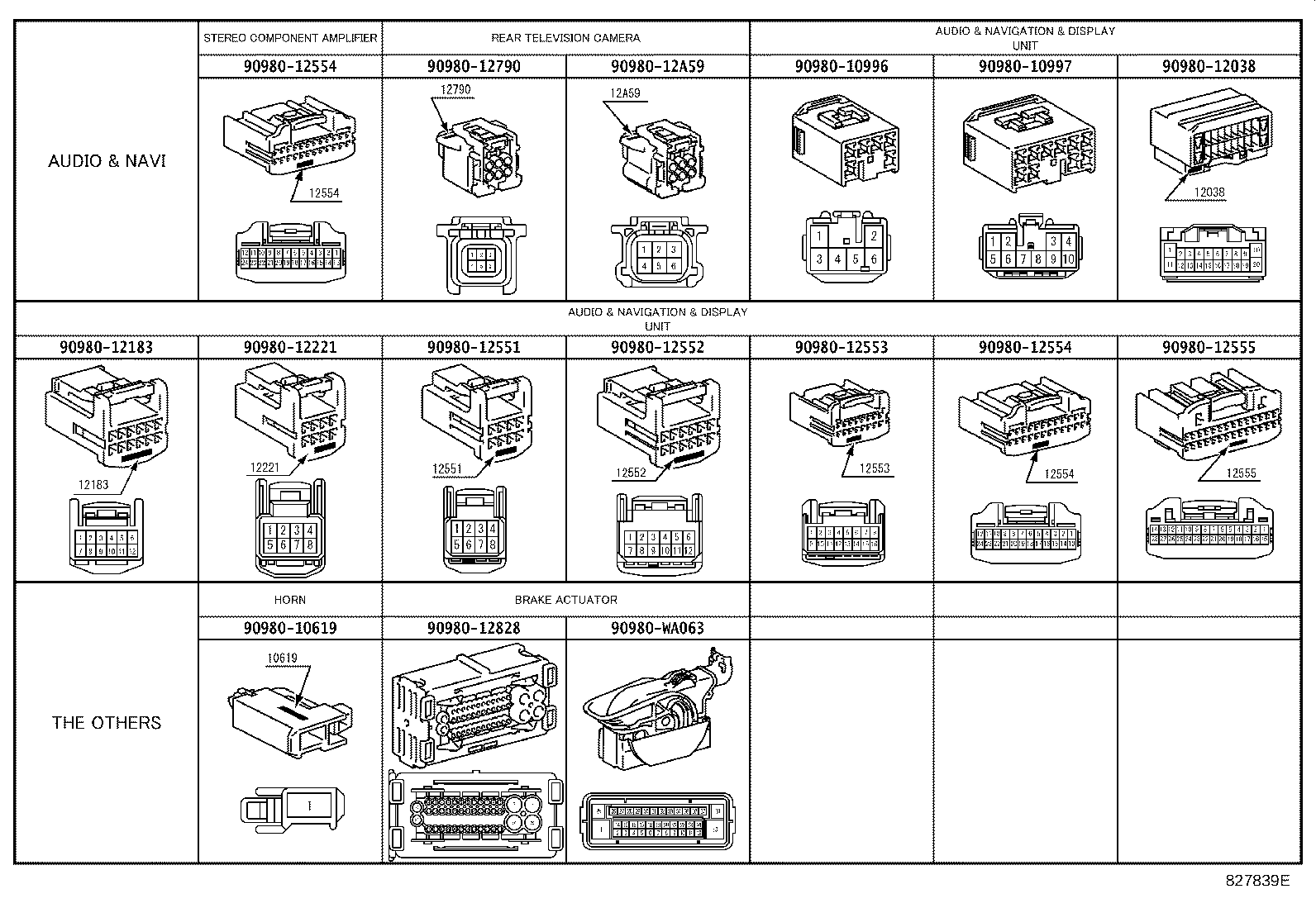

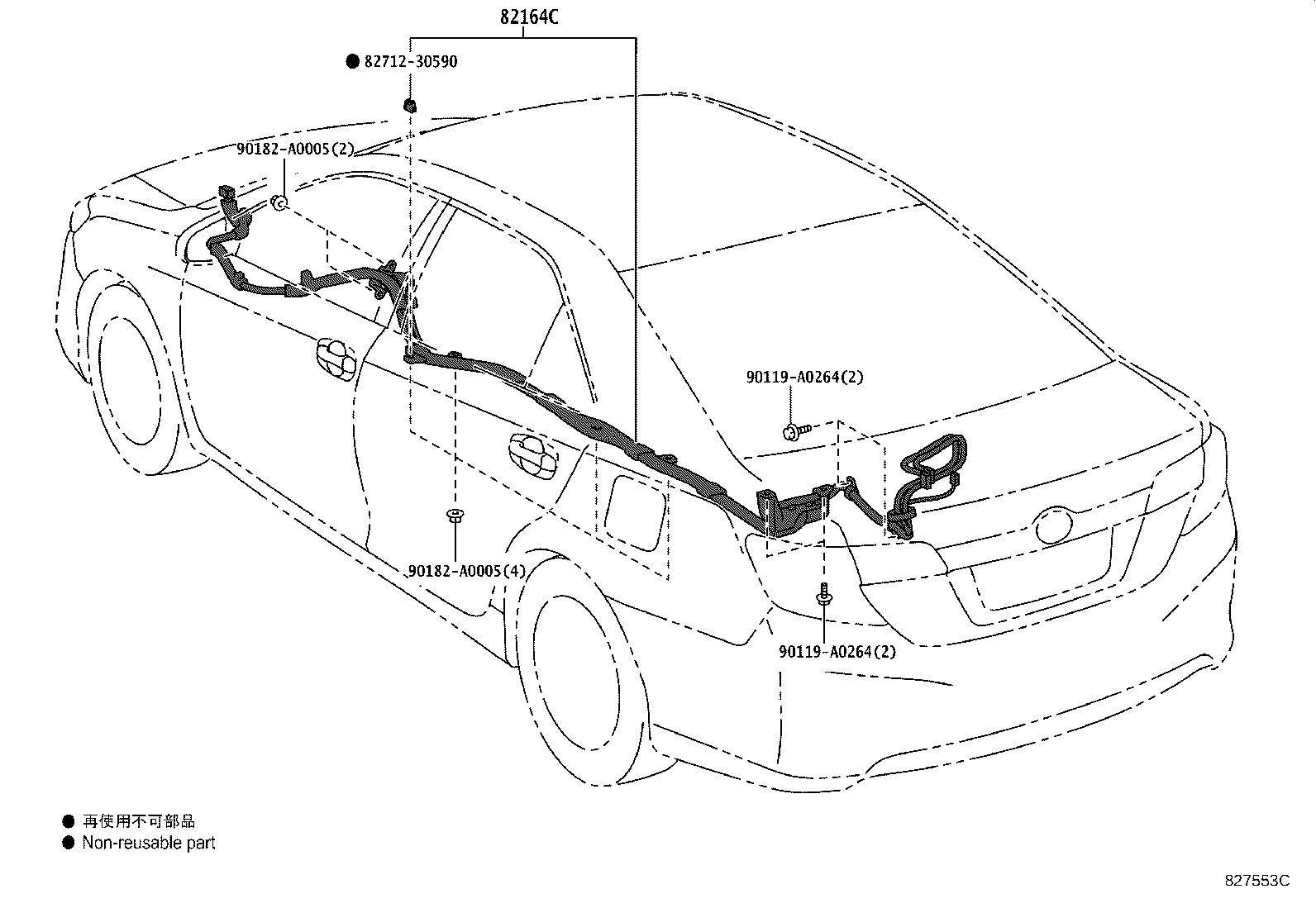

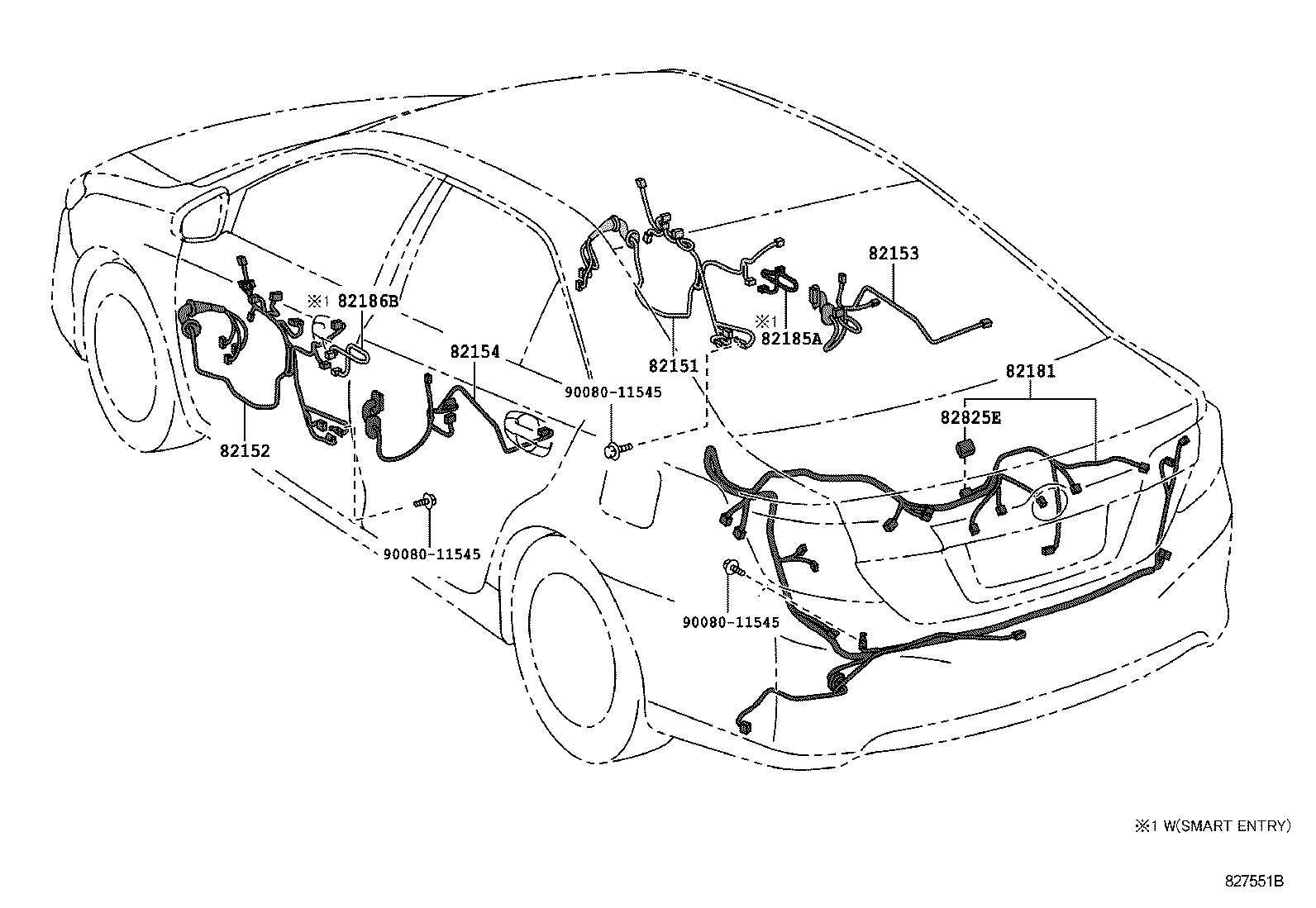

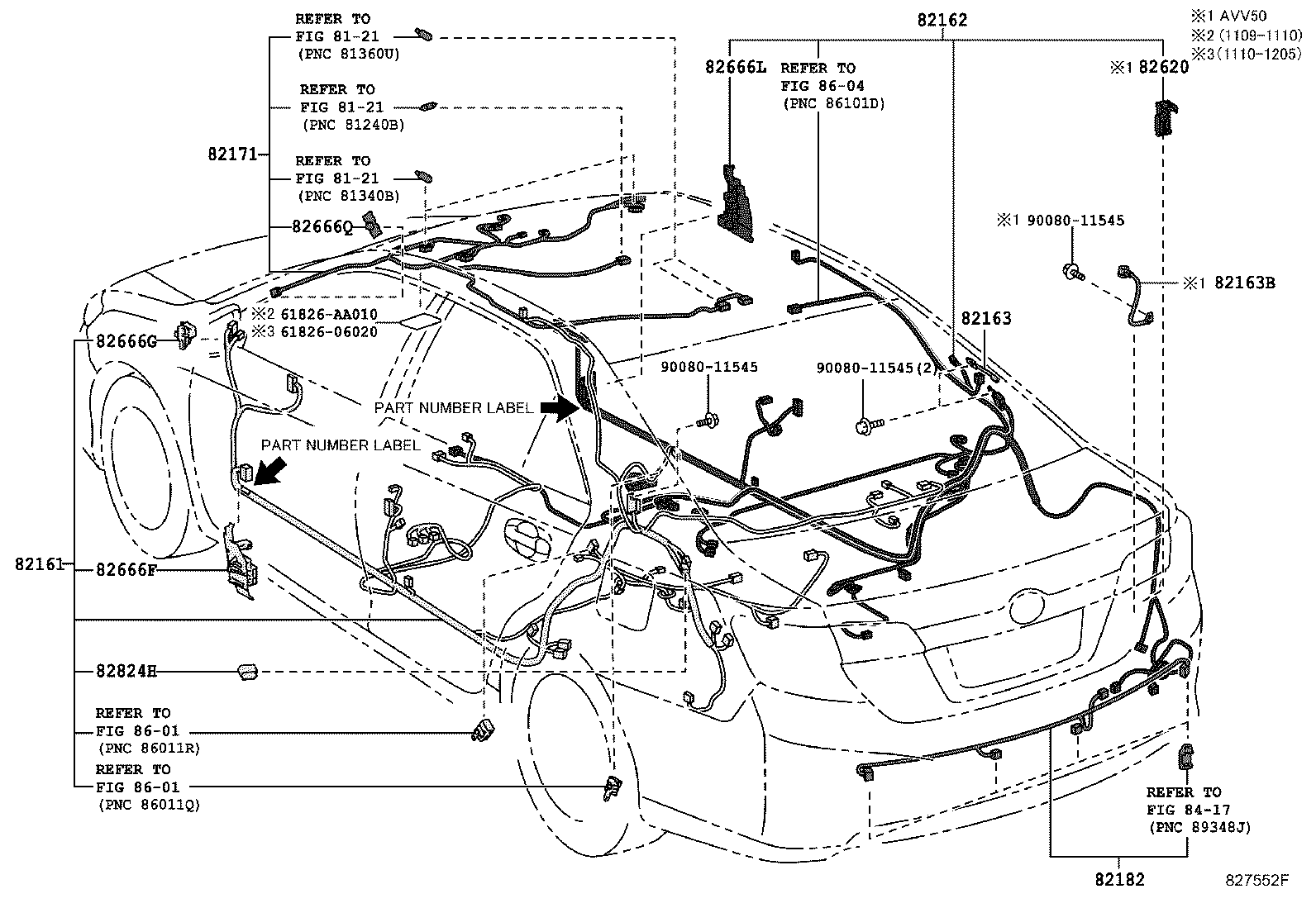

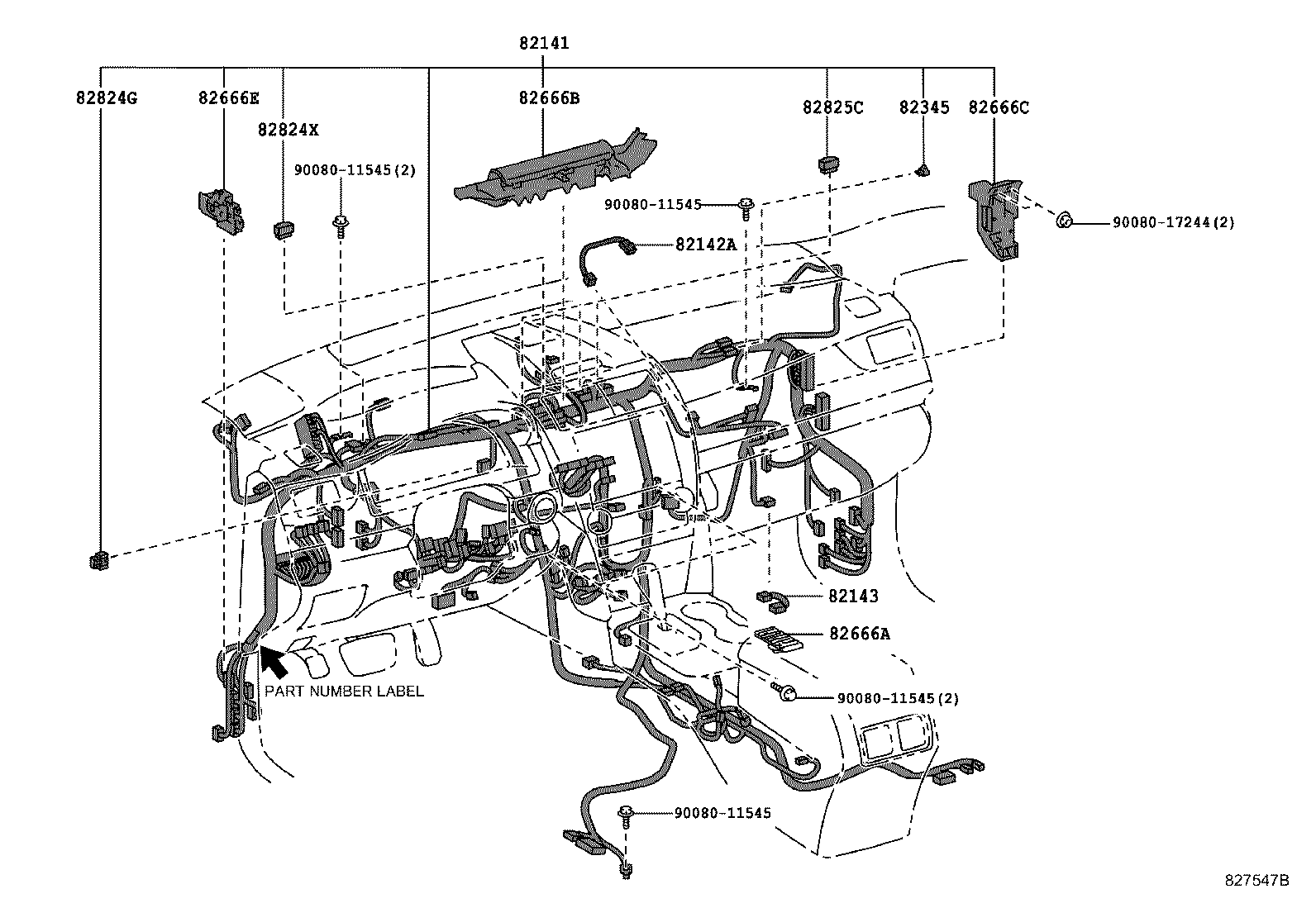

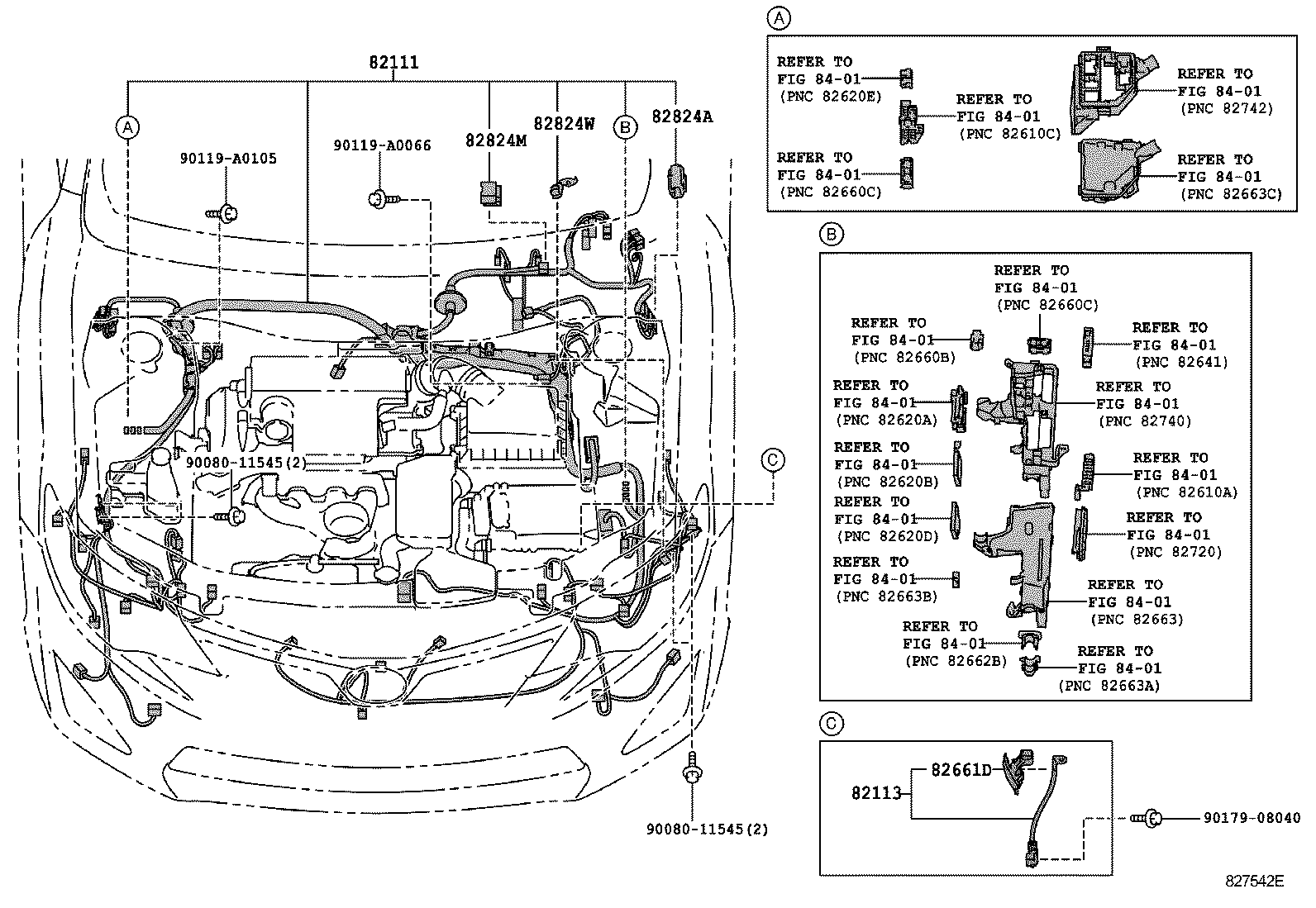

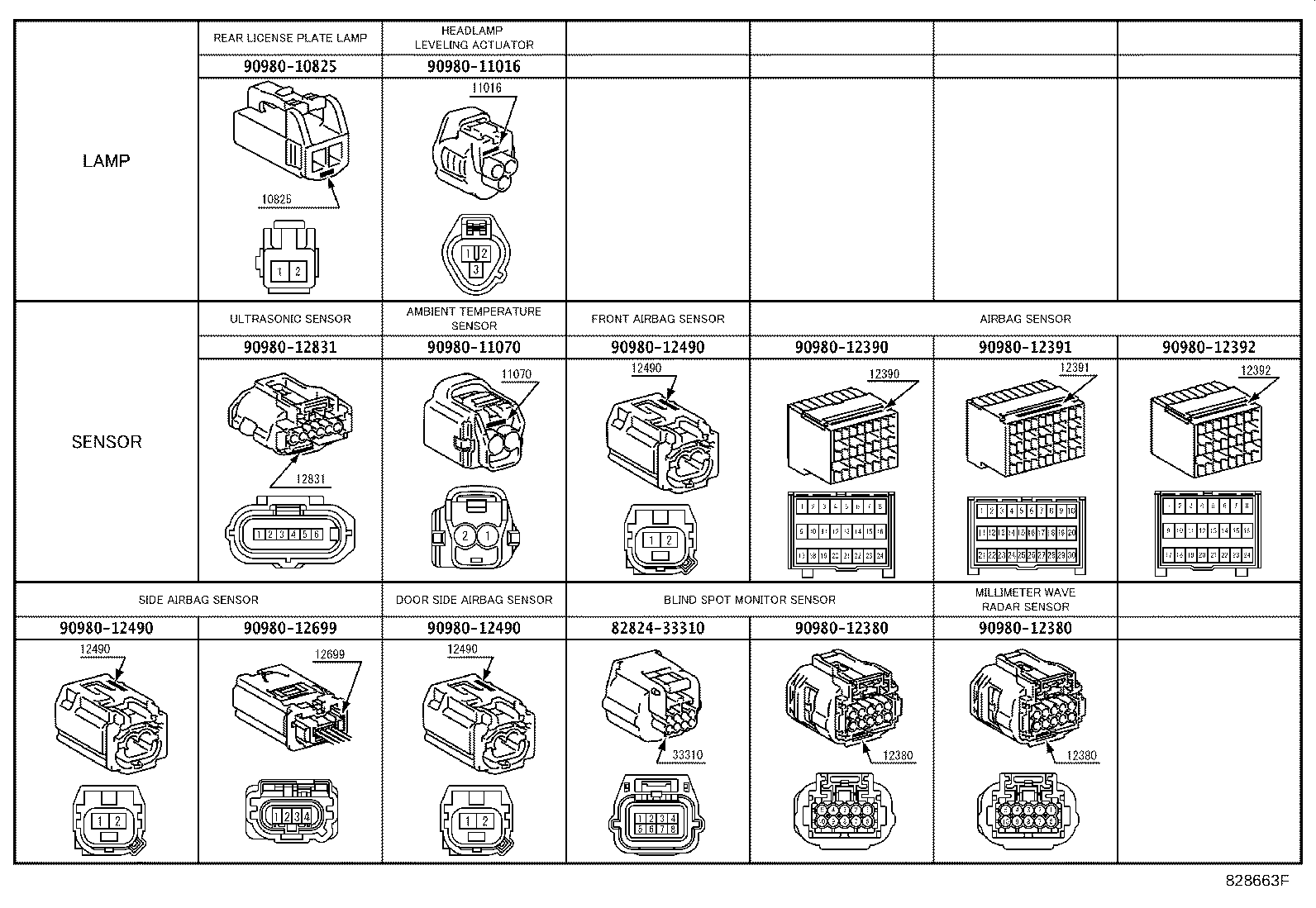

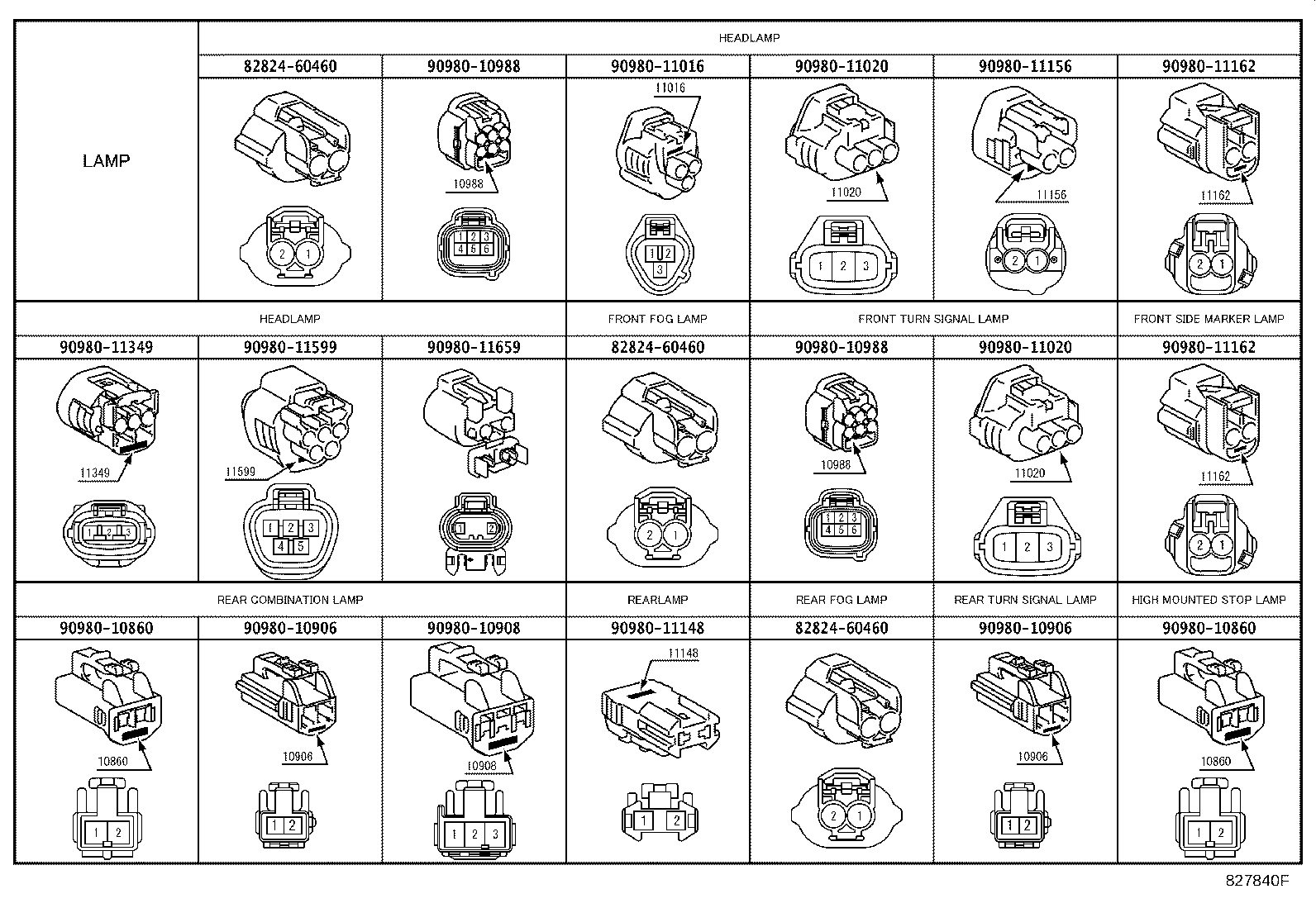

Figure 827541C 827541C 2011-09 → 2014-09 Figure 829658 829658 2014-09 → — Figure 827542E 827542E 2011-10 → — Figure 827543D 827543D 2011-09 → — Figure 827545 827545 2011-09 → — Figure 827544A 827544A 2011-10 → — Figure 827547B 827547B 2011-09 → — Figure 827551B 827551B 2011-09 → — Figure 827552F 827552F 2011-09 → — Figure 827553C 827553C 2011-10 → — Figure 827554 827554 2011-09 → — Figure 829044A 829044A 2011-09 → — Figure 827550E 827550E 2011-09 → — Figure 827549B 827549B 2011-10 → — Figure 827840F 827840F 2011-09 → — Figure 828663F 828663F 2011-09 → — Figure 827839E 827839E 2011-09 → —

Part groups

PNCDescription
82111 Wire, Engine Room Main
82113 Wire, Engine Room, NO.3
82121 Wire, Engine
82122 Wire, Engine, NO.2
82124 Wire, Engine, NO.4
82128A Wire, Engine, NO.8
82141 Wire, Instrument Panel
82142A Wire, Instrument Panel, NO.2
82143 Wire, Instrument Panel, NO.3
82151 Wire, Front Door, RH
82152 Wire, Front Door, LH
82153 Wire, Rear Door, NO.1
82154 Wire, Rear Door, NO.2
82161 Wire, Floor
82162 Wire, Floor, NO.2
82163 Wire, Floor, NO.3
82163B Wire, Floor NO.5
82164C Wire, Floor, NO.4
82171 Wire, Roof, NO.1
82181 Wire, Luggage Room, NO.1
82182 Wire, Luggage Room, NO.2
82185A Wire, Smart Door, Front RH
82186B Wire, Smart Door, Front LH
82191 Wire, Front Seat, RH
82192 Wire, Front Seat, LH
8219A Wire, Front Seat, RH NO.2
8219B Wire, Front Seat, LH NO.2
82219A Wire, Sensor
82284 Wire, Earth
82345 Diode
82620 Block Assy, Fusible Link
82661D Cover, Relay Block, Side NO.1
82666A Holder, Connector NO.2
82666B Holder, Connector NO.3
82666C Holder, Connector NO.4
82666E Holder, Connector NO.6
82666F Holder, Connector NO.7
82666G Holder, Connector NO.8
82666L Holder, Connector NO.9
82666Q Holder, Connector NO.12
82823T Cap, Alternator Terminal
82824 Connector, Wiring Harness
82824A Connector, Wiring Harness
82824G Connector, Wiring Harness
82824H Connector, Wiring Harness
82824M Connector, Wiring Harness
82824W Connector, Wiring Harness
82824X Connector, Wiring Harness
82825C Connector, Wiring Harness
82825E Connector, Wiring Harness
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
