Toyota Camry/Hybrid

2011-09 → 2017-06 · chassis ASV50L-C*****,AVV50,GSV50 · catalogue 283490 · United States

Supported model Data version 2017-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Switch & Relay & Computer

110 part groups · 18 illustrations

Illustrations

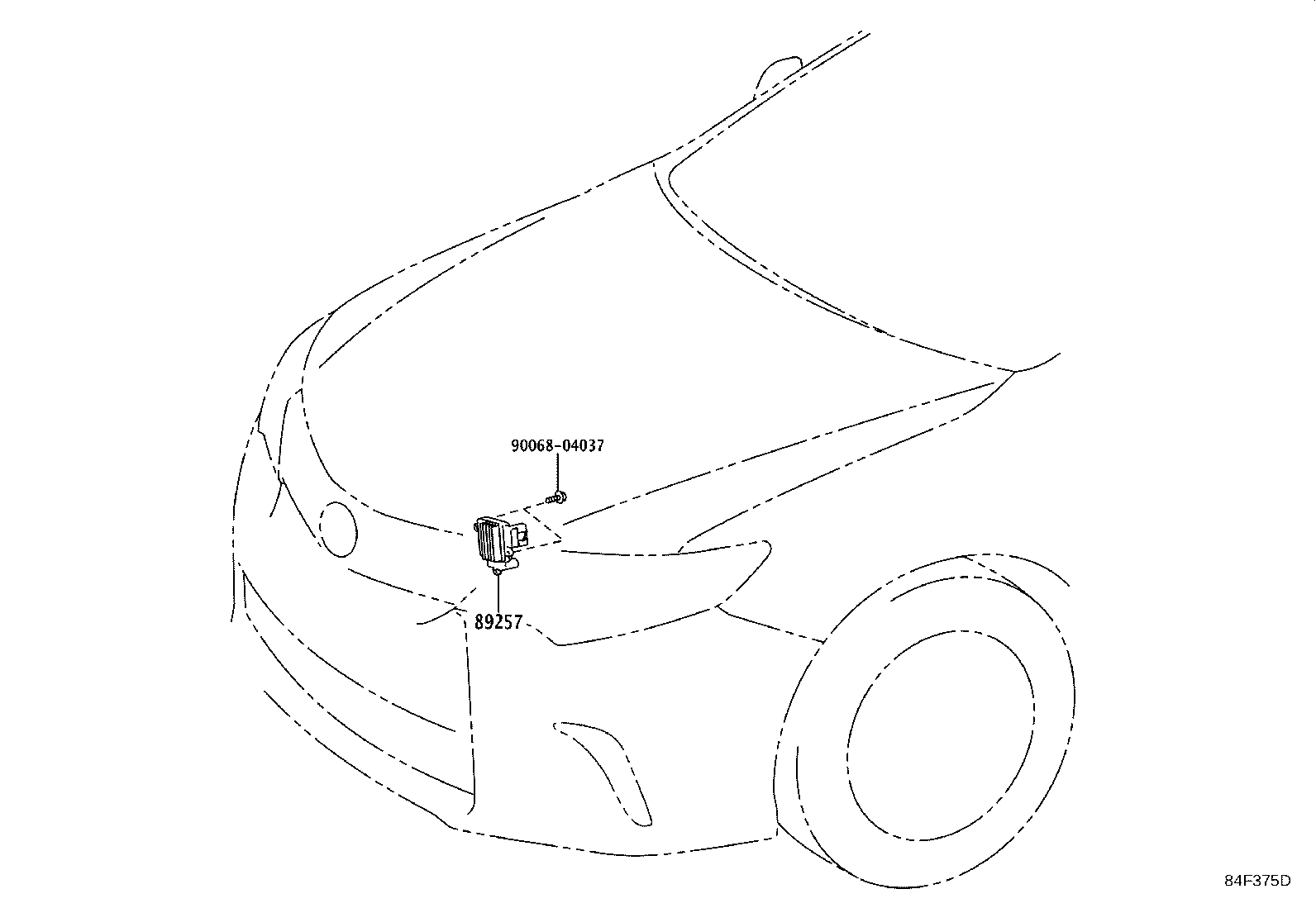

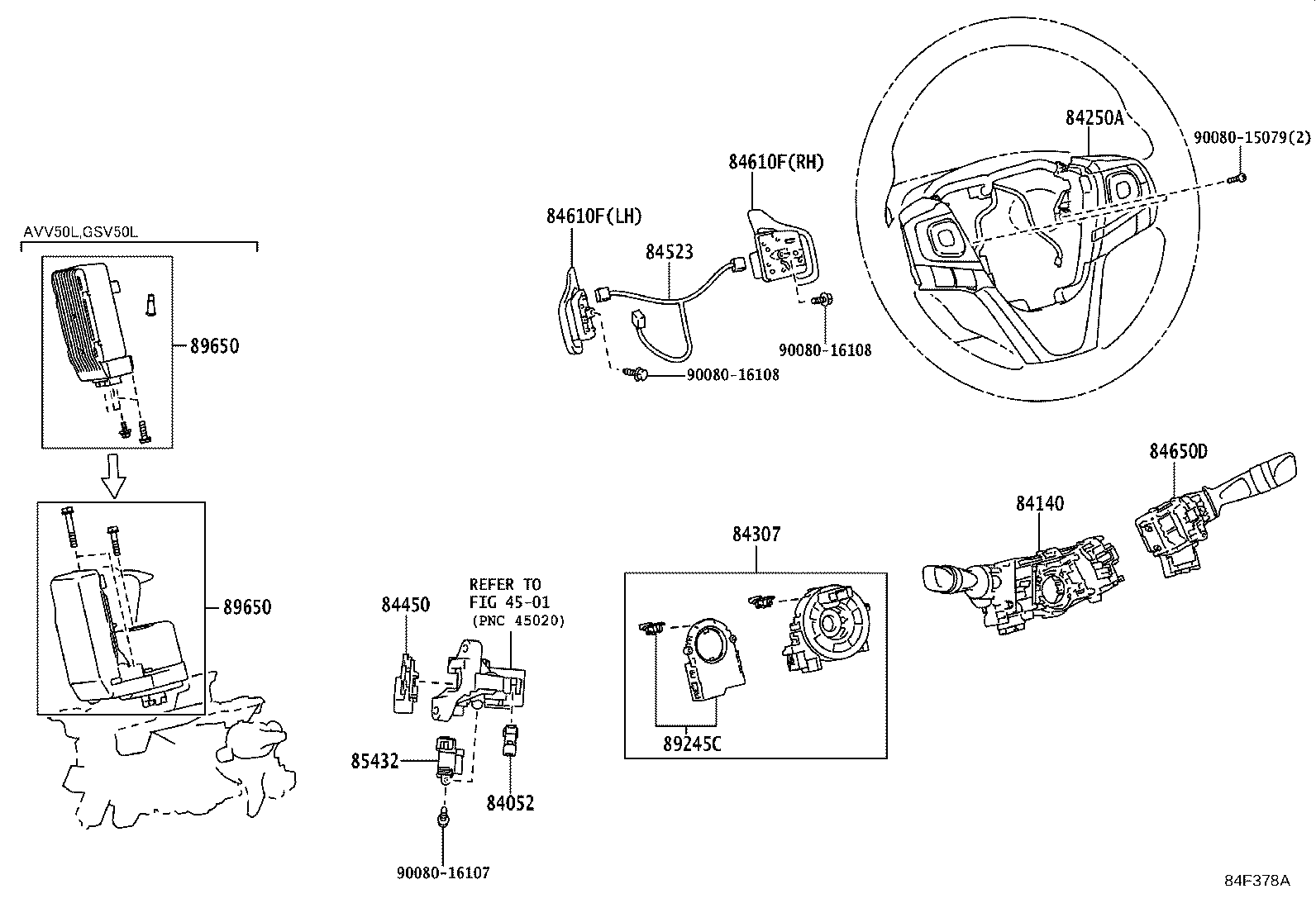

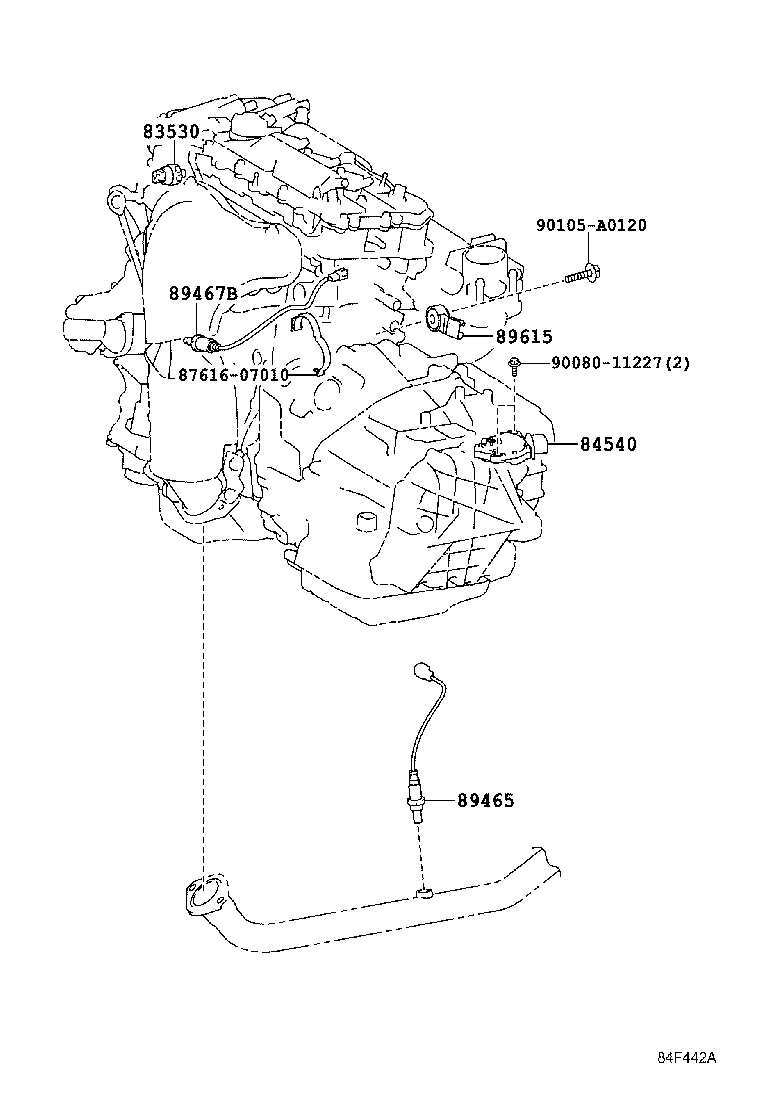

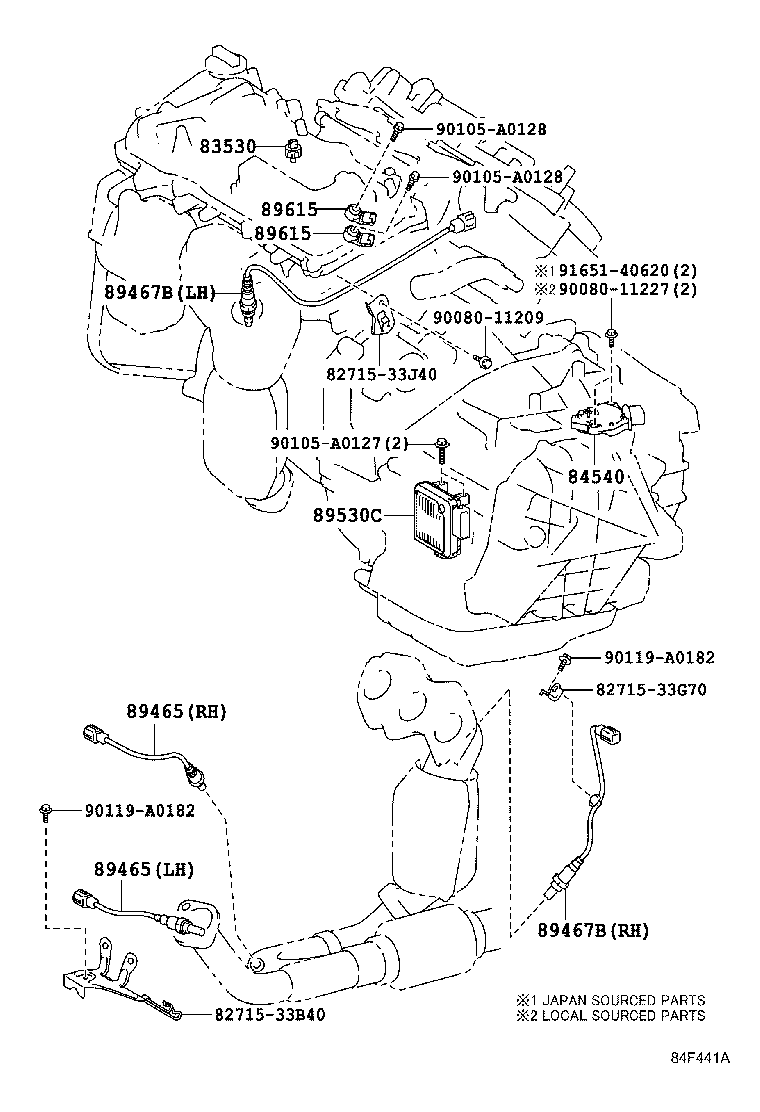

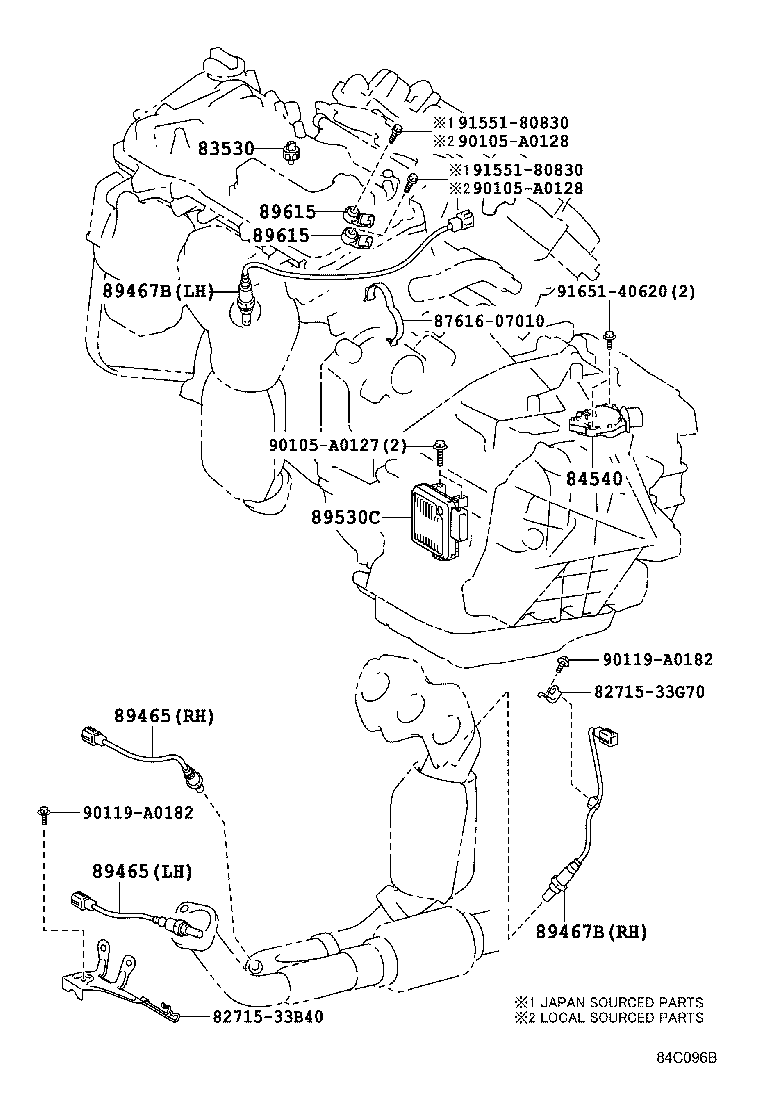

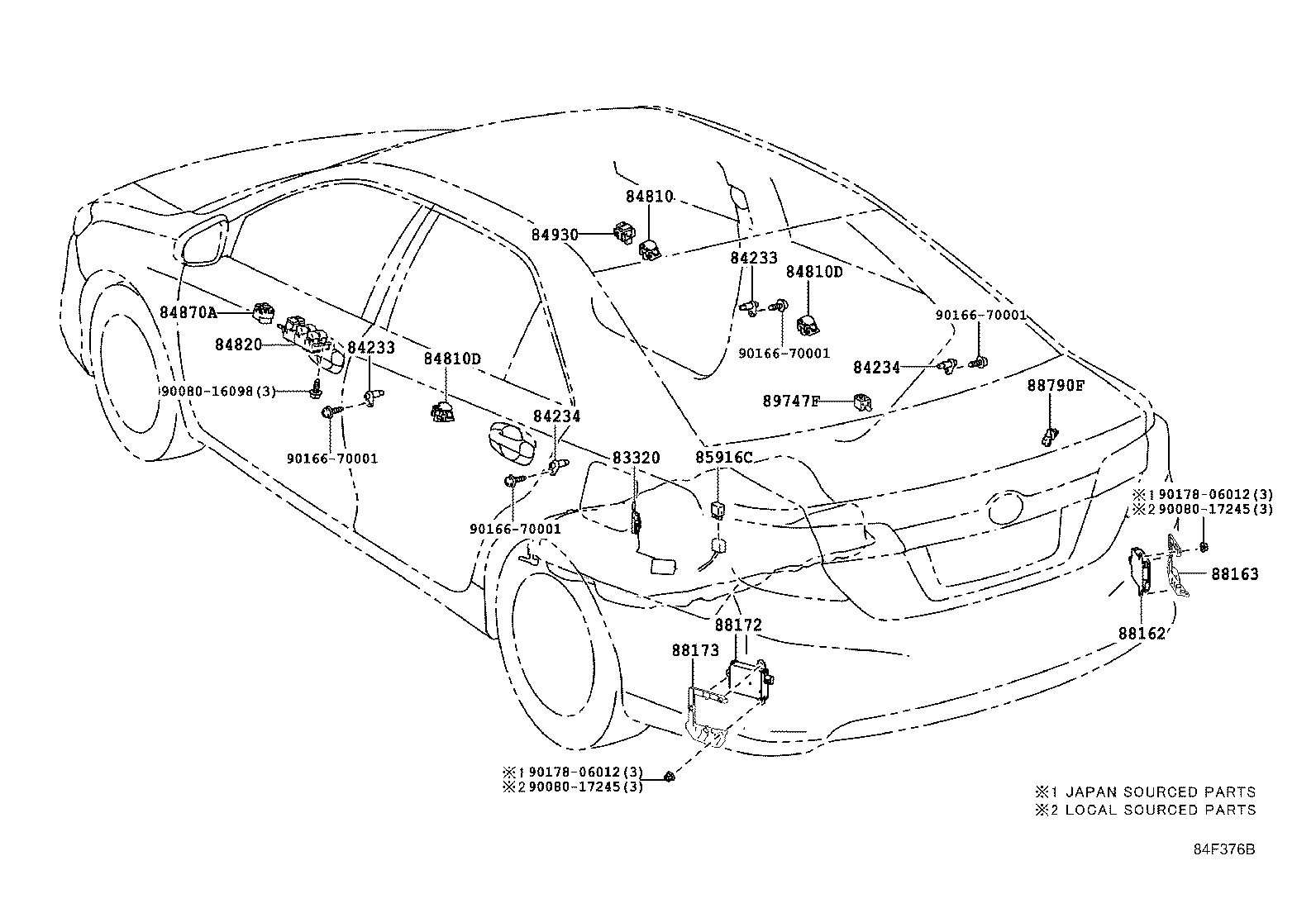

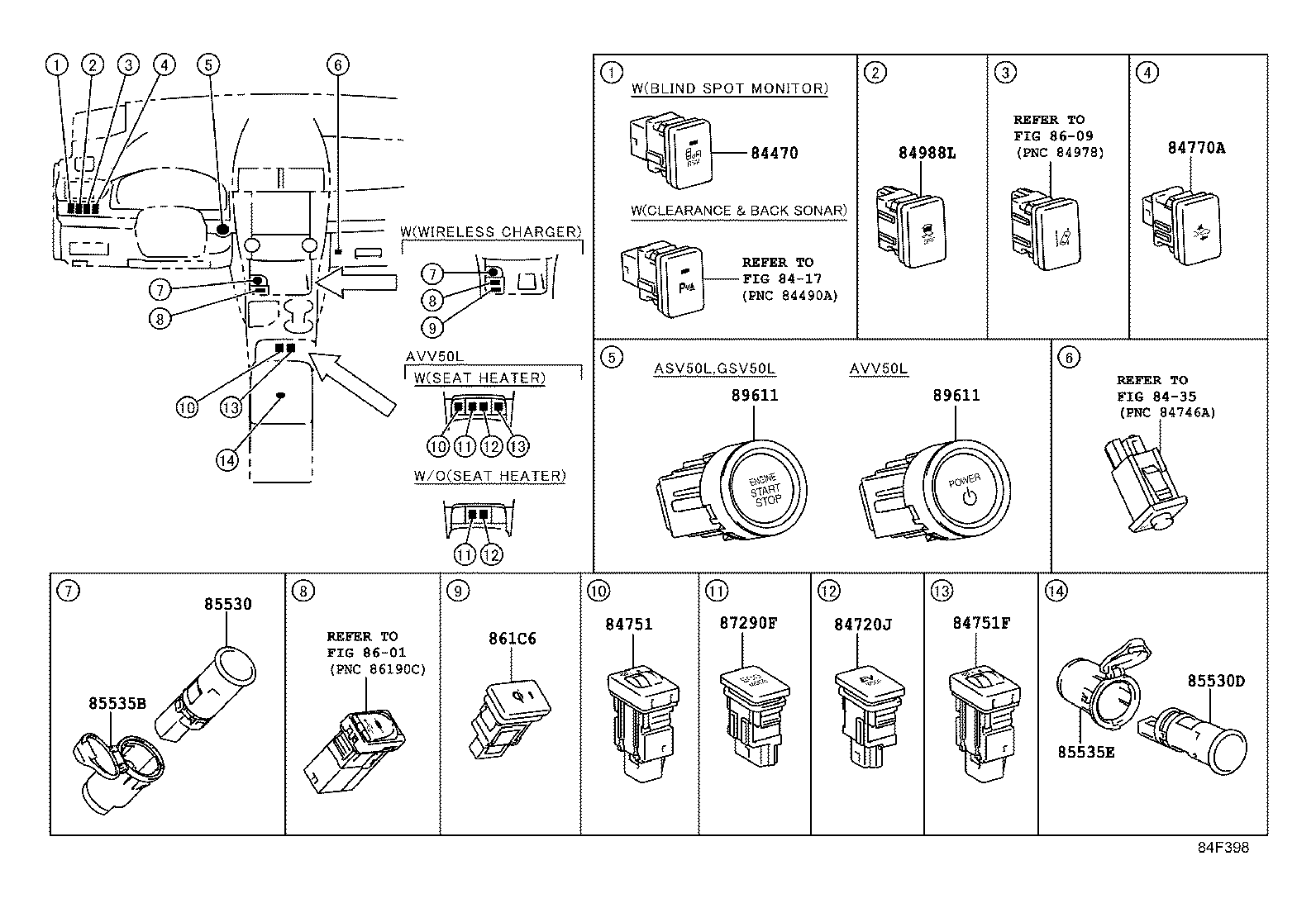

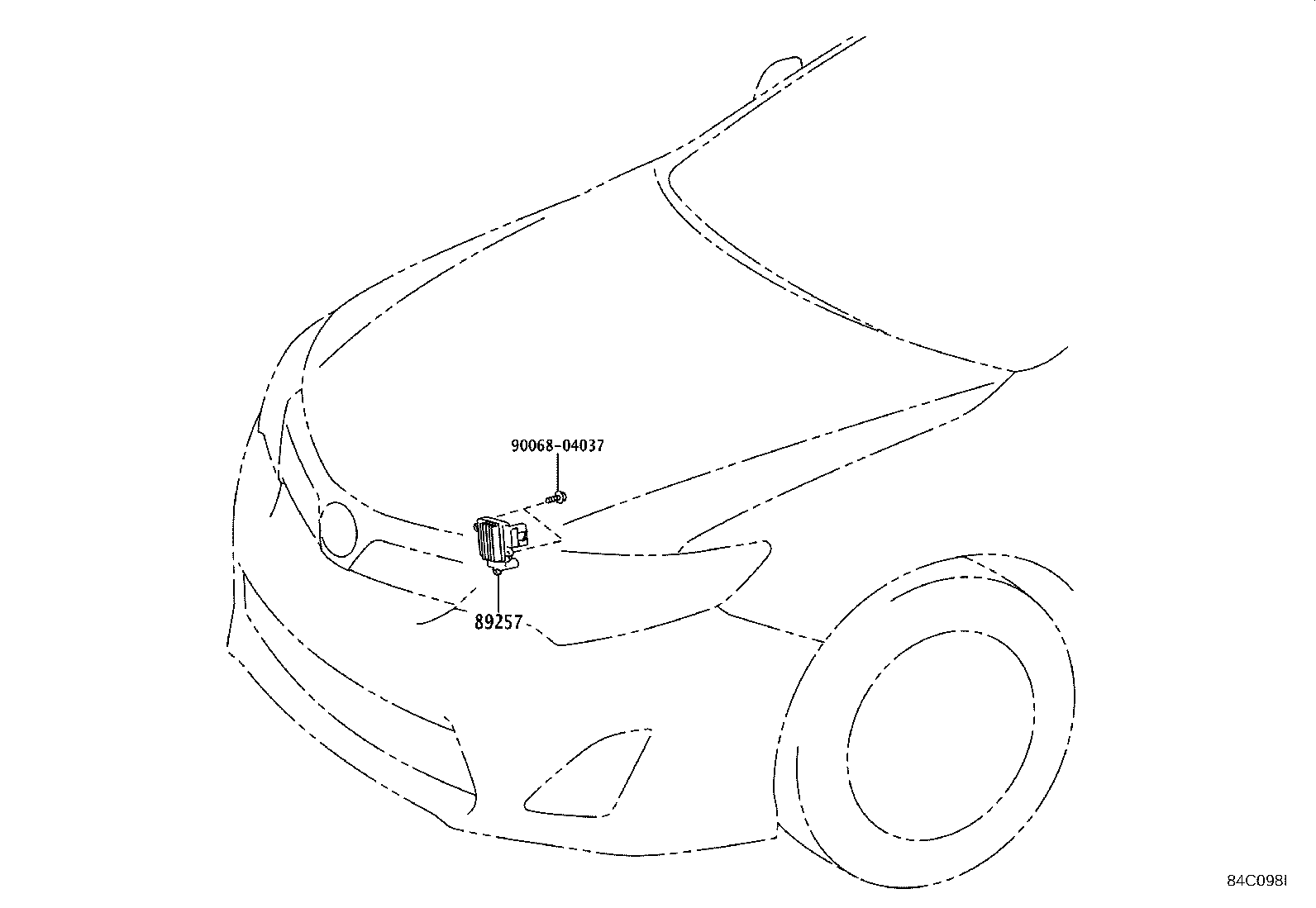

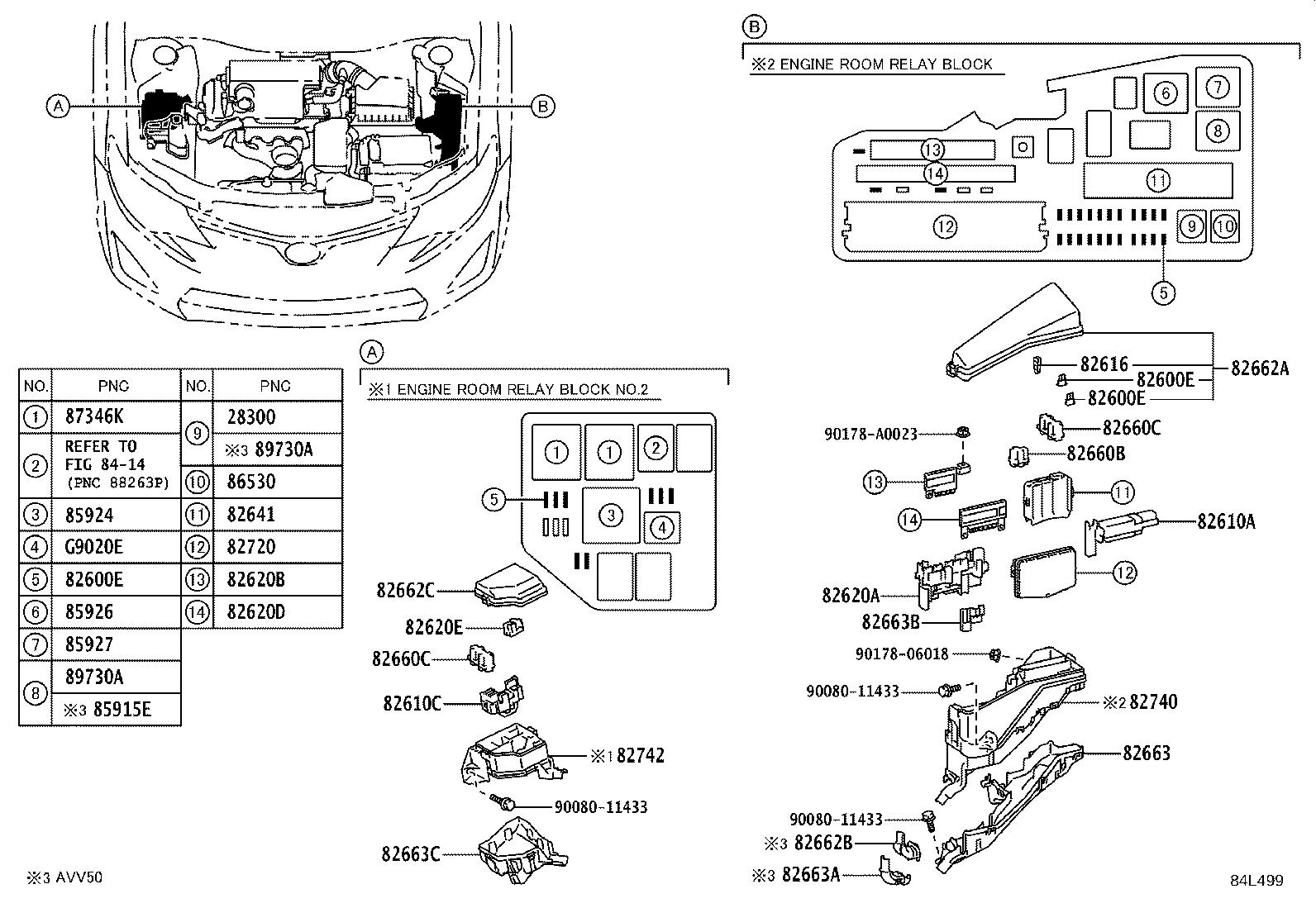

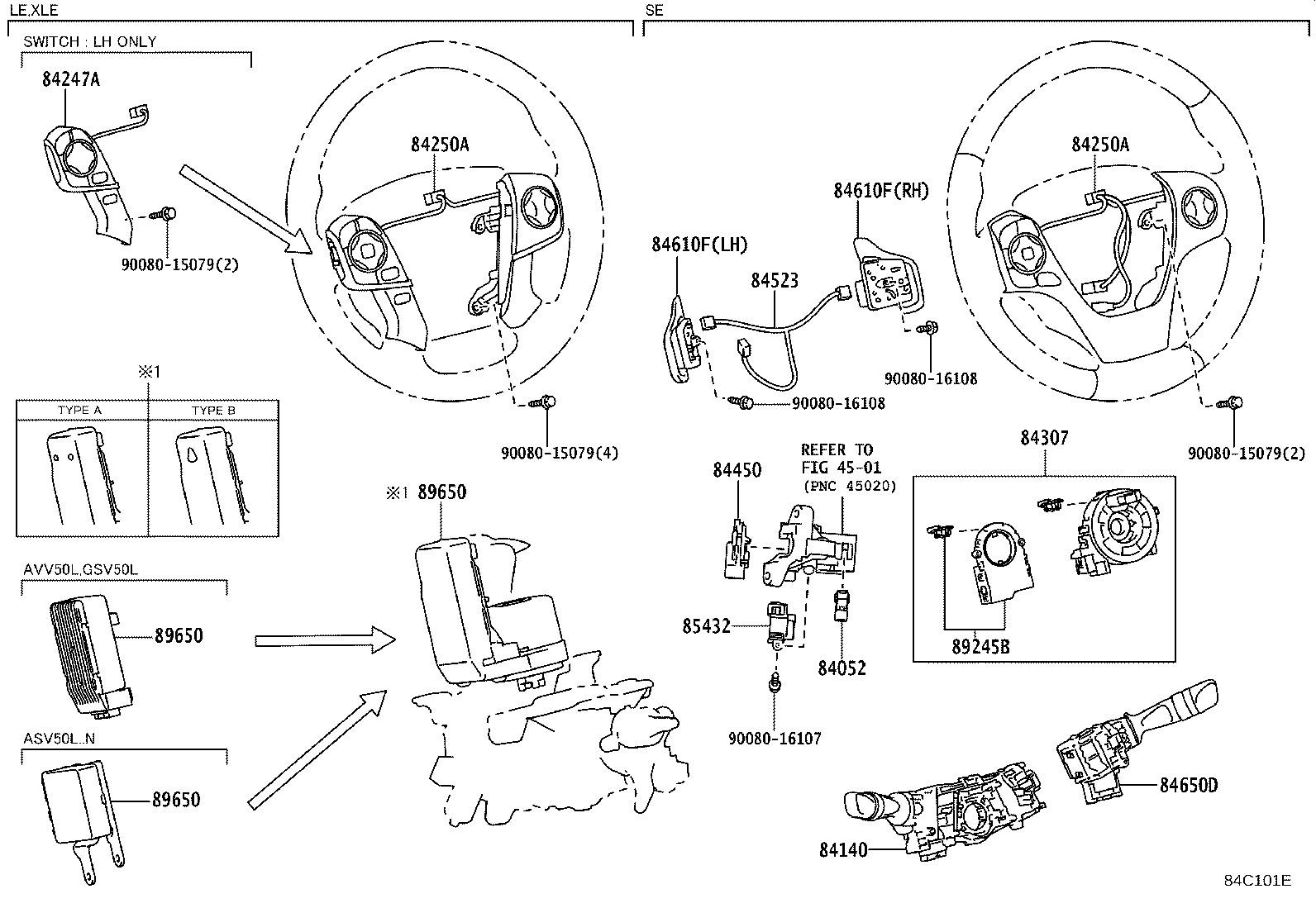

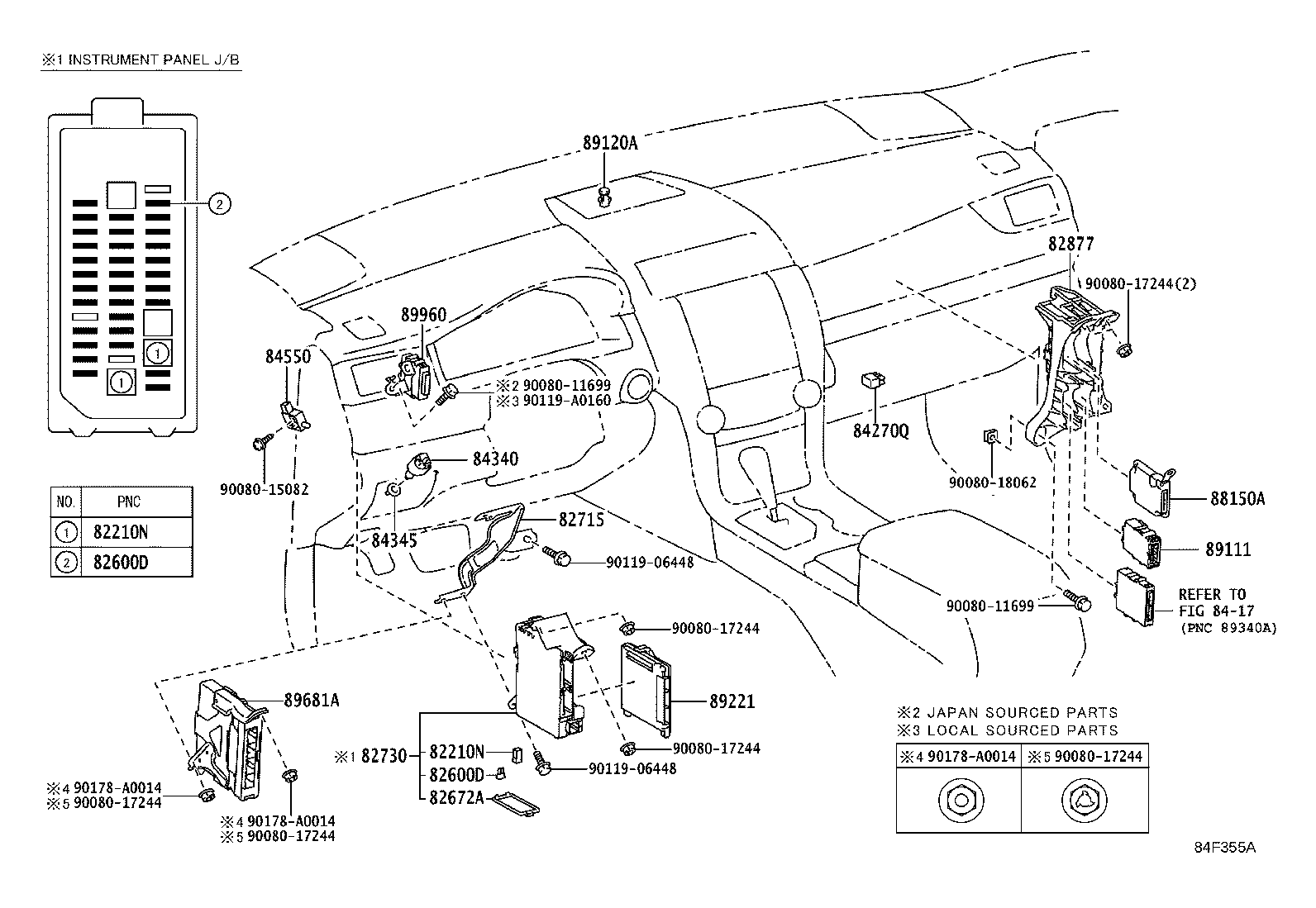

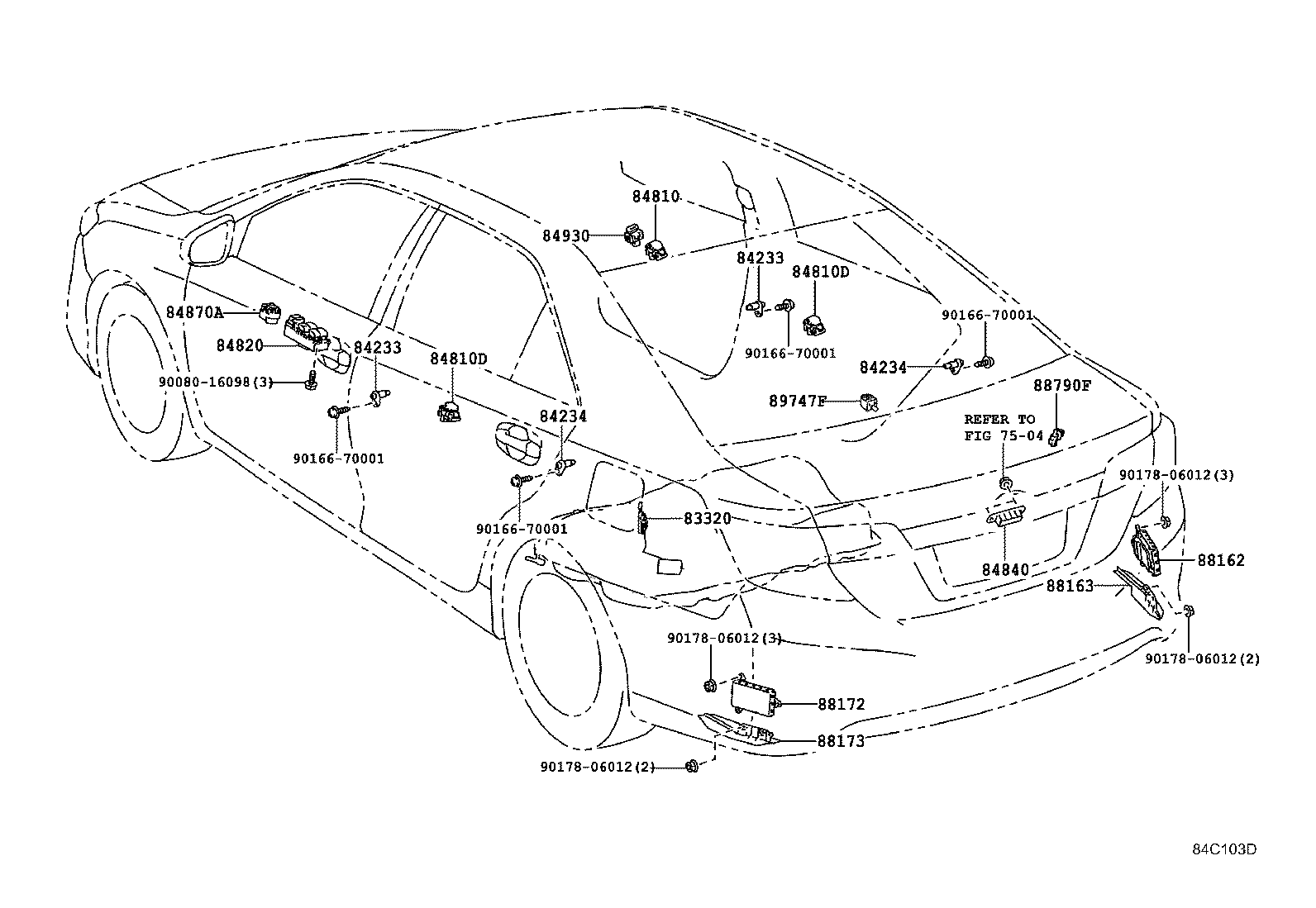

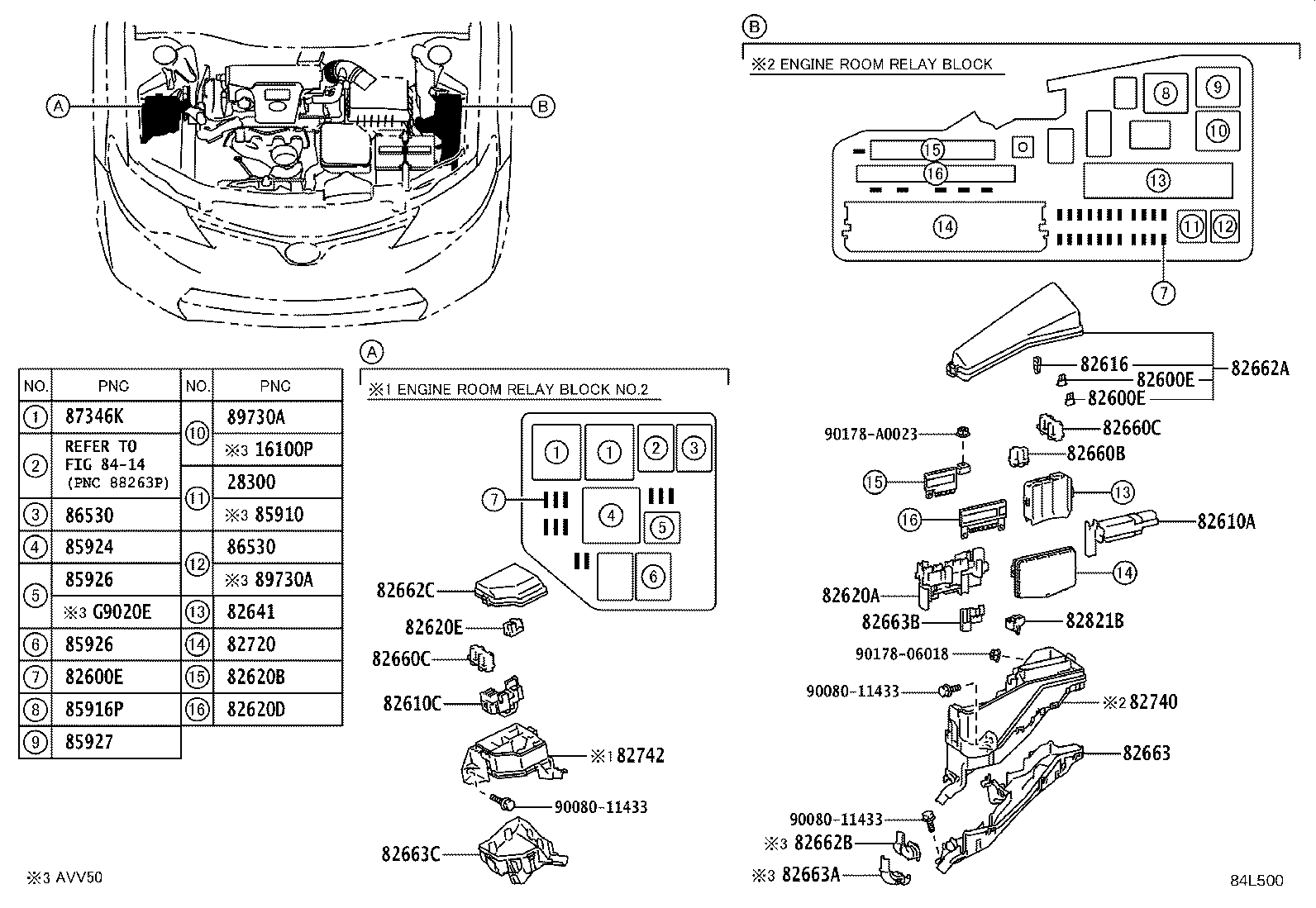

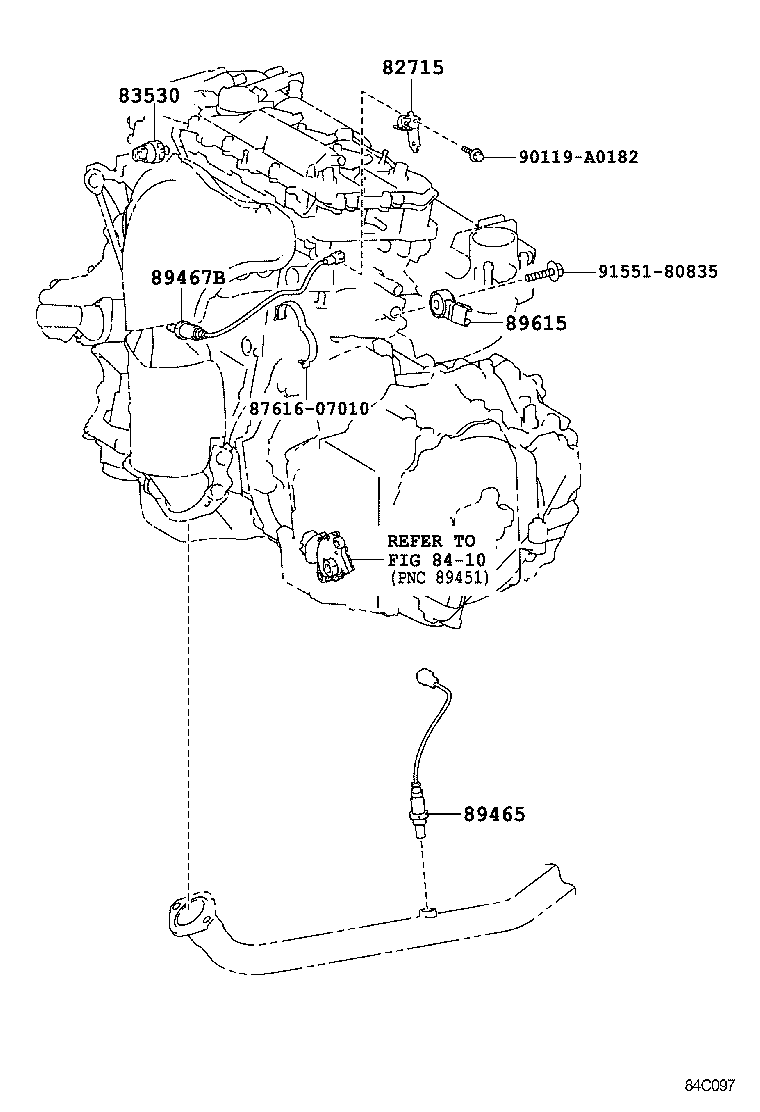

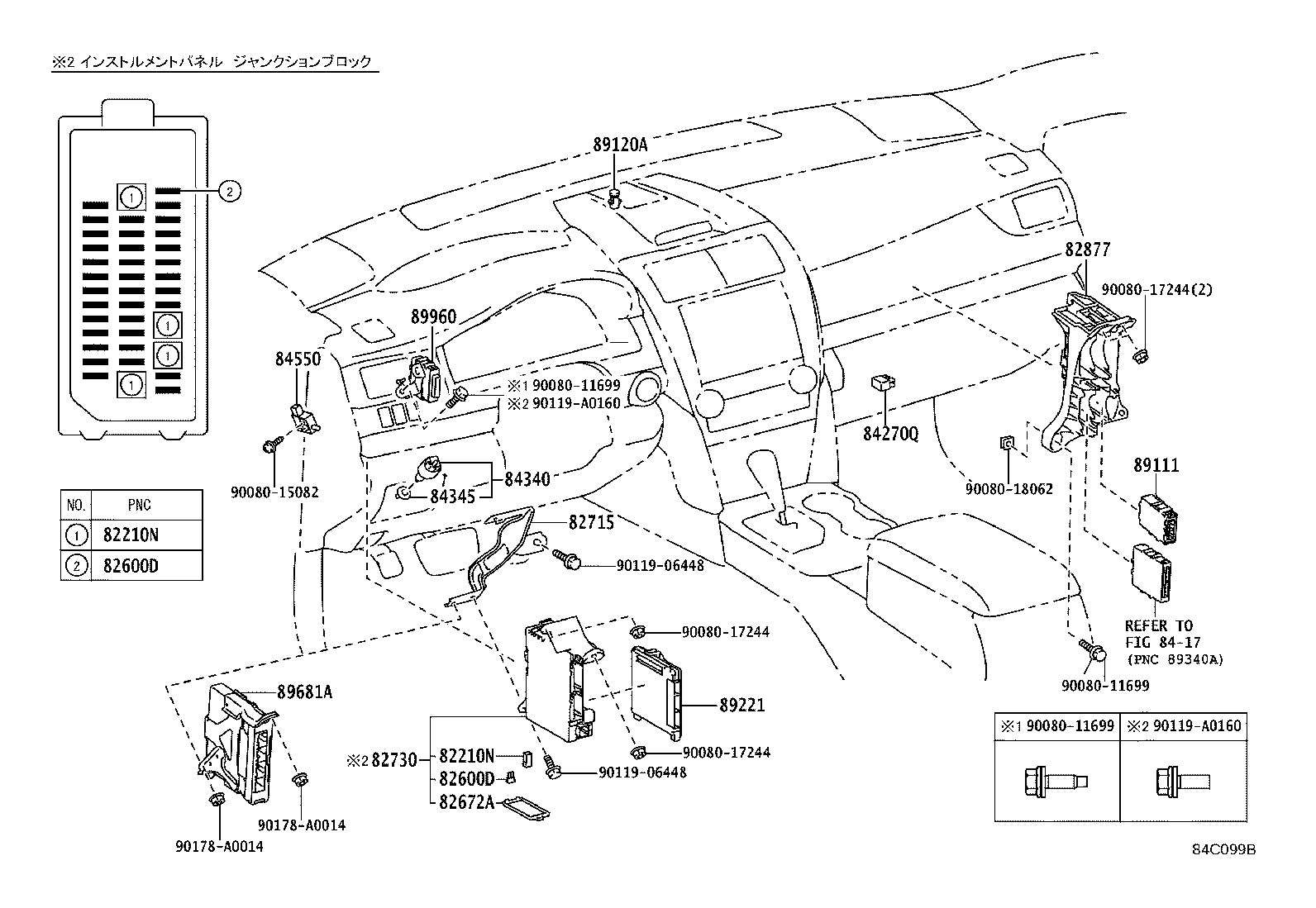

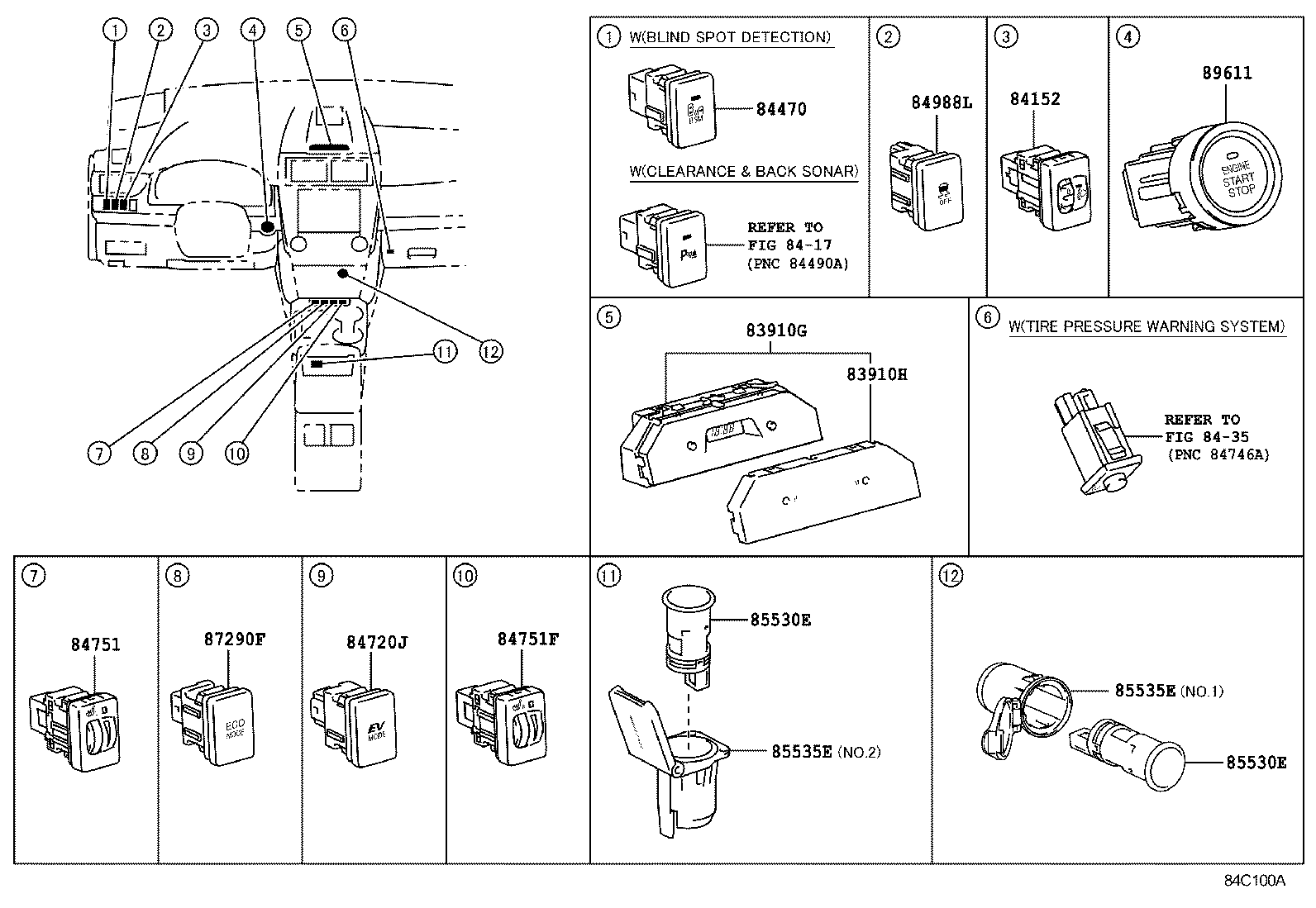

Figure 84C095B 84C095B 2011-09 → 2014-09 Figure 84F442A 84F442A 2014-09 → — Figure 84C096B 84C096B 2011-09 → 2014-09 Figure 84F441A 84F441A 2014-09 → — Figure 84C097 84C097 2011-09 → — Figure 84C098I 84C098I 2011-09 → 2014-09 Figure 84F375D 84F375D 2014-09 → — Figure 84L499 84L499 2011-09 → 2014-09 Figure 84L500 84L500 2014-09 → — Figure 84C099B 84C099B 2011-09 → 2014-09 Figure 84F355A 84F355A 2014-09 → — Figure 84C100A 84C100A 2011-09 → 2014-09 Figure 84F398 84F398 2014-09 → — Figure 84C101E 84C101E 2011-09 → 2014-09 Figure 84F378A 84F378A 2014-09 → — Figure 84C102C 84C102C 2011-09 → — Figure 84C103D 84C103D 2011-09 → 2014-09 Figure 84F376B 84F376B 2014-09 → —

Part groups

PNCDescription
16100P Relay, Water Pump
28300 Relay Assy, Starter
82210N Instrument Panel Fusible Link
82600D Instrument Panel Fuse
82600E Engine Room Fuse
82610A Block Assy, Fuse
82610C Block Assy, Fuse
82616 Puller, Fuse
82620A Block Assy, Fusible Link
82620B Block Assy, Fusible Link
82620D Block Assy, Fusible Link
82620E Block Assy, Fusible Link
82641 Relay, Integration NO.1
82660B Block Assy, Relay
82660C Block Assy, Relay
82662A Cover, Relay Block, Upper, NO.1
82662B Cover, Relay Block, Upper, NO.2
82662C Cover, Relay Block, Upper, NO.3
82663 Cover, Relay Block, Lower
82663A Cover, Relay Block, Lower, NO.2
82663B Cover, Relay Block, Lower, NO.3
82663C Cover, Relay Block Lower, NO.4
82672A Cover, Junction Block
82715 Bracket,Wiring Harness Clamp
82720 Block Assy, Engine Room Junction
82730 Block Assy, Instrument Panel Junction
82740 Block Assy, Engine Room Relay
82742 Block, Engine Room Relay, NO.2
82821B Cover, Connector
82877 Box, Computer Integration, RH
83320 Gage Assy, Fuel Sender
83530 Switch Assy, Oil Pressure (FOR ENGINE)
83910G Clock Assy
83910H Lens, Clock
84052 Switch Assy, Un-lock Warning
84140 Switch Assy, Headlamp Dimmer
84152 Switch, Headlamp Leveling
84233 Switch Assy, Courtesy Lamp (FOR FRONT DOOR)
84234 Switch Assy, Courtesy Lamp (FOR REAR DOOR)
84247A Switch, Steering Pad, LH
84250A Switch Assy, Steering Pad
84270Q Relay, Lamp Cut
84307 Cable Sub-assy, Spiral W/Sensor
84340 Switch Assy, Stop Lamp
84345 Adjuster, Stop Lamp Switch Mounting
84450 Switch Assy, Ignition OR Starter
84470 Switch Assy, Warning Canceling
84523 Wire, Switch NO.1
84540 Switch Assy, Neutral Start
84550 Switch Assy, Parking Brake
84610F Switch Assy, Transmission Shift
84650D Switch Assy, Windshield Wiper (W/RELAY, WIPER CONTROL)
84720J Switch Assy, Pattern Select
84751 Switch, Seat Heater
84751F Switch, Seat Heater
84770A Switch Assy, Pre-collision System Cancel
84810 Switch Assy, Power Window Regulator
84810D Switch Assy, Power Window Regulator, Rear
84820 Master Switch Assy, Power Window Regulator
84840 Switch Assy, Luggage Compartment Door Opening
84870A Switch Assy, Outer Mirror
84921N Knob, Power Seat Switch, RH (FOR RECLINING)
84921P Knob, Power Seat Switch, RH (FOR SLIDE & VERTICAL)
84921Q Knob, Power Seat Switch, LH (FOR RECLINING)
84921R Knob, Power Seat Switch, LH (FOR SLIDE & VERTICAL)
84922A Switch, Front Power Seat(FOR LUMBAR)
84922B Switch, Front Power Seat, RH
84922C Switch, Front Power Seat, LH
84930 Switch Assy, Door Control
84988L Switch, Vsc Off
85432 Solenoid, Key Interlock
85530 Socket Assy, Power Outlet, NO.1
85530D Socket Assy, Power Outlet, NO.2
85530E Socket Assy, Power Outlet, NO.3
85535B Cover, Power Outlet Socket, NO.1
85535E Cover, Power Outlet Socket, NO.2
85910 Relay Assy, Circuit Opening
85915E Relay
85916C Relay, Back UP Lamp
85916P Relay, Headlamp
85924 Relay, Ignition Control
85926 Relay, Headlamp Dimmer
85927 Relay, Cooling Fan
861C6 Switch, Mobile Wireless Charger
86530 Relay Assy, Horn
87290F Switch Assy, Eco
87346K Relay, Ptc Heater
88150A Computer Assy, Driving Support
88162 Sensor, Blind Spot Monitor, RH
88163 Cover, Blind Spot Monitor, RH
88172 Sensor, Blind Spot Monitor, LH
88173 Cover, Blind Spot Monitor, LH
88790F Thermistor Assy
89111 Computer, Network Gateway
89120A Sensor, Automatic Light Control
89221 Computer, Multiplex Network Body
89245B Sensor, Steering
89245C Sensor, Steering
89257 Computer, Cooling Fan
89465 Sensor, Oxygen
89467B Sensor, Air Fuel Ratio
89530C Computer Assy, Transmission Control
89611 Switch, Push Start
89615 Sensor, Knock Control
89650 Computer Assy, Power Steering
89681A Computer, Power Management Control
89730A Relay(FOR SECURITY WARNING)
89747F Buzzer, Blind Spot Monitor
89960 Computer Assy, Headlamp Leveling
G9020E Relay, Hybrid Water Pump
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
