Toyota Camry/Hybrid

2011-09 → 2017-06 · chassis ASV50L-C*****,AVV50,GSV50 · catalogue 283490 · United States

Supported model Data version 2017-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Clearance & Back Sonar

7 part groups · 2 illustrations

Illustrations

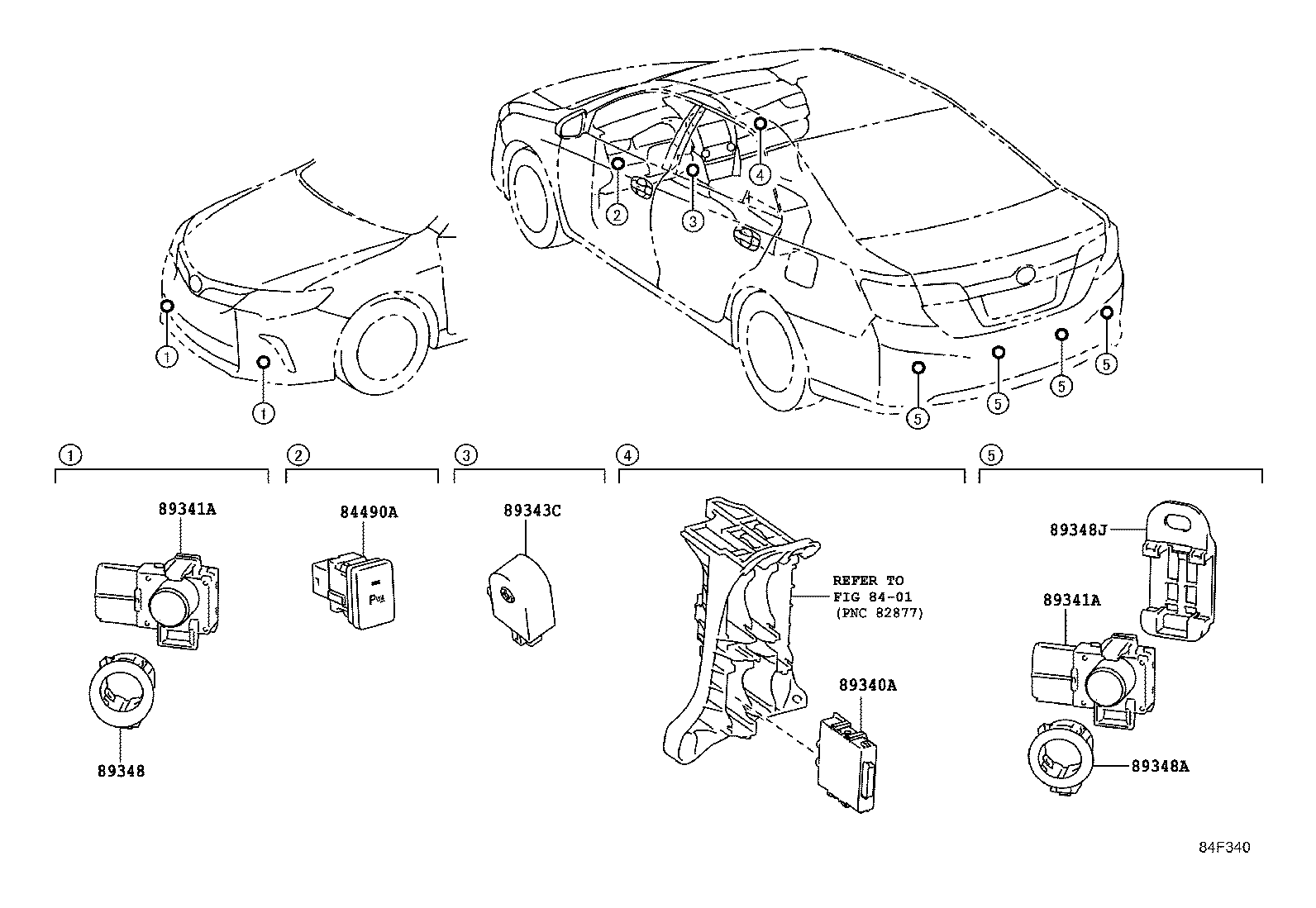

Figure 84C116 84C116 2011-09 → 2014-09 Figure 84F340 84F340 2014-09 → —

Part groups

PNCDescription
84490A Switch Assy, Back Sonar OR Clearance Sonar
89340A Computer Assy, Clearance Warning
89341A Sensor, Ultrasonic, NO.1
89343C Buzzer, Clearance Warning, NO.1
89348 Retainer, Ultrasonic Sensor, NO.1
89348A Retainer, Ultrasonic Sensor, NO.2
89348J Clip, Ultrasonic Sensor
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
