Toyota Camry/Hybrid
2011-09 → 2017-06 · chassis ASV50L-C*****,AVV50,GSV50 · catalogue 283490 · United States
Supported model
Data version 2017-12
Air Bag

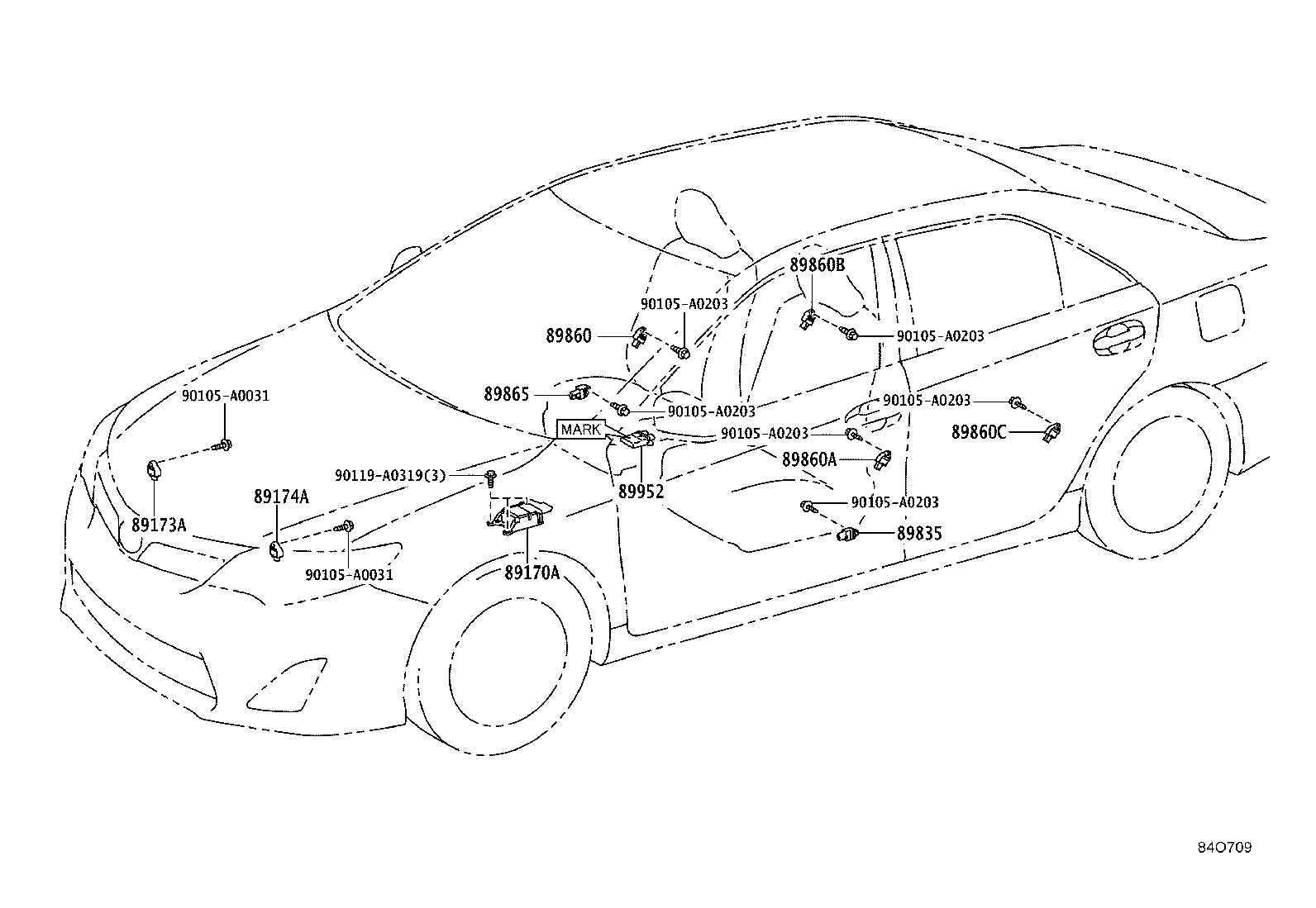

11 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 89170 | Sensor Assy, Airbag |
| 89170A | Computer Assy, Airbag |
| 89173A | Sensor, Airbag, Front RH |
| 89174A | Sensor, Airbag, Front LH |
| 89835 | Sensor, Door Side Airbag, LH |
| 89860 | Sensor Assy, Side Airbag, RH |
| 89860A | Sensor Assy, Side Airbag, LH |
| 89860B | Sensor Assy, Side Airbag, RH, NO.2 |
| 89860C | Sensor Assy, Side Airbag, LH, NO.2 |
| 89865 | Sensor, Door Side Airbag, RH |
| 89952 | Computer, Occupant Detection |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
