Toyota Camry/Hybrid

2011-09 → 2017-06 · chassis ASV50L-C*****,AVV50,GSV50 · catalogue 283490 · United States

Supported model Data version 2017-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Hev Inverter

11 part groups · 2 illustrations

Illustrations

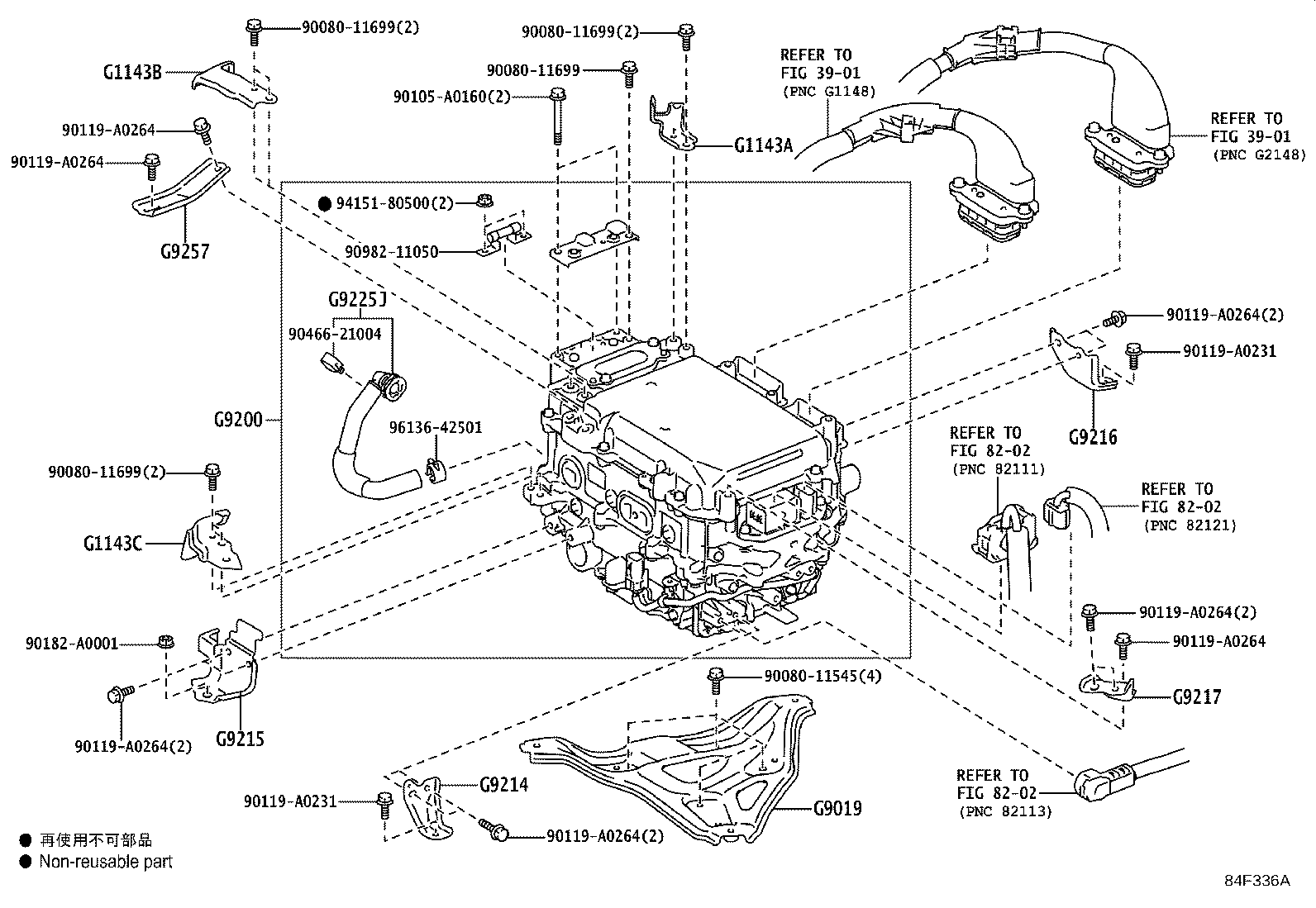

Figure 84C118E 84C118E 2011-10 → 2014-09 Figure 84F336A 84F336A 2014-09 → —

Part groups

PNCDescription
G1143A Bracket, Motor Cable, NO.1
G1143B Bracket, Motor Cable, NO.2
G1143C Bracket, Motor Cable, NO.3
G9019 Bracket Sub-assy, Inverter Tray
G9200 Inverter Assy, W/Converter
G9214 Bracket, Inverter, NO.1
G9215 Bracket, Inverter, NO.2
G9216 Bracket, Inverter, NO.3
G9217 Bracket, Inverter, NO.4
G9225J Hose, Inverter Cooling, NO.1
G9257 Bracket, Inverter, NO.5
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
