Toyota Camry/Hybrid

2011-09 → 2017-06 · chassis ASV50L-C*****,AVV50,GSV50 · catalogue 283490 · United States

Supported model Data version 2017-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Navigation & Front Monitor Display

12 part groups · 3 illustrations

Illustrations

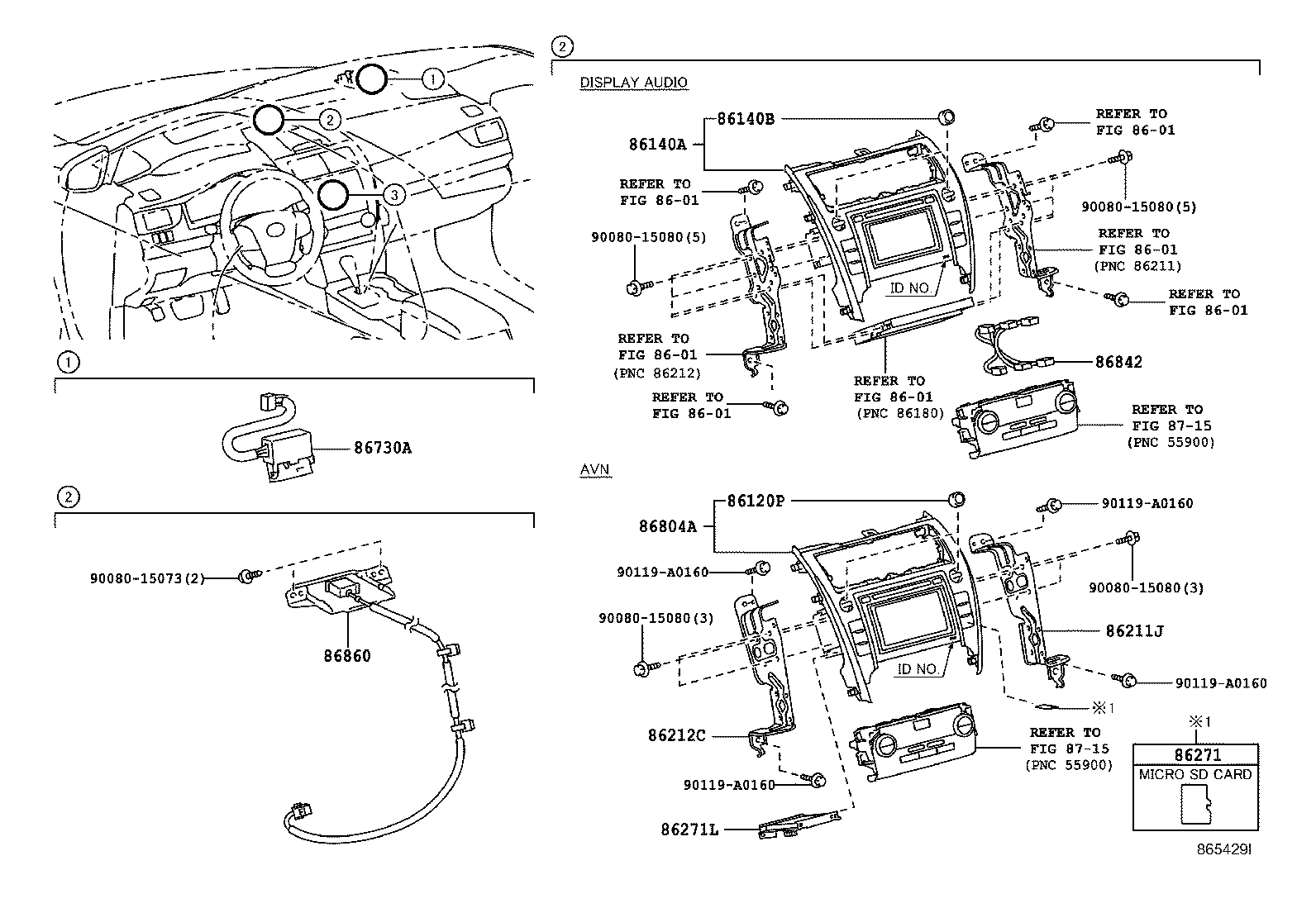

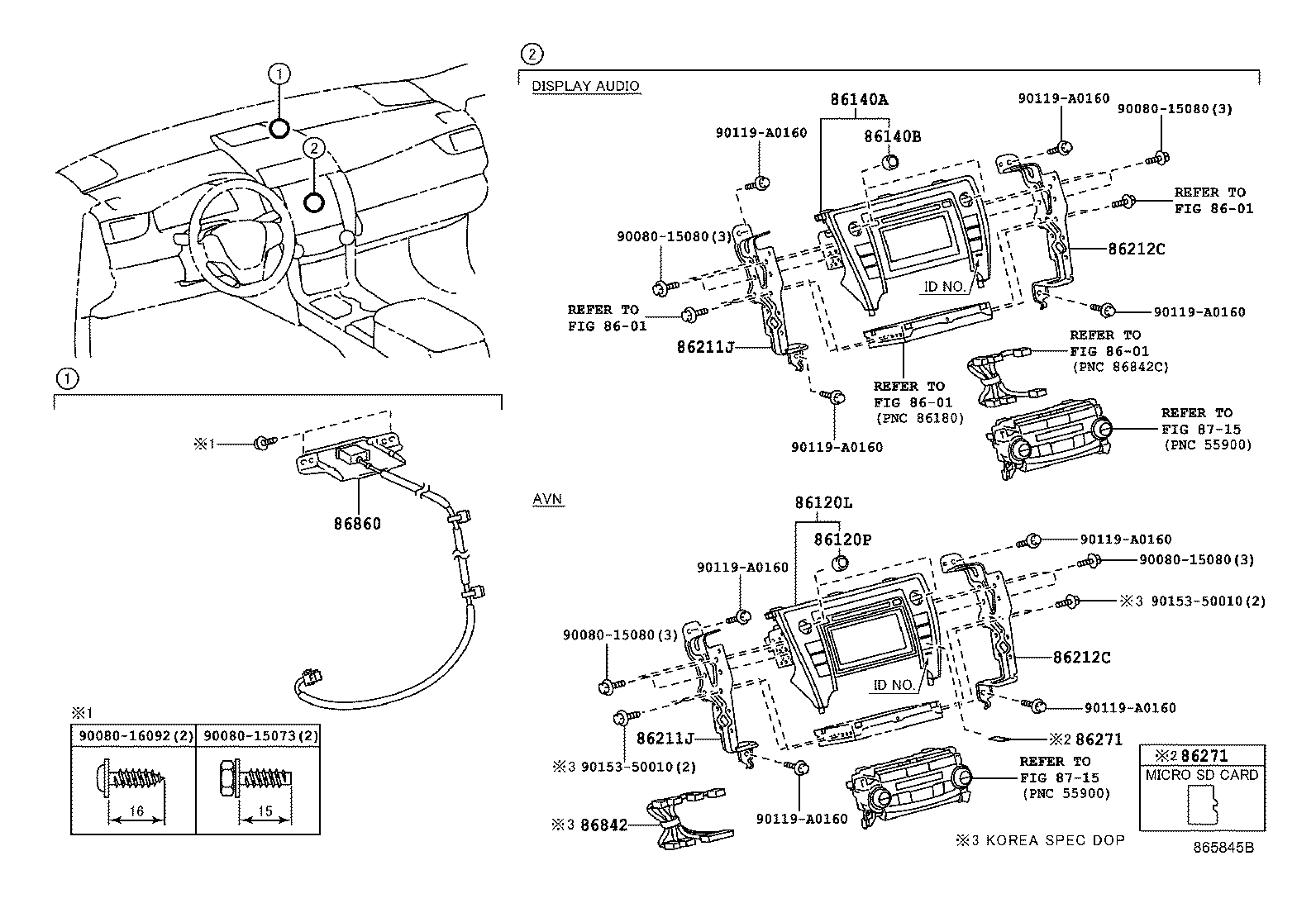

Figure 864572F 864572F 2011-09 → 2013-08 Figure 865429I 865429I 2013-08 → 2014-09 Figure 865845B 865845B 2014-09 → —

Part groups

PNCDescription
86120L Receiver Assy, Navigation
86120P Knob, Navigation Receiver Switch
86140A Receiver Assy, Radio & Display
86140B Knob, Radio & Display Receiver Switch
86211J Bracket, Radio Receiver, NO.1
86212C Bracket, Radio Receiver, NO.2
86271 Disc, Disc Player
86271L Hard Disc
86730A Microphone Assy, Telephone
86804A Sub-assy, Navigation Computer
86842 Wire, Navigation, NO.1
86860 Antenna Assy, Navigation
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
