Toyota Camry/Hybrid

2011-09 → 2017-06 · chassis ASV50L-C*****,AVV50,GSV50 · catalogue 283490 · United States

Supported model Data version 2017-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Control & Air Duct

27 part groups · 4 illustrations

Illustrations

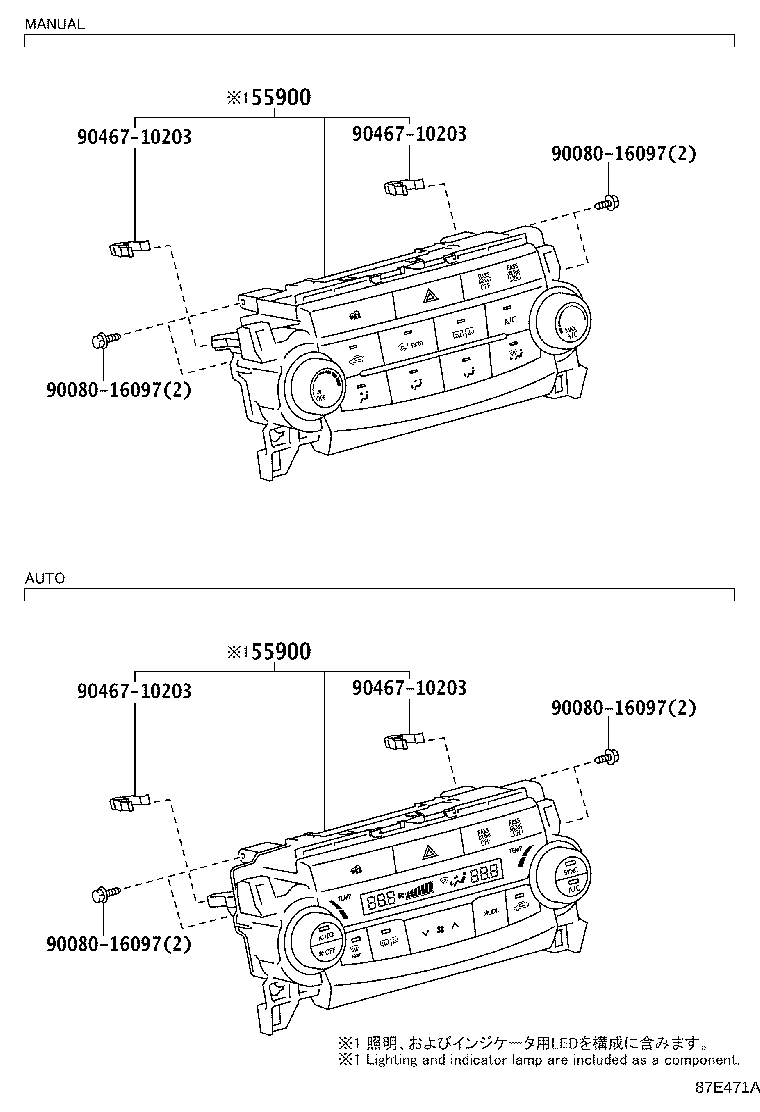

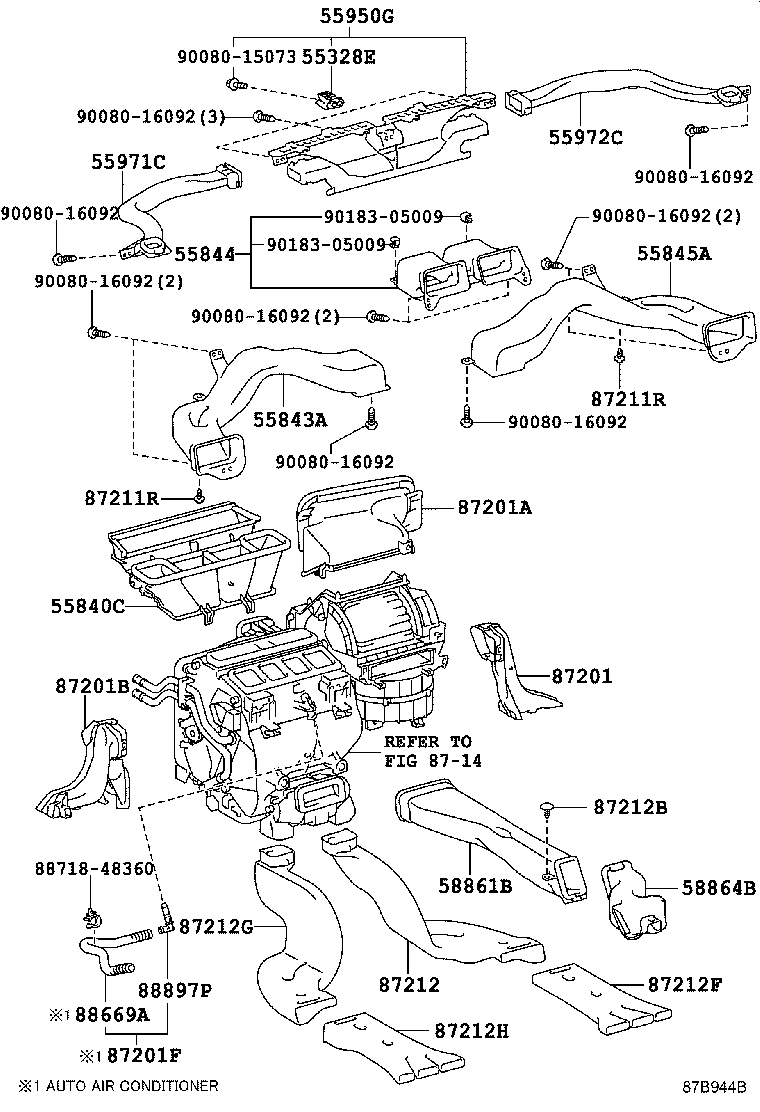

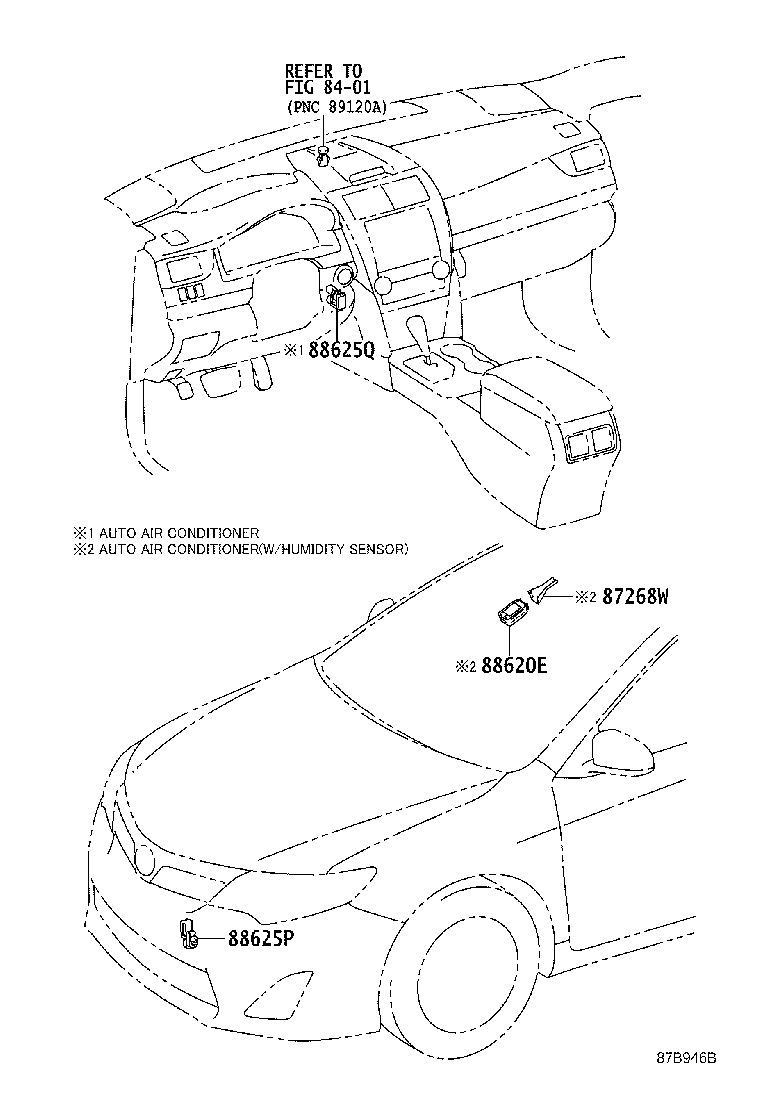

Figure 87B943A 87B943A 2011-09 → 2014-09 Figure 87E471A 87E471A 2014-09 → — Figure 87B944B 87B944B 2011-09 → — Figure 87B946B 87B946B 2011-09 → —

Part groups

PNCDescription
55328E Pin, Instrument Panel, NO.1
55840C Duct Assy, Heater TO Register, NO.6
55843A Duct, Heater TO Register, NO.1
55844 Duct, Heater TO Register, NO.2
55845A Duct, Heater TO Register, NO.3
55900 Control Assy, Air Conditioner
55950G Nozzle Assy, Defroster
55971C Duct, Side Defroster Nozzle, NO.1
55972C Duct, Side Defroster Nozzle, NO.2
58861B Duct, Console Box, NO.1
58864B Duct, Console Box, NO.4
87201 Duct Sub-assy, Air, NO.1
87201A Duct Sub-assy, Air
87201B Duct Sub-assy, Air, NO.2
87201F Duct Sub-assy, Air, NO.3
87211R Clip, Air Duct
87212 Duct, Air, Rear NO.1
87212B Clip, Air Duct
87212F Duct, Air, Rear NO.2
87212G Duct, Air, Rear NO.3
87212H Duct, Air, Rear NO.4
87268W Protector
88620E Thermistor Assy, Air Conditioner (HUMIDITY SENSOR)
88625P Thermistor, Cooler (AMBIENT TEMP. SENSOR)
88625Q Thermistor, Cooler (ROOM TEMP. SENSOR)
88669A Hose (FOR COOLER THERMISTOR)
88897P Aspirator
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
