Toyota Camry/Hybrid (NAP)
2017-06 → present · chassis AXVA7#,AXVH7#,GSV70 · catalogue 2834A0 · United States
Supported model
Data version 2020-09

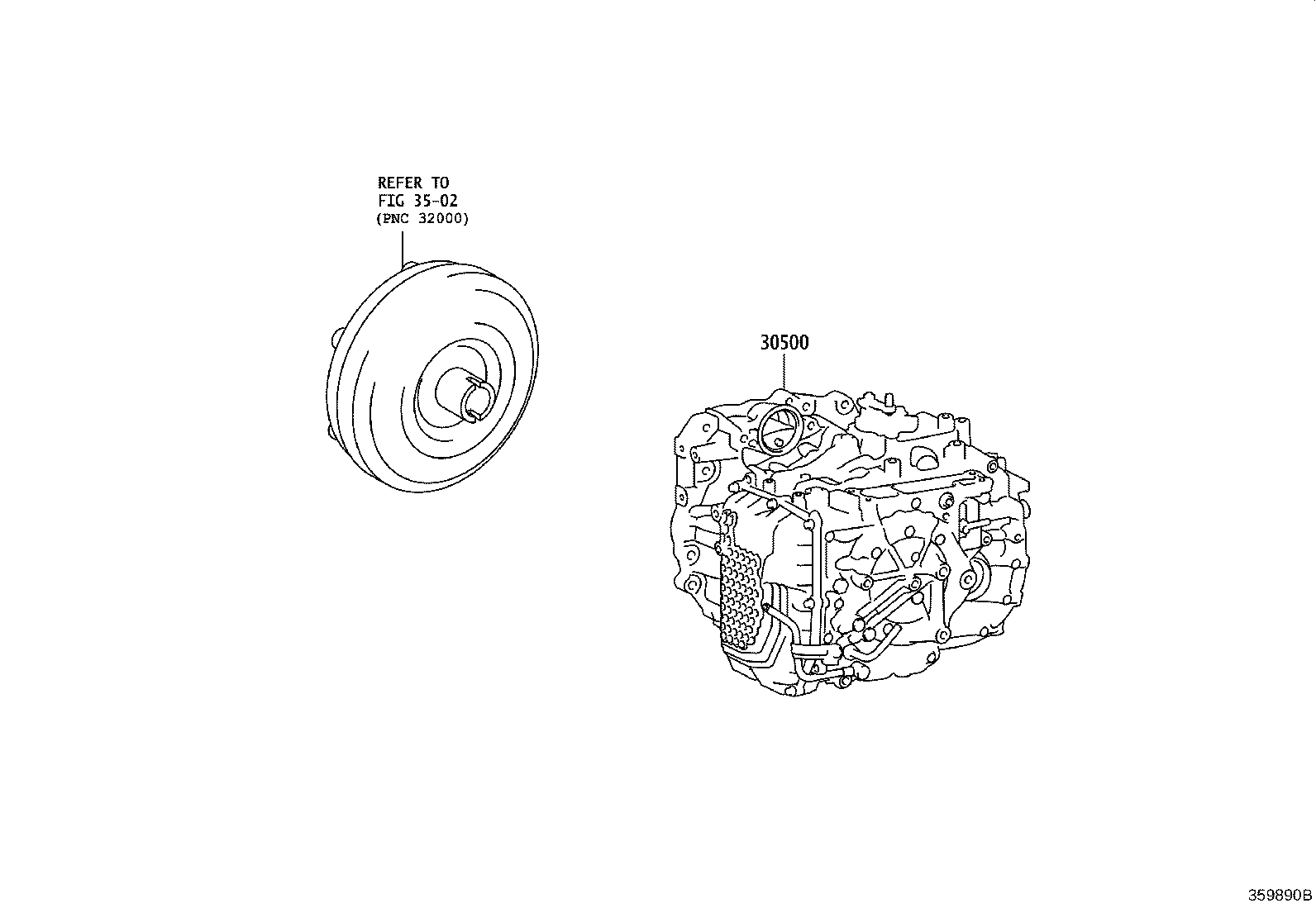

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 30500 — Transaxle Assy, Automatic | ||||
| 30500-06070 note |
Transaxle Assy, Automatic
2017-06 → 2017-11
ended
|
AXVA70 | — | |
| 30500-06071 note |
Transaxle Assy, Automatic
2017-11 → 2020-10
ended
|
AXVA70 | — | |
| 30500-33850 note |
Transaxle Assy, Automatic
2017-06 → 2017-11
ended
|
AXVA70 | — | |
| 30500-33851 note |
Transaxle Assy, Automatic
2017-11 → 2020-10
ended
|
AXVA70 | — | |
| 30500-33860 note |
Transaxle Assy, Automatic
2017-06 → 2018-02
ended
|
GSV70 | — | |
| 30500-33861 note |
Transaxle Assy, Automatic
2018-02 → 2020-04
ended
|
GSV70 | — | |
| 30500-33871 note |
Transaxle Assy, Automatic
2018-09 → 2020-10
ended
|
AXVA70 | — | |
| 30500-33A01 note |
Transaxle Assy, Automatic
2020-06 → 2020-10
ended
|
GSV70 | — | |
| 30500-0R060 note |
Transaxle Assy, Automatic
2020-03 → 2020-10
ended
|
AXVA75 | — | |
| 30500-42360 note |
Transaxle Assy, Automatic
2020-03 → 2020-10
ended
|
AXVA75 | — | |
| 30500-06071 note |
Transaxle Assy, Automatic
2020-10 → —
|
AXVA70 | — | |
| 30500-06080 note |
Transaxle Assy, Automatic
2020-12 → 2022-10
ended
|
GSV70 | — | |
| 30500-0R060 note |
Transaxle Assy, Automatic
2020-10 → —
|
AXVA75 | — | |
| 30500-33851 note |
Transaxle Assy, Automatic
2020-10 → —
|
AXVA70 | — | |
| 30500-33871 note |
Transaxle Assy, Automatic
2020-10 → —
|
AXVA70 | — | |
| 30500-33A01 note |
Transaxle Assy, Automatic
2020-10 → —
|
GSV70 | — | |
| 30500-42360 note |
Transaxle Assy, Automatic
2020-10 → —
|
AXVA75 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
