Toyota Camry/Hybrid (NAP)

2017-06 → present · chassis AXVA7#,AXVH7#,GSV70 · catalogue 2834A0 · United States

Supported model Data version 2020-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

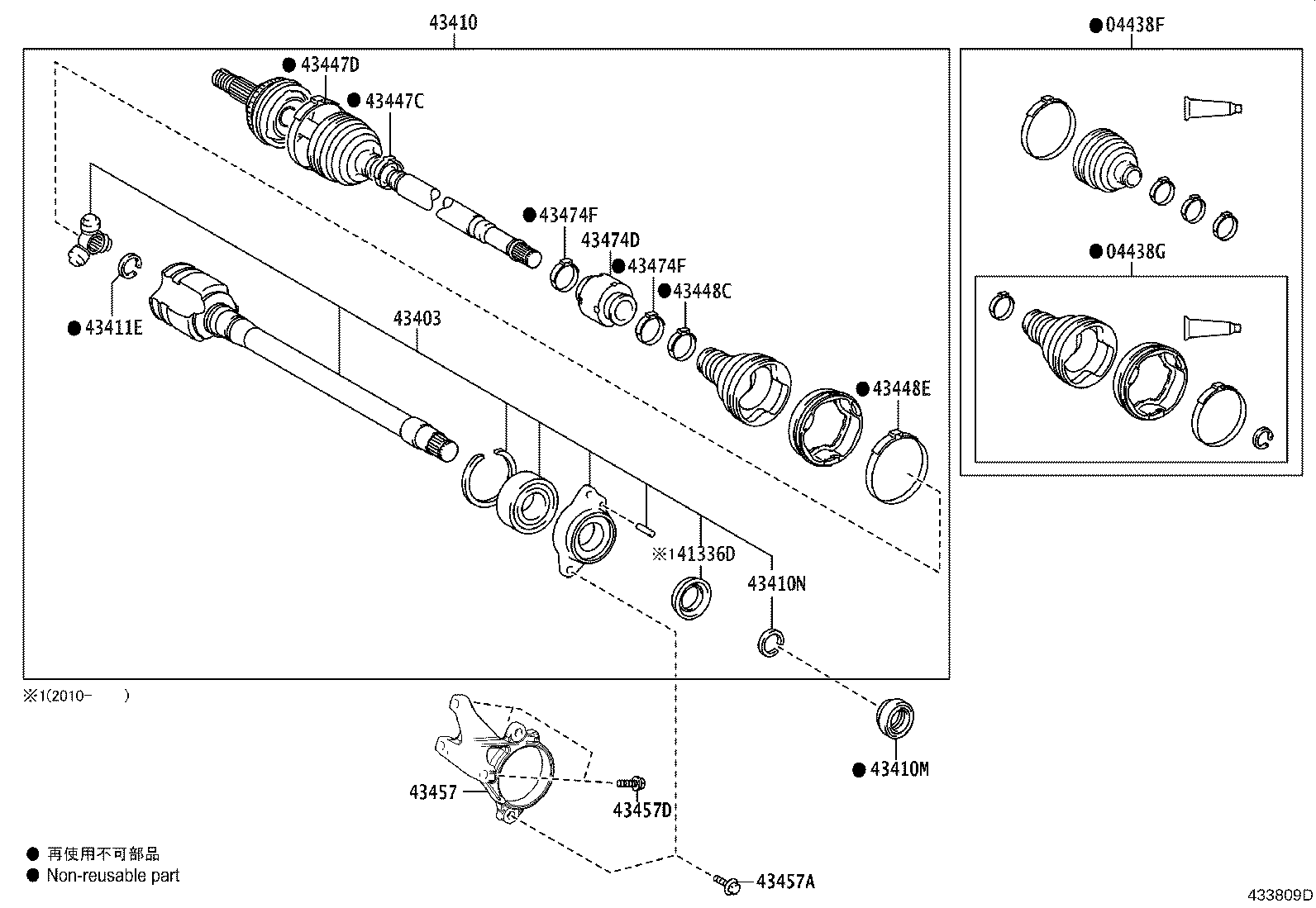

Exploded illustration 433809D 43457 — BRACKET, DRIVE SHAFT BEARING (8 parts) 43457D — BOLT(FOR DRIVE SHAFT BEARRING BRACKET SETTING NO.2) (3 parts) 43410 — SHAFT ASSY, FRONT DRIVE, RH (10 parts) 43410N — RING, HOLE SNAP (FOR FRONT DRIVE SHAFT RH) (6 parts) 41336D — COVER, FRONT DRIVE SHAFT DUST, RH (3 parts) 43447C — CLAMP (FOR FRONT AXLE OUTBOARD JOINT BOOT RH) (7 parts) 43447D — CLAMP, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT RH) (7 parts) 43411E — RING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT INNER RH) (7 parts) 43403 — JOINT SET, FRONT AXLE INBOARD, RH (6 parts) 43457A — BOLT (FOR DRIVE SHAFT BEARING BRACKET SETTING NO.1) (4 parts) 43410M — OIL SEAL, FRONT DRIVE SHAFT, RH (10 parts) 43474F — CLAMP (FOR FRONT DRIVE SHAFT DAMPER RH) (5 parts) 43474F — CLAMP (FOR FRONT DRIVE SHAFT DAMPER RH) (5 parts) 04438F — BOOT KIT, FRONT DRIVE SHAFT, IN & OUTBOARD, RH (10 parts) 04438G — BOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT, RH (7 parts) 43448E — CLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT RH) (6 parts) 43448C — CLAMP (FOR FRONT AXLE INBOARD JOINT BOOT RH) (5 parts) 43474D — DAMPER, FRONT DRIVE SHAFT, RH (8 parts)
433809D · 18 callouts Full size ↗
112 parts on this figure
Part number Description Fitment Price
04438F — Boot Kit, Front Drive Shaft, IN & Outboard, RH
04427-08180 Boot Kit, Front Drive Shaft, IN & Outboard, RH
2017-06 → 2019-08 ended
AXVH7# —
04427-08190 Boot Kit, Front Drive Shaft, IN & Outboard, RH
2017-06 → 2019-08 ended
GSV70 —
04427-08220 Boot Kit, Front Drive Shaft, IN & Outboard, RH
2017-06 → 2020-10 ended
AXVA70 —
04427-08240 Boot Kit, Front Drive Shaft, IN & Outboard, RH
2019-09 → 2020-10 ended
GSV70 —
04427-08260 Boot Kit, Front Drive Shaft, IN & Outboard, RH
2019-09 → 2020-10 ended
AXVH7# —
04427-0R170 Boot Kit, Front Drive Shaft, IN & Outboard, RH
2020-03 → 2020-10 ended
AXVA75 —
04427-08220 Boot Kit, Front Drive Shaft, IN & Outboard, RH
2020-10 → —
AXVA70 —
04427-08240 Boot Kit, Front Drive Shaft, IN & Outboard, RH
2020-10 → —
GSV70 —
04427-08260 Boot Kit, Front Drive Shaft, IN & Outboard, RH
2020-10 → —
AXVH7# —
04427-0R170 Boot Kit, Front Drive Shaft, IN & Outboard, RH
2020-10 → —
AXVA75 —
04438G — Boot Kit, Front Drive Shaft Inboard Joint, RH
04437-08070 Boot Kit, Front Drive Shaft Inboard Joint, RH
2017-06 → 2019-08 ended
AXVH7#,GSV70 —
04437-08090 Boot Kit, Front Drive Shaft Inboard Joint, RH
2017-06 → 2020-10 ended
AXVA70 —
04437-08110 Boot Kit, Front Drive Shaft Inboard Joint, RH
2019-09 → 2020-10 ended
AXVH7#,GSV70 —
04437-0R066 Boot Kit, Front Drive Shaft Inboard Joint, RH
2020-03 → 2020-10 ended
AXVA75 —
04437-08090 Boot Kit, Front Drive Shaft Inboard Joint, RH
2020-10 → —
AXVA70 —
04437-08110 Boot Kit, Front Drive Shaft Inboard Joint, RH
2020-10 → —
AXVH7#,GSV70 —
04437-0R066 Boot Kit, Front Drive Shaft Inboard Joint, RH
2020-10 → —
AXVA75 —
41336D — Cover, Front Drive Shaft Dust, RH
41336-0R010 Cover, Front Drive Shaft Dust, RH
2020-03 → 2020-10 ended
AXVA75 —
41336-08020 Cover, Front Drive Shaft Dust, RH
2020-10 → —
AXVH7#,GSV70 —
41336-0R010 Cover, Front Drive Shaft Dust, RH
2020-10 → —
AXVA75 —
43403 — Joint Set, Front Axle Inboard, RH
43403-06030 Joint Set, Front Axle Inboard, RH
2017-06 → 2020-10 ended
AXVH7# —
43403-06040 Joint Set, Front Axle Inboard, RH
2017-06 → 2020-10 ended
GSV70 —
43403-06050 Joint Set, Front Axle Inboard, RH
2017-06 → 2020-10 ended
AXVA70 —
43403-06030 Joint Set, Front Axle Inboard, RH
2020-10 → —
AXVH7# —
43403-06040 Joint Set, Front Axle Inboard, RH
2020-10 → —
GSV70 —
43403-06050 Joint Set, Front Axle Inboard, RH
2020-10 → —
AXVA70 —
43410 — Shaft Assy, Front Drive, RH
43410-06870 Shaft Assy, Front Drive, RH
2017-06 → 2020-10 ended
AXVA70 —
43410-06A00 Shaft Assy, Front Drive, RH
2017-06 → 2019-08 ended
AXVH7# —
43410-06A01 Shaft Assy, Front Drive, RH
2019-09 → 2020-10 ended
AXVH7# —
43410-06A70 Shaft Assy, Front Drive, RH
2017-06 → 2019-08 ended
GSV70 —
43410-06A71 Shaft Assy, Front Drive, RH
2019-09 → 2020-10 ended
GSV70 —
43410-06A80 Shaft Assy, Front Drive, RH
2020-03 → 2020-10 ended
AXVA75 —
43410-06870 Shaft Assy, Front Drive, RH
2020-10 → —
AXVA70 —
43410-06A01 Shaft Assy, Front Drive, RH
2020-10 → —
AXVH7# —
43410-06A71 Shaft Assy, Front Drive, RH
2020-10 → —
GSV70 —
43410-06A80 Shaft Assy, Front Drive, RH
2020-10 → —
AXVA75 —
43410M — Oil Seal, Front Drive Shaft, RH
90311-40046 Oil Seal, Front Drive Shaft, RH
2017-06 → 2020-04 ended
GSV70 —
90311-40046 Oil Seal, Front Drive Shaft, RH
2017-06 → 2020-10 ended
AXVA70 —
90311-40046 note Oil Seal, Front Drive Shaft, RH
2017-06 → 2020-10 ended
AXVH7# —
90311-40046 Oil Seal, Front Drive Shaft, RH
2020-06 → 2020-10 ended
GSV70 —
90311-40049 note Oil Seal, Front Drive Shaft, RH
2019-02 → 2020-10 ended
AXVH7# —
90316-34001 Oil Seal, Front Drive Shaft, RH
2020-03 → 2020-10 ended
AXVA75 —
90311-40046 note Oil Seal, Front Drive Shaft, RH
2020-10 → —
AXVA70,AXVH7# —
90311-40046 Oil Seal, Front Drive Shaft, RH
2020-10 → —
GSV70 —
90311-40049 note Oil Seal, Front Drive Shaft, RH
2020-10 → —
AXVH7# —
90316-34001 Oil Seal, Front Drive Shaft, RH
2020-10 → —
AXVA75 —
43410N — Ring, Hole Snap (FOR FRONT DRIVE SHAFT RH)
43425-07010 Ring, Hole Snap (FOR FRONT DRIVE SHAFT RH)
2017-06 → 2020-10 ended
AXVA70 —
90080-52013 Ring, Hole Snap (FOR FRONT DRIVE SHAFT RH)
2017-06 → 2020-10 ended
AXVH7#,GSV70 —
43425-0R050 Ring, Hole Snap (FOR FRONT DRIVE SHAFT RH)
2020-03 → 2020-10 ended
AXVA75 —
43425-07010 Ring, Hole Snap (FOR FRONT DRIVE SHAFT RH)
2020-10 → —
AXVA70 —
43425-0R050 Ring, Hole Snap (FOR FRONT DRIVE SHAFT RH)
2020-10 → —
AXVA75 —
90080-52013 Ring, Hole Snap (FOR FRONT DRIVE SHAFT RH)
2020-10 → —
AXVH7#,GSV70 —
43411E — Ring, Shaft Snap (FOR FRONT DRIVE INNER SHAFT INNER RH)
43425-06450 Ring, Shaft Snap (FOR FRONT DRIVE INNER SHAFT INNER RH)
2019-09 → 2020-10 ended
AXVH7#,GSV70 —
43425-08040 Ring, Shaft Snap (FOR FRONT DRIVE INNER SHAFT INNER RH)
2017-06 → 2019-09 ended
AXVH7#,GSV70 —
43425-0R010 Ring, Shaft Snap (FOR FRONT DRIVE INNER SHAFT INNER RH)
2017-06 → 2020-10 ended
AXVA70 —
43425-0R030 Ring, Shaft Snap (FOR FRONT DRIVE INNER SHAFT INNER RH)
2020-03 → 2020-10 ended
AXVA75 —
43425-06450 Ring, Shaft Snap (FOR FRONT DRIVE INNER SHAFT INNER RH)
2020-10 → —
AXVH7#,GSV70 —
43425-0R010 Ring, Shaft Snap (FOR FRONT DRIVE INNER SHAFT INNER RH)
2020-10 → —
AXVA70 —
43425-0R030 Ring, Shaft Snap (FOR FRONT DRIVE INNER SHAFT INNER RH)
2020-10 → —
AXVA75 —
43447C — Clamp (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)
42345-04030 Clamp (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)
2017-06 → 2020-10 ended
AXVH7# —
42345-06A20 Clamp (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)
2017-06 → 2020-10 ended
GSV70 —
42345-0R040 Clamp (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)
2017-06 → 2020-10 ended
AXVA70 —
42345-0R040 Clamp (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)
2020-03 → 2020-10 ended
AXVA75 —
42345-04030 Clamp (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)
2020-10 → —
AXVH7# —
42345-06A20 Clamp (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)
2020-10 → —
GSV70 —
42345-0R040 Clamp (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)
2020-10 → —
AXVA7# —
43447D — Clamp, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)
42345-06080 Clamp, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)
2017-06 → 2020-10 ended
AXVH7# —
42345-06A30 Clamp, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)
2017-06 → 2020-10 ended
GSV70 —
42345-0R030 Clamp, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)
2017-06 → 2020-10 ended
AXVA70 —
42345-0R030 Clamp, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)
2020-03 → 2020-10 ended
AXVA75 —
42345-06080 Clamp, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)
2020-10 → —
AXVH7# —
42345-06A30 Clamp, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)
2020-10 → —
GSV70 —
42345-0R030 Clamp, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)
2020-10 → —
AXVA7# —
43448C — Clamp (FOR FRONT AXLE INBOARD JOINT BOOT RH)
42345-08080 Clamp (FOR FRONT AXLE INBOARD JOINT BOOT RH)
2017-06 → 2020-10 ended
AXVH7#,GSV70 —
42345-0R080 Clamp (FOR FRONT AXLE INBOARD JOINT BOOT RH)
2017-06 → 2020-10 ended
AXVA70 —
42345-0R080 Clamp (FOR FRONT AXLE INBOARD JOINT BOOT RH)
2020-03 → 2020-10 ended
AXVA75 —
42345-08080 Clamp (FOR FRONT AXLE INBOARD JOINT BOOT RH)
2020-10 → —
AXVH7#,GSV70 —
42345-0R080 Clamp (FOR FRONT AXLE INBOARD JOINT BOOT RH)
2020-10 → —
AXVA7# —
43448E — Clamp, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT RH)
42345-06A00 Clamp, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT RH)
2017-06 → 2020-10 ended
AXVA70 —
42345-08110 Clamp, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT RH)
2017-06 → 2020-10 ended
AXVH7#,GSV70 —
42345-06A10 Clamp, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT RH)
2020-03 → 2020-10 ended
AXVA75 —
42345-06A00 Clamp, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT RH)
2020-10 → —
AXVA70 —
42345-06A10 Clamp, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT RH)
2020-10 → —
AXVA75 —
42345-08110 Clamp, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT RH)
2020-10 → —
AXVH7#,GSV70 —
43457 — Bracket, Drive Shaft Bearing
43457-06090 Bracket, Drive Shaft Bearing
2017-06 → 2020-10 ended
AXVA70 —
43457-06150 Bracket, Drive Shaft Bearing
2017-06 → 2020-10 ended
AXVH7# —
43457-06210 Bracket, Drive Shaft Bearing
2017-06 → 2020-10 ended
GSV70 —
43457-42190 Bracket, Drive Shaft Bearing
2020-03 → 2020-10 ended
AXVA75 —
43457-06090 Bracket, Drive Shaft Bearing
2020-10 → —
AXVA70 —
43457-06150 Bracket, Drive Shaft Bearing
2020-10 → —
AXVH7# —
43457-06210 Bracket, Drive Shaft Bearing
2020-10 → —
GSV70 —
43457-42190 Bracket, Drive Shaft Bearing
2020-10 → —
AXVA75 —
43457A — Bolt (FOR DRIVE SHAFT BEARING BRACKET SETTING NO.1)
90105-A0259 note Bolt (FOR DRIVE SHAFT BEARING BRACKET SETTING NO.1)
2017-06 → 2020-10 ended
AXVA70,AXVH7#,GSV70 —
90119-10461 note Bolt (FOR DRIVE SHAFT BEARING BRACKET SETTING NO.1)
2020-03 → 2020-10 ended
AXVA75 —
90105-A0259 note Bolt (FOR DRIVE SHAFT BEARING BRACKET SETTING NO.1)
2020-10 → —
AXVA70,AXVH7#,GSV70 —
90119-10461 note Bolt (FOR DRIVE SHAFT BEARING BRACKET SETTING NO.1)
2020-10 → —
AXVA75 —
43457D — Bolt(FOR DRIVE SHAFT BEARRING BRACKET SETTING NO.2)
90080-10087 Bolt(FOR DRIVE SHAFT BEARRING BRACKET SETTING NO.2)
2017-06 → 2020-10 ended
AXVA70,AXVH7#,GSV70 —
90080-10087 Bolt(FOR DRIVE SHAFT BEARRING BRACKET SETTING NO.2)
2020-03 → 2020-10 ended
AXVA75 —
90080-10087 Bolt(FOR DRIVE SHAFT BEARRING BRACKET SETTING NO.2)
2020-10 → —
AXVA7#,AXVH7#,GSV70 —
43474D — Damper, Front Drive Shaft, RH
43474-06270 Damper, Front Drive Shaft, RH
2017-06 → 2020-10 ended
AXVA70 —
43474-06540 Damper, Front Drive Shaft, RH
2017-06 → 2020-10 ended
AXVH7#,GSV70 —
43474-06270 Damper, Front Drive Shaft, RH
2020-03 → 2020-10 ended
AXVA75 —
43474-06270 Damper, Front Drive Shaft, RH
2020-10 → 2022-01 ended
AXVA70 —
43474-06270 Damper, Front Drive Shaft, RH
2020-10 → 2023-01 ended
AXVA75 —
43474-06490 Damper, Front Drive Shaft, RH
2022-02 → —
AXVA70 —
43474-06490 Damper, Front Drive Shaft, RH
2023-02 → —
AXVA75 —
43474-06540 Damper, Front Drive Shaft, RH
2020-10 → —
AXVH7#,GSV70 —
43474F — Clamp (FOR FRONT DRIVE SHAFT DAMPER RH)
42345-06790 Clamp (FOR FRONT DRIVE SHAFT DAMPER RH)
2017-06 → 2020-10 ended
AXVH7#,GSV70 —
42345-07090 Clamp (FOR FRONT DRIVE SHAFT DAMPER RH)
2017-06 → 2020-10 ended
AXVA70 —
42345-07090 Clamp (FOR FRONT DRIVE SHAFT DAMPER RH)
2020-03 → 2020-10 ended
AXVA75 —
42345-06790 Clamp (FOR FRONT DRIVE SHAFT DAMPER RH)
2020-10 → —
AXVH7#,GSV70 —
42345-07090 Clamp (FOR FRONT DRIVE SHAFT DAMPER RH)
2020-10 → —
AXVA7# —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
