Toyota Camry/Hybrid (NAP)

2017-06 → present · chassis AXVA7#,AXVH7#,GSV70 · catalogue 2834A0 · United States

Supported model Data version 2020-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

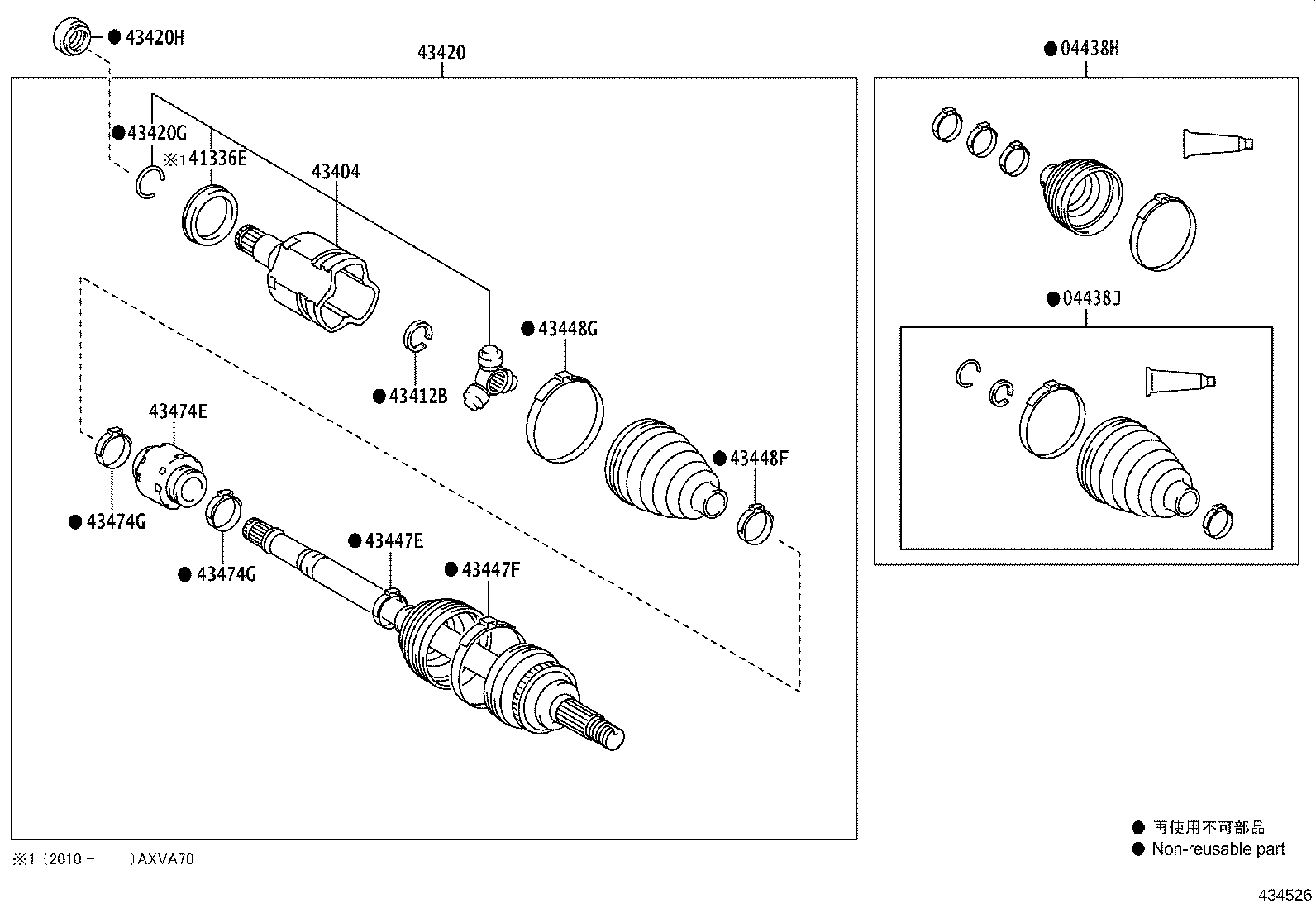

Exploded illustration 434526 43420H — OIL SEAL, FRONT DRIVE SHAFT, LH (6 parts) 43420 — SHAFT ASSY, FRONT DRIVE, LH (9 parts) 43420G — RING, HOLE SNAP (FOR FRONT DRIVE SHAFT LH) (5 parts) 43404 — JOINT SET, FRONT AXLE INBOARD, LH (7 parts) 43412B — RING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT INNER LH) (6 parts) 43447E — CLAMP (FOR FRONT AXLE OUTBOARD JOINT BOOT LH) (7 parts) 43447F — CLAMP, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT LH) (7 parts) 43474E — DAMPER, FRONT DRIVE SHAFT, LH (5 parts) 43474G — CLAMP (FOR FRONT DRIVE SHAFT DAMPER LH) (5 parts) 43474G — CLAMP (FOR FRONT DRIVE SHAFT DAMPER LH) (5 parts) 04438H — BOOT KIT, FRONT DRIVE SHAFT, IN & OUTBOARD, LH (9 parts) 43448F — CLAMP (FOR FRONT AXLE INBOARD JOINT BOOT LH) (5 parts) 04438J — BOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT, LH (6 parts) 43448G — CLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT LH) (5 parts) 41336E — COVER, FRONT DRIVE SHAFT DUST, LH (3 parts)
434526 · 15 callouts Full size ↗
85 parts on this figure
Part number Description Fitment Price
04438H — Boot Kit, Front Drive Shaft, IN & Outboard, LH
04427-08200 Boot Kit, Front Drive Shaft, IN & Outboard, LH
2017-06 → 2019-08 ended
AXVH7# —
04427-08210 Boot Kit, Front Drive Shaft, IN & Outboard, LH
2017-06 → 2019-08 ended
GSV70 —
04427-08230 Boot Kit, Front Drive Shaft, IN & Outboard, LH
2017-06 → 2020-10 ended
AXVA70 —
04427-08250 Boot Kit, Front Drive Shaft, IN & Outboard, LH
2019-09 → 2020-10 ended
GSV70 —
04427-08270 Boot Kit, Front Drive Shaft, IN & Outboard, LH
2019-09 → 2020-10 ended
AXVH7# —
04427-08230 Boot Kit, Front Drive Shaft, IN & Outboard, LH
2020-03 → 2020-10 ended
AXVA75 —
04427-08230 Boot Kit, Front Drive Shaft, IN & Outboard, LH
2020-10 → —
AXVA7# —
04427-08250 Boot Kit, Front Drive Shaft, IN & Outboard, LH
2020-10 → —
GSV70 —
04427-08270 Boot Kit, Front Drive Shaft, IN & Outboard, LH
2020-10 → —
AXVH7# —
04438J — Boot Kit, Front Drive Shaft Inboard Joint, LH
04437-08080 Boot Kit, Front Drive Shaft Inboard Joint, LH
2017-06 → 2019-08 ended
AXVH7#,GSV70 —
04437-08100 Boot Kit, Front Drive Shaft Inboard Joint, LH
2017-06 → 2020-10 ended
AXVA70 —
04437-08120 Boot Kit, Front Drive Shaft Inboard Joint, LH
2019-09 → 2020-10 ended
AXVH7#,GSV70 —
04437-08100 Boot Kit, Front Drive Shaft Inboard Joint, LH
2020-03 → 2020-10 ended
AXVA75 —
04437-08100 Boot Kit, Front Drive Shaft Inboard Joint, LH
2020-10 → —
AXVA7# —
04437-08120 Boot Kit, Front Drive Shaft Inboard Joint, LH
2020-10 → —
AXVH7#,GSV70 —
41336E — Cover, Front Drive Shaft Dust, LH
41336-06280 Cover, Front Drive Shaft Dust, LH
2020-03 → 2020-10 ended
AXVA75 —
41336-06280 Cover, Front Drive Shaft Dust, LH
2020-10 → —
AXVA7# —
41336-08030 Cover, Front Drive Shaft Dust, LH
2020-10 → —
AXVH7#,GSV70 —
43404 — Joint Set, Front Axle Inboard, LH
43404-06030 Joint Set, Front Axle Inboard, LH
2017-06 → 2020-10 ended
AXVH7# —
43404-06040 Joint Set, Front Axle Inboard, LH
2017-06 → 2020-10 ended
GSV70 —
43404-06050 Joint Set, Front Axle Inboard, LH
2017-06 → 2020-10 ended
AXVA70 —
43404-06050 Joint Set, Front Axle Inboard, LH
2020-03 → 2020-10 ended
AXVA75 —
43404-06030 Joint Set, Front Axle Inboard, LH
2020-10 → —
AXVH7# —
43404-06040 Joint Set, Front Axle Inboard, LH
2020-10 → —
GSV70 —
43404-06050 Joint Set, Front Axle Inboard, LH
2020-10 → —
AXVA7# —
43412B — Ring, Shaft Snap (FOR FRONT DRIVE INNER SHAFT INNER LH)
43425-06450 Ring, Shaft Snap (FOR FRONT DRIVE INNER SHAFT INNER LH)
2019-09 → 2020-10 ended
AXVH7#,GSV70 —
43425-08040 Ring, Shaft Snap (FOR FRONT DRIVE INNER SHAFT INNER LH)
2017-06 → 2019-09 ended
AXVH7#,GSV70 —
43425-0R030 Ring, Shaft Snap (FOR FRONT DRIVE INNER SHAFT INNER LH)
2017-06 → 2020-10 ended
AXVA70 —
43425-0R030 Ring, Shaft Snap (FOR FRONT DRIVE INNER SHAFT INNER LH)
2020-03 → 2020-10 ended
AXVA75 —
43425-06450 Ring, Shaft Snap (FOR FRONT DRIVE INNER SHAFT INNER LH)
2020-10 → —
AXVH7#,GSV70 —
43425-0R030 Ring, Shaft Snap (FOR FRONT DRIVE INNER SHAFT INNER LH)
2020-10 → —
AXVA7# —
43420 — Shaft Assy, Front Drive, LH
43420-06B30 Shaft Assy, Front Drive, LH
2017-06 → 2020-10 ended
AXVA70 —
43420-06B40 Shaft Assy, Front Drive, LH
2017-06 → 2019-08 ended
AXVH7# —
43420-06B41 Shaft Assy, Front Drive, LH
2019-09 → 2020-10 ended
AXVH7# —
43420-06B50 Shaft Assy, Front Drive, LH
2017-06 → 2019-08 ended
GSV70 —
43420-06B51 Shaft Assy, Front Drive, LH
2019-09 → 2020-10 ended
GSV70 —
43420-06B30 Shaft Assy, Front Drive, LH
2020-03 → 2020-10 ended
AXVA75 —
43420-06B30 Shaft Assy, Front Drive, LH
2020-10 → —
AXVA7# —
43420-06B41 Shaft Assy, Front Drive, LH
2020-10 → —
AXVH7# —
43420-06B51 Shaft Assy, Front Drive, LH
2020-10 → —
GSV70 —
43420G — Ring, Hole Snap (FOR FRONT DRIVE SHAFT LH)
43425-07040 Ring, Hole Snap (FOR FRONT DRIVE SHAFT LH)
2017-06 → 2020-10 ended
AXVA70 —
90080-52017 Ring, Hole Snap (FOR FRONT DRIVE SHAFT LH)
2017-06 → 2020-10 ended
AXVH7#,GSV70 —
43425-07040 Ring, Hole Snap (FOR FRONT DRIVE SHAFT LH)
2020-03 → 2020-10 ended
AXVA75 —
43425-07040 Ring, Hole Snap (FOR FRONT DRIVE SHAFT LH)
2020-10 → —
AXVA7# —
90080-52017 Ring, Hole Snap (FOR FRONT DRIVE SHAFT LH)
2020-10 → —
AXVH7#,GSV70 —
43420H — Oil Seal, Front Drive Shaft, LH
90311-50058 Oil Seal, Front Drive Shaft, LH
2017-06 → 2020-10 ended
AXVA70,AXVH7# —
90311-50059 Oil Seal, Front Drive Shaft, LH
2020-06 → 2020-10 ended
GSV70 —
90311-50059 Oil Seal, Front Drive Shaft, LH
2017-06 → 2020-04 ended
GSV70 —
90311-50058 Oil Seal, Front Drive Shaft, LH
2020-03 → 2020-10 ended
AXVA75 —
90311-50058 Oil Seal, Front Drive Shaft, LH
2020-10 → —
AXVA7#,AXVH7# —
90311-50059 Oil Seal, Front Drive Shaft, LH
2020-10 → —
GSV70 —
43447E — Clamp (FOR FRONT AXLE OUTBOARD JOINT BOOT LH)
42345-04030 Clamp (FOR FRONT AXLE OUTBOARD JOINT BOOT LH)
2017-06 → 2020-10 ended
AXVH7# —
42345-06A20 Clamp (FOR FRONT AXLE OUTBOARD JOINT BOOT LH)
2017-06 → 2020-10 ended
GSV70 —
42345-0R040 Clamp (FOR FRONT AXLE OUTBOARD JOINT BOOT LH)
2017-06 → 2020-10 ended
AXVA70 —
42345-0R040 Clamp (FOR FRONT AXLE OUTBOARD JOINT BOOT LH)
2020-03 → 2020-10 ended
AXVA75 —
42345-04030 Clamp (FOR FRONT AXLE OUTBOARD JOINT BOOT LH)
2020-10 → —
AXVH7# —
42345-06A20 Clamp (FOR FRONT AXLE OUTBOARD JOINT BOOT LH)
2020-10 → —
GSV70 —
42345-0R040 Clamp (FOR FRONT AXLE OUTBOARD JOINT BOOT LH)
2020-10 → —
AXVA7# —
43447F — Clamp, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT LH)
42345-06080 Clamp, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT LH)
2017-06 → 2020-10 ended
AXVH7# —
42345-06A30 Clamp, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT LH)
2017-06 → 2020-10 ended
GSV70 —
42345-0R030 Clamp, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT LH)
2017-06 → 2020-10 ended
AXVA70 —
42345-0R030 Clamp, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT LH)
2020-03 → 2020-10 ended
AXVA75 —
42345-06080 Clamp, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT LH)
2020-10 → —
AXVH7# —
42345-06A30 Clamp, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT LH)
2020-10 → —
GSV70 —
42345-0R030 Clamp, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT LH)
2020-10 → —
AXVA7# —
43448F — Clamp (FOR FRONT AXLE INBOARD JOINT BOOT LH)
42345-08080 Clamp (FOR FRONT AXLE INBOARD JOINT BOOT LH)
2017-06 → 2020-10 ended
AXVH7#,GSV70 —
42345-0R080 Clamp (FOR FRONT AXLE INBOARD JOINT BOOT LH)
2017-06 → 2020-10 ended
AXVA70 —
42345-0R080 Clamp (FOR FRONT AXLE INBOARD JOINT BOOT LH)
2020-03 → 2020-10 ended
AXVA75 —
42345-08080 Clamp (FOR FRONT AXLE INBOARD JOINT BOOT LH)
2020-10 → —
AXVH7#,GSV70 —
42345-0R080 Clamp (FOR FRONT AXLE INBOARD JOINT BOOT LH)
2020-10 → —
AXVA7# —
43448G — Clamp, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT LH)
42345-06A10 Clamp, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT LH)
2017-06 → 2020-10 ended
AXVA70 —
42345-08110 Clamp, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT LH)
2017-06 → 2020-10 ended
AXVH7#,GSV70 —
42345-06A10 Clamp, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT LH)
2020-03 → 2020-10 ended
AXVA75 —
42345-06A10 Clamp, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT LH)
2020-10 → —
AXVA7# —
42345-08110 Clamp, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT LH)
2020-10 → —
AXVH7#,GSV70 —
43474E — Damper, Front Drive Shaft, LH
43474-06400 Damper, Front Drive Shaft, LH
2017-06 → 2020-10 ended
AXVA70 —
43474-06530 Damper, Front Drive Shaft, LH
2017-06 → 2020-10 ended
AXVH7#,GSV70 —
43474-06400 Damper, Front Drive Shaft, LH
2020-03 → 2020-10 ended
AXVA75 —
43474-06400 Damper, Front Drive Shaft, LH
2020-10 → —
AXVA7# —
43474-06530 Damper, Front Drive Shaft, LH
2020-10 → —
AXVH7#,GSV70 —
43474G — Clamp (FOR FRONT DRIVE SHAFT DAMPER LH)
42345-06A40 Clamp (FOR FRONT DRIVE SHAFT DAMPER LH)
2017-06 → 2020-10 ended
AXVH7#,GSV70 —
42345-07090 Clamp (FOR FRONT DRIVE SHAFT DAMPER LH)
2017-06 → 2020-10 ended
AXVA70 —
42345-07090 Clamp (FOR FRONT DRIVE SHAFT DAMPER LH)
2020-03 → 2020-10 ended
AXVA75 —
42345-06A40 Clamp (FOR FRONT DRIVE SHAFT DAMPER LH)
2020-10 → —
AXVH7#,GSV70 —
42345-07090 Clamp (FOR FRONT DRIVE SHAFT DAMPER LH)
2020-10 → —
AXVA7# —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
