Toyota Camry/Hybrid (NAP)

2017-06 → present · chassis AXVA7#,AXVH7#,GSV70 · catalogue 2834A0 · United States

Supported model Data version 2020-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

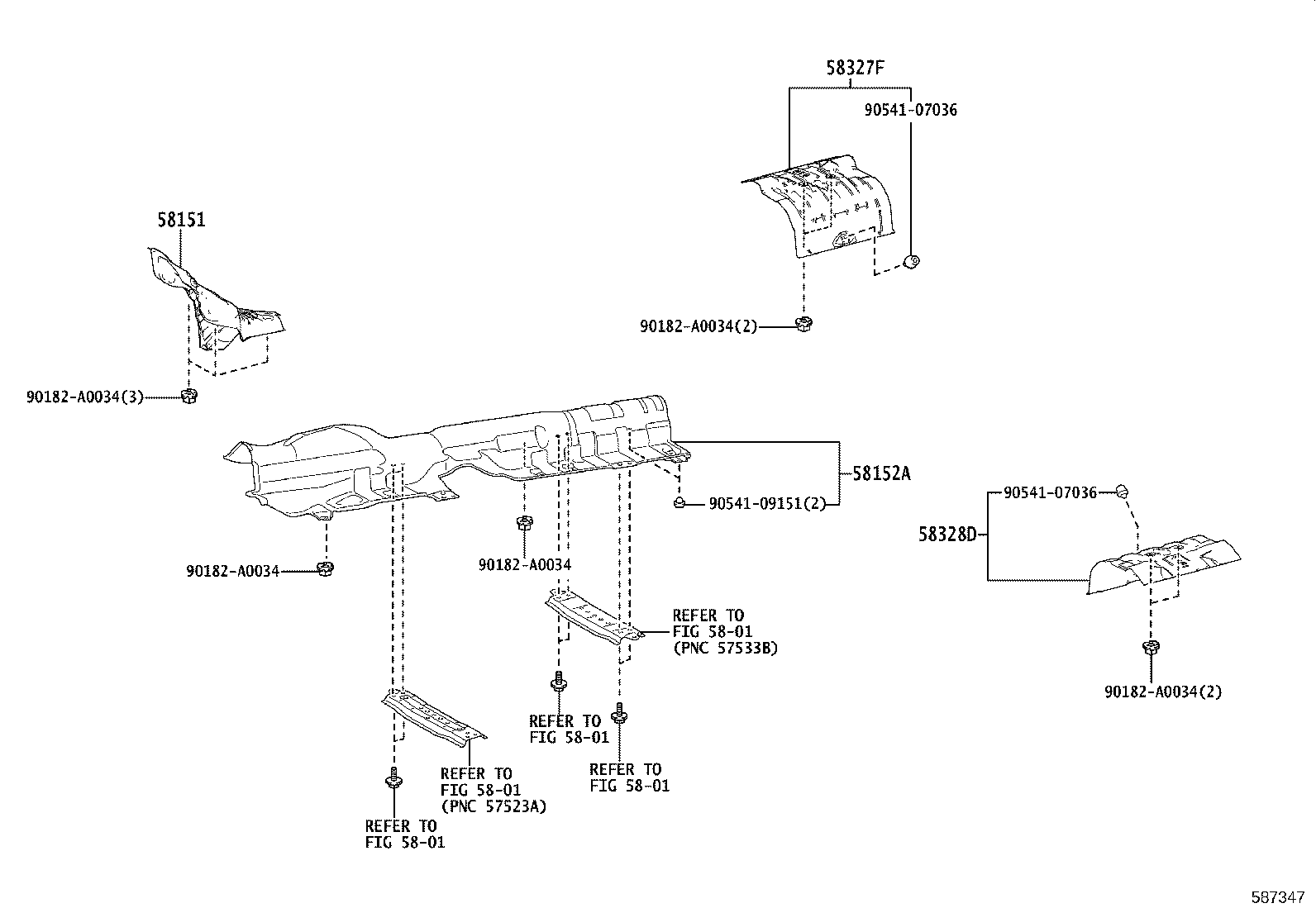

Exploded illustration 587347 58327F — INSULATOR, MAIN MUFFLER HEAT, RH (4 parts) 58328D — INSULATOR, MAIN MUFFLER HEAT, LH (4 parts) 90182A0034 — not listed in this catalogue 9054107036 — not listed in this catalogue 9054107036 — not listed in this catalogue 90182A0034 — not listed in this catalogue 58151 — INSULATOR, FRONT FLOOR HEAT, NO.1 (4 parts) 58152A — INSULATOR, FRONT FLOOR HEAT, NO.1 LOWER (5 parts) 90182A0034 — not listed in this catalogue 9054109151 — not listed in this catalogue 90182A0034 — not listed in this catalogue 90182A0034 — not listed in this catalogue 5801 — not listed in this catalogue 5801 — not listed in this catalogue 5801 — not listed in this catalogue 5801 — not listed in this catalogue 5801 — not listed in this catalogue
587347 · 4 callouts, 13 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
17 parts on this figure
Part number Description Fitment Price
58151 — Insulator, Front Floor Heat, NO.1
58151-06010 Insulator, Front Floor Heat, NO.1
2017-06 → 2020-10 ended
AXVA70,AXVH7# —
58151-06050 Insulator, Front Floor Heat, NO.1
2020-03 → 2020-10 ended
AXVA75 —
58151-06010 Insulator, Front Floor Heat, NO.1
2020-10 → —
AXVA70,AXVH7# —
58151-06050 Insulator, Front Floor Heat, NO.1
2020-10 → —
AXVA75 —
58152A — Insulator, Front Floor Heat, NO.1 Lower
58152-06160 Insulator, Front Floor Heat, NO.1 Lower
2017-06 → 2020-10 ended
AXVA70,AXVH7#,GSV70 —
58152-06200 Insulator, Front Floor Heat, NO.1 Lower
2020-03 → 2020-10 ended
AXVA75 —
58152-06160 Insulator, Front Floor Heat, NO.1 Lower
2020-10 → 2021-02 ended
AXVA70,AXVH7#,GSV70 —
58152-06161 Insulator, Front Floor Heat, NO.1 Lower
2021-02 → —
AXVA70,AXVH7#,GSV70 —
58152-06200 Insulator, Front Floor Heat, NO.1 Lower
2020-10 → —
AXVA75 —
58327F — Insulator, Main Muffler Heat, RH
58041-06020 Insulator, Main Muffler Heat, RH
2017-06 → 2020-10 ended
AXVA70,GSV70 —
58041-06030 Insulator, Main Muffler Heat, RH
2020-03 → 2020-10 ended
AXVA75 —
58041-06020 Insulator, Main Muffler Heat, RH
2020-10 → —
AXVA70,GSV70 —
58041-06030 Insulator, Main Muffler Heat, RH
2020-10 → —
AXVA75 —
58328D — Insulator, Main Muffler Heat, LH
58041-06020 Insulator, Main Muffler Heat, LH
2017-06 → 2020-10 ended
AXVA70 XSE;AXVH7#,GSV70 —
58041-06030 Insulator, Main Muffler Heat, LH
2020-03 → 2020-10 ended
AXVA75 XSE —
58041-06020 Insulator, Main Muffler Heat, LH
2020-10 → —
AXVA70 XSE;AXVH7#,GSV70 —
58041-06030 Insulator, Main Muffler Heat, LH
2020-10 → —
AXVA75 XSE —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
