Toyota Camry/Hybrid (NAP)
2017-06 → present · chassis AXVA7#,AXVH7#,GSV70 · catalogue 2834A0 · United States
Supported model
Data version 2020-09

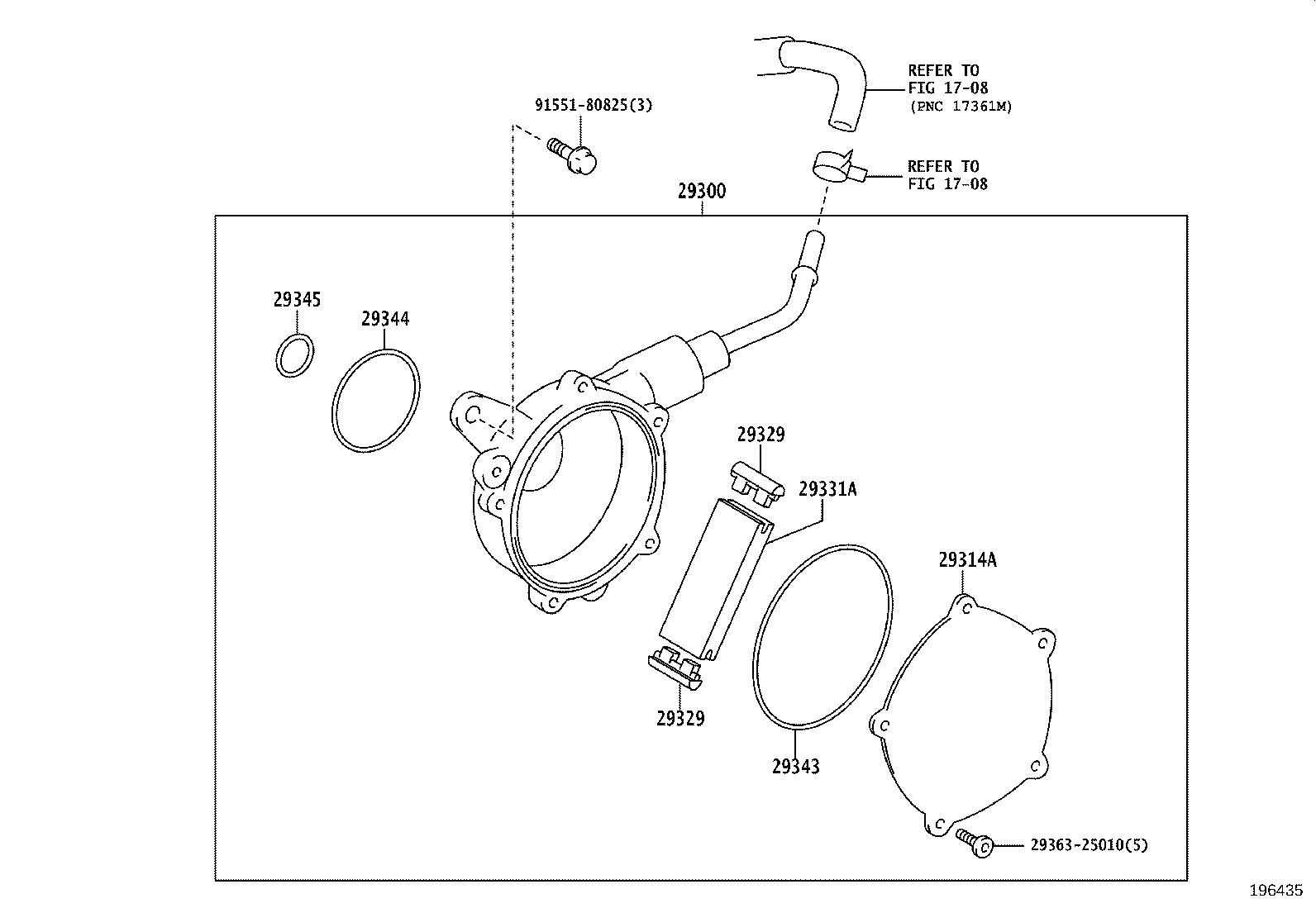

Vacuum Pump
8 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 29300 | Pump Assy, Vacuum |
| 29314A | Cover, End |
| 29329 | Cap, Vacuum Pump Vane |
| 29331A | Vane, Vacuum Pump |
| 29343 | Ring, O Vacuum Pump, NO.1 |
| 29344 | Ring, O Vacuum Pump, NO.2 |
| 29345 | Ring, O Vacuum Pump, NO.3 |
| 29346 | Ring, O Vacuum Pump Cover |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
