Toyota Camry/Hybrid (NAP)
2017-06 → present · chassis AXVA7#,AXVH7#,GSV70 · catalogue 2834A0 · United States
Supported model
Data version 2020-09

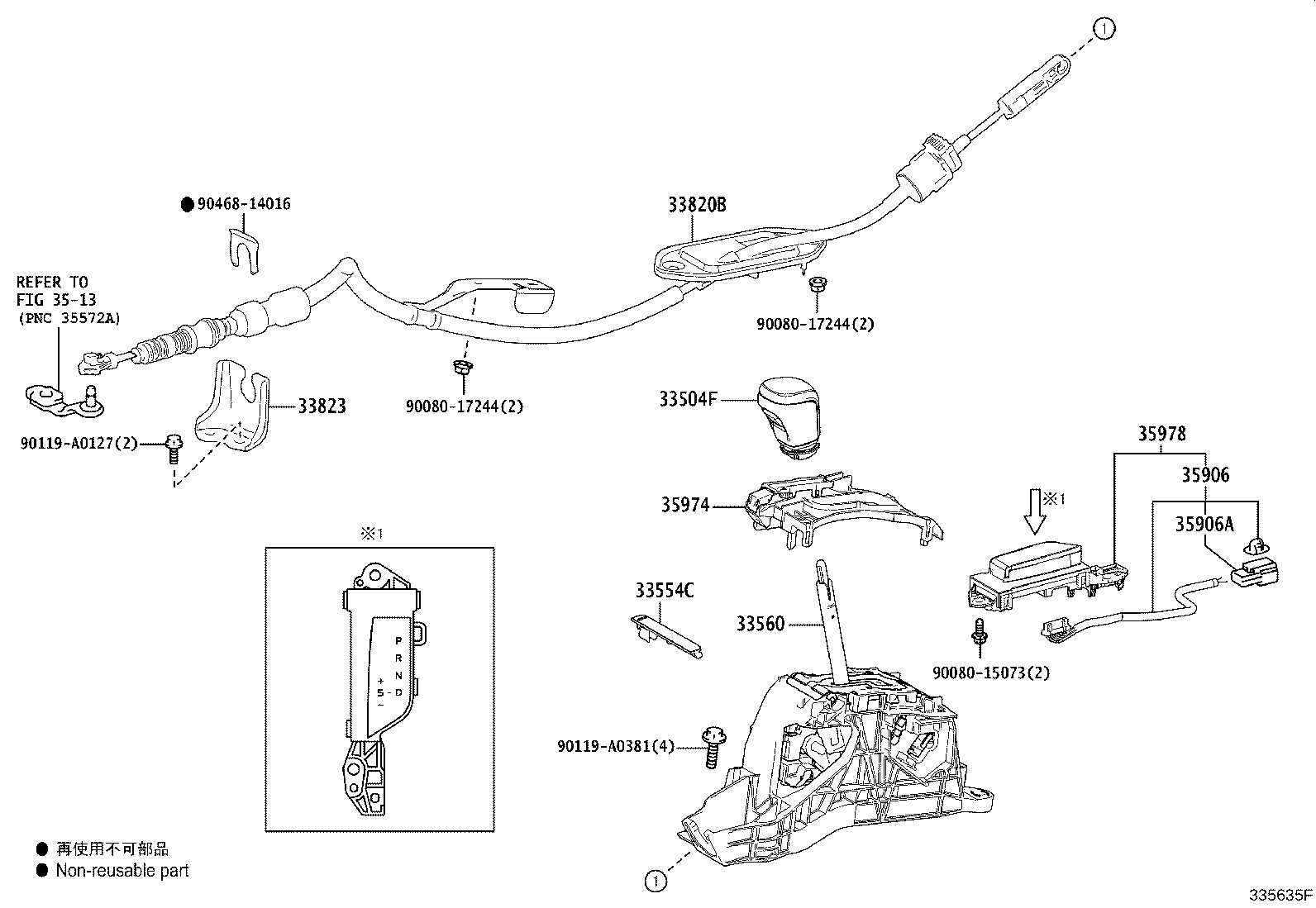

Shift Lever & Retainer
10 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 33504F | Knob Sub-assy, Shift Lever |
| 33554C | Cover, Shift Lock Release Button |
| 33560 | Unit Assy, Shift Lock Control |
| 33820B | Cable Assy, Transmission Control |
| 33821G | Nut (FOR TRANSMISSION CONTROL CABLE) |
| 33823 | Bracket, Transmission Control Cable, NO.1 |
| 35906 | Wire Sub-assy, Indicator Lamp |
| 35906A | Housing, Connector Male (FOR INDICATOR LAMP WIRE) |
| 35974 | Housing, Position Indicator, Lower |
| 35978 | Indicator, Shift Position |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
