Toyota Camry/Hybrid (NAP)

2017-06 → present · chassis AXVA7#,AXVH7#,GSV70 · catalogue 2834A0 · United States

Supported model Data version 2020-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Radiator Grille

8 part groups · 5 illustrations

Illustrations

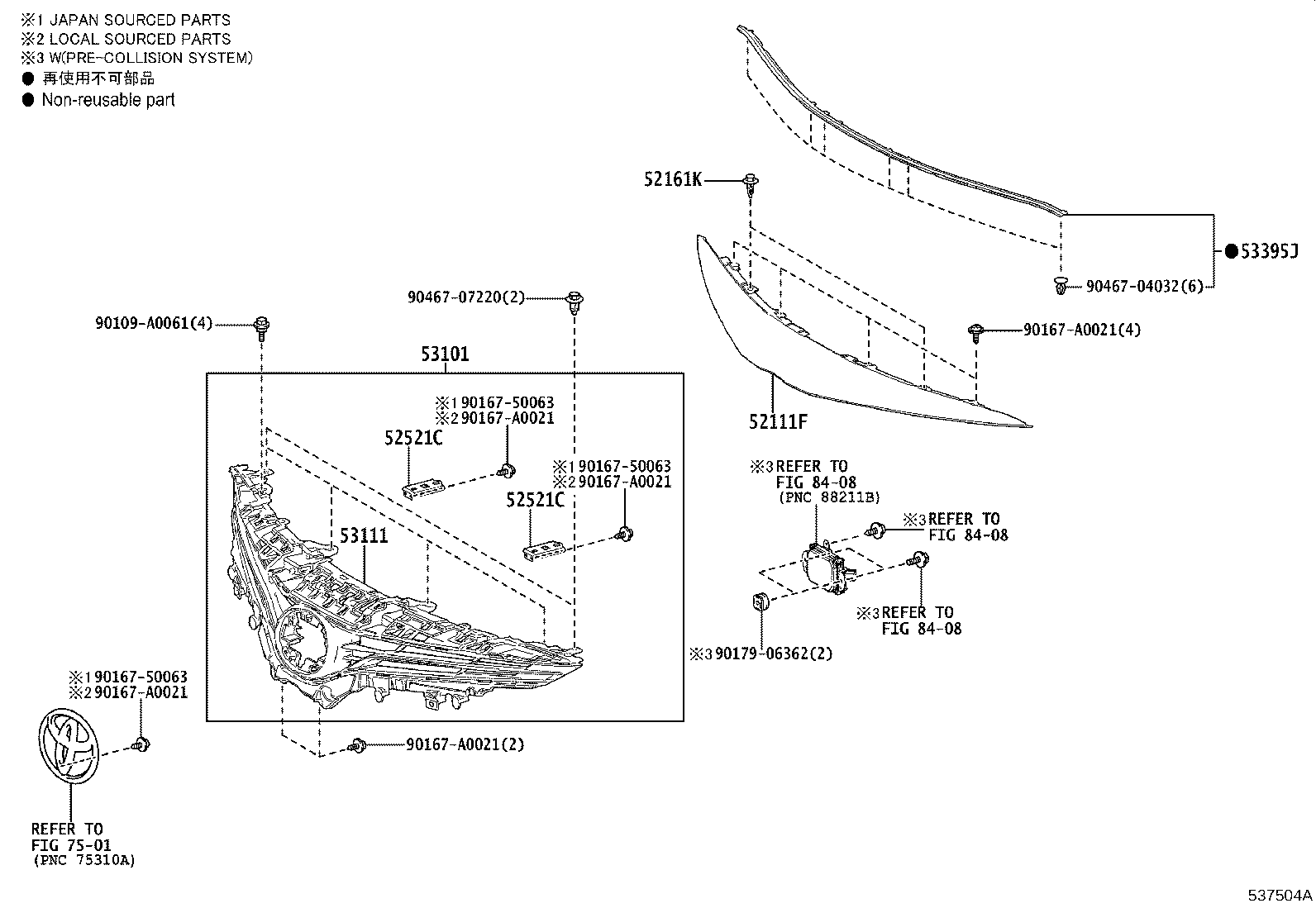

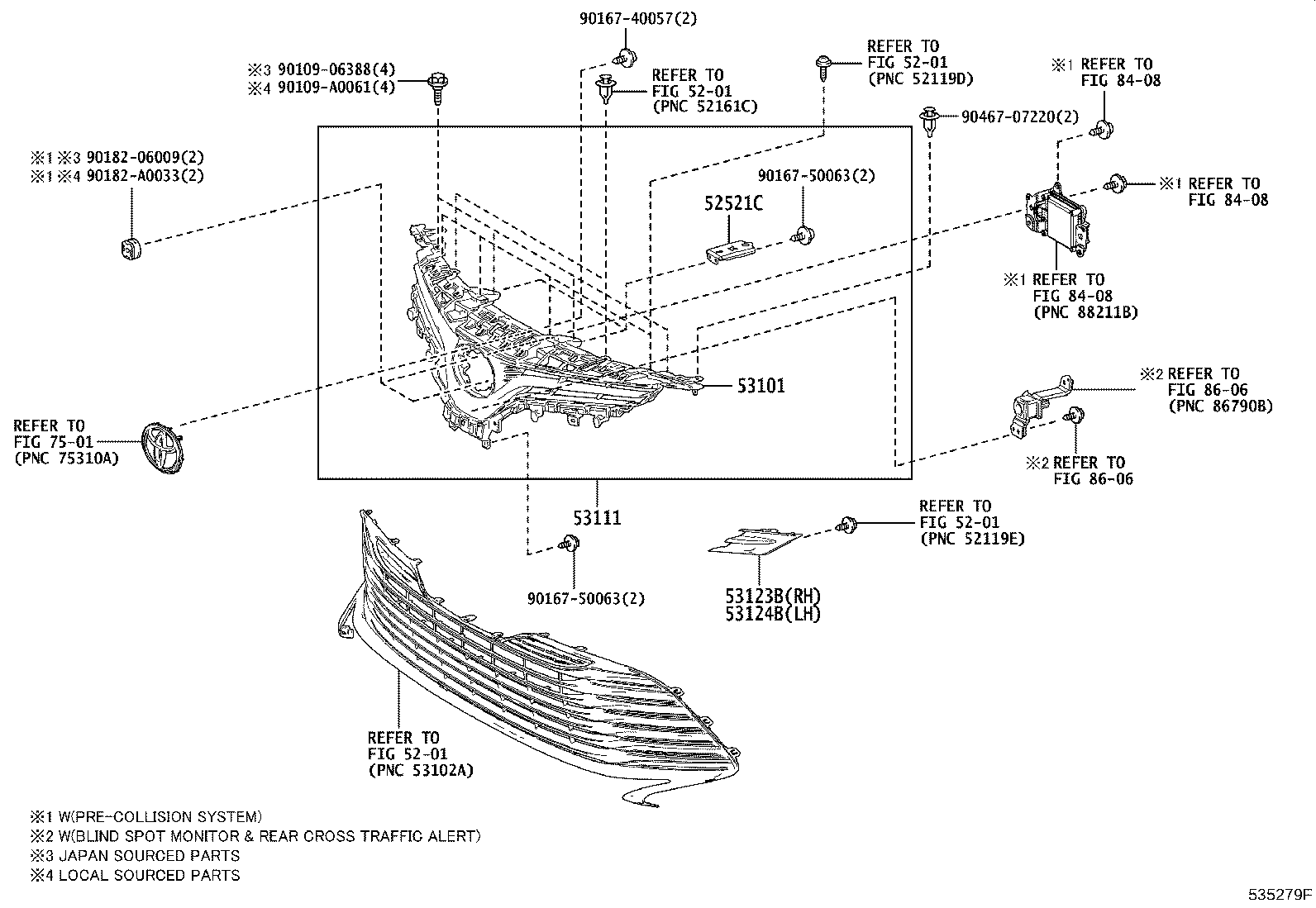

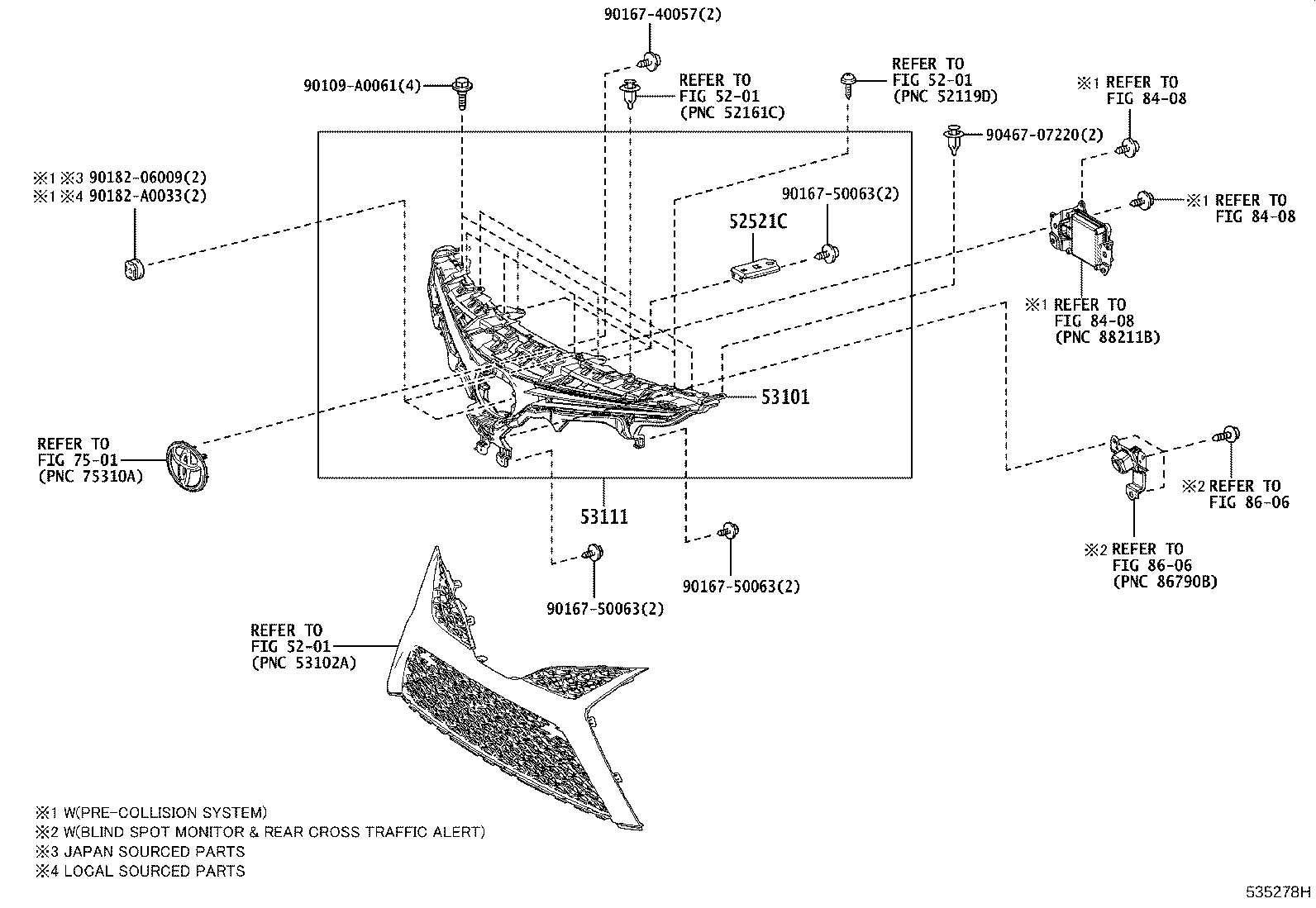

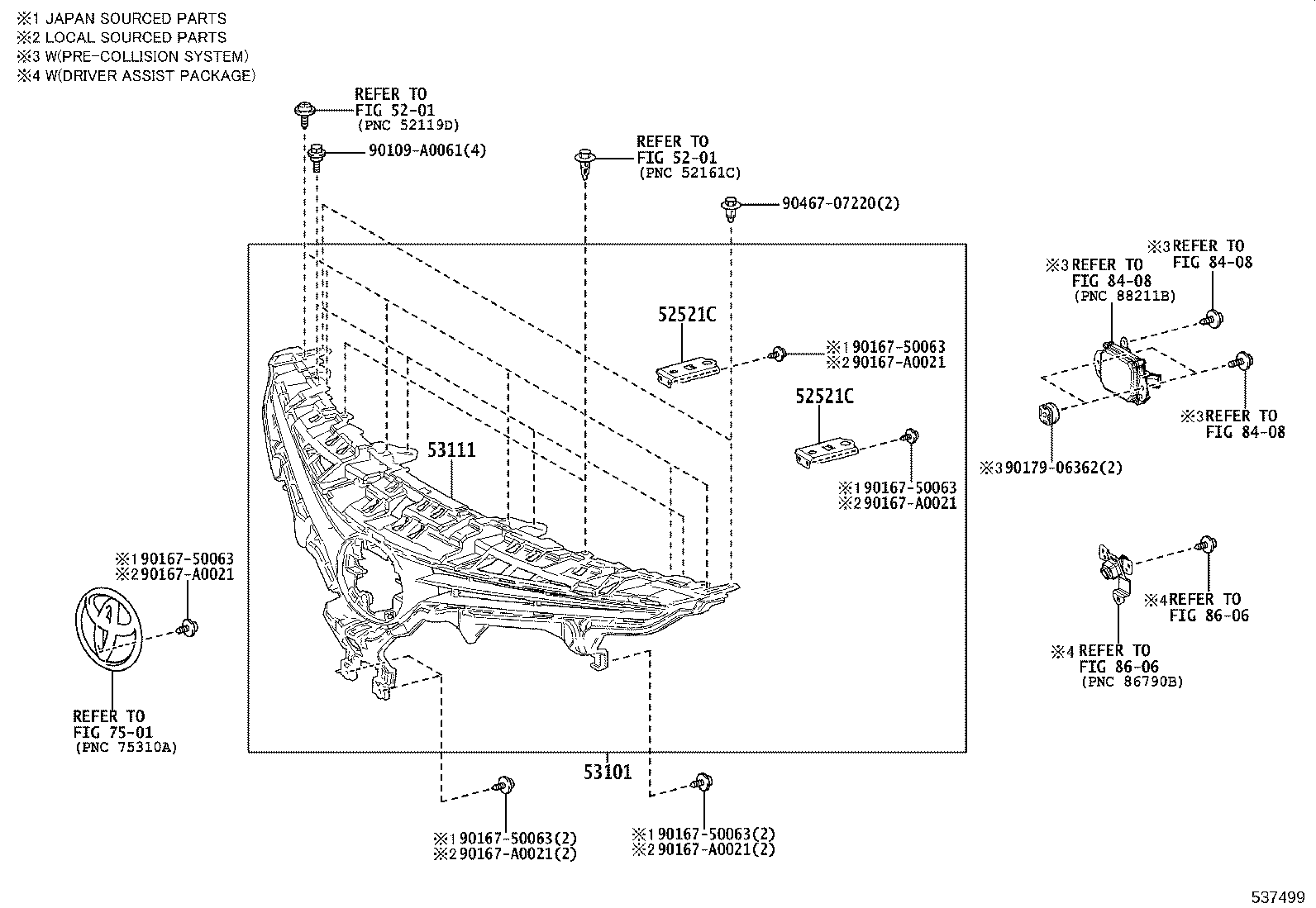

Figure 535265G 535265G 2017-06 → 2020-10 Figure 535279F 535279F 2017-06 → 2020-10 Figure 535278H 535278H 2017-06 → 2020-10 Figure 537504A 537504A 2020-10 → — Figure 537499 537499 2020-10 → —

Part groups

PNCDescription
52111F Bar, Front Bumper, Center
52161K Piece, Front Bumper
52521C Retainer, Front Bumper, Upper
53101 Grille Sub-assy, Radiator
53111 Grille, Radiator
53123B Moulding, Radiator Grille Side, RH
53124B Moulding, Radiator Grille Side, LH
53395J Seal, Hood TO Front End Panel
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
