Toyota Camry/Hybrid (NAP)
2017-06 → present · chassis AXVA7#,AXVH7#,GSV70 · catalogue 2834A0 · United States
Supported model
Data version 2020-09

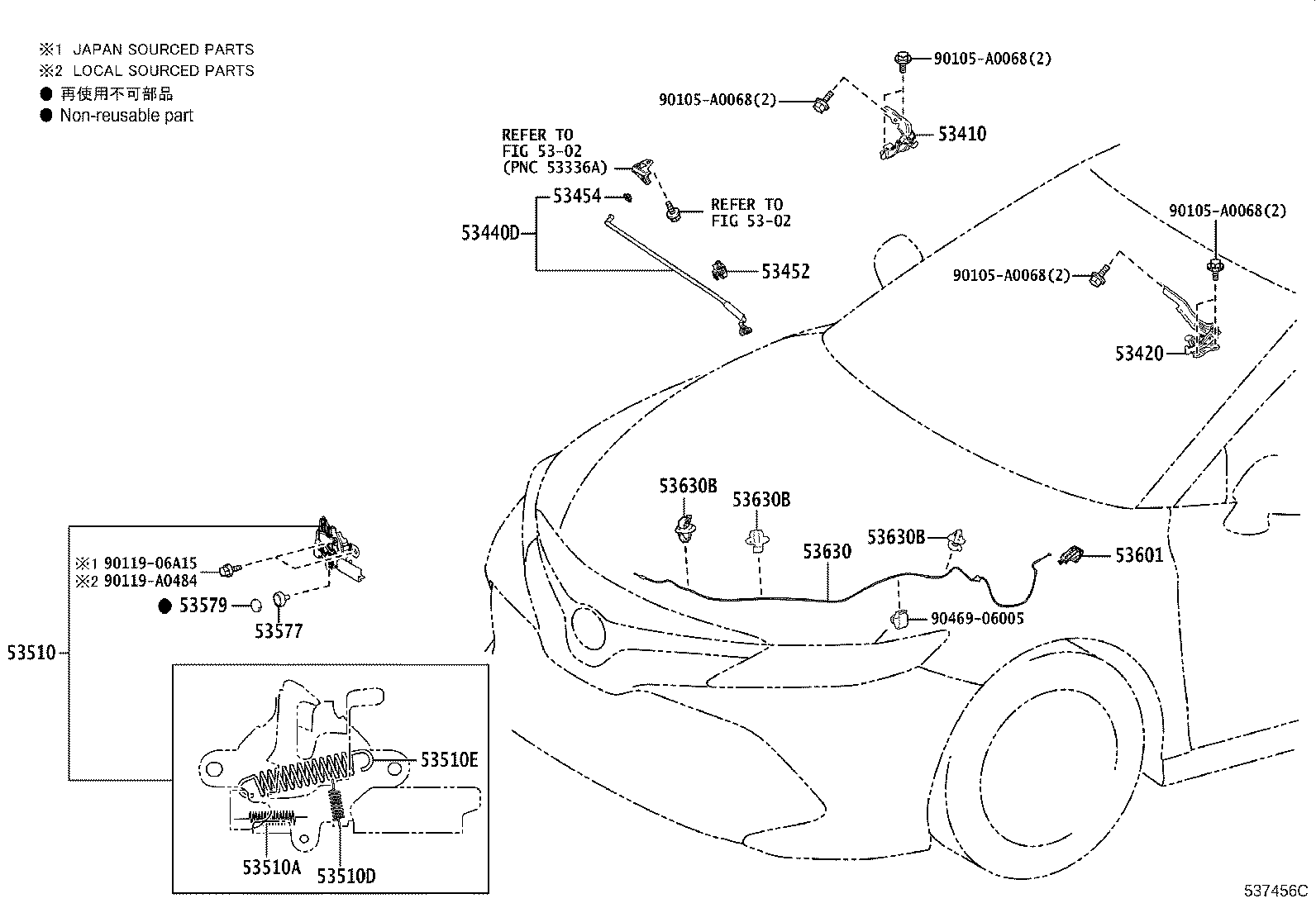

Hood Lock & Hinge
20 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 53336 | Bracket, Hood Stay, RH |
| 53337C | Bracket, Hood Stay, LH |
| 53410 | Hinge Assy, Hood, RH |
| 53420 | Hinge Assy, Hood, LH |
| 53440A | Support Assy, Hood, RH |
| 53440D | Support Assy, Hood |
| 53450A | Support Assy, Hood, LH |
| 53452 | Holder, Hood Stay |
| 53454 | Clip, Hood Support Rod |
| 53481A | Bracket, Hood Support, RH |
| 53482 | Bracket, Hood Support, LH |
| 53510 | Lock Assy, Hood |
| 53510A | Spring, Tension(FOR HOOD LOCK) |
| 53510D | Spring, Tension(FOR HOOD LOCK) |
| 53510E | Spring, Tension(FOR HOOD LOCK) |
| 53577 | Bolt, Hood Lock |
| 53579 | Cap, Hood Lock Nut |
| 53601 | Lever Sub-assy, Hood Lock Control |
| 53630 | Cable Assy, Hood Lock Control |
| 53630B | Clamp(FOR HOOD LOCK CONTROL CABLE) |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
