Toyota Camry/Hybrid (NAP)

2017-06 → present · chassis AXVA7#,AXVH7#,GSV70 · catalogue 2834A0 · United States

Supported model Data version 2020-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Instrument Panel & Glove Compartment

55 part groups · 12 illustrations

Illustrations

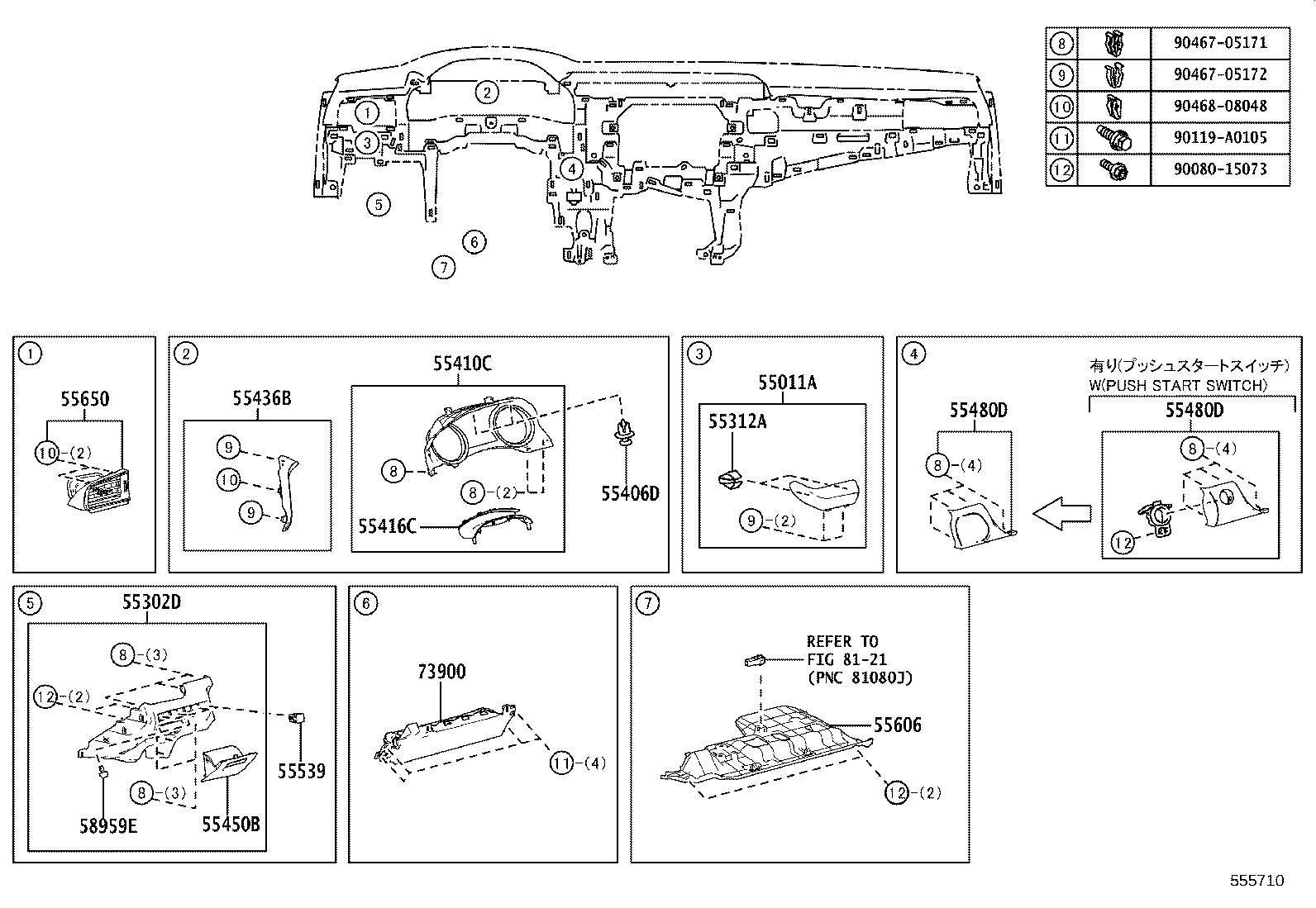

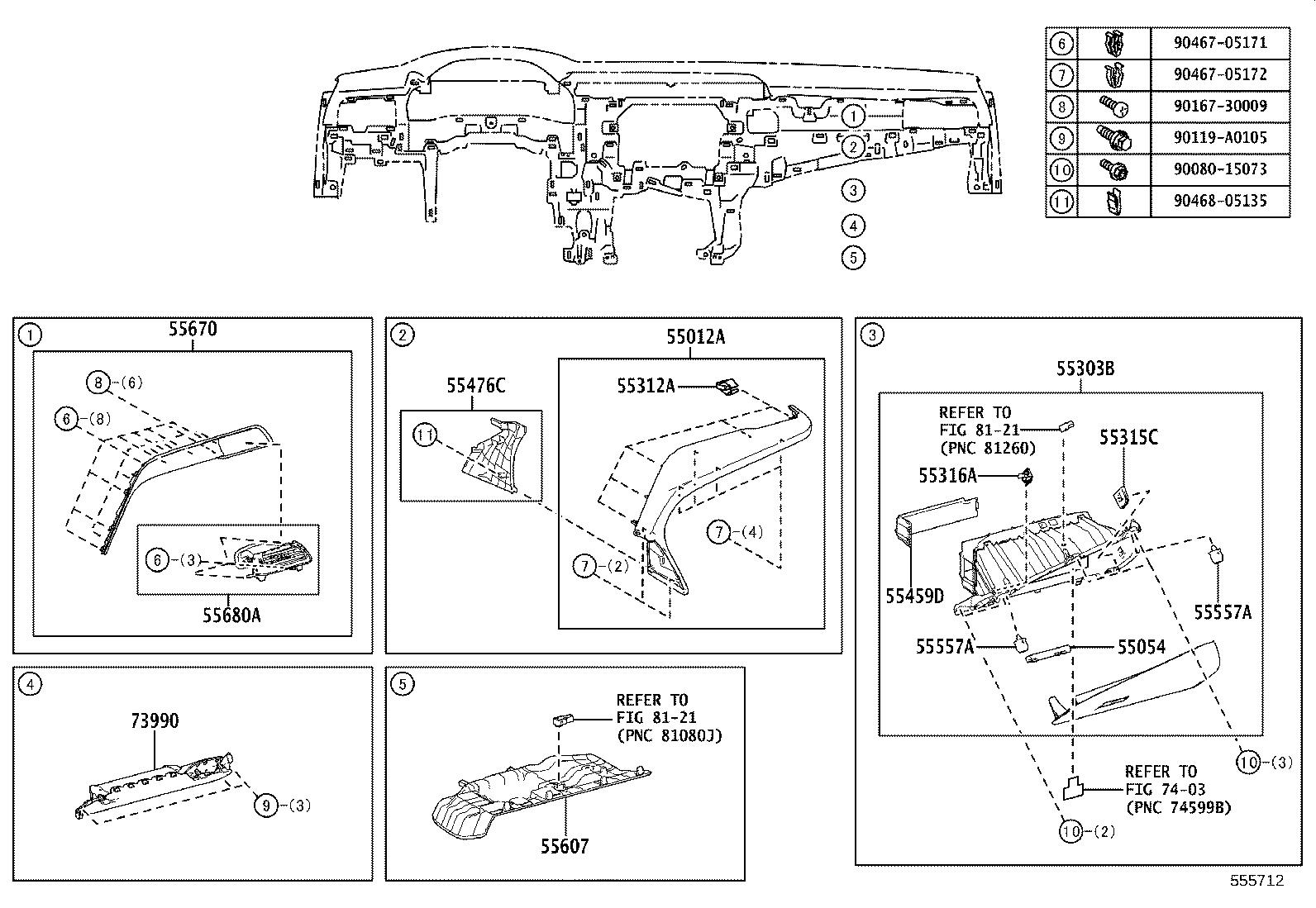

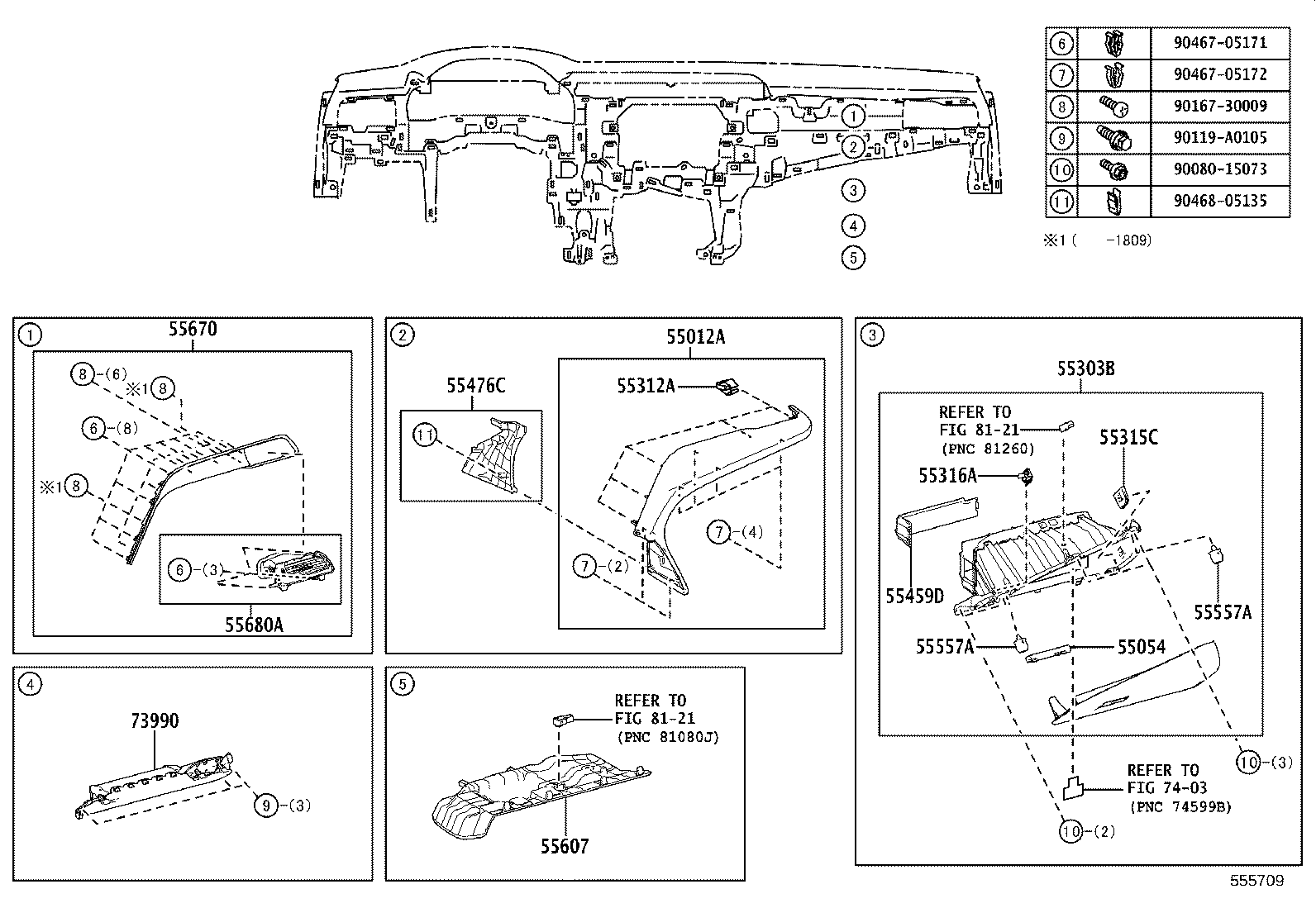

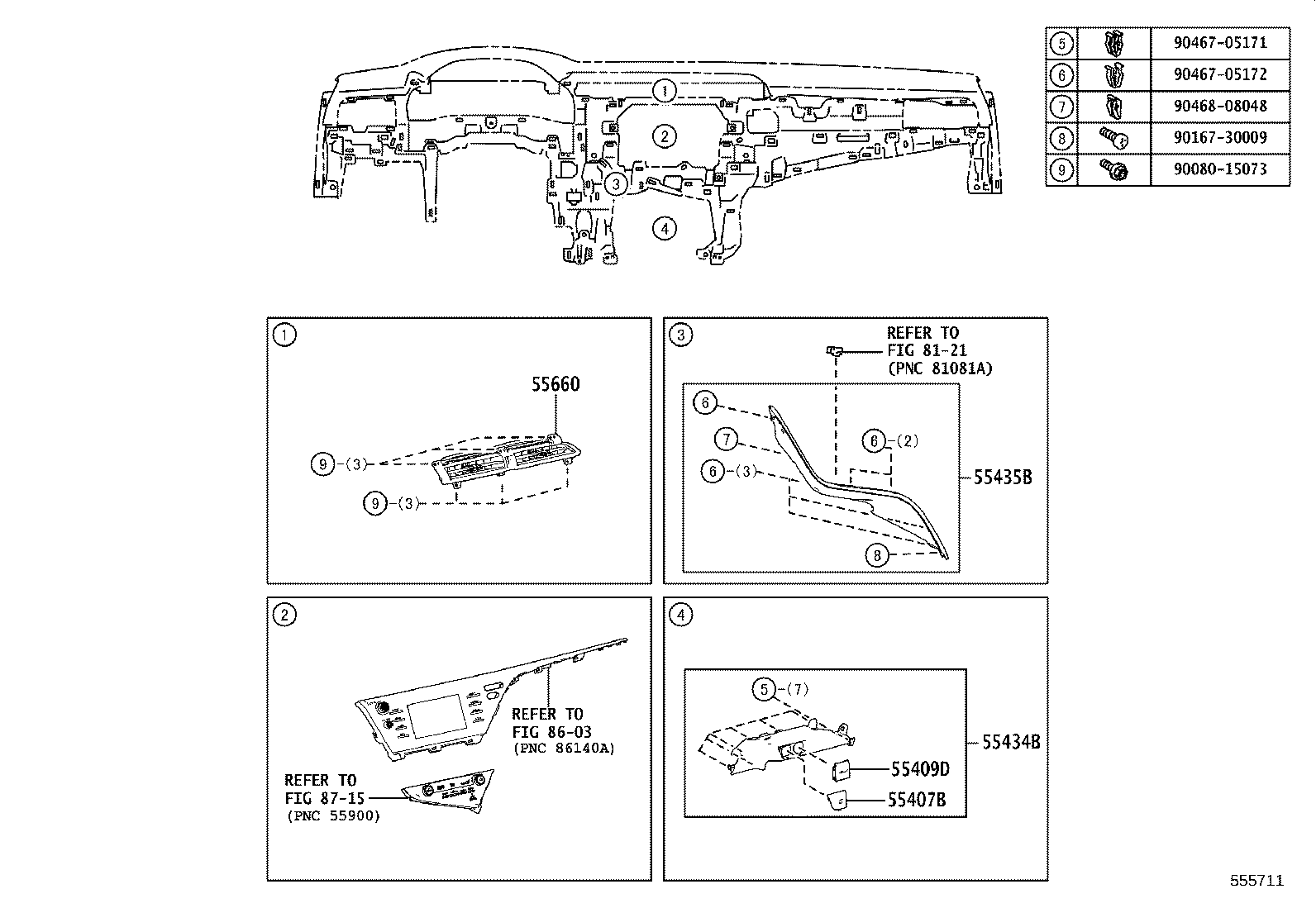

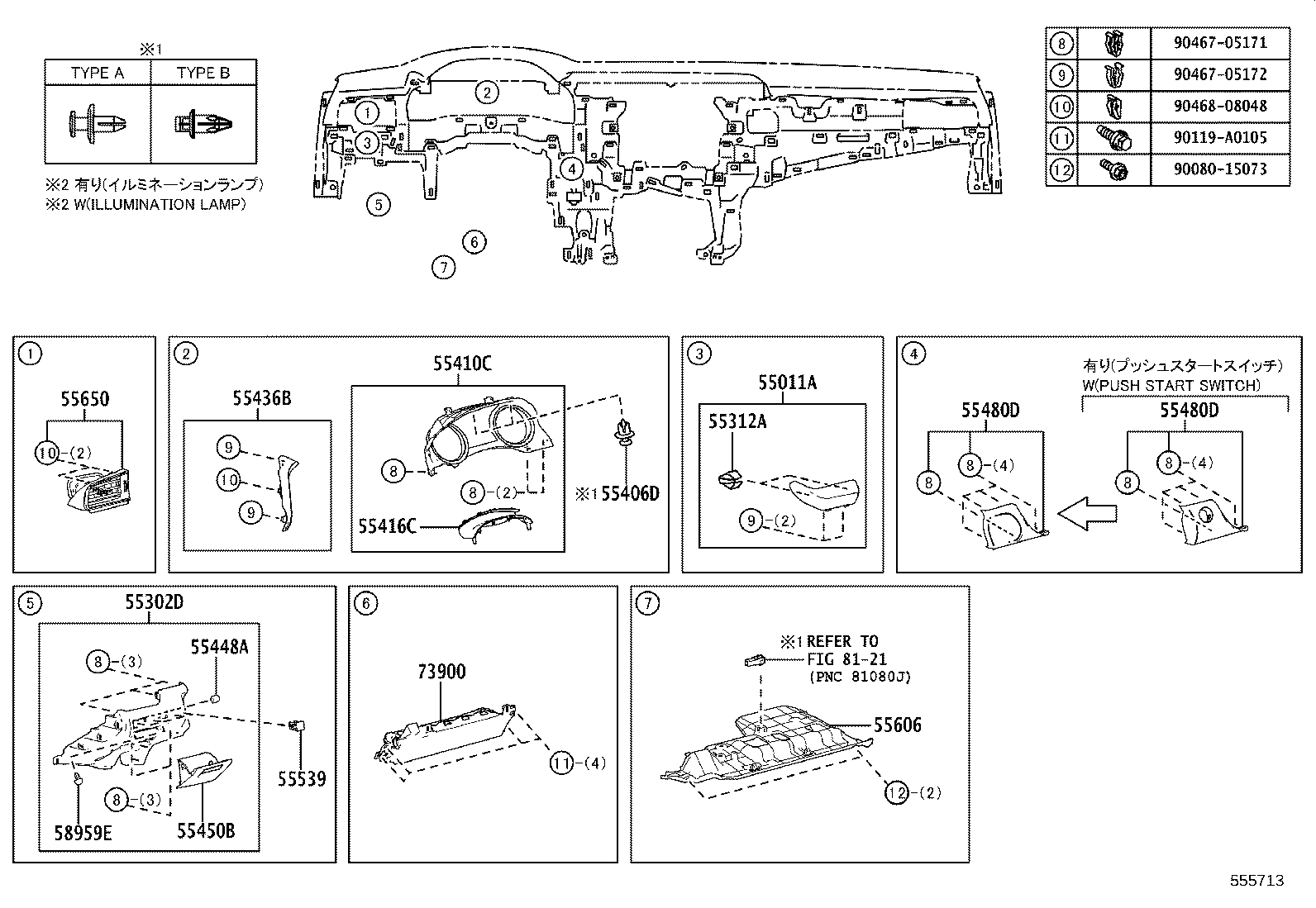

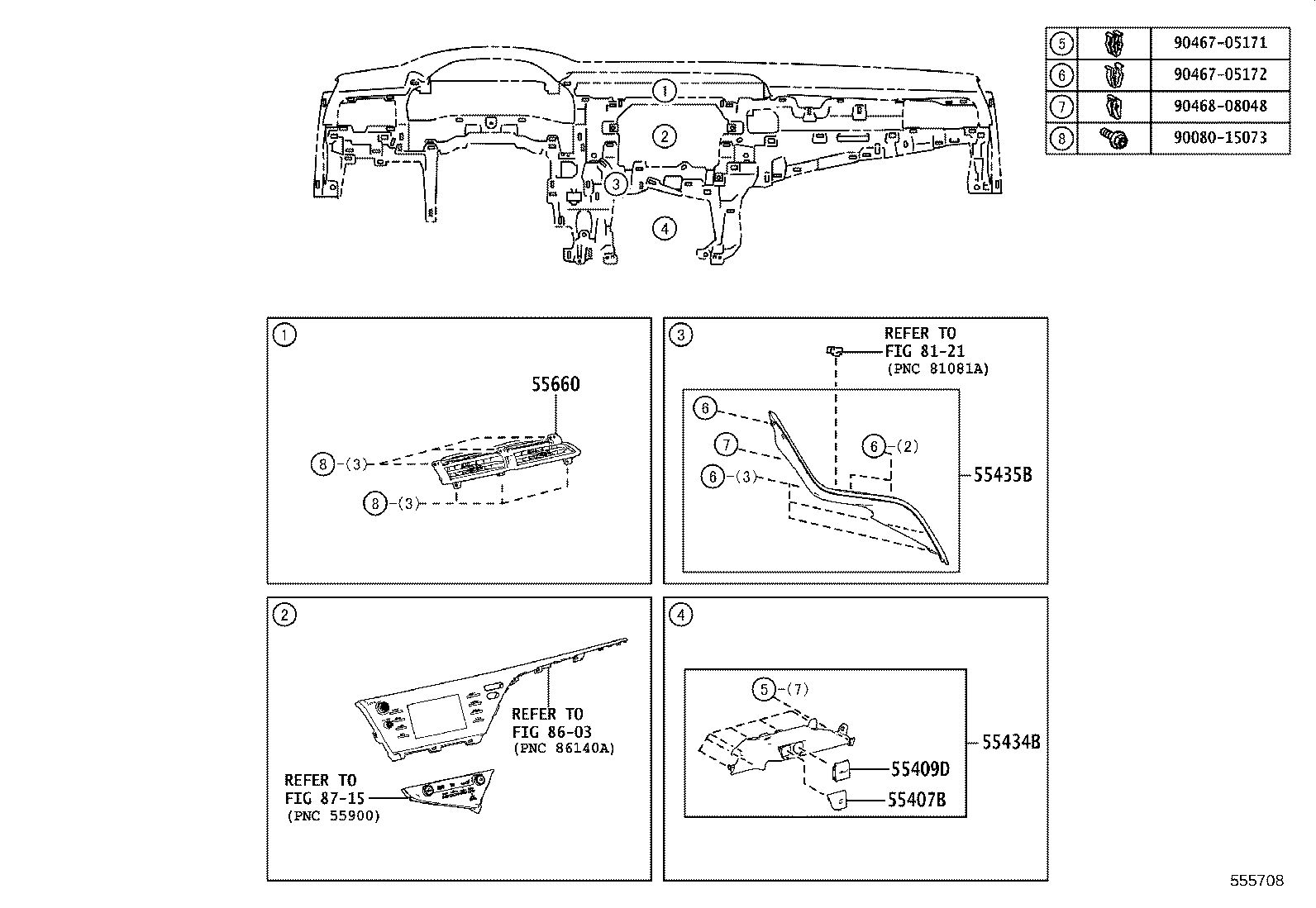

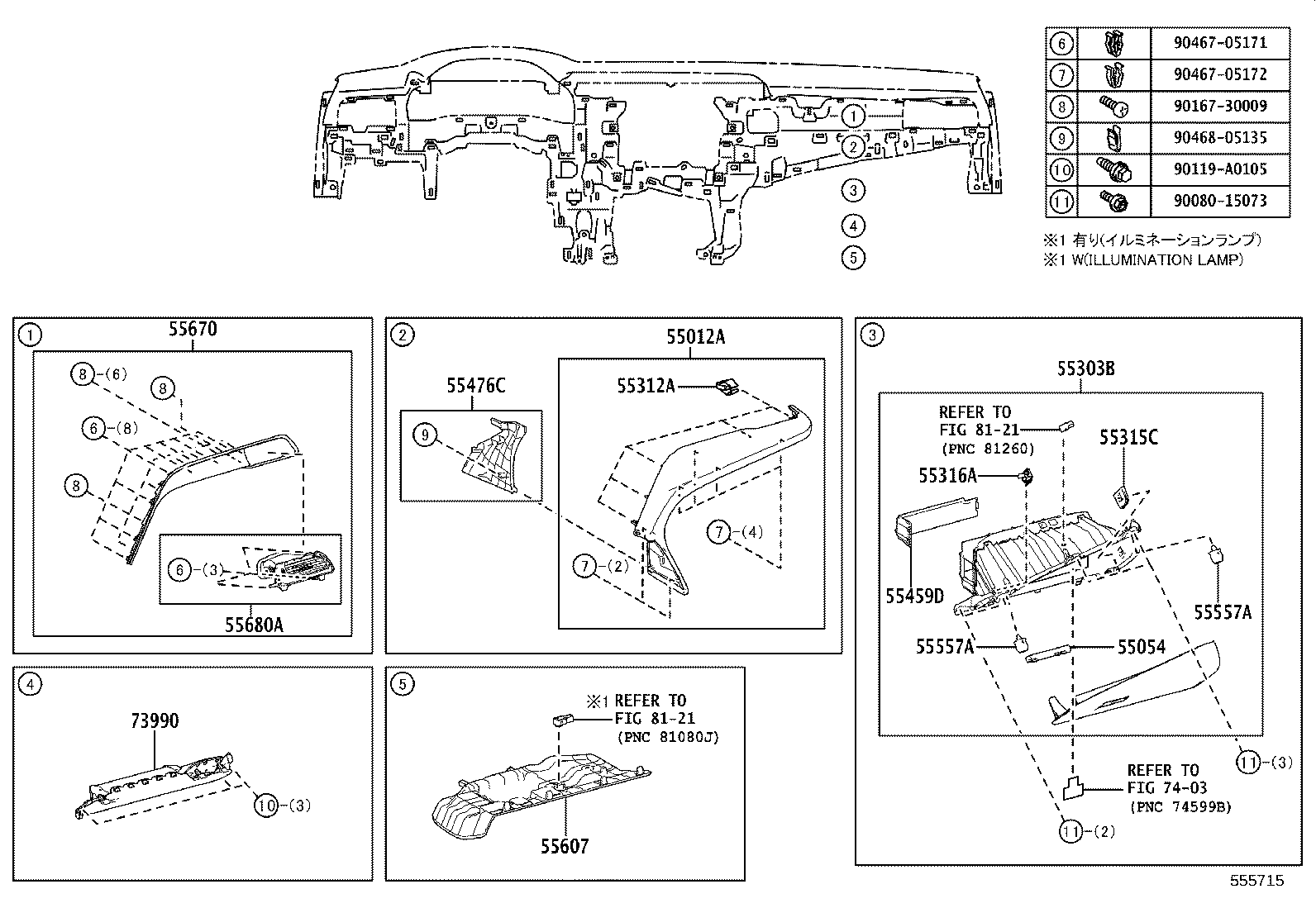

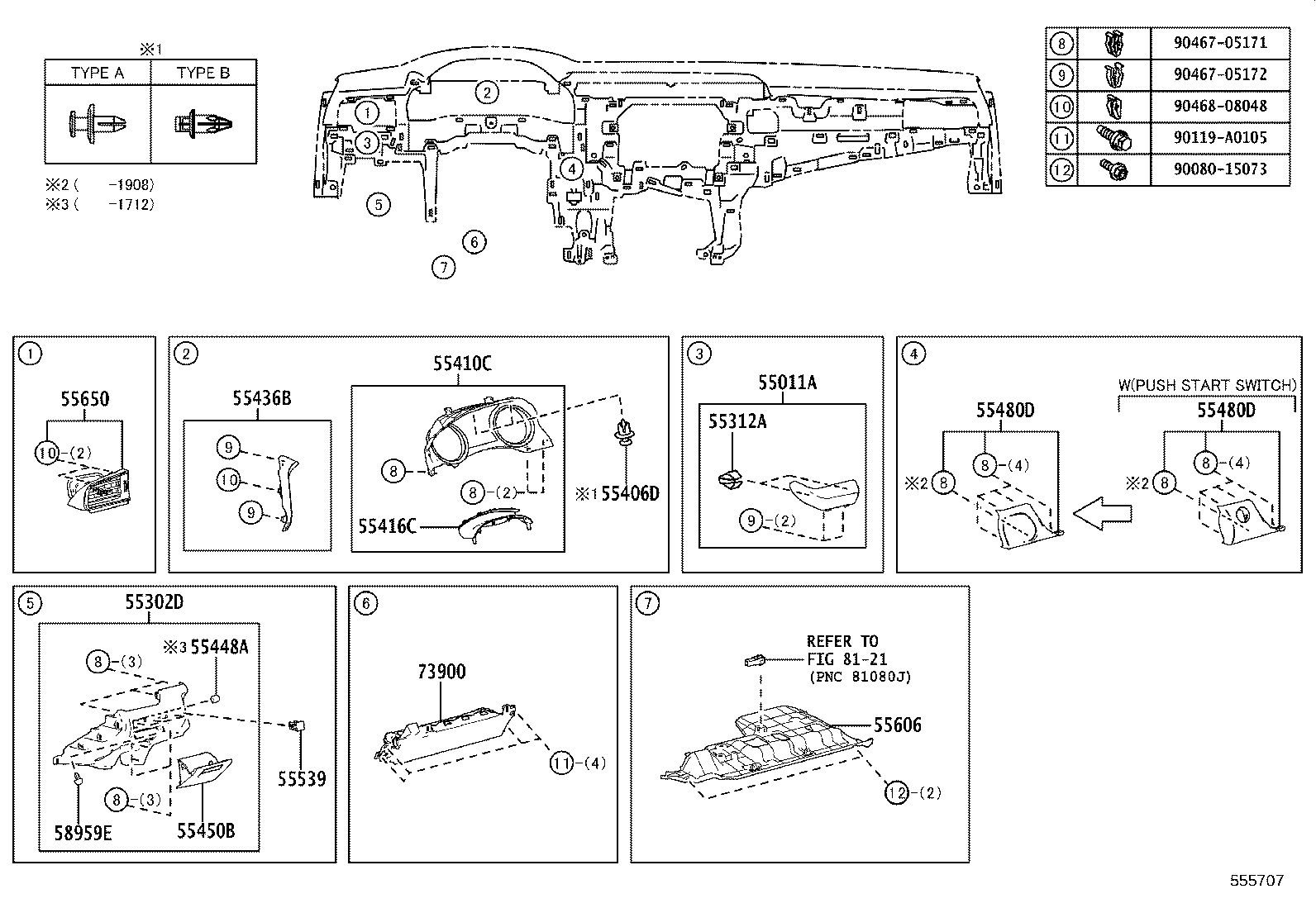

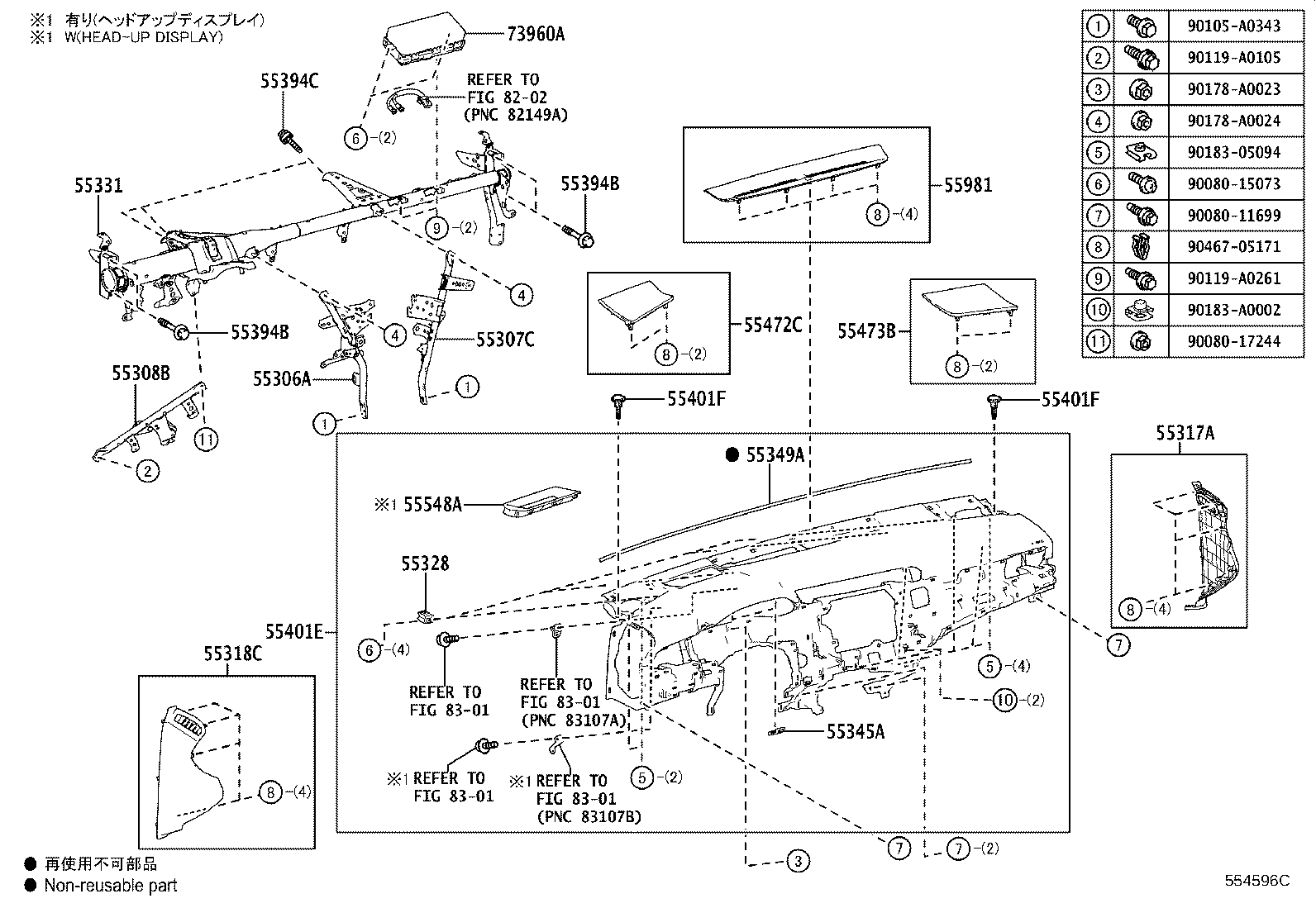

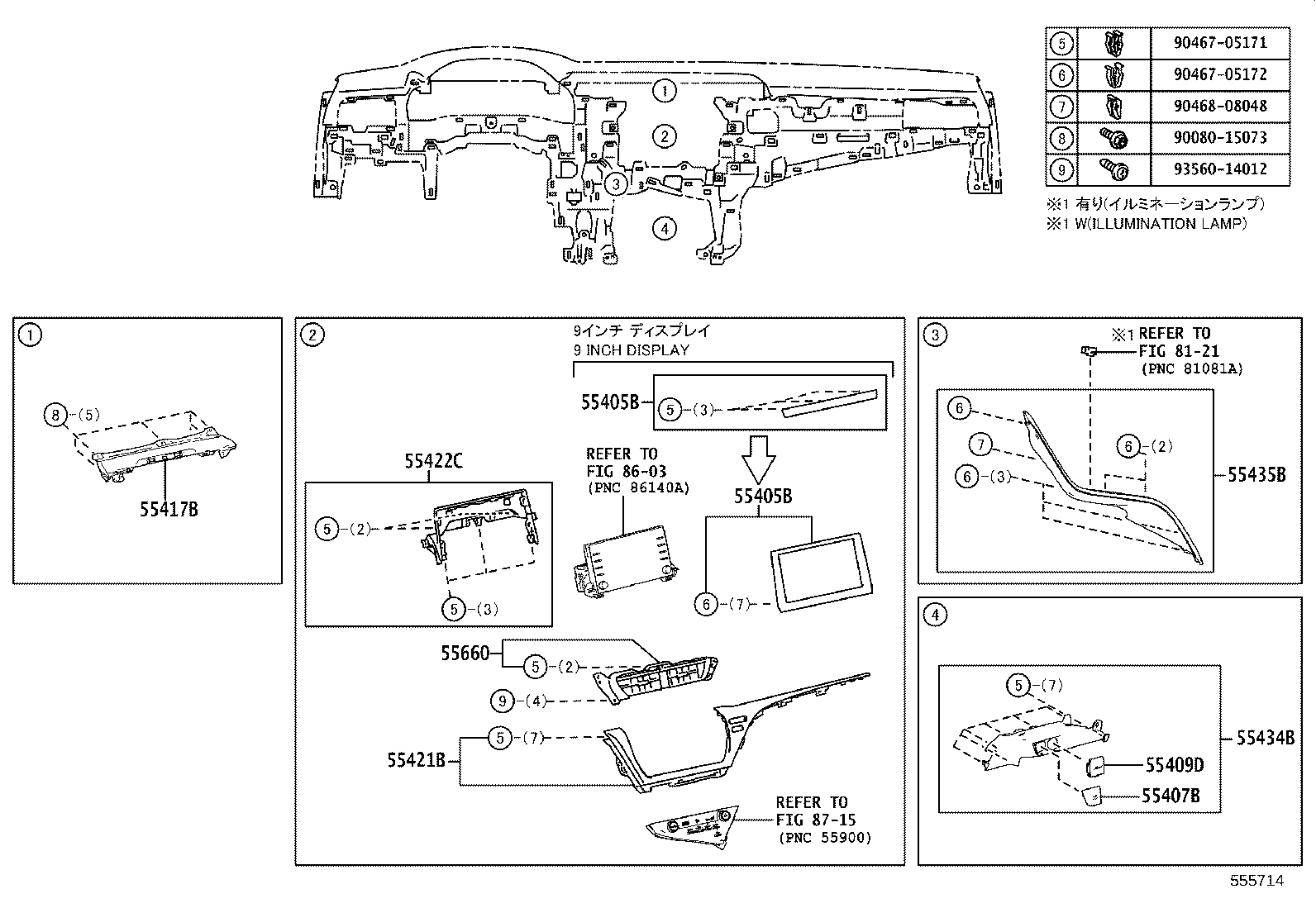

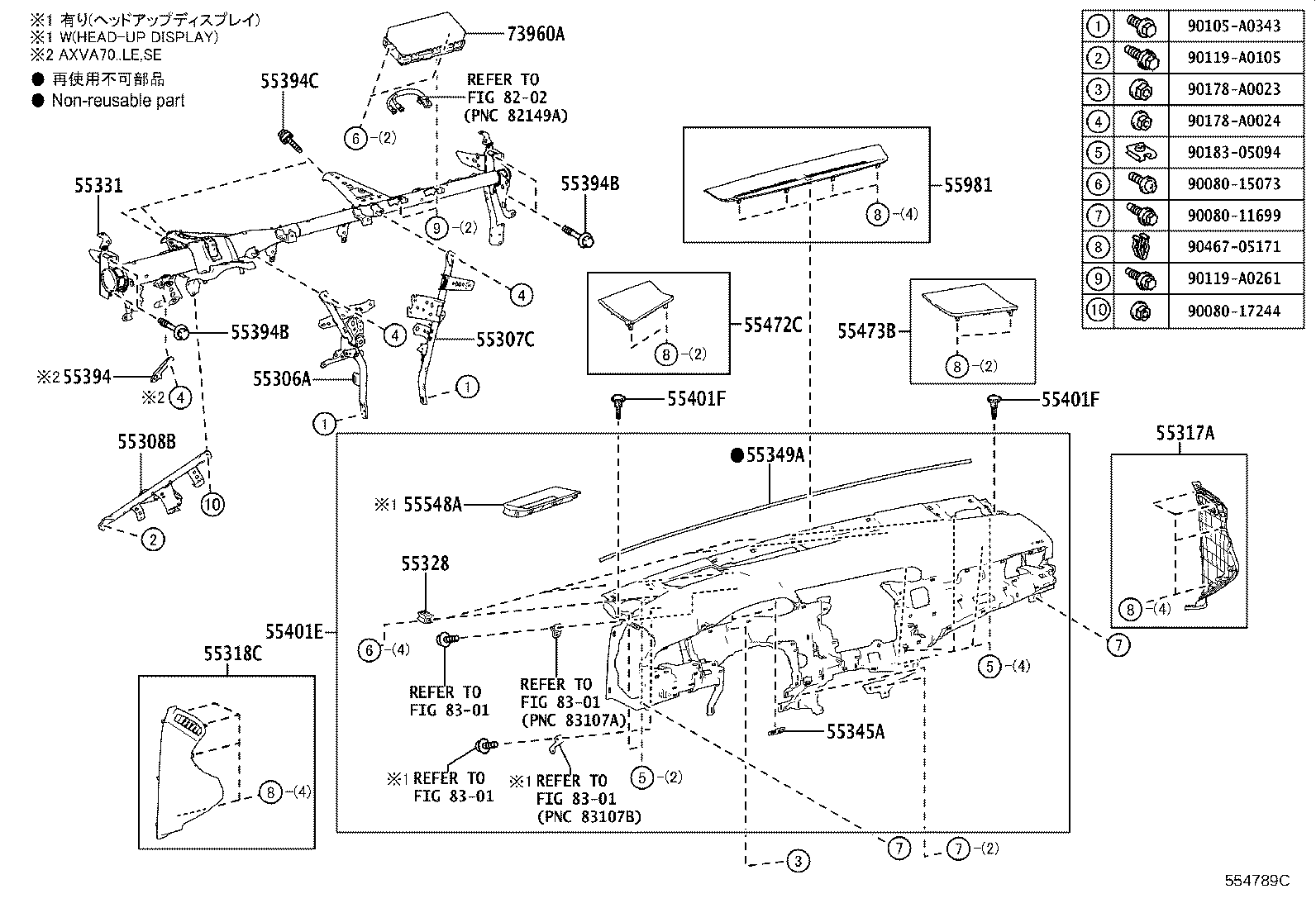

Figure 553964F 553964F 2017-06 → 2020-10 Figure 554596C 554596C 2020-03 → 2020-10 Figure 555707 555707 2017-06 → 2020-10 Figure 555710 555710 2020-03 → 2020-10 Figure 555708 555708 2017-06 → 2020-10 Figure 555711 555711 2020-03 → 2020-10 Figure 555709 555709 2017-06 → 2020-10 Figure 555712 555712 2020-03 → 2020-10 Figure 554789C 554789C 2020-10 → — Figure 555713 555713 2020-10 → — Figure 555714 555714 2020-10 → — Figure 555715 555715 2020-10 → —

Part groups

PNCDescription
55011A Garnish Sub-assy, Instrument Panel, NO.1
55012A Garnish Sub-assy, Instrument Panel, NO.2
55054 Stopper Sub-assy, Glove Compartment Door
55302D Panel Sub-assy, Instrument, Lower, NO.1
55303B Panel Sub-assy, Instrument, Lower
55306A Brace Sub-assy, Instrument Panel, NO.1
55307C Brace Sub-assy, Instrument Panel, NO.2
55308B Brace Sub-assy, Instrument Panel TO Cowl, NO.3
55312A Clip, Instrument Panel
55315C Patch, Instrument Side, Upper RH
55316A Patch, Instrument Side, Upper LH
55317A Panel, Instrument Side, RH
55318C Panel, Instrument Side, LH
55328 Pin, Instrument Panel, NO.1
55331 Reinforcement, Instrument Panel
55345A Clip, Instrument Panel, NO.1
55349A Cushion, Instrument Panel
55394 Bracket, Instrument Panel TO Pedal
55394B Bolt, Instrument Panel
55394C Bolt, Instrument Panel
55401E Pad Sub-assy, Instrument Panel Safety
55401F Clip(FOR SAFETY PAD)
55405B Panel Sub-assy, Instrument Cluster Finish, Center
55406D Clip(FOR PANEL, INSTRUMENT CLUSTER FINISH)
55407B Base Sub-assy, Switch Hole
55409D Base Sub-assy, Cigar Lighter
55410C Panel Assy, Instrument Cluster Finish
55416C Retainer, Instrument Cluster Finish Panel
55417B Retainer, Radio Tuner Finish
55421B Panel, Instrument Cluster Finish, Upper
55422C Panel, Instrument Cluster Finish, Center Upper
55434B Panel, Instrument Panel Finish, Lower Center
55435B Cluster, Meter Hood, NO.1
55436B Cluster, Meter Hood, NO.2
55448A Cushion, Instrument Panel Finish, NO.1
55450B Box Assy, Coin
55459D Cover, Instrument, Lower LH
55472C Panel, Instrument Panel Speaker, NO.1
55473B Panel, Instrument Panel Speaker, NO.2
55476C Garnish, Instrument Panel Finish Plate
55480D Panel Assy, Instrument Panel Finish, Lwr
55539 Cover, Spare Switch Hole
55548A Cover, Instrument Panel Hole
55557A Cushion, Glove Compartment Door Check
55606 Cover Sub-assy, Instrument Panel Under, NO.1
55607 Cover Sub-assy, Instrument Panel Under, NO.2
55650 Register Assy, Instrument Panel, NO.1
55660 Register Assy, Instrument Panel, NO.2
55670 Register Assy, Instrument Panel, NO.3
55680A Register Assy, Instrument Panel, NO.4
55981 Garnish, Defroster Nozzle, NO.1
58959E Cushion, Console Compartment Door
73900 Airbag Assy, Instrument Panel, Lower NO.1
73960A Airbag Assy, Instrument Panel Passenger W/O Door
73990 Airbag Assy, Instrument Panel, Lower NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
