Toyota Camry/Hybrid (NAP)

2017-06 → present · chassis AXVA7#,AXVH7#,GSV70 · catalogue 2834A0 · United States

Supported model Data version 2020-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Roof Headlining & Silencer Pad

10 part groups · 3 illustrations

Illustrations

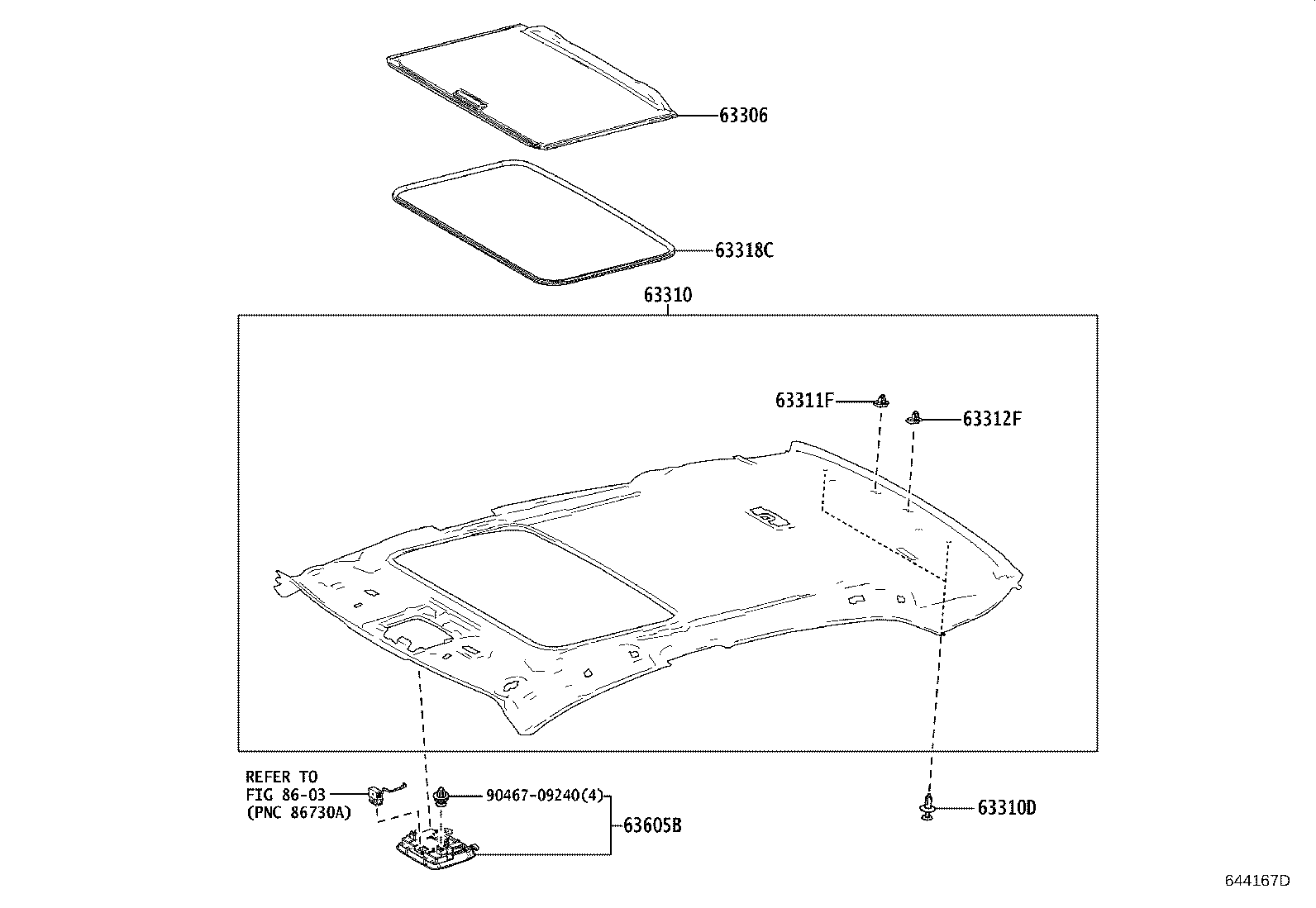

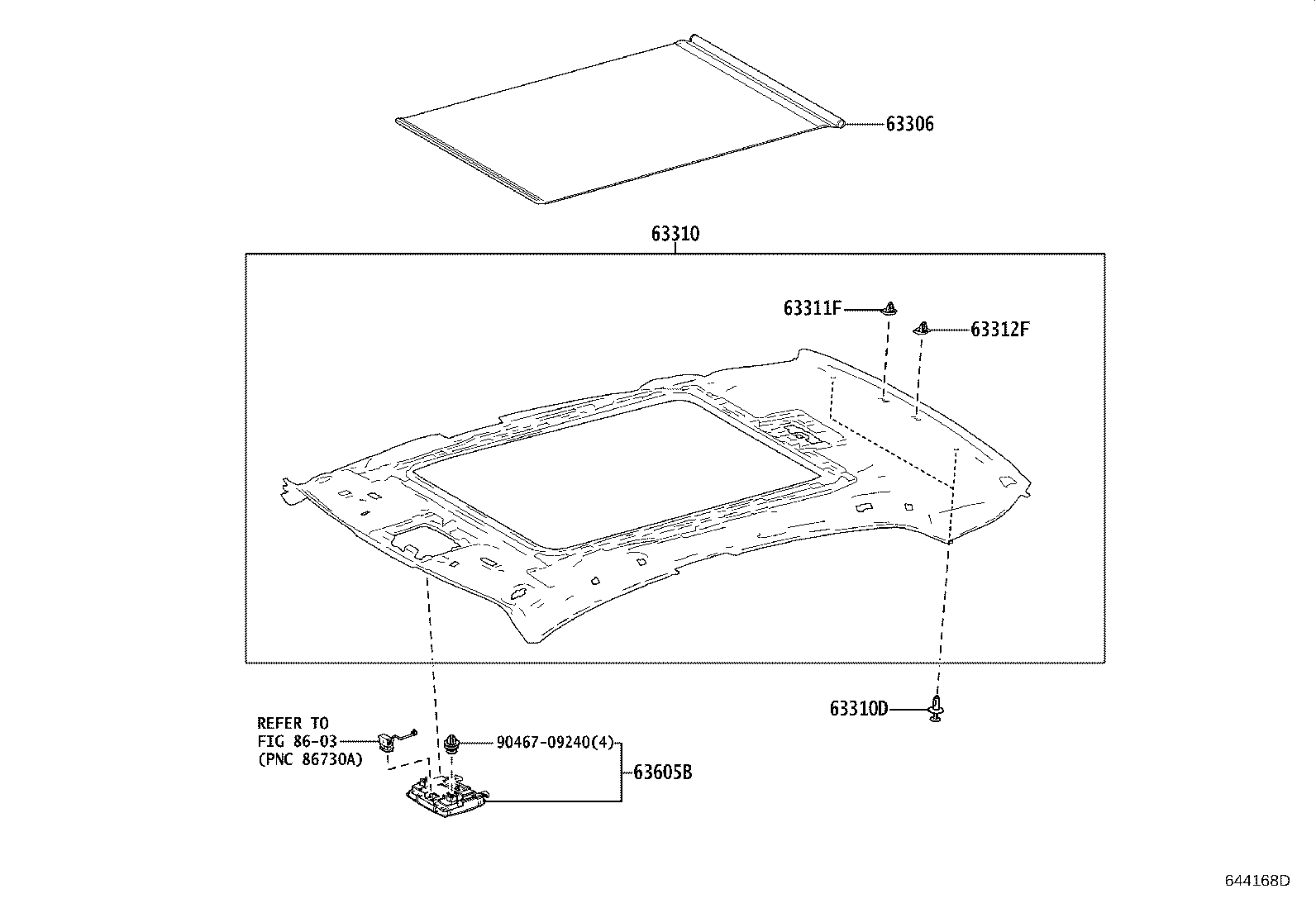

Figure 644166D 644166D 2017-06 → — Figure 644167D 644167D 2017-06 → — Figure 644168D 644168D 2017-06 → —

Part groups

PNCDescription
55557E Cushion, Roof Console Box
63306 Trim Sub-assy, Sunshade
63310 Headlining Assy, Roof
63310D Clip, Roof Headlining
63311F Clip, Roof Headlining, NO.1
63312F Clip, Roof Headlining, NO.2
63318C Moulding, Sun Roof Opening Trim
63342A Silencer, Roof, NO.2
63344A Silencer, Roof, NO.4
63605B Box Sub-assy, Roof Console
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
