Toyota Camry/Hybrid (NAP)
2017-06 → present · chassis AXVA7#,AXVH7#,GSV70 · catalogue 2834A0 · United States
Supported model
Data version 2020-09

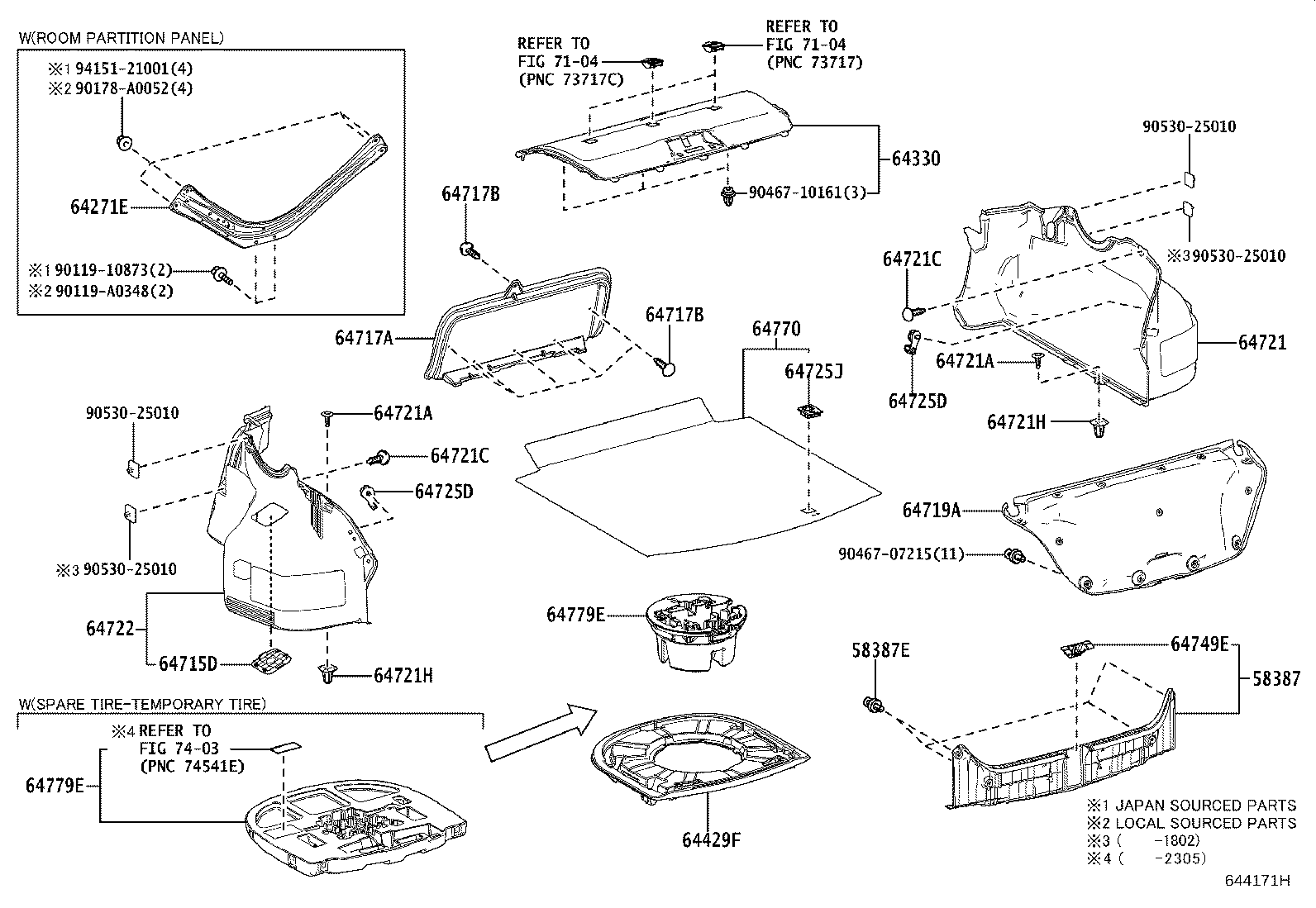

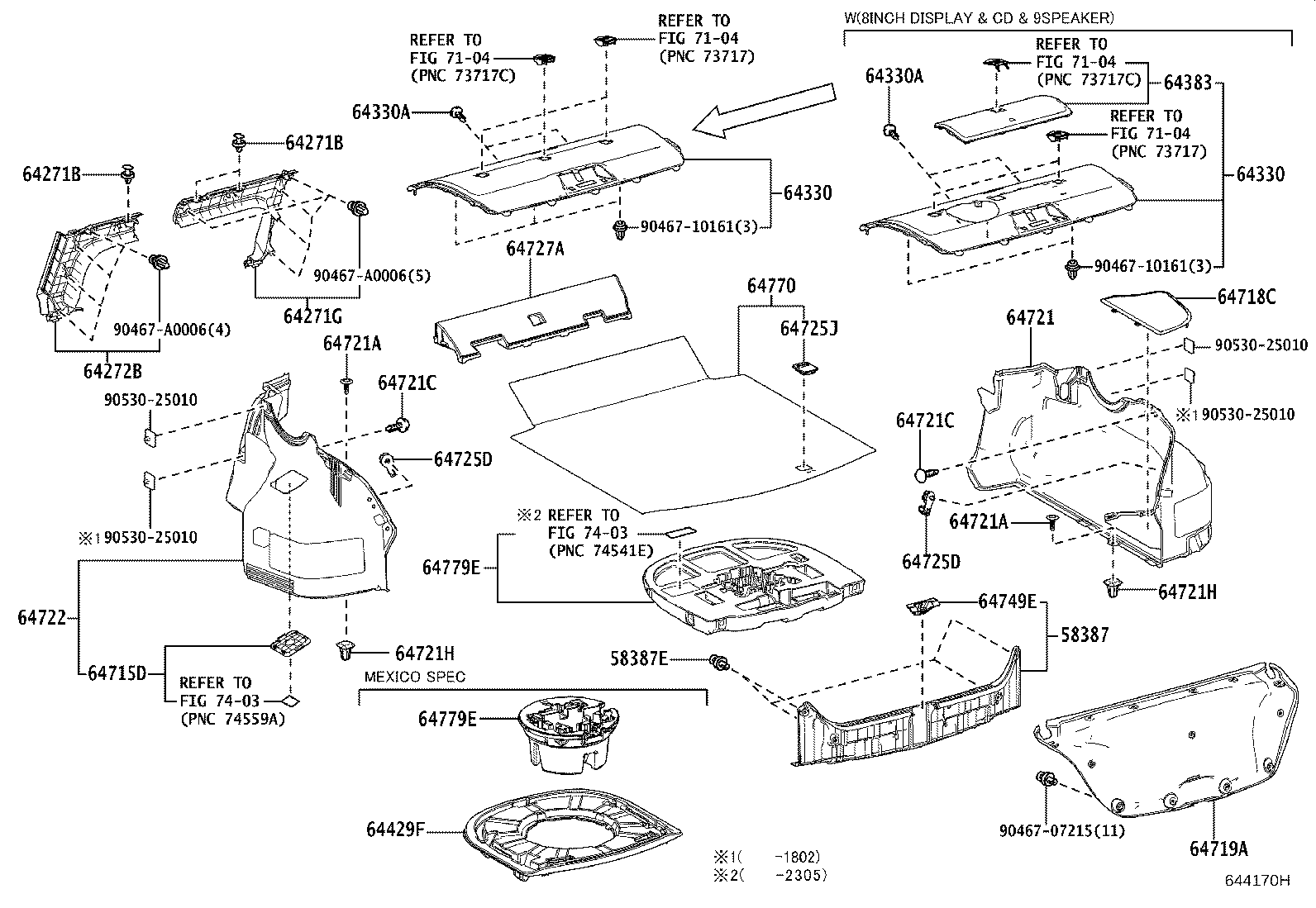

Package Tray Panel & Luggage Compartment Mat
26 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 58387 | Plate, Rear Floor Finish |
| 58387E | Clip(FOR REAR FLOOR FINISH PLATE) |
| 64271B | Clip(FOR ROOM PARTITION BOARD) |
| 64271E | Panel, Room Partition |
| 64271G | Board, Room Partition, RH |
| 64272B | Board, Room Partition, LH |
| 64330 | Panel Assy, Package Tray Trim |
| 64330A | Clip(FOR PACKAGE TRAY TRIM PANEL) |
| 64383 | Grille, Speaker, Rear |
| 64429F | Box, Luggage Compartment Trim |
| 64715D | Cover, Luggage Compartment Trim, Side, LH |
| 64717A | Cover, Luggage Compartment Trim, Front |
| 64717B | Clip(FOR LUGGAGE COMPARTMENT TRIM FRONT COVER) |
| 64718C | Cover, Luggage Trim Service Hole |
| 64719A | Cover, Luggage Compartment Door |
| 64721 | Cover, Luggage Compartment Trim, Inner RH |
| 64721A | Clip(FOR LUGGAGE COMPARTMENT TRIM INNER COVER) |
| 64721C | Clip(LUGGAGE COMPARTMENT) |
| 64721H | Clip(LUGGAGE COMPARTMENT) |
| 64722 | Cover, Luggage Compartment Trim, Inner LH |
| 64725D | Hook, Luggage Compartment Trim, NO.1 |
| 64725J | Hook, Luggage Compartment Trim, NO.1 |
| 64727A | Pad, Luggage Compartment Trim, Inner |
| 64749E | Cover, Luggage Compartment Door Striker |
| 64770 | Cover Assy, Spare Wheel |
| 64779E | Tray, Spare Wheel Cover |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
