Toyota Camry/Hybrid (NAP)
2017-06 → present · chassis AXVA7#,AXVH7#,GSV70 · catalogue 2834A0 · United States
Supported model
Data version 2020-09

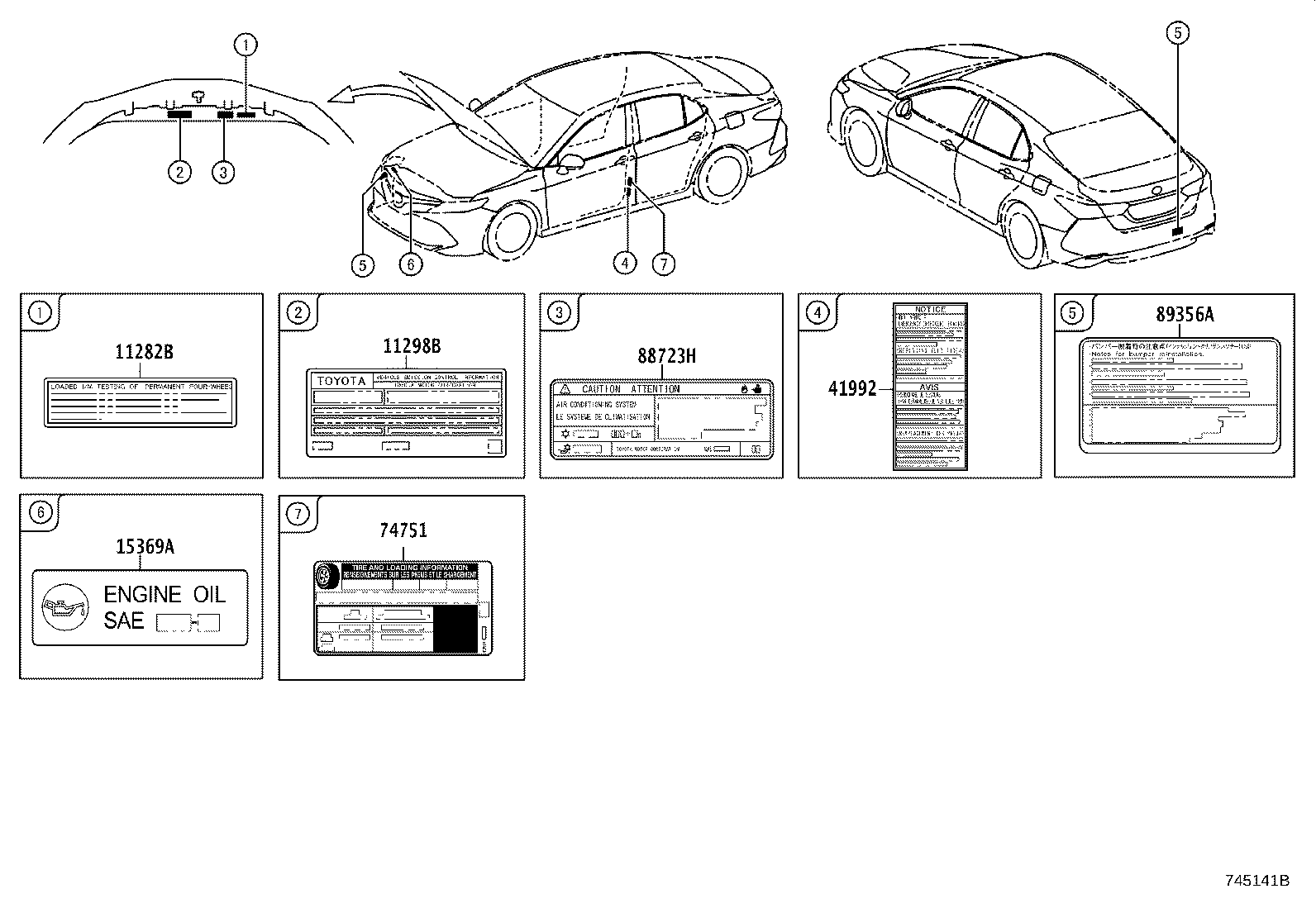

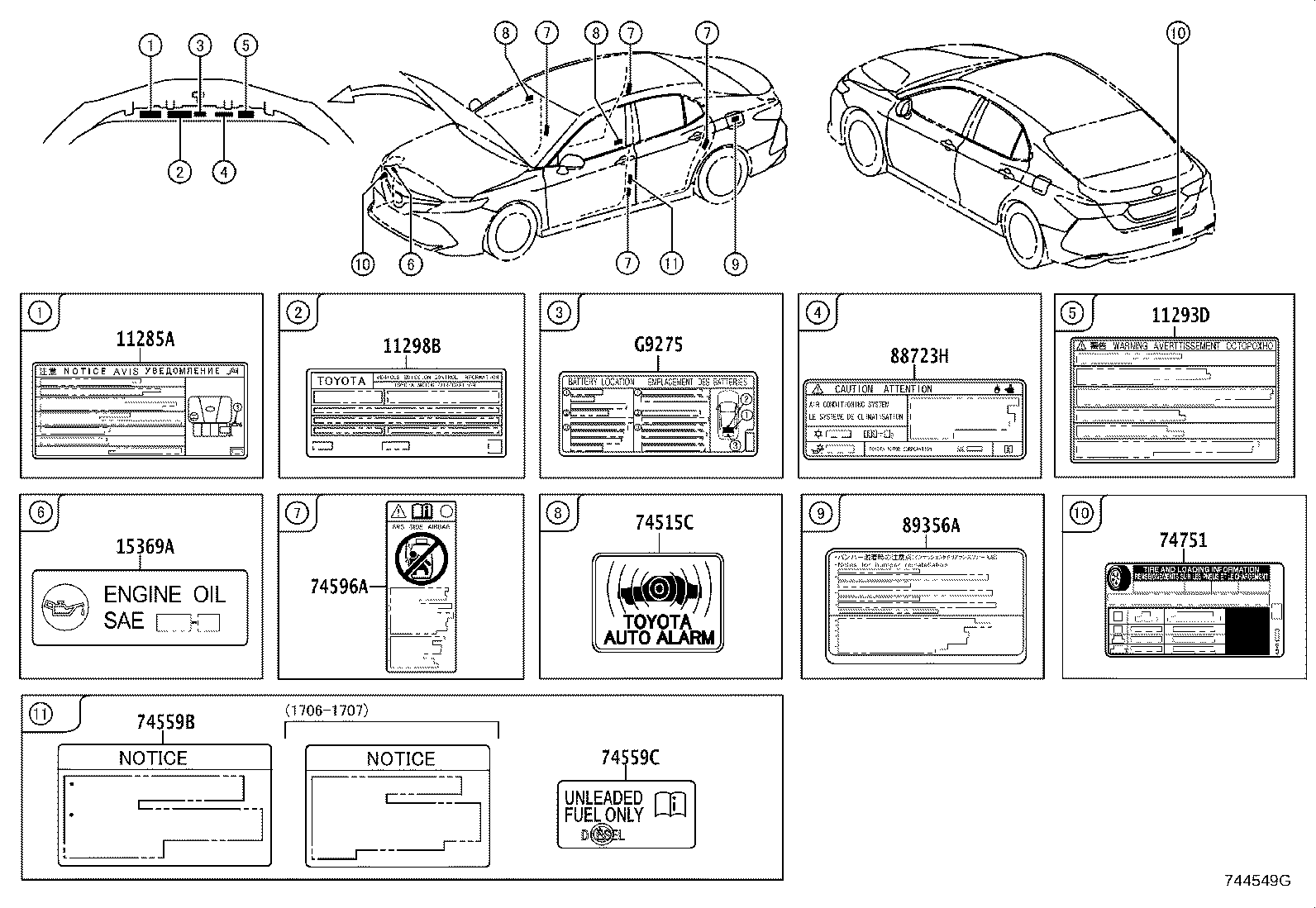

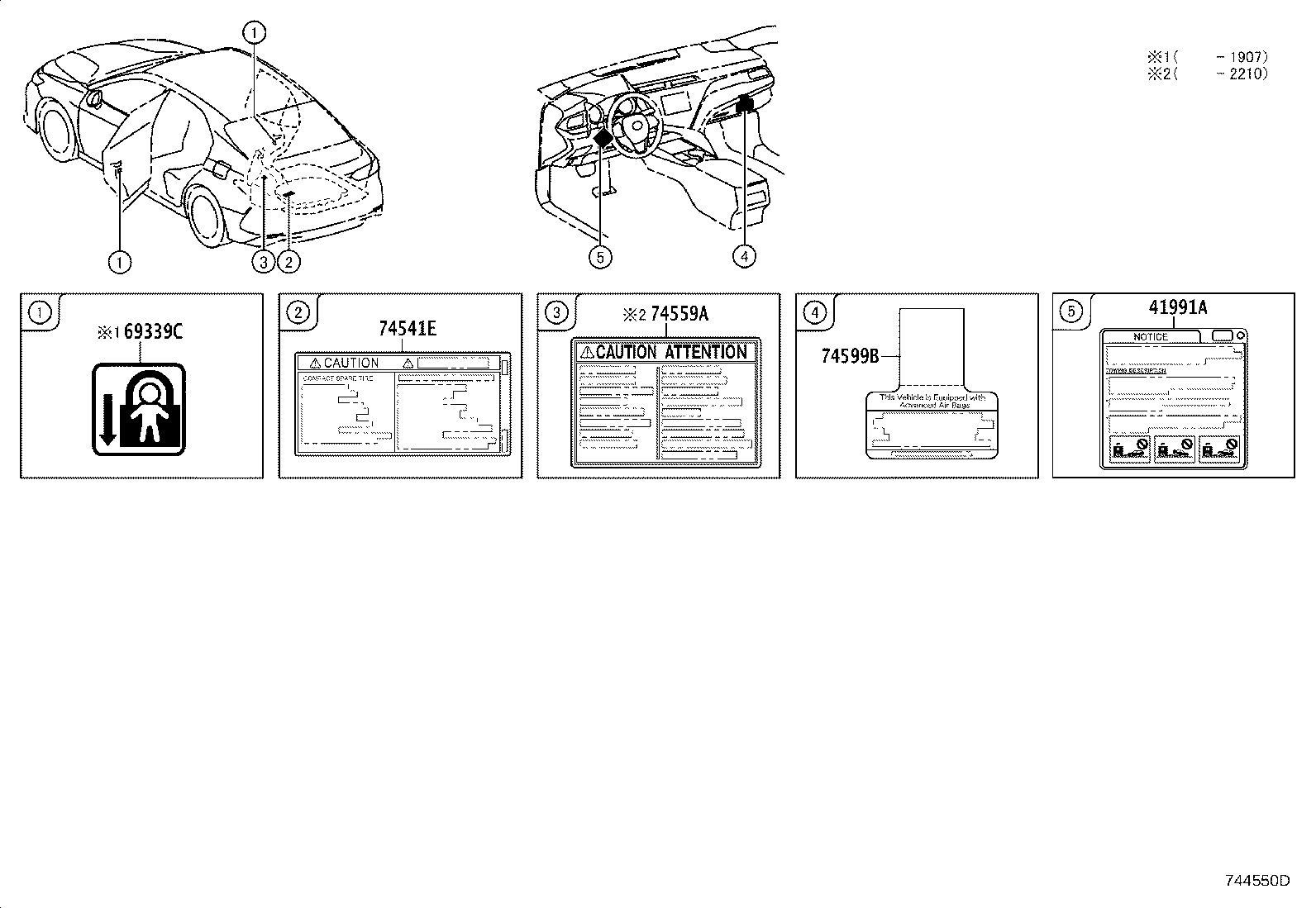

Caution Plate (EXTERIOR & INTERIOR)
20 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 11282B | Label, Loaded Testing Caution |
| 11285A | Label, Coolant System Notice |
| 11293D | Label, Engine Caution |
| 11298B | Label, Emission Control Information |
| 15369A | Label, Engine Oil Information |
| 16793E | Label, Cooling Fan Caution |
| 41991A | Plate, Caution |
| 41992 | Label, Differential Notice |
| 69339C | Label, Child Protector Information |
| 74515C | Label, Theft Warning Information |
| 74541E | Plate, Compact Spare Tire Caution |
| 74559A | Plate, Fuel Caution |
| 74559B | Label, Fuel Information |
| 74559C | Label, Fuel Information, NO.2 |
| 74596A | Label, Side Airbag Caution |
| 74599B | Label, Driver & Passenger Airbag Information |
| 74751 | Label, Tire Pressure Information |
| 88723H | Label, Cooler Service Caution |
| 89356A | Label, Clearance Warning Information |
| G9275 | Label, Battery Caution, NO.1 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
