Toyota Camry/Hybrid (NAP)

2017-06 → present · chassis AXVA7#,AXVH7#,GSV70 · catalogue 2834A0 · United States

Supported model Data version 2020-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Headlamp

11 part groups · 3 illustrations

Illustrations

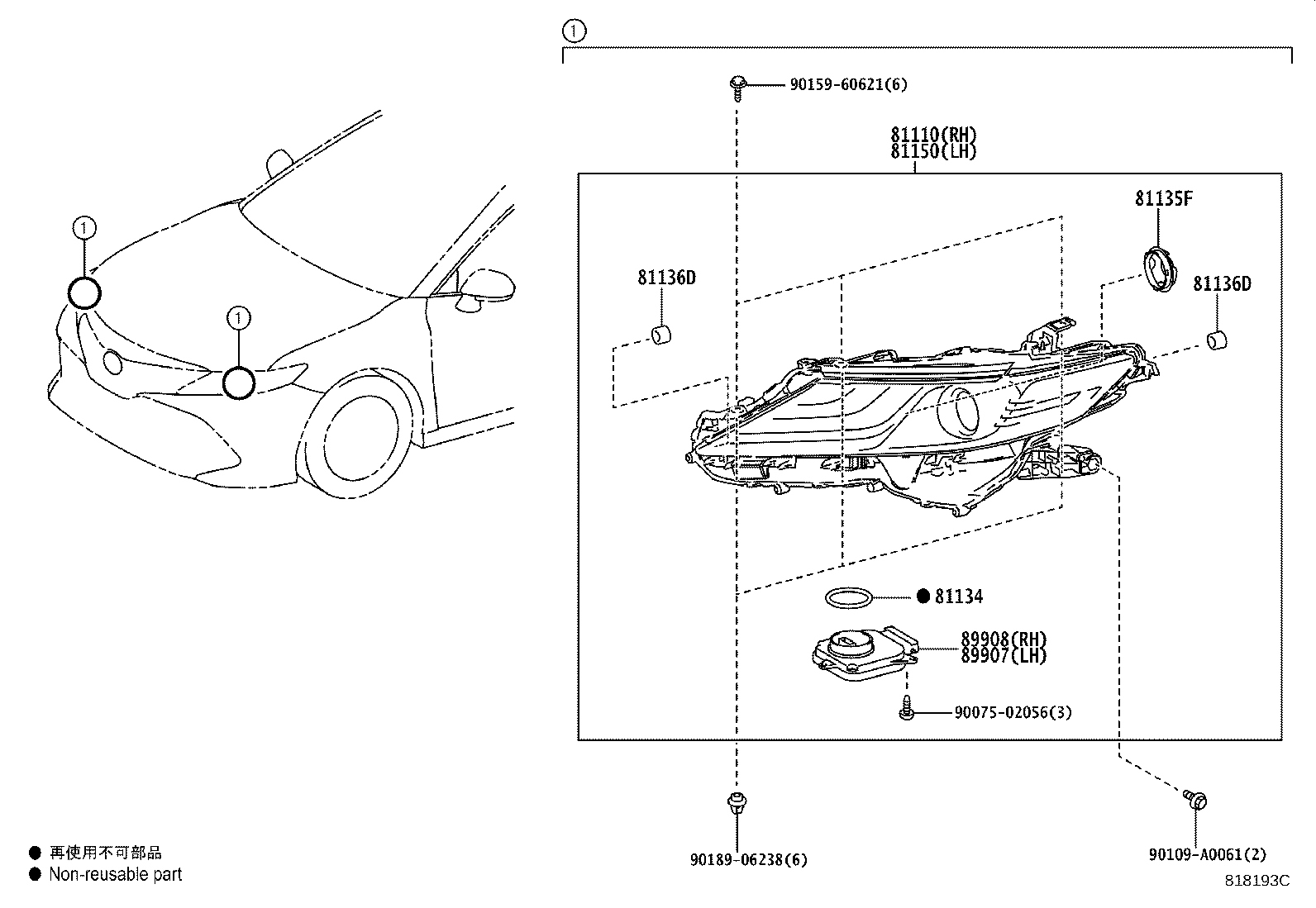

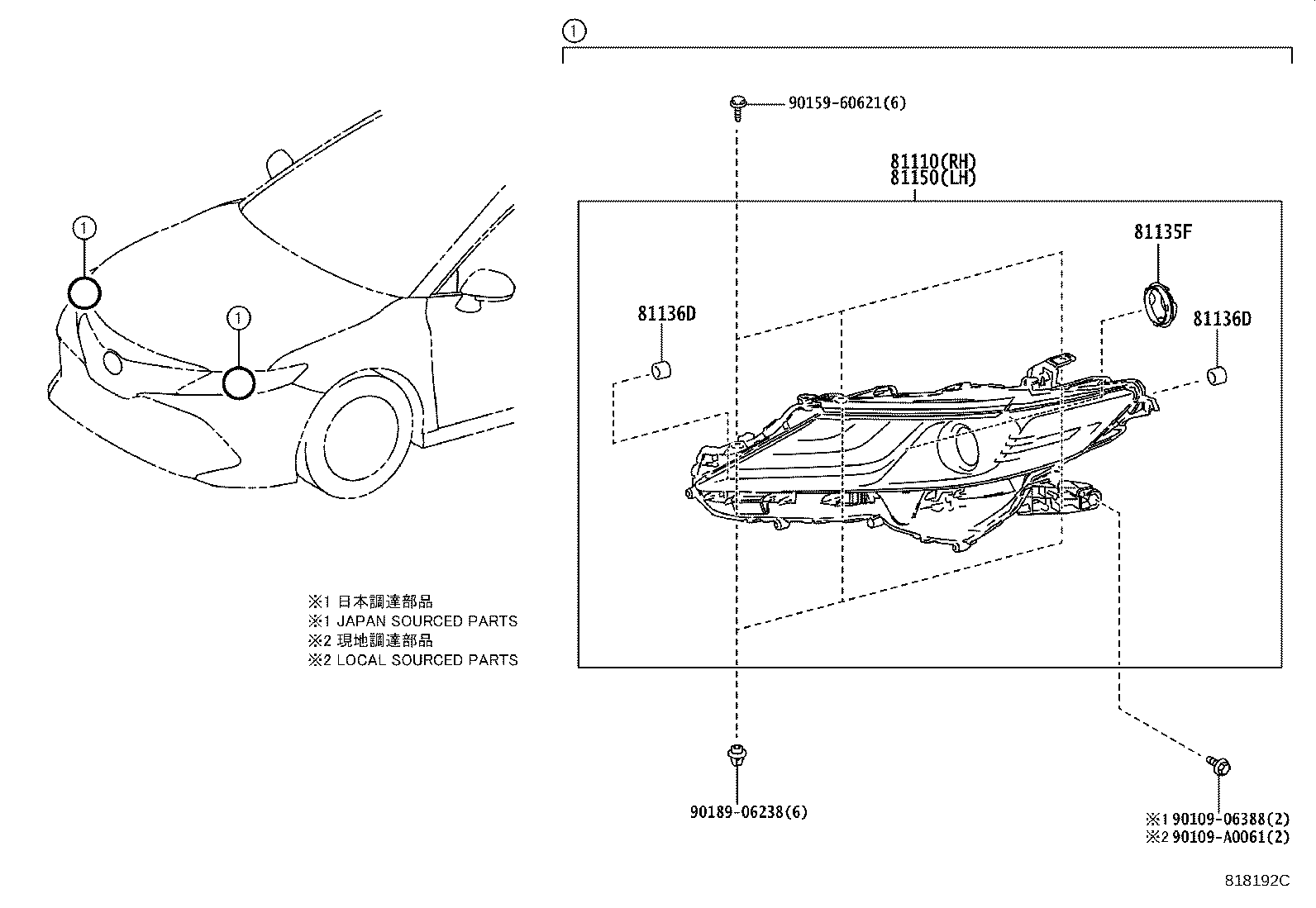

Figure 818191D 818191D 2017-06 → — Figure 818192C 818192C 2017-06 → — Figure 818193C 818193C 2017-06 → —

Part groups

PNCDescription
81110 Headlamp Assy, RH
81134 Gasket, Headlamp
81135F Cover, Headlamp Back
81136D Cover, Headlamp
81150 Headlamp Assy, LH
81510C Bulb (FOR FRONT TURN SIGNAL LAMP)
81515B Socket, Front Turn Signal Lamp
81710F Bulb, Front Side Maker Lamp
81715D Socket Plug, Front Marker Lamp
89907 Computer Sub-assy, Headlamp, LH
89908 Computer Sub-assy, Headlamp, RH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
