Toyota Camry/Hybrid (NAP)
2017-06 → present · chassis AXVA7#,AXVH7#,GSV70 · catalogue 2834A0 · United States
Supported model
Data version 2020-09

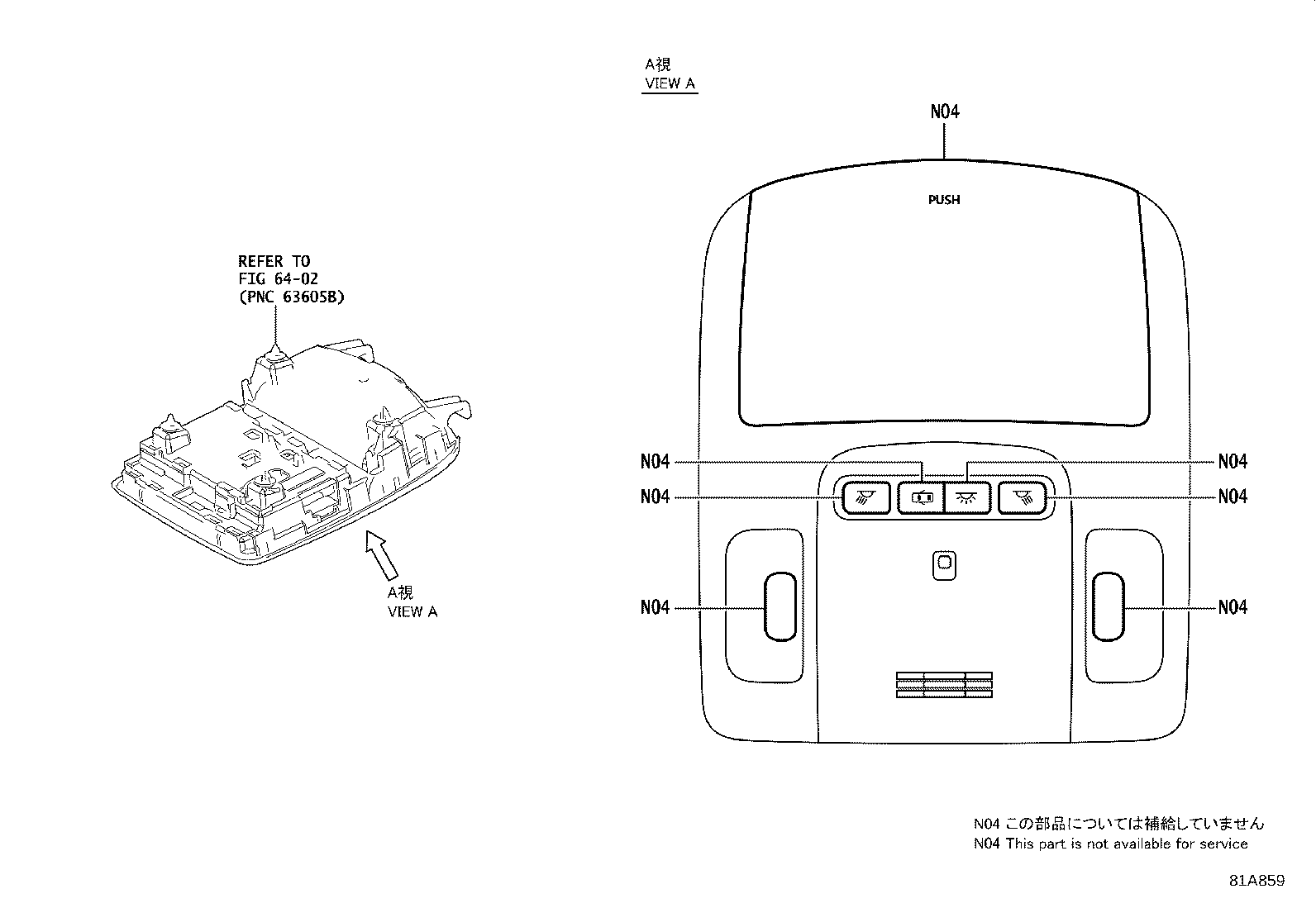

Interior Lamp
17 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 81080J | Lamp Assy, Interior Illumination, NO.1 |
| 81080L | Lamp Assy, Interior Illumination, NO.1 LH |
| 81080P | Lamp Assy, Interior Illumination, NO.1 RH |
| 81081A | Lamp Sub-assy, Interior Illumination, NO.2 |
| 81230 | Lamp Assy, Courtesy |
| 81230B | Bulb(FOR COURTESY LAMP) |
| 81240J | Lamp Assy, Room |
| 81260 | Lamp Assy, Glove Box |
| 81310B | Bulb, Rear Room Lamp |
| 81330 | Lamp Assy, Luggage Compartment, NO.1 |
| 81330B | Bulb, Luggage Compartment Lamp |
| 81340 | Lamp Assy, Vanity |
| 81340B | Bulb (FOR VANITY LAMP) |
| 81360T | Lamp Assy, Spot |
| 813A0 | Lamp Assy, Instrument Panel |
| 81910G | Lens, Reflex Reflector, Front RH |
| 81920B | Lens, Reflex Reflector, Front LH |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
