Toyota Camry/Hybrid (NAP)

2017-06 → present · chassis AXVA7#,AXVH7#,GSV70 · catalogue 2834A0 · United States

Supported model Data version 2020-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Electronic Fuel Injection System

15 part groups · 3 illustrations

Illustrations

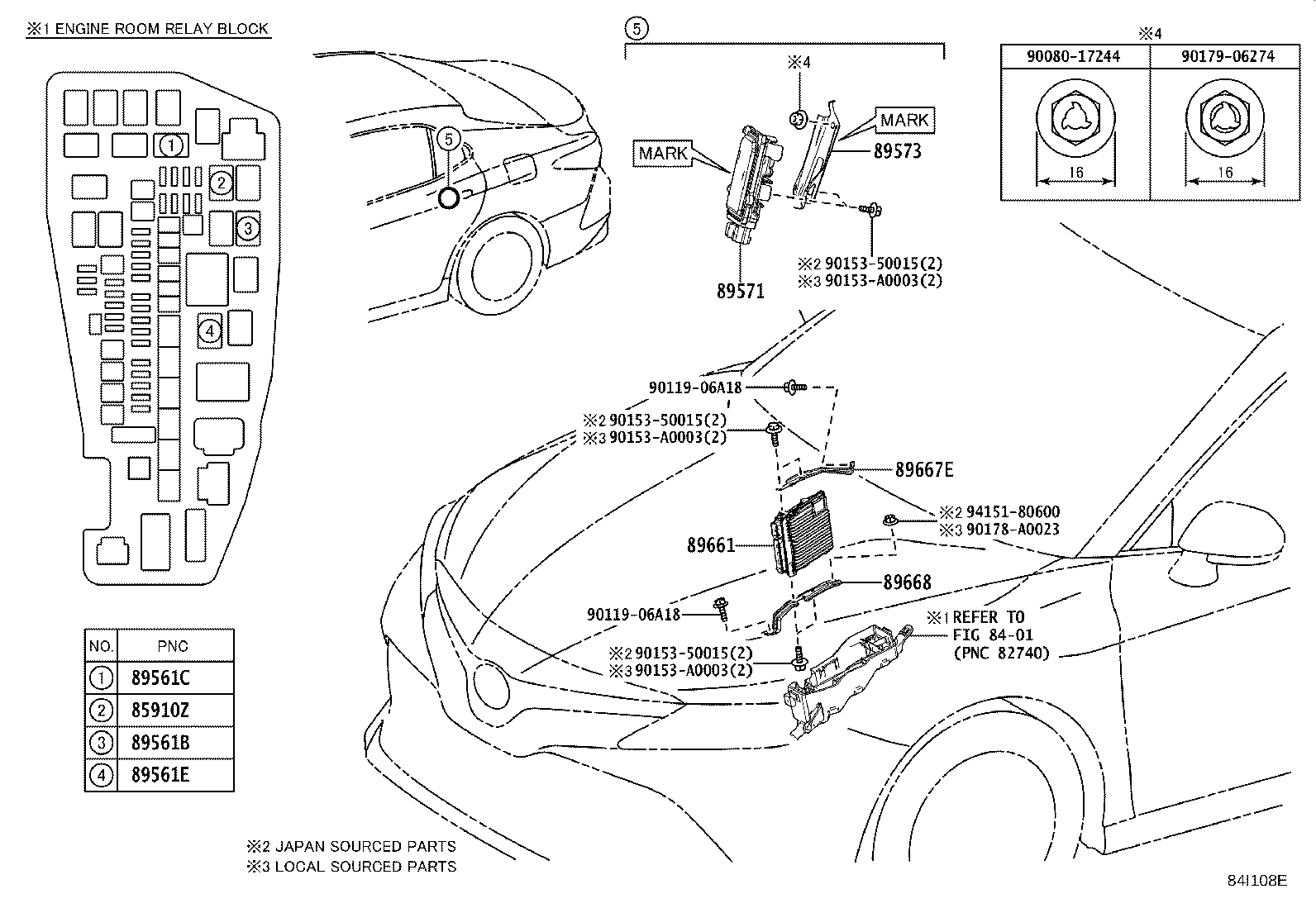

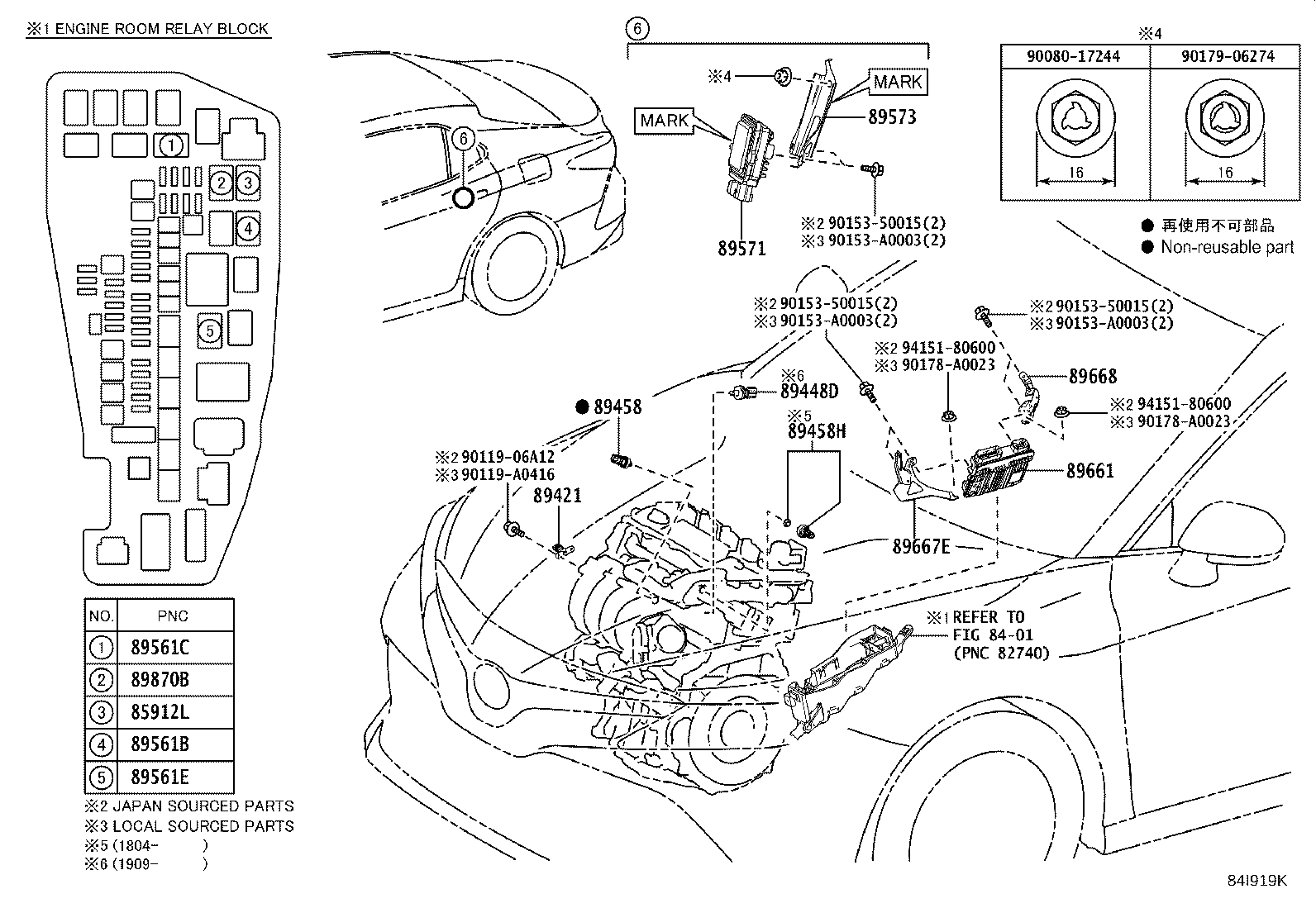

Figure 84I109M 84I109M 2017-06 → — Figure 84I919K 84I919K 2017-06 → — Figure 84I108E 84I108E 2017-06 → —

Part groups

PNCDescription
85910Z Relay, Injection (FOR EFI)
85912L Relay, Vvt
89421 Sensor Assy, Vacuum (FOR E.F.I.)
89448D Sensor, Oil Pressure & Temperature
89458 Sensor, Fuel Pressure
89458H Sensor, Fuel Pressure, NO.2
89561B Relay, Electronic Fuel Injection Main, NO.1
89561C Relay, Electronic Fuel Injection Main, NO.2
89561E Relay, Electronic Fuel Injection Main, NO.3
89571 Computer, Fuel Pump Control
89573 Bracket, Fuel Pump Control Computer
89661 Computer, Engine Control
89667E Bracket, Engine Control Computer, NO.1
89668 Bracket, Engine Control Computer, NO.2
89870B Relay, Electronic Driver Unit
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
