Toyota Camry/Hybrid (NAP)

2017-06 → present · chassis AXVA7#,AXVH7#,GSV70 · catalogue 2834A0 · United States

Supported model Data version 2020-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Navigation & Front Monitor Display

12 part groups · 3 illustrations

Illustrations

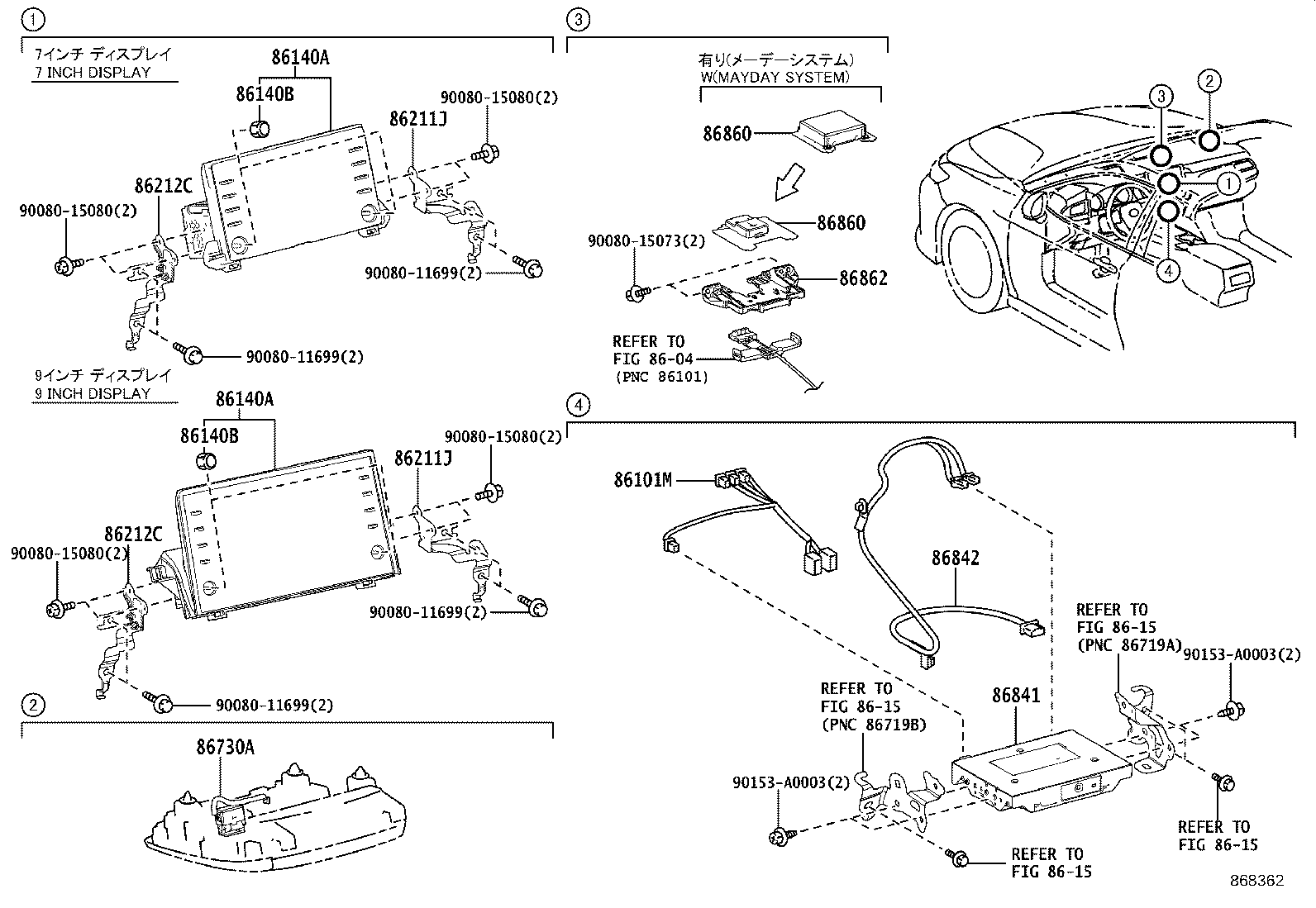

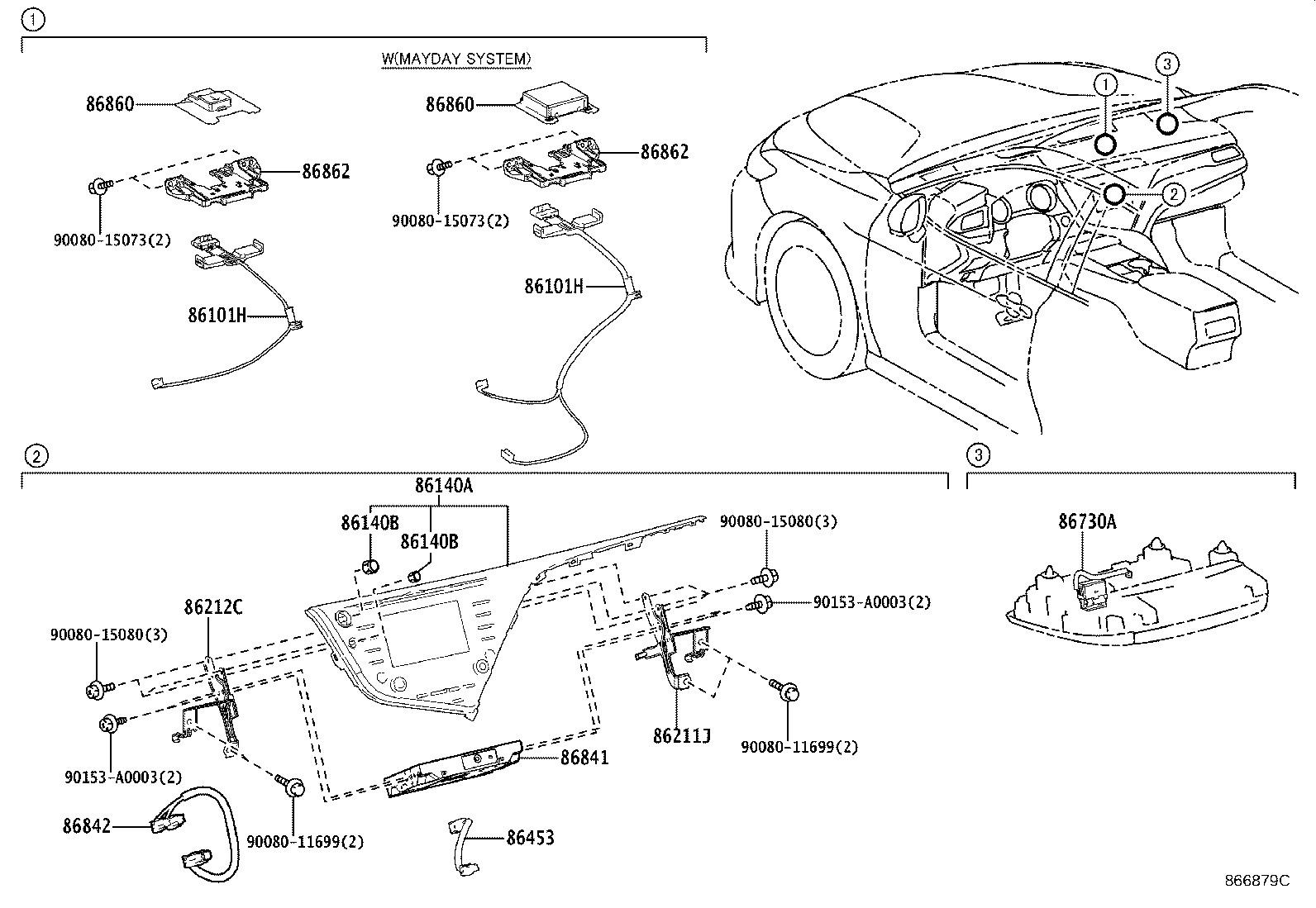

Figure 866878B 866878B 2017-06 → 2020-10 Figure 866879C 866879C 2017-06 → 2020-10 Figure 868362 868362 2020-10 → —

Part groups

PNCDescription
86101H Cord Sub-assy, Antenna
86101M Cord Sub-assy, Antenna
86140A Receiver Assy, Radio & Display
86140B Knob, Radio & Display Receiver Switch
86211J Bracket, Radio Receiver, NO.1
86212C Bracket, Radio Receiver, NO.2
86453 Wire, Multi-media Module
86730A Microphone Assy, Telephone
86841 Computer, Navigation
86842 Wire, Navigation, NO.1
86860 Antenna Assy, Navigation
86862 Bracket, Navigation Antenna
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
