Toyota Camry/Hybrid (NAP)

2017-06 → present · chassis AXVA7#,AXVH7#,GSV70 · catalogue 2834A0 · United States

Supported model Data version 2020-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Compressor

7 part groups · 7 illustrations

Illustrations

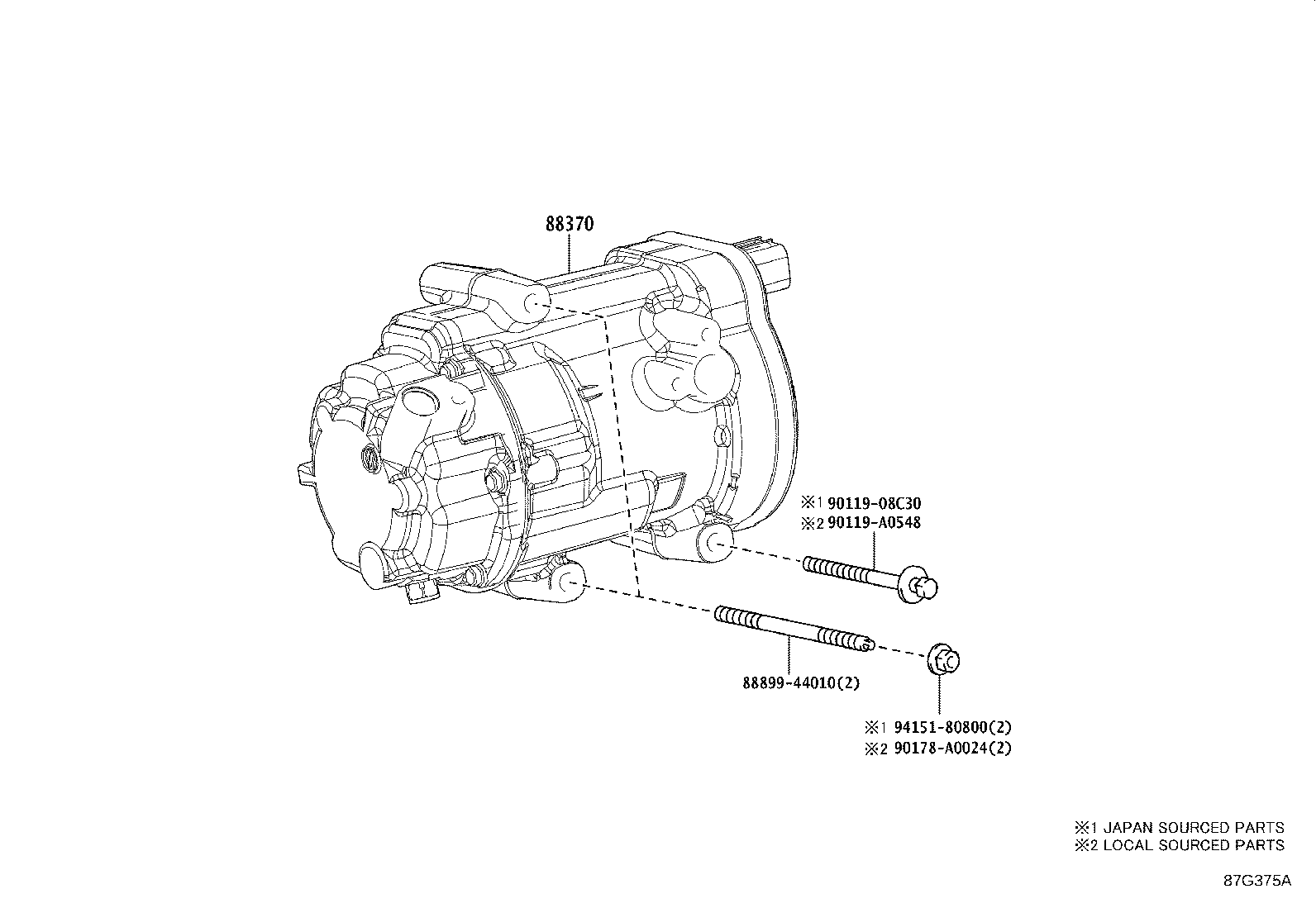

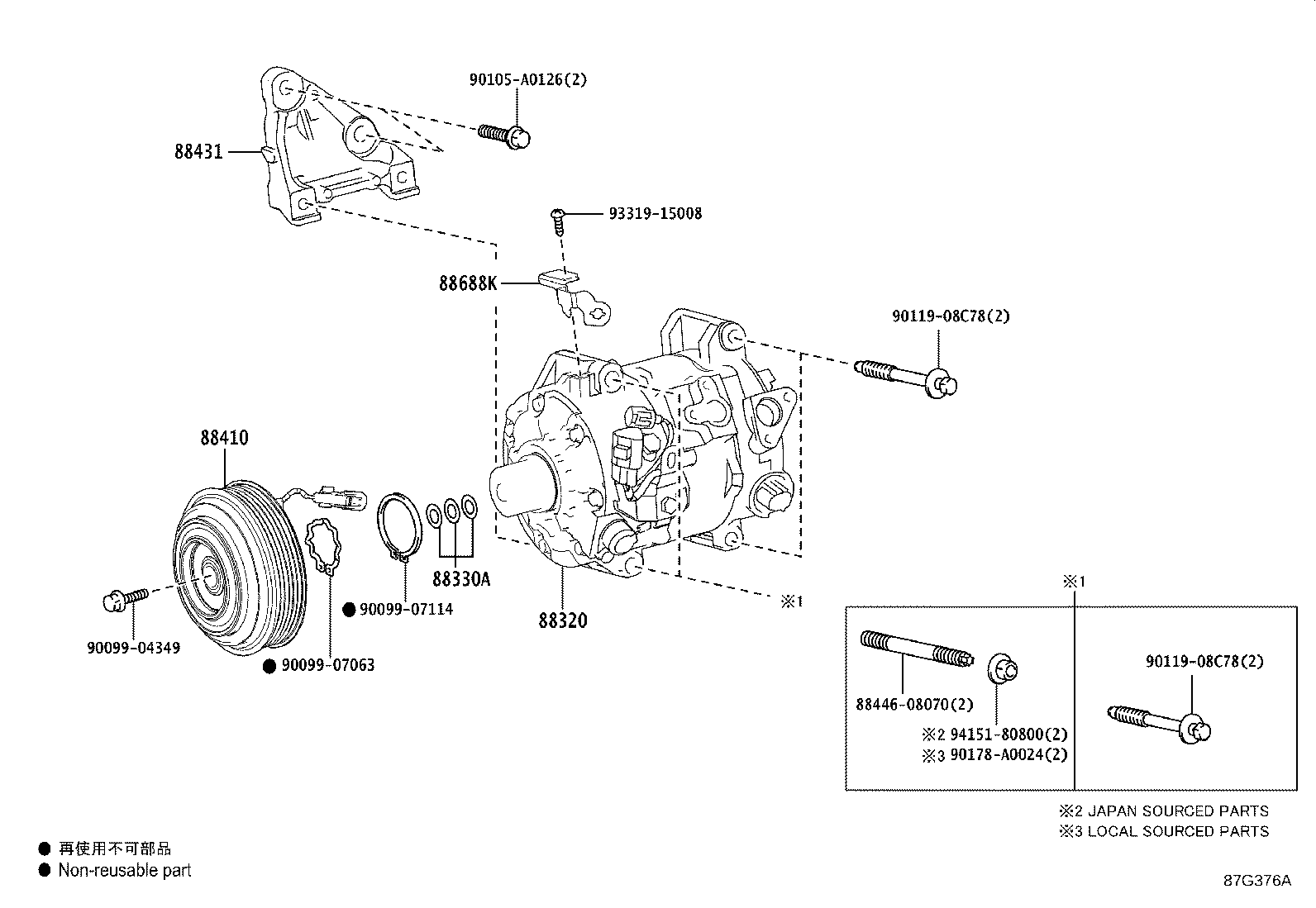

Figure 87G374 87G374 2017-06 → 2020-10 Figure 87G374 87G374 2020-03 → 2020-10 Figure 87G374 87G374 2020-10 → — Figure 87G375A 87G375A 2017-06 → 2020-10 Figure 87G375A 87G375A 2020-10 → — Figure 87G376A 87G376A 2017-06 → 2020-10 Figure 87G376A 87G376A 2020-10 → —

Part groups

PNCDescription
88310 Compressor Assy, W/Pulley
88320 Compressor Assy, Cooler
88330A Washer (FOR MAGNET CLUTCH)
88370 Compressor Assy, W/Motor
88410 Clutch Assy, Magnet
88431 Bracket, Compressor Mounting, NO.1
88688K Bracket, Cooler Compressor
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
