Toyota Camry
2024-04 → present · chassis AXVH8# · catalogue 2834B0 · United States
Supported model
Data version 2024-03

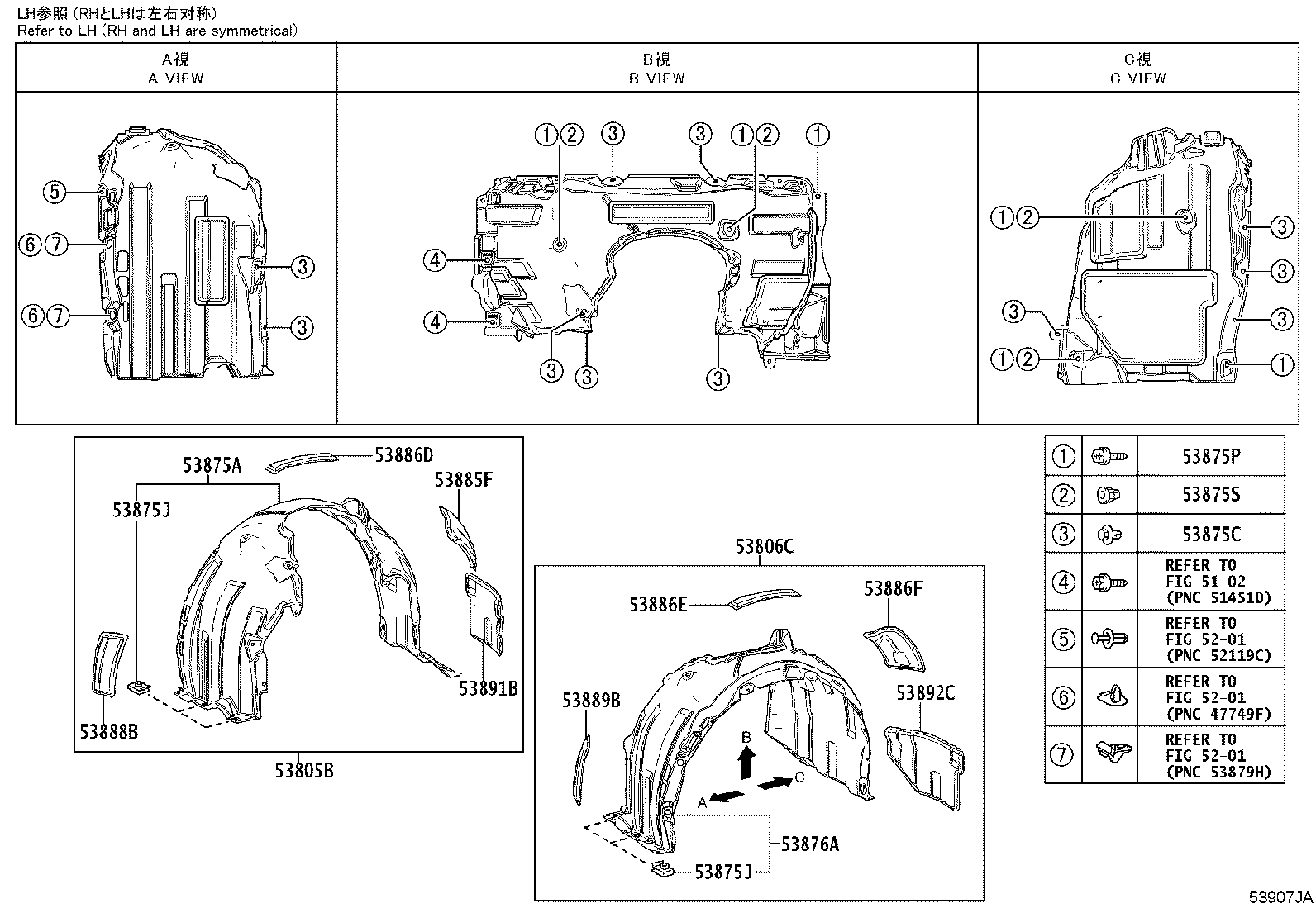

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 53805B — Shield Sub-assy, Fender Splash, Front RH | ||||
| 53805-AQ010 |
Shield Sub-assy, Fender Splash, Front RH
2024-04 → —
|
AXVH8# | — | |
| 53806C — Shield Sub-assy, Fender Splash, Front LH | ||||
| 53806-AQ010 |
Shield Sub-assy, Fender Splash, Front LH
2024-04 → —
|
AXVH8# | — | |
| 53875A — Liner, Front Fender, RH | ||||
| 53875-AQ010 |
Liner, Front Fender, RH
2024-04 → —
|
AXVH8# | — | |
| 53875C — Clip, Front Fender Liner | ||||
| 90467-A0037 |
Clip, Front Fender Liner
2024-04 → —
|
AXVH8# | — | |
| 53875J — Clip, Front Fender Liner | ||||
| 90179-06104 note |
Clip, Front Fender Liner
2024-04 → —
|
AXVH8# | — | |
| 90467-A0036 note |
Clip, Front Fender Liner
2024-04 → —
|
AXVH8# | — | |
| 53875P — Screw, NO.1 | ||||
| 90159-60623 |
Screw, NO.1
2024-04 → —
|
AXVH8# | — | |
| 53875S — Grommet, NO.1 | ||||
| 90189-06236 |
Grommet, NO.1
2024-04 → —
|
AXVH8# | — | |
| 53876A — Liner, Front Fender, LH | ||||
| 53876-AQ010 |
Liner, Front Fender, LH
2024-04 → —
|
AXVH8# | — | |
| 53885F — Shield, Front Fender Splash, Rear RH | ||||
| 53885-AQ010 |
Shield, Front Fender Splash, Rear RH
2024-04 → —
|
AXVH8# | — | |
| 53886D — Silencer, Front Fender Liner | ||||
| 53886-AQ010 |
Silencer, Front Fender Liner
2024-04 → —
|
AXVH8# | — | |
| 53886E — Silencer, Front Fender Liner | ||||
| 53886-AQ010 |
Silencer, Front Fender Liner
2024-04 → —
|
AXVH8# | — | |
| 53886F — Shield, Front Fender Splash, Rear LH | ||||
| 53885-AQ010 |
Shield, Front Fender Splash, Rear LH
2024-04 → —
|
AXVH8# | — | |
| 53888B — Seal, Front Fender Splash Shield, RH NO.2 | ||||
| 53888-AQ010 |
Seal, Front Fender Splash Shield, RH NO.2
2024-04 → —
|
AXVH8# | — | |
| 53889B — Seal, Front Fender Splash Shield, LH NO.2 | ||||
| 53888-AQ010 |
Seal, Front Fender Splash Shield, LH NO.2
2024-04 → —
|
AXVH8# | — | |
| 53891B — Seal, Front Fender Splash Shield, Front RH | ||||
| 53891-AQ010 |
Seal, Front Fender Splash Shield, Front RH
2024-04 → —
|
AXVH8# | — | |
| 53892C — Seal, Front Fender Splash Shield, Front LH | ||||
| 53891-AQ010 |
Seal, Front Fender Splash Shield, Front LH
2024-04 → —
|
AXVH8# | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
