Toyota Camry

2024-04 → present · chassis AXVH8# · catalogue 2834B0 · United States

Supported model Data version 2024-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

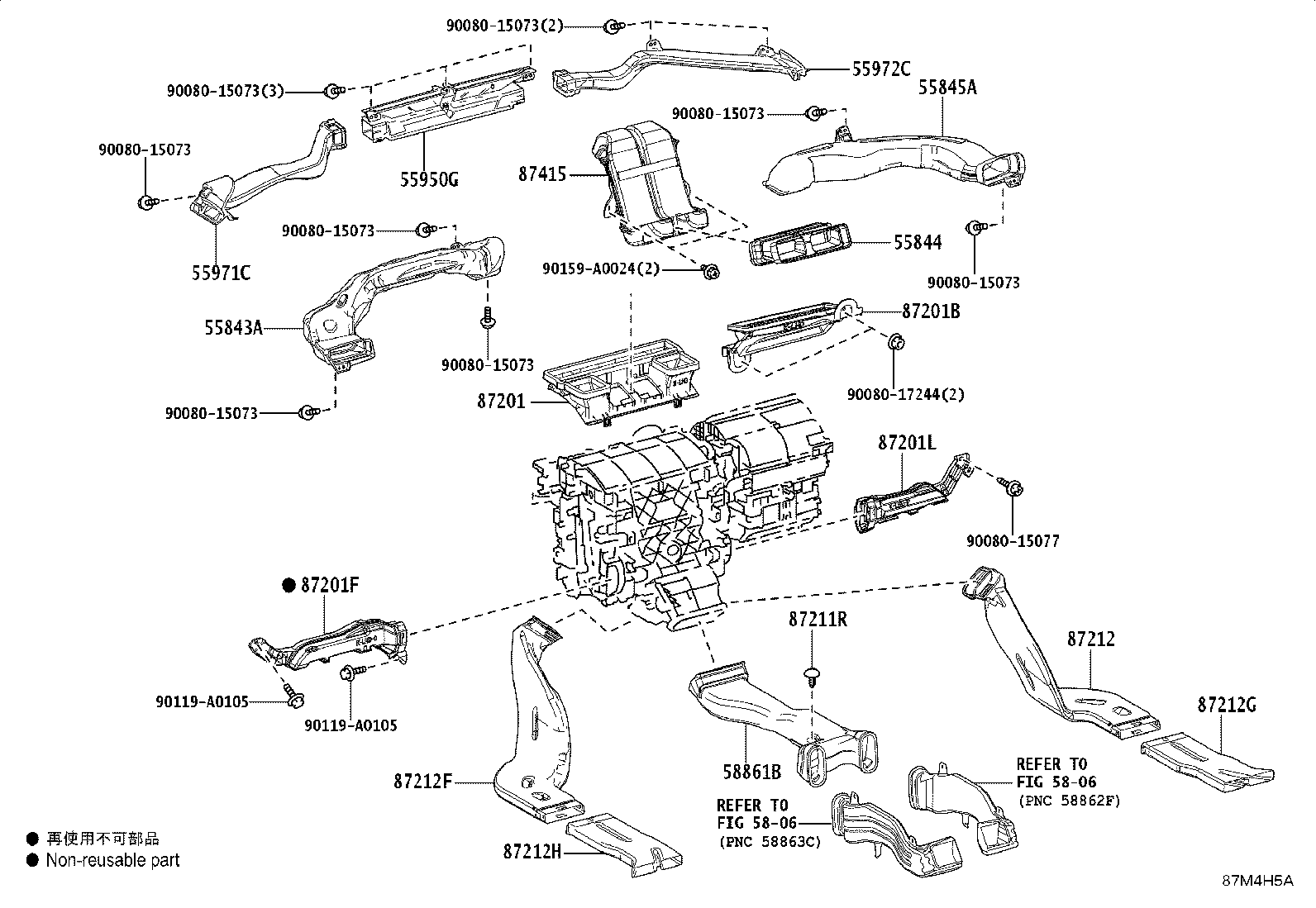

Exploded illustration 87M4H5A 55843A — DUCT, HEATER TO REGISTER, NO.1 (1 parts) 55950G — NOZZLE ASSY, DEFROSTER (1 parts) 55971C — DUCT, SIDE DEFROSTER NOZZLE, NO.1 (1 parts) 55972C — DUCT, SIDE DEFROSTER NOZZLE, NO.2 (1 parts) 87201B — DUCT SUB-ASSY, AIR, NO.2 (1 parts) 87201 — DUCT SUB-ASSY, AIR, NO.1 (1 parts) 9008015077 — not listed in this catalogue 9008015073 — not listed in this catalogue 9008017244 — not listed in this catalogue 87212 — DUCT, AIR, REAR NO.1 (1 parts) 87212G — DUCT, AIR, REAR NO.3 (1 parts) 87212F — DUCT, AIR, REAR NO.2 (1 parts) 87212H — DUCT, AIR, REAR NO.4 (1 parts) 55844 — DUCT, HEATER TO REGISTER, NO.2 (1 parts) 9008015073 — not listed in this catalogue 9008015073 — not listed in this catalogue 9008015073 — not listed in this catalogue 9008015073 — not listed in this catalogue 9008015073 — not listed in this catalogue 55845A — DUCT, HEATER TO REGISTER, NO.3 (1 parts) 9008015073 — not listed in this catalogue 9008015073 — not listed in this catalogue 58861B — DUCT, CONSOLE BOX, NO.1 (1 parts) 87211R — CLIP, AIR DUCT (1 parts) 90119A0105 — not listed in this catalogue 90119A0105 — not listed in this catalogue 87201F — DUCT SUB-ASSY, AIR, NO.3 (1 parts) 87201L — DUCT SUB-ASSY, AIR, NO.4 (1 parts) 5806 — not listed in this catalogue 5806 — not listed in this catalogue 87415 — DUCT, AIR (1 parts) 90159A0024 — not listed in this catalogue
87M4H5A · 17 callouts, 15 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
17 parts on this figure
Part number Description Fitment Price
55843A — Duct, Heater TO Register, NO.1
55843-AQ010 Duct, Heater TO Register, NO.1
2024-04 → —
AXVH8# —
55844 — Duct, Heater TO Register, NO.2
55844-AQ010 Duct, Heater TO Register, NO.2
2024-04 → —
AXVH8# —
55845A — Duct, Heater TO Register, NO.3
55845-AQ010 Duct, Heater TO Register, NO.3
2024-04 → —
AXVH8# —
55950G — Nozzle Assy, Defroster
55950-06160 Nozzle Assy, Defroster
2024-04 → —
AXVH8# —
55971C — Duct, Side Defroster Nozzle, NO.1
55971-06150 Duct, Side Defroster Nozzle, NO.1
2024-04 → —
AXVH8# —
55972C — Duct, Side Defroster Nozzle, NO.2
55972-06150 Duct, Side Defroster Nozzle, NO.2
2024-04 → —
AXVH8# —
58861B — Duct, Console Box, NO.1
58861-06200 Duct, Console Box, NO.1
2024-04 → —
AXVH8# —
87201 — Duct Sub-assy, Air, NO.1
87201-06C00 Duct Sub-assy, Air, NO.1
2024-04 → —
AXVH8# —
87201B — Duct Sub-assy, Air, NO.2
87201-06760 Duct Sub-assy, Air, NO.2
2024-04 → —
AXVH8# —
87201F — Duct Sub-assy, Air, NO.3
87201-06740 Duct Sub-assy, Air, NO.3
2024-04 → —
AXVH8# —
87201L — Duct Sub-assy, Air, NO.4
87201-06750 Duct Sub-assy, Air, NO.4
2024-04 → —
AXVH8# —
87211R — Clip, Air Duct
90467-A0001-C1 note Clip, Air Duct
2024-04 → —
AXVH8# —
87212 — Duct, Air, Rear NO.1
87212-06090 Duct, Air, Rear NO.1
2024-04 → —
AXVH8# —
87212F — Duct, Air, Rear NO.2
87213-06091 Duct, Air, Rear NO.2
2024-04 → —
AXVH8# —
87212G — Duct, Air, Rear NO.3
87215-06050 Duct, Air, Rear NO.3
2024-04 → —
AXVH8# —
87212H — Duct, Air, Rear NO.4
87216-06050 Duct, Air, Rear NO.4
2024-04 → —
AXVH8# —
87415 — Duct, Air
87415-06010 Duct, Air
2024-04 → —
AXVH8# —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
