Toyota Camry

2024-04 → present · chassis AXVH8# · catalogue 2834B0 · United States

Supported model Data version 2024-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Exhaust Pipe

13 part groups · 3 illustrations

Illustrations

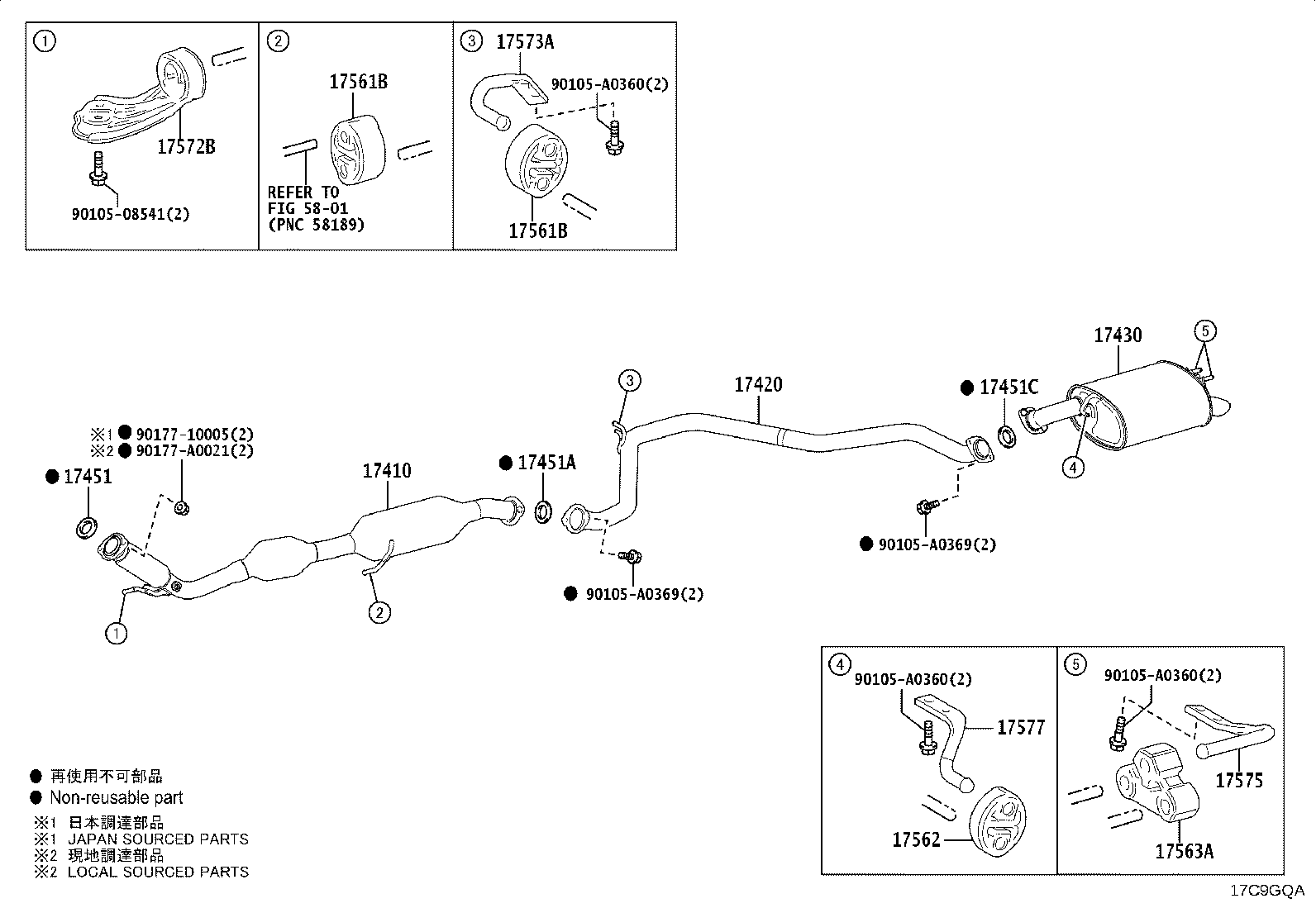

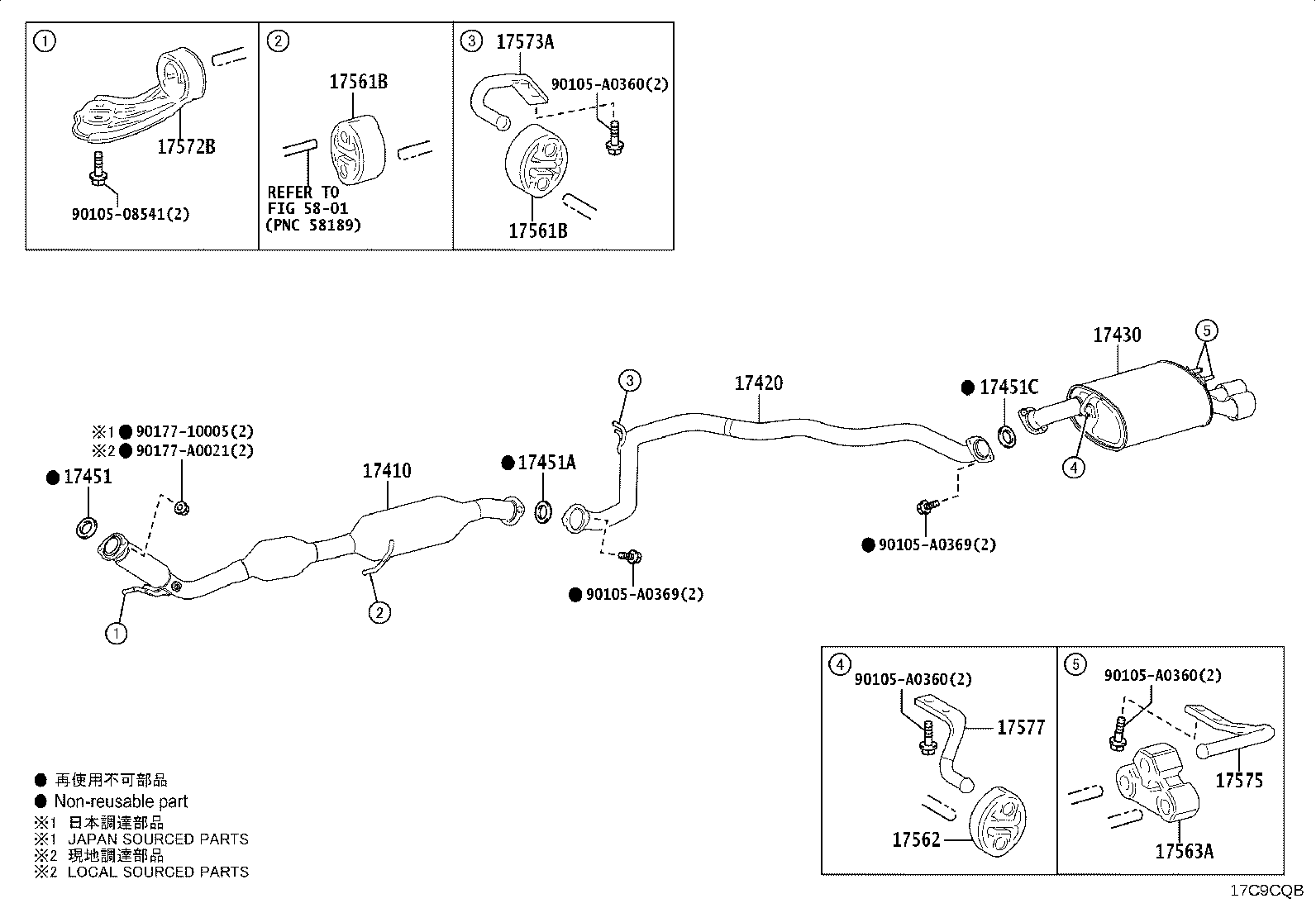

Figure 17C9CRB 17C9CRB 2024-04 → 2024-08 Figure 17C9GQA 17C9GQA 2024-08 → — Figure 17C9CQB 17C9CQB 2024-04 → —

Part groups

PNCDescription
17410 Pipe Assy, Exhaust, Front
17420 Pipe Assy, Exhaust, Center
17430 Pipe Assy, Exhaust, Tail
17451 Gasket, Exhaust Pipe
17451A Gasket, Exhaust Pipe, NO.2
17451C Gasket, Exhaust Pipe, NO.3
17561B Support, Exhaust Pipe, NO.1
17562 Support, Exhaust Pipe, NO.2
17563A Support, Exhaust Pipe, NO.3
17572B Bracket, Exhaust Pipe Support, NO.2
17573A Bracket, Exhaust Pipe Support, NO.3
17575 Bracket, Exhaust Pipe Support, NO.5
17577 Bracket, Exhaust Pipe Support, NO.7
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
